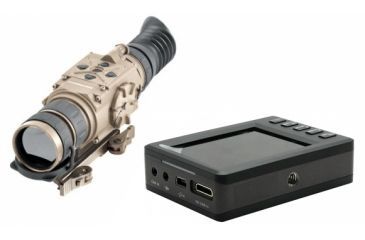

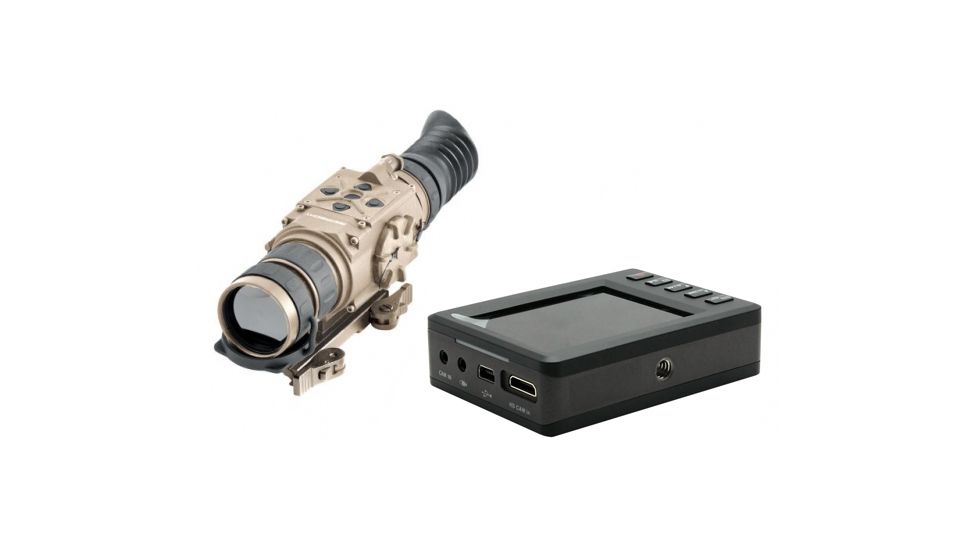

Armasight OPMOD Zeus 336 3-12x42 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256 17µm Core, 42mm Lens
$4,475.00 $5,370.00 Save 17%
Code: 99-HS-OPMOD-ZEUS3-TAT173WN4OP0032
MPN: TAT173WN4OP0032
UPC: 849815003765
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

You Save 17%

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Armasight OPMOD Zeus 336 3-12x42 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256 (17µm) Core, 42mm Lens Product Info

The OPMOD Armasight Zeus 3 thermal rifle scope is the pinnacle of high end low light/no light thermal rifle scope technology. Unlike standard night vision technology, no amount of camouflage or tactics will allow you to hide from a thermal imaging device like the OPMOD Armasight Zeus 3. Whether you're hunting the feral pig population during the cover of dark or safeguarding your livestock from pesky coyotes, thermal is the way to go. The OPMOD Armasight Zeus 3 features the premier FLIR camera for the highest performance. The FLIR core technology offers excellent thermal sensitivity and image quality. The OPMOD Zeus 3 offers a large 42mm objective made of germanium to give users the best sight picture possible. All this performance means nothing if you can't protect it, the OPMOD Armasight Zeus 3 is built around an aircraft grade aluminum housing to safeguard the essential components. The sky's the limit when it comes to reticle and image color options, giving you over 30 different reticle and image palette combinations.

OPMOD TAT173WN4OP0032: Armasight OPMOD Zeus 336 3-12x42 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256 (17µm) Core, 42mm Lens

Specifications for OPMOD Armasight thermal Imaging Riflescope - Zeus 3:

Magnification (NTSC/PAL): 2.8x/3.4x
Objective Lens Type: Germanium
Type of Focal Plane Array: FLIR Tau 2
Pixel Array Format: 336x256
Pixel Size: 17um
Resolution, mrad: .23
Display Type: AMOLED SVGA 060
Pixel Display Format: 800×600
Display Brightness: Discretely Adjustable to 8 Levels
Turn-on Time, max: 3 sec
Digital Zoom: 1x, 2x, 4x
Temperature Imaging Modes (Image Palettes): White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain and OEM Custom
Reticle Type 6-Pattern Digitally Controlled: "Dot 4 MOA", "Line Dot", "Cross Center Dot", "Cross", "Crosshair", and "No Reticle"
Reticle Color: Black, White, Red, Cyan
Windage/Elevation Boresight Adjustment Type: Digitally Controlled
Windage/Elevation Boresight Increment: 1.3 MOA
Windage Adjustment Range: ±105MOA
Elevation Adjustment Range: ±80MOA
Output Resolution: PAL - 768×574 pixels; NTSC - 640×480 pixels
Weapon Mount Type: Picatinny MIL STD 1913 and Weaver Rails
Dimensions: 10"×2.8"×3.2"
Height of the Zeus Axis above Rail: 40 mm (1.57 in)
Weight (w/o Batteries): 1.8 lbs
Field of View ang. X degrees: 7.8
Field of View ang. Y Degrees: 5.9
Objective Focal Length: 42mm
Objective F-Number: 1;1.3
Eyepiece Focal Length: 25 mm
Entrance Pupil Diameter: 60mm
Exit Pupil Diameter: 10 mm
Eye Relief: 45 mm
Focus Method: Manual
Focusing Range: 5 m to inf.
Diopter Adjustment: Manual
Diopter Adjustment Range: ±5 diopter
Battery Two: CR 123A (2×3V)
Current Consumption, maximum: 350 mA
Battery Life at 20 °C (68 °F): 4 hr
External Power Supply: 6 VDC/ 1 А
Operating Temperature: -40 to +50 °C (-40 to +122 °F)
Storage Temperature: -50 to +70 °C (-58 to +158 °F)
Recoil Resistance: 700g
Immersion: 10 m for 30 min

Features of OPMOD Armasight Zeus 3 Thermal Rifle Scope:

  • Multi-version with magnifications in the range of 1.5x to 7.2x
  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Adjustable display brightness
  • Selectable 6-pattern reticle including no reticle option
  • Switchable reticle color
  • Selectable image palette
  • Field environment corrections
  • Windage/Elevation boresighting
  • Displaying information on the current operating state (battery status, active function etc.)
  • Wireless remote control
  • Analog video input and output (NTSC/PAL)
  • Powered by two standard CR123A batteries.
  • Power input capability
  • Digital video recorder (optional)
  • Fits any Picatinny MIL STD 1913 and Weaver rail with an adjustable quick-release mount Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging
  • Waterproof
  • Limited two-yearwarranty

Package Contents:

  • OPMOD Zeus 3 Thermal Imaging Riflescope
  • Objective Lens Cap
  • Eyecup
  • Mount
  • CR123A Lithium Battery
  • Advanced Wireless Remote Control (AWREC)
  • Picatinny Adapter for Advanced Wireless Remote Control
  • Operation and Maintenance Manual
  • Soft Carrying Case
  • Hard Shipping/Storage Case
  • Video Cable
