Armasight Zeus 3 Thermal Imaging Rifles Scope 2.8x Magnification 640x512 Core 30 Hz TAT163WN7ZEUS31
$6,495.00 $7,793.00 Save 17%
Model: Armasight Zeus 3 Thermal Imaging Rifles Scope 2.8x Magnification 640x512 Core 30 Hz TAT163WN7ZEUS31
Code: 0A-HS-ZEUS3-TAT163WN7ZEUS31
MPN: TAT163WN7ZEUS31
UPC: 849815001563
Armasight Zeus 3 Thermal Imaging Rifles Scope 3.4x Magnification 640x512 Core 30 Hz TAT166WN7ZEUS31
$7,299.00 $8,758.00 Save 17%
Model: Armasight Zeus 3 Thermal Imaging Rifles Scope 3.4x Magnification 640x512 Core 30 Hz TAT166WN7ZEUS31
Code: 0A-HS-ZEUS3-TAT166WN7ZEUS31
MPN: TAT166WN7ZEUS31
UPC: 849815001556
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $6,74499 You Save 16%

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

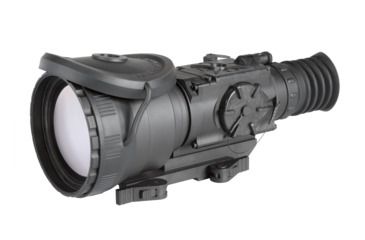

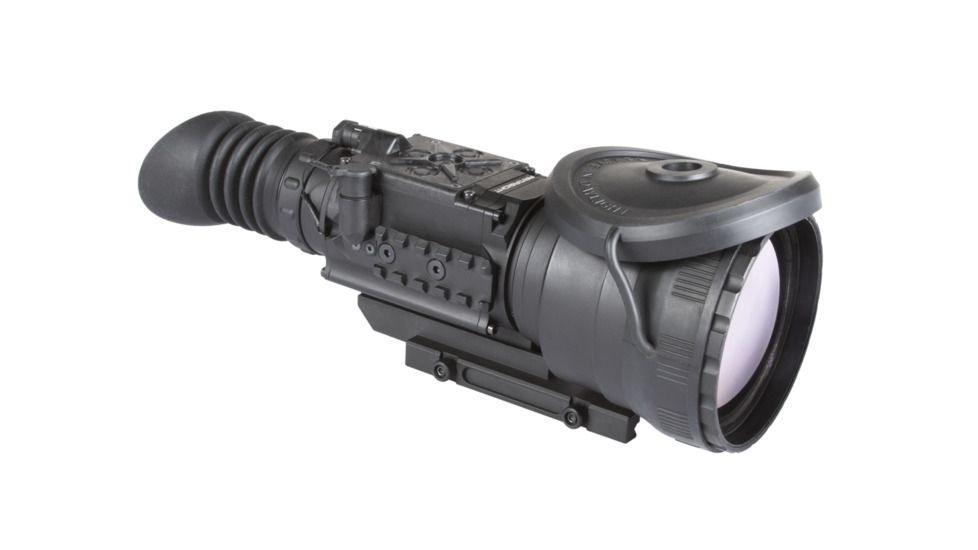

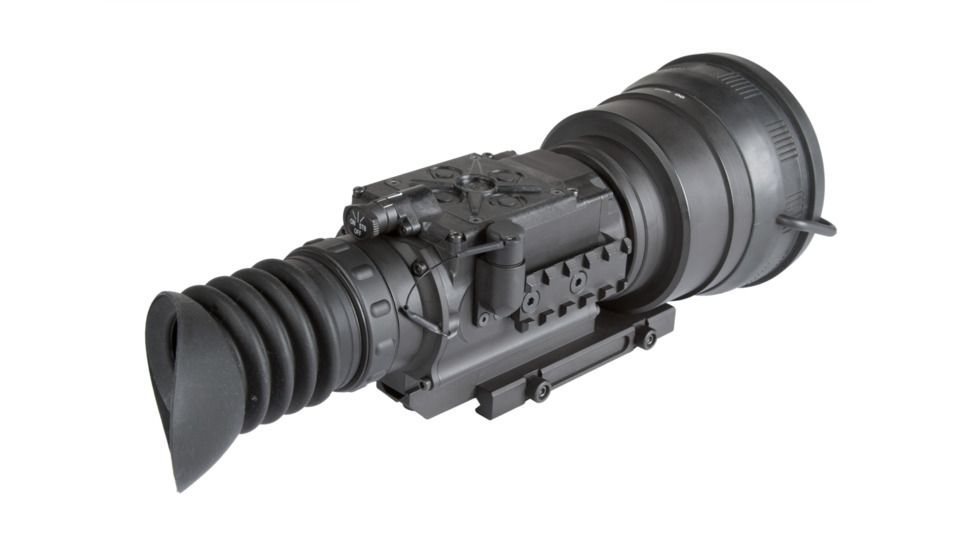

Armasight Zeus 3 Thermal Imaging 42mm Rifle Scope Product Info

The Armasight Zeus 3 Thermal Imaging Riflescope is the perfect combination of ergonomic features in a handheld scope with weapon mounting capabilities. Based on the proven microbolometer core, the this Tactical Riflescope from Armasight is an ideal product for force protection, border patrol officers, police SWAT officers and special operations forces, providing users with the necessary tools to be successful in both daytime and nighttime field conditions. The uncooled thermal imaging of the Armasight Zeus 3 Tactical Thermal Scope cuts through dust, smoke, fog, haze, and other battlefield obscurants. Use of this Armasight Thermal Imaging Riflescope cannot be detected, as it emits no visible light or RF energy and operates without the use of illuminators or IR lights. For a great way to make sure that you have the tactical advantage, choose the Armasight Zeus III Thermal Imaging Rifle Scope.

Armasight TAT163WN7ZEUS31: Zeus 3 Thermal Imaging Rifles Scope 2.8x Magnification 640x512 Core 30 Hz
Armasight TAT166WN7ZEUS31: Zeus 3 Thermal Imaging Rifles Scope 3.4x Magnification 640x512 Core 30 Hz

Specifications for Armasight thermal Imaging Riflescope - Zeus 3:

Magnification (NTSC/PAL): 2.8x / 3.4x
Objective Lens Type: Germanium
Type of Focal Plane Array: FLIR Tau 2
Pixel Array Format: 640x512
Pixel Size: 17um
Resolution, mrad: .23
Display Type: AMOLED SVGA 060
Pixel Display Format: 800×600
Display Brightness: Discretely Adjustable to 8 Levels
Turn-on Time, max: 3 sec
Digital Zoom: 1x, 2x, 4x, and 8x
Temperature Imaging Modes (Image Palettes): White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom Color Modes White Hot/ Black Hot/ Rainbow/ Colour
Reticle Type 6-Pattern Digitally Controlled: "Dot 4 MOA", "Line Dot", "Cross Center Dot", "Cross", "Crosshair", or "No Reticle", and "No Reticle"
Reticle Color: Black, White, Red, Cyan
Windage/Elevation Boresight Adjustment Type: Digitally Controlled
Windage/Elevation Boresight Increment: .46 MOA
Windage Adjustment Range: +-60 MOA
Elevation Adjustment Range: +-46 MOA
Output Resolution: PAL - 768×574 pixels; NTSC - 640×480 pixels
Weapon Mount Type: Picatinny MIL STD 1913 and Weaver Rails
Dimensions: 10"×2.8"×3.2"
Height of the Zeus Axis above Rail: 40 mm (1.57 in)
Weight (w/o Batteries): 1.8 lbs
Field of View ang. X degrees: 4.3
Field of View ang. Y Degrees: 3.3
Objective Focal Length: 75mm
Objective F-Number: 1;1.3
Eyepiece Focal Length: 25 mm
Entrance Pupil Diameter: 60mm
Exit Pupil Diameter: 10 mm
Eye Relief: 45 mm
Focus Method: Manual
Focusing Range: 10 m to inf.
Diopter Adjustment: Manual
Diopter Adjustment Range: ±5 diopter
Battery Two: CR 123A (2×3V)
Current Consumption, maximum: 350 mA
Battery Life at 20 °C (68 °F): 4 hr
External Power Supply: 6 VDC/ 1 А
Operating Temperature: -40 to +50 °C (-40 to +122 °F)
Storage Temperature: -50 to +70 °C (-58 to +158 °F)
Recoil Resistance: 700g
Immersion: 10 m for 30 min

Features of Armasight Zeus 3 Thermal Imaging Riflescope:

  • Multi-version with magnifications in the range of 1.5x to 7.2x
  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Adjustable display brightness
  • Selectable 6-pattern reticle including no reticle option
  • Switchable reticle color
  • Selectable image palette
  • Temperature measurement
  • Hunting scenarios function
  • Field environment corrections
  • Zoom
  • Windage/Elevation boresighting
  • Displaying information on the current operating state (battery status, active function etc.)
  • Wireless remote control
  • Analog video input and output (NTSC/PAL)
  • Powered by two standard CR123A batteries.
  • Power input capability
  • Digital video recorder (optional)
  • Fits any Picatinny MIL STD 1913 and Weaver rail with an adjustable quick-release mount Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging
  • Waterproof
  • Limited two-year warranty

Package Contents:

  • Armasight Zeus 3 Thermal Imaging Riflescope
  • Objective Lens Cap
  • Eyecup
  • Mount
  • CR123A Lithium Battery
  • Advanced Wireless Remote Control (AWREC)
  • Picatinny Adapter for Advanced Wireless Remote Control
  • Operation and Maintenance Manual
  • Soft Carrying Case
  • Hard Shipping/Storage Case
