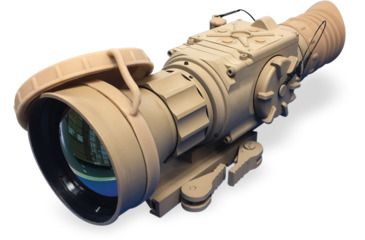

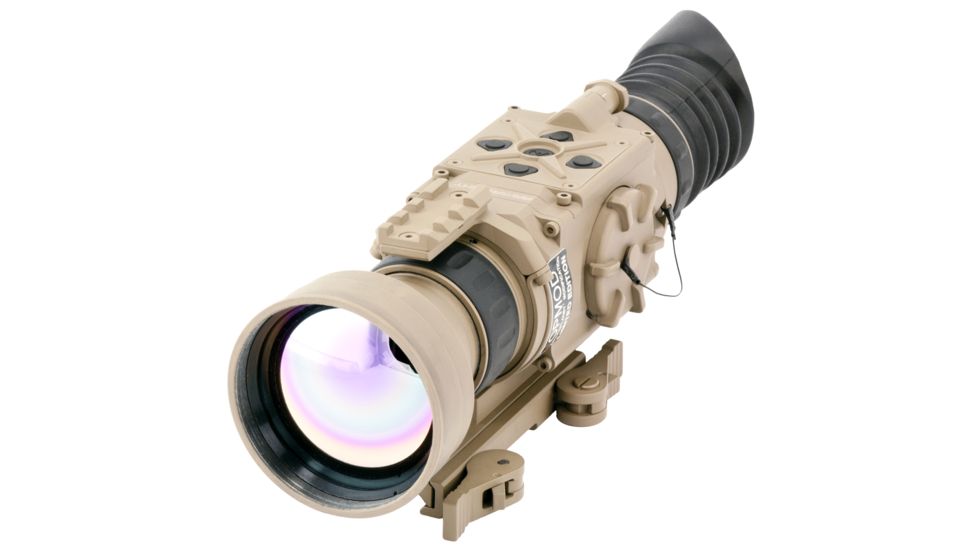

Armasight TAT173WN7ZEUS51 Zeus 336 5-20x75 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256 17um 30 Hz Core, 75mm Lens
$4,995.00 $5,994.00 Save 17%
Additional Features: 30HZ
Code: 0A-HS-ZEUS5-TAT173WN7ZEUS51
MPN: TAT173WN7ZEUS51
UPC: 818470012405
Armasight TAT176WN7ZEUS51 Zeus 336 5-20x75 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256, 17um 60 Hz Core, 75mm Lens
$5,095.00 $6,115.00 Save 17%
Additional Features: 60HZ
Code: 0A-HS-ZEUS5-TAT176WN7ZEUS51
MPN: TAT176WN7ZEUS51
UPC: 849815001532
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $7,49400 You Save 17%

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

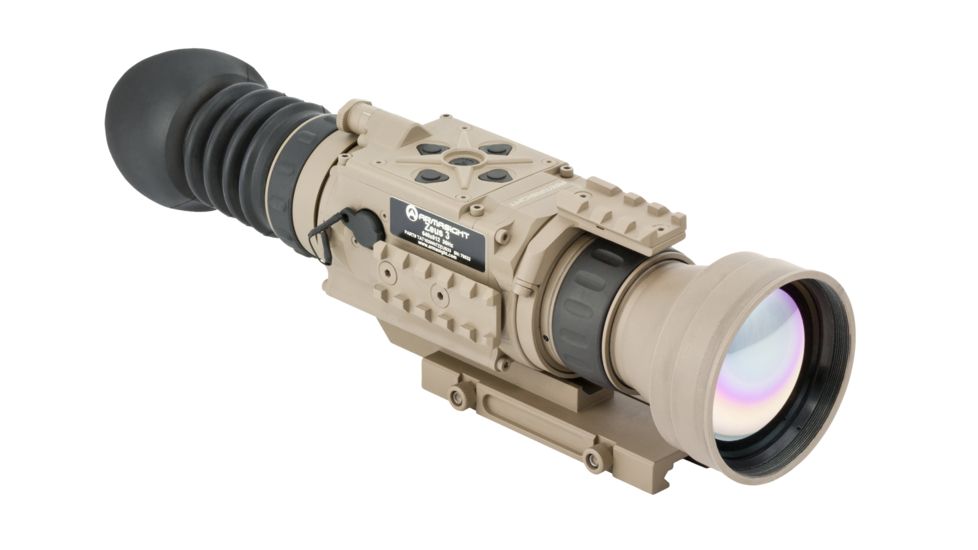

Zeus 336 5-20x75 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256, 17um Core, 75mm Lens Product Info

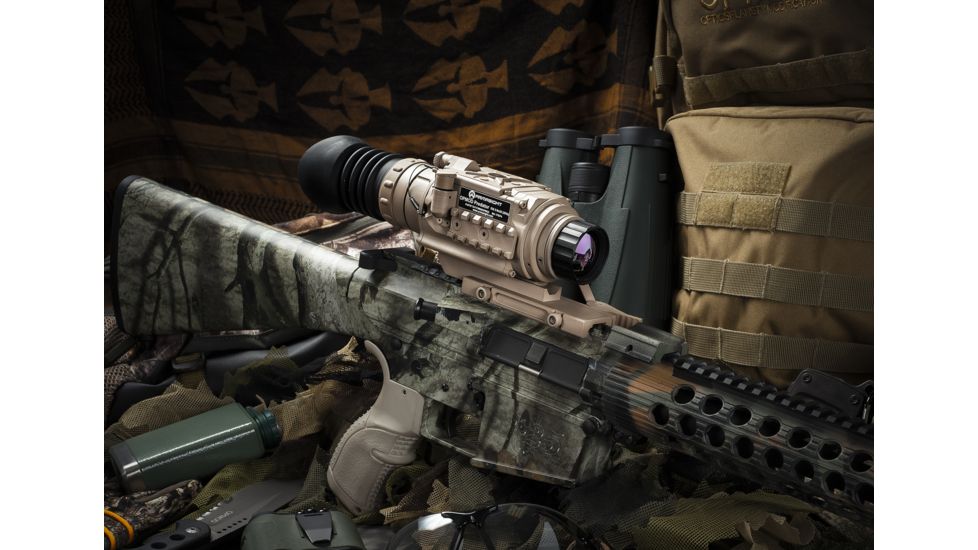

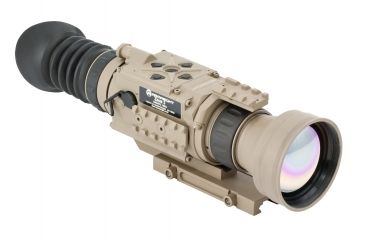

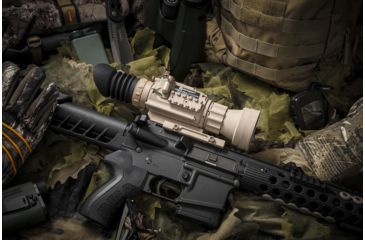

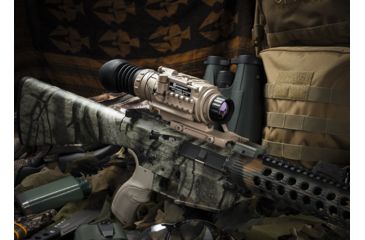

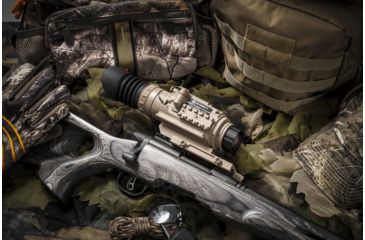

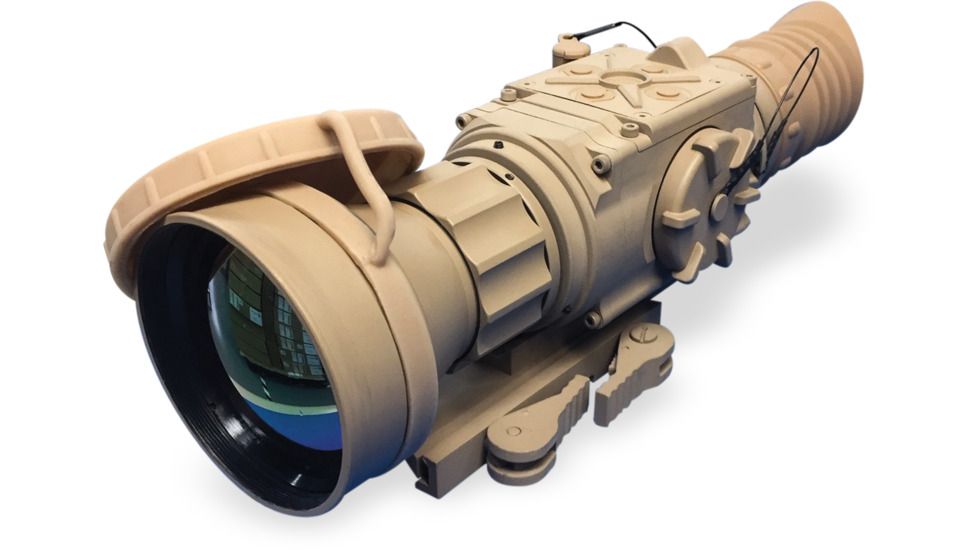

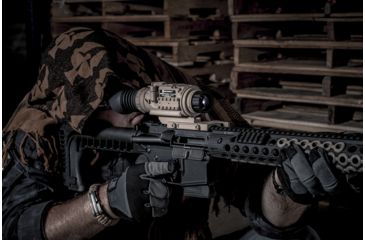

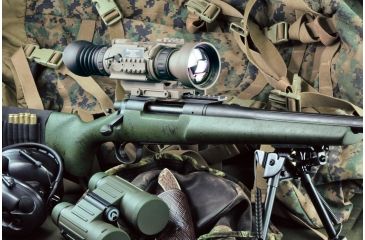

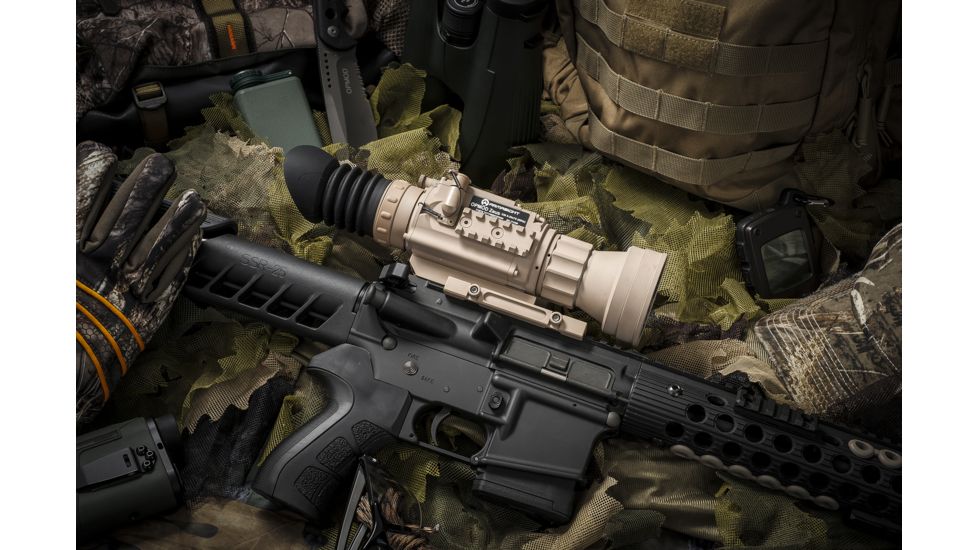

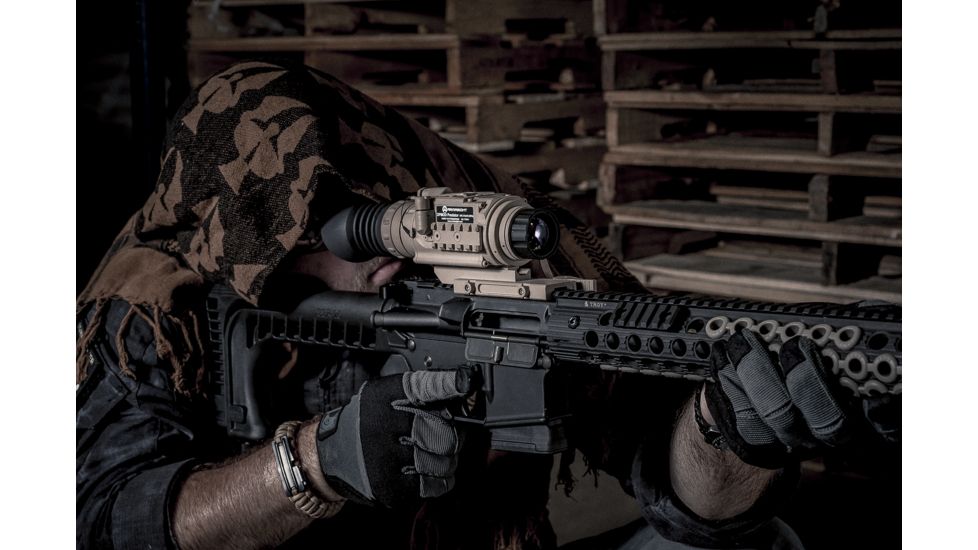

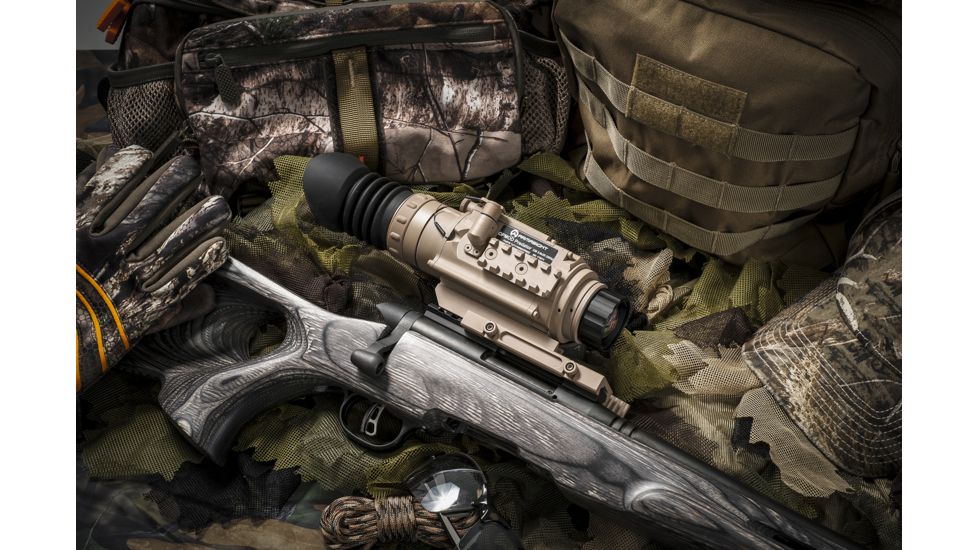

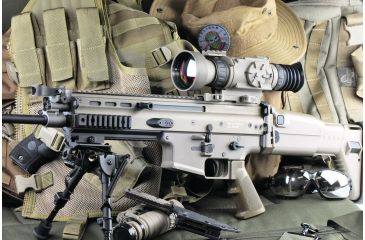

The Armasight Zeus 5X 30/60 Hz Thermal Imaging Riflescope has been designed with the ergonomic features of a handheld scope with the additional convenience of weapon mounting capabilities. Based on the proven microbolometer core, this Thermal Scope from Armasight is the perfect scope for force protection, border patrol officers, police SWAT officers and special operations forces, providing users with the necessary tools to be successful in both daytime and nighttime field conditions. The uncooled thermal imaging on the Armasight Zeus 5 30Hz Thermal Imaging Riflescope cuts through dust, smoke, fog, haze, and other battlefield obscurants. Use of this Armasight Thermal Riflescope cannot be detected, as it emits no visible light or RF energy and operates without the use of illuminators or IR lights. For a great way to make sure you have the advantage in the field, choose the Armasight Zeus 5 Thermal Imaging Tactical Sight.

Armasight TAT173WN7ZEUS51: Zeus 336 5-20x75 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256 17um 30 Hz Core, 75mm Lens
Armasight TAT176WN7ZEUS51 Zeus 336 5-20x75 Thermal Imaging Weapon Sight, FLIR Tau 2 336x256, 17um 60 Hz Core, 75mm Lens

Specifications for Armasight Thermal Imaging Riflescope - Zeus 5:

Magnification (NTSC/PAL): Optical Magnification 6x(PAL)/ 5x(NTSC)
Objective Lens Type: Germanium
Type of Focal Plane Array: FLIR Tau 2
Pixel Array Format: 336×256
Pixel Size: 17um
Resolution, mrad: .23
Display Type: AMOLED SVGA 060
Pixel Display Format: 800×600
Display Brightness: Discretely Adjustable to 8 Levels
Turn-on Time, max: 3 sec

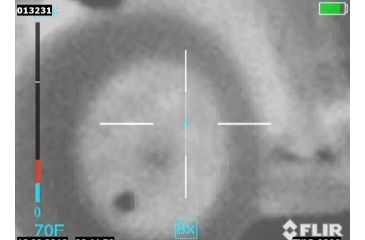

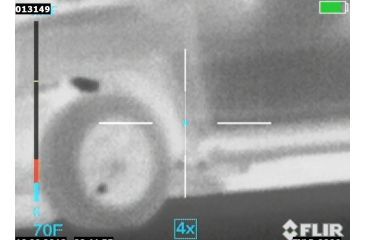

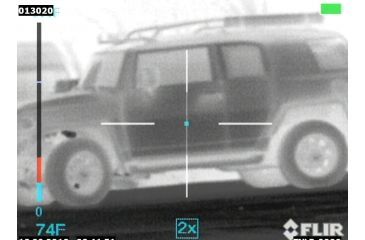

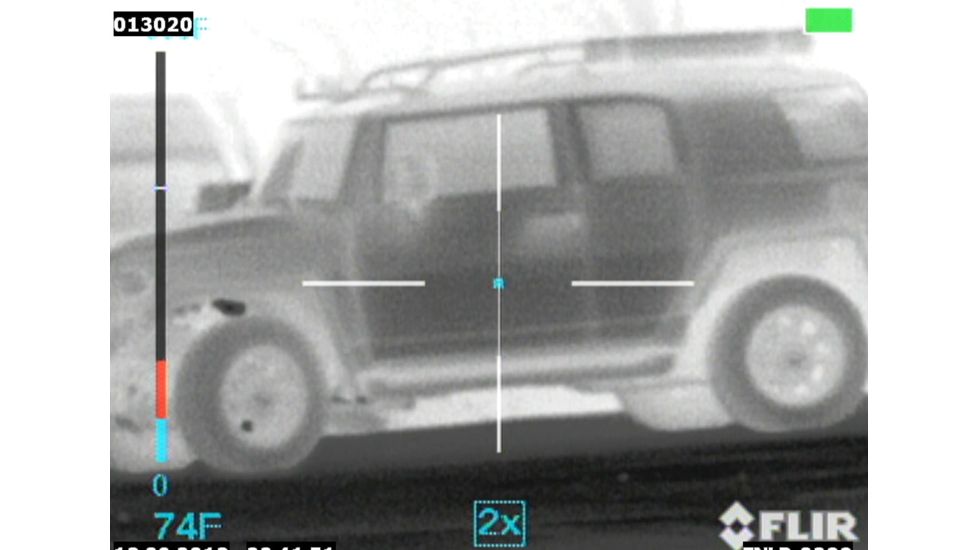

Digital Zoom: up to 4x

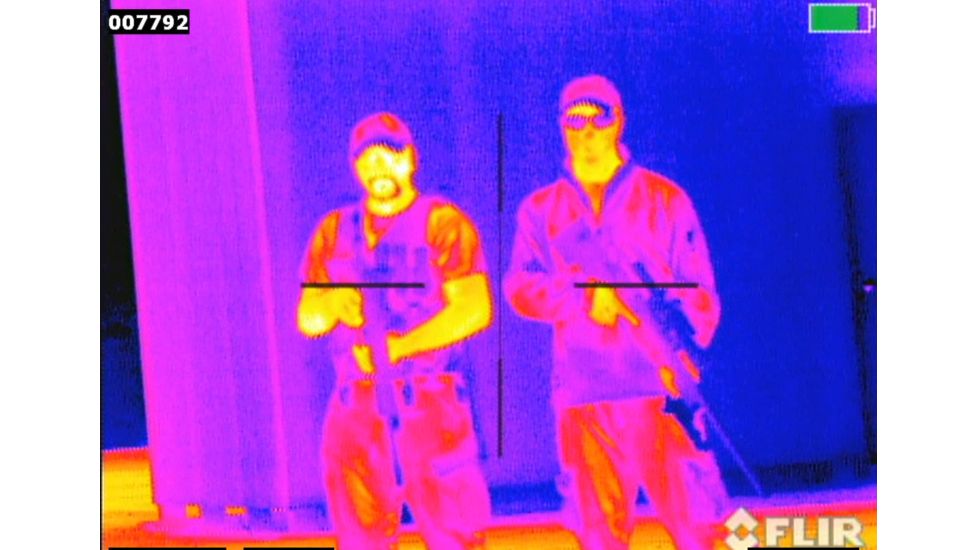

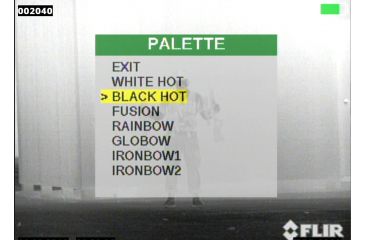

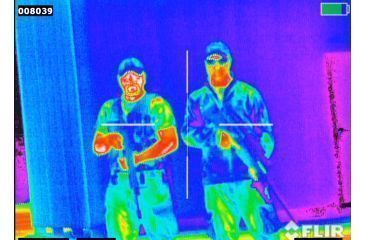

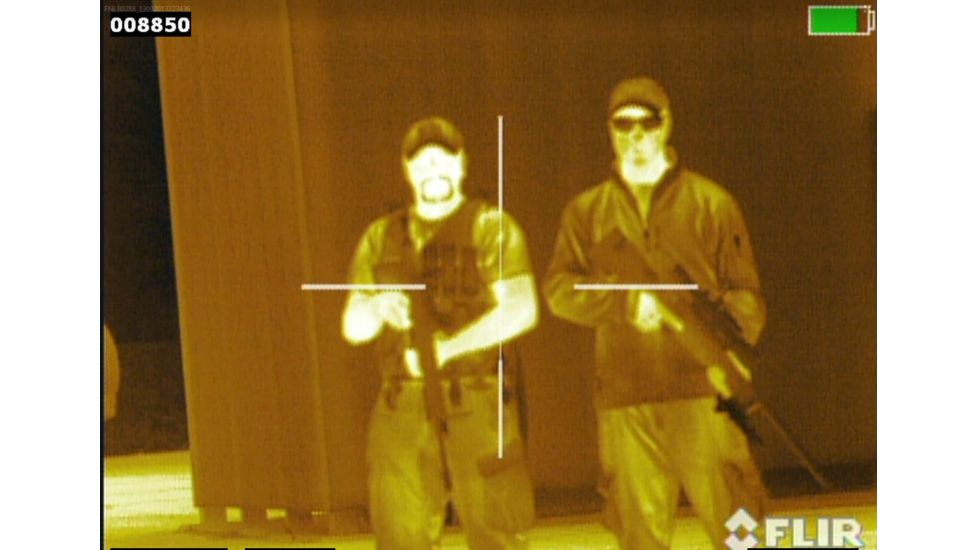

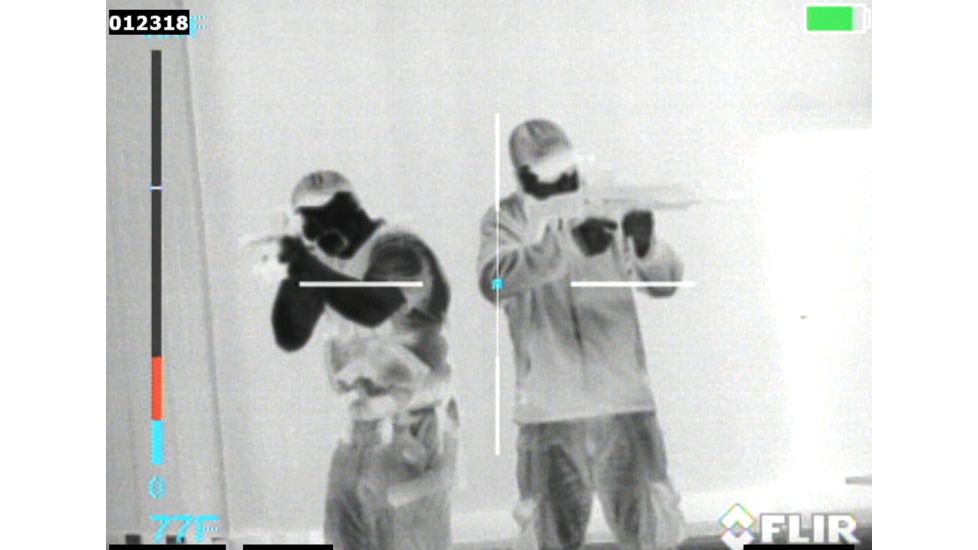

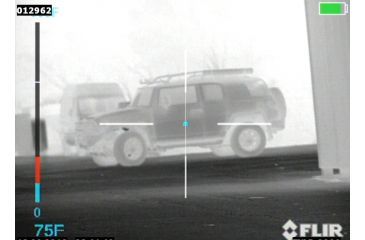

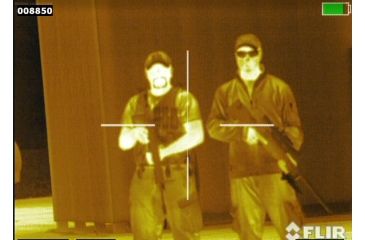

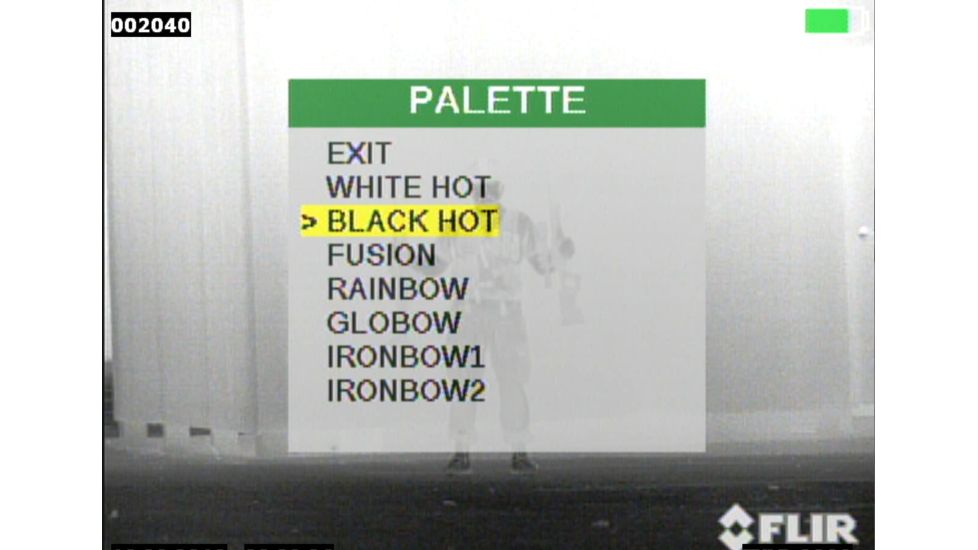

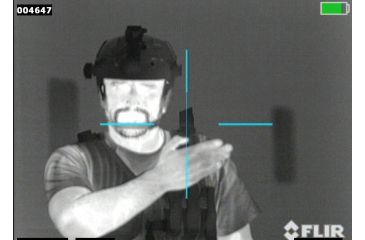

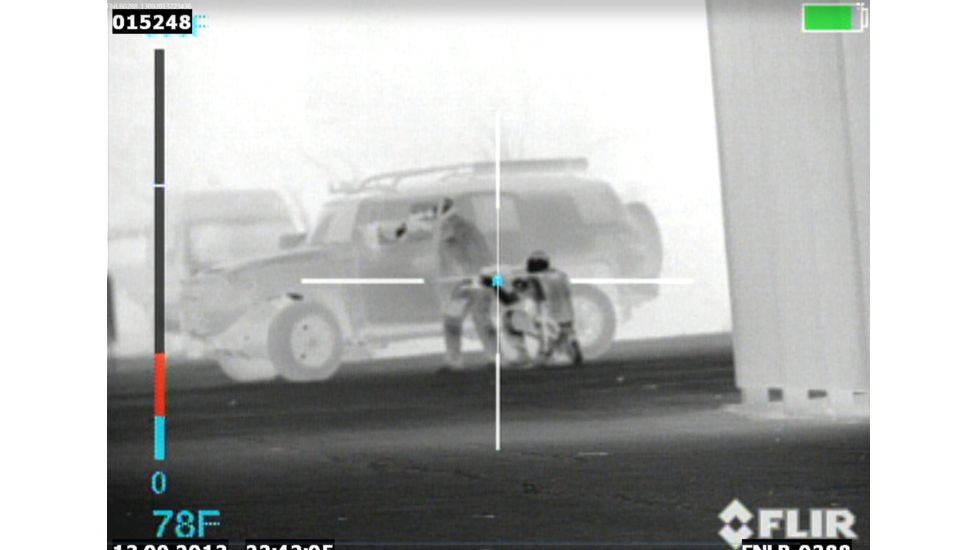

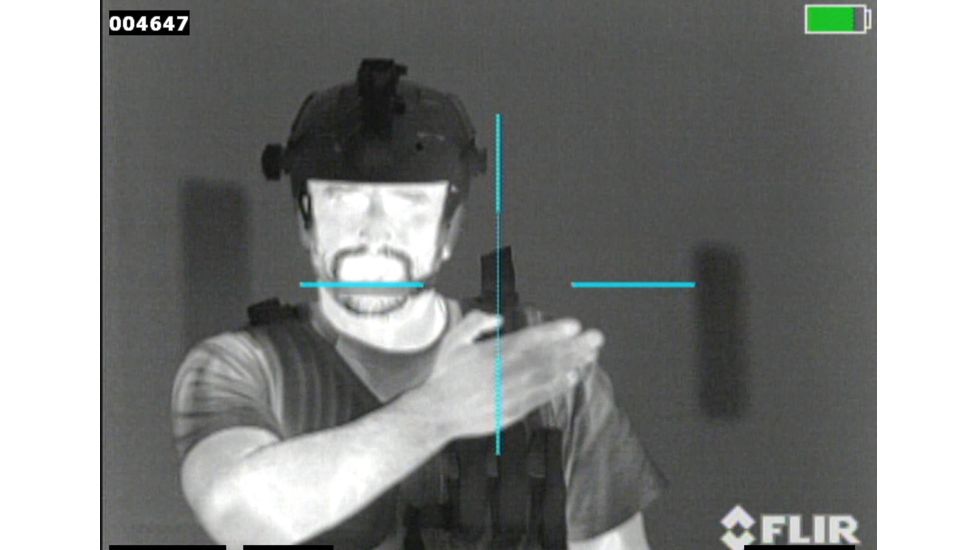

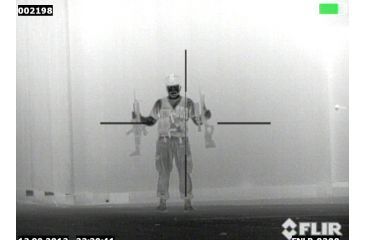

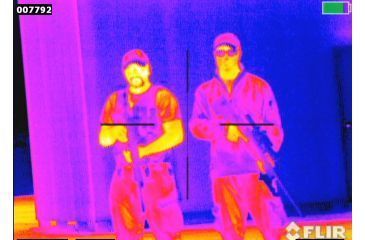

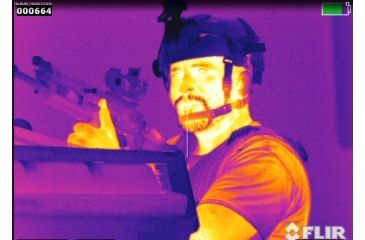

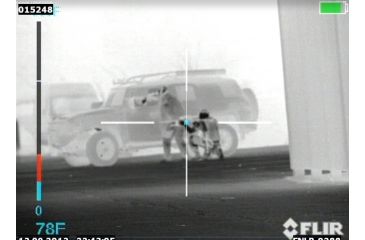

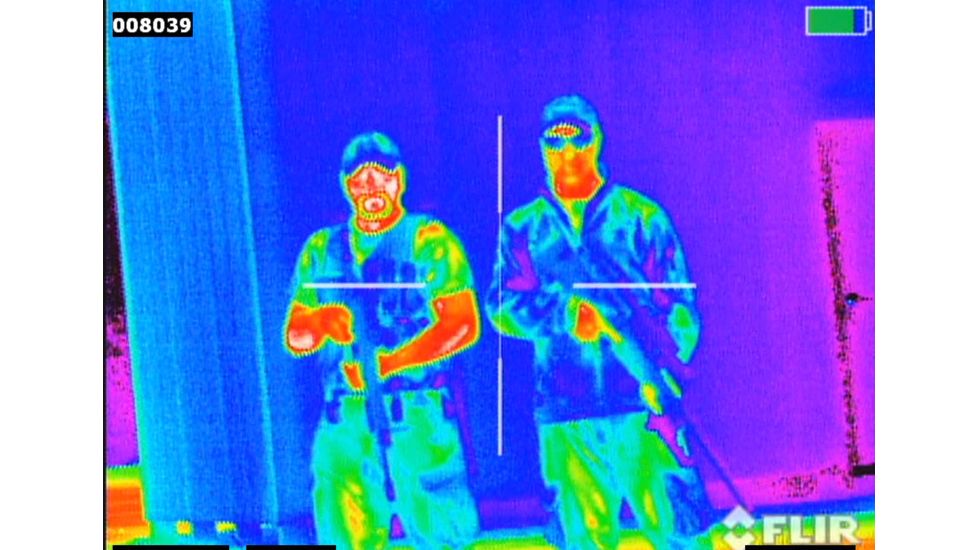

Temperature Imaging Modes (Image Palettes): Temperature Imaging Modes (Image Palettes): White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain and OEM Custom

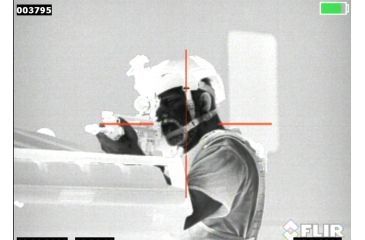

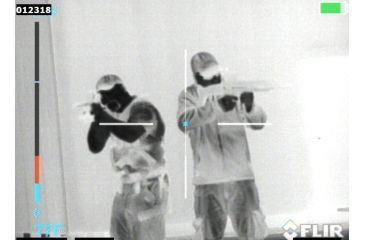

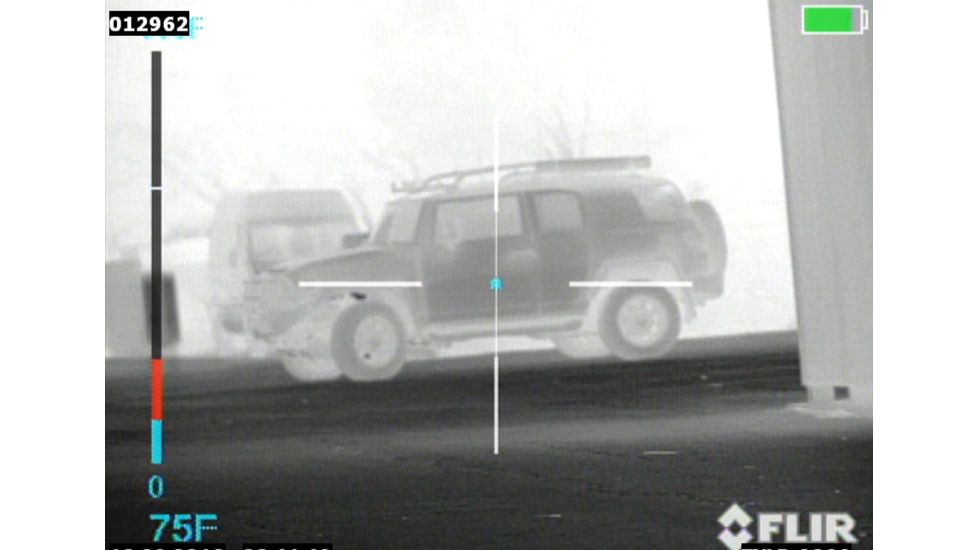

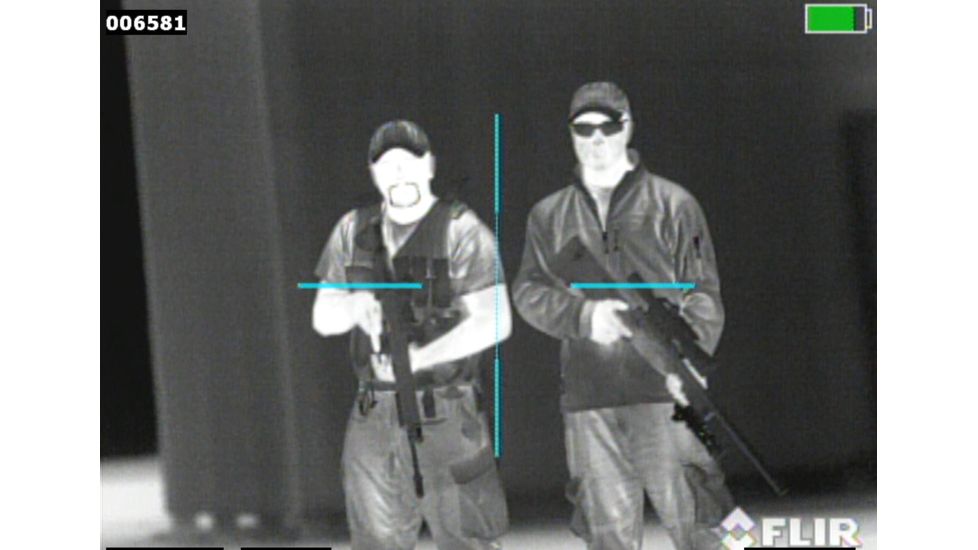

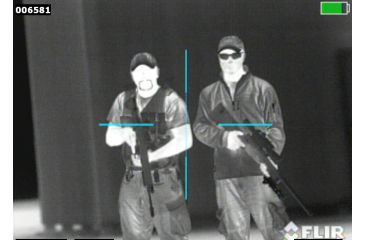

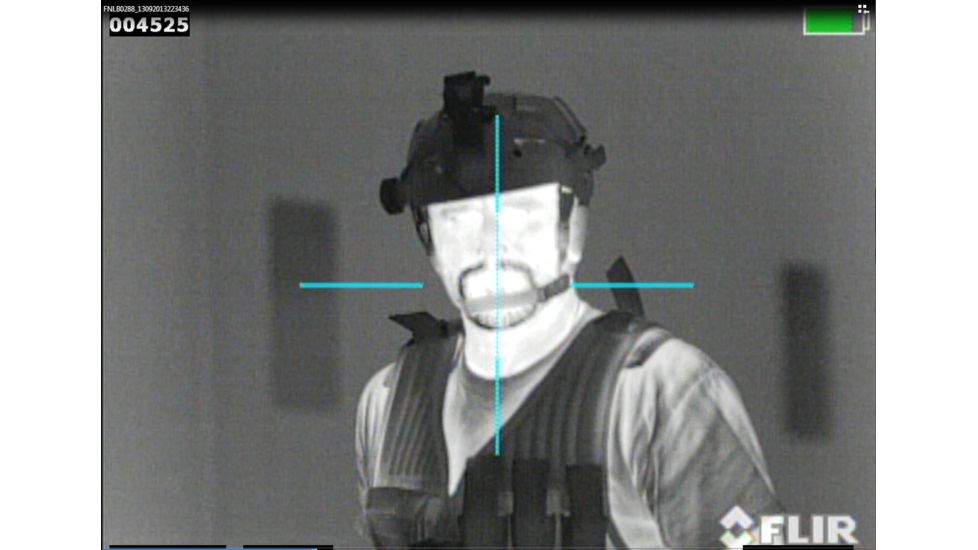

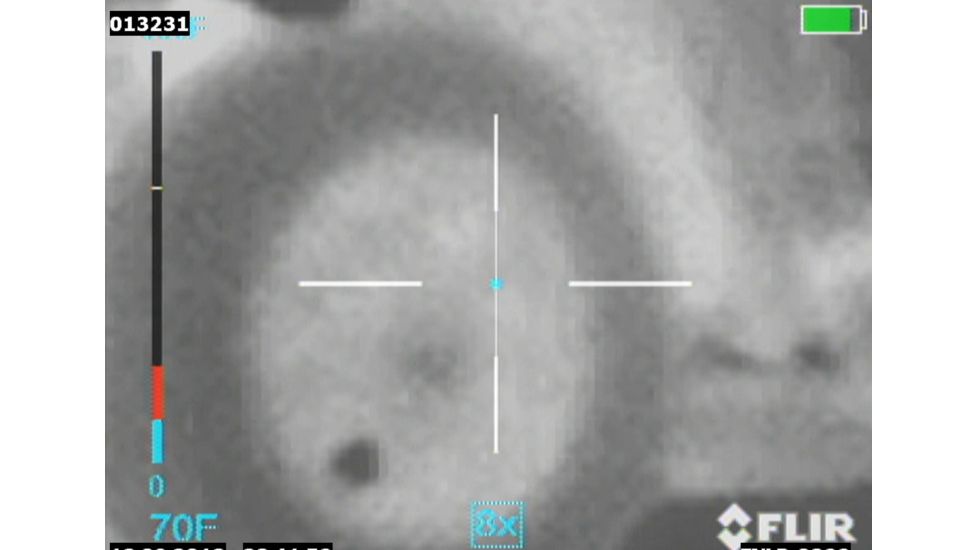

Reticle Type 6-Pattern Digitally Controlled: Reticle Type 6-Pattern Digitally Controlled: "Dot 4 MOA", "Line Dot", "Cross Center Dot", "Cross", "Crosshair" and "No Reticle"

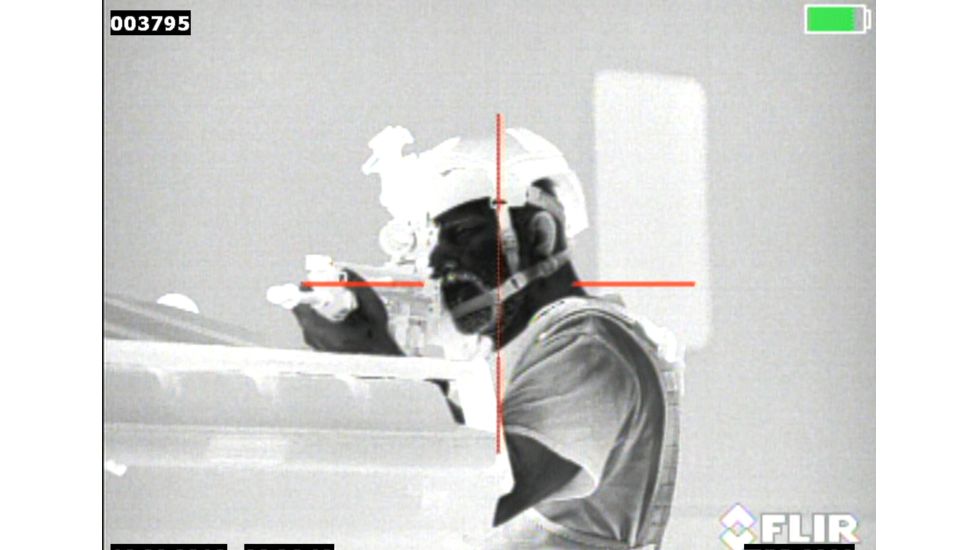

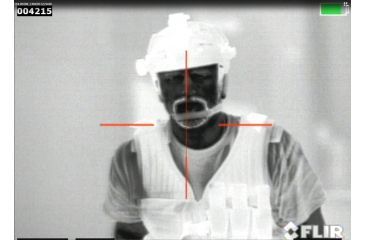

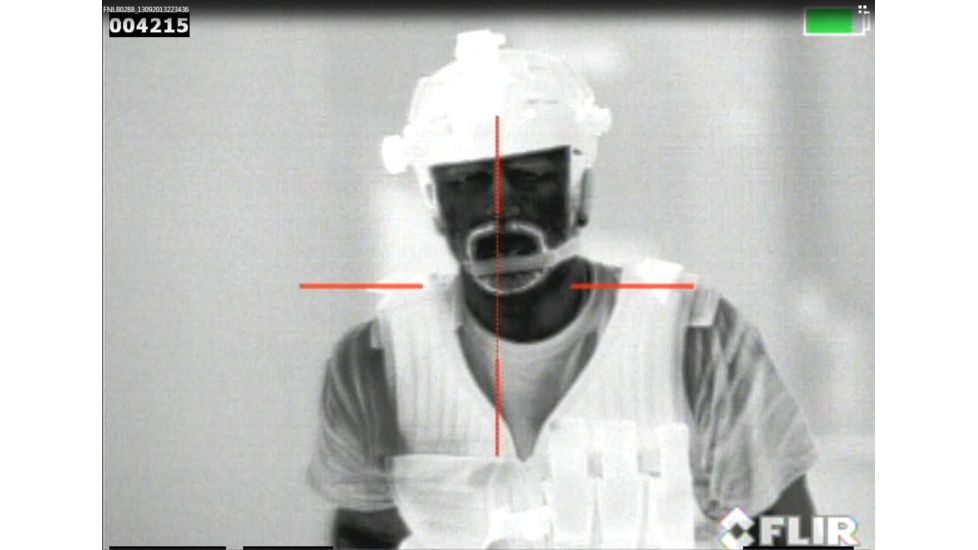

Reticle Color: Black, White, Red, Cyan
Windage/Elevation Boresight Adjustment Type: Digitally Controlled
Windage/Elevation Boresight Increment: 0.76 MOA
Windage Adjustment Range: +-60 MOA
Elevation Adjustment Range: +-46 MOA
Output Resolution: PAL - 768×574 pixels; NTSC - 640×480 pixels
Weapon Mount Type: Picatinny MIL STD 1913 and Weaver Rails
Dimensions: 10"×2.8"×3.2"
Height of the Zeus Axis above Rail: 40 mm (1.57 in)
Weight (w/o Batteries): 1.8 lbs
Field of View ang. X degrees: 4.3
Field of View ang. Y Degrees: 3.3
Objective Focal Length: 75mm
Objective F-Number: 1;1.3
Eyepiece Focal Length: 25 mm
Entrance Pupil Diameter: 60mm
Exit Pupil Diameter: 10mm
Eye Relief: 45 mm
Focus Method: Manual
Focusing Range: 10 m to inf.
Diopter Adjustment: Manual
Diopter Adjustment Range: ±5 diopter
Battery: Two CR 123A (2×3V)
Current Consumption, maximum: 350 mA
Battery Life at 20 °C (68 °F): 4 hr
External Power Supply: 6 VDC/ 1 А
Operating Temperature: -40 to +50 °C (-40 to +122 °F)
Storage Temperature: -50 to +70 °C (-58 to +158 °F)
Recoil Resistance: 700g
Immersion: 10 m for 30 min

Features of Armasight Zeus 5 Thermal Imaging Riflescope:

  • Optical Magnification 6x(PAL)/ 5x(NTSC)
  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Adjustable display brightness
  • Selectable 6-pattern reticle including no reticle option
  • Switchable reticle colour
  • Selectable image palette
  • Field environment corrections
  • Zoom
  • Windage/Elevation boresighting

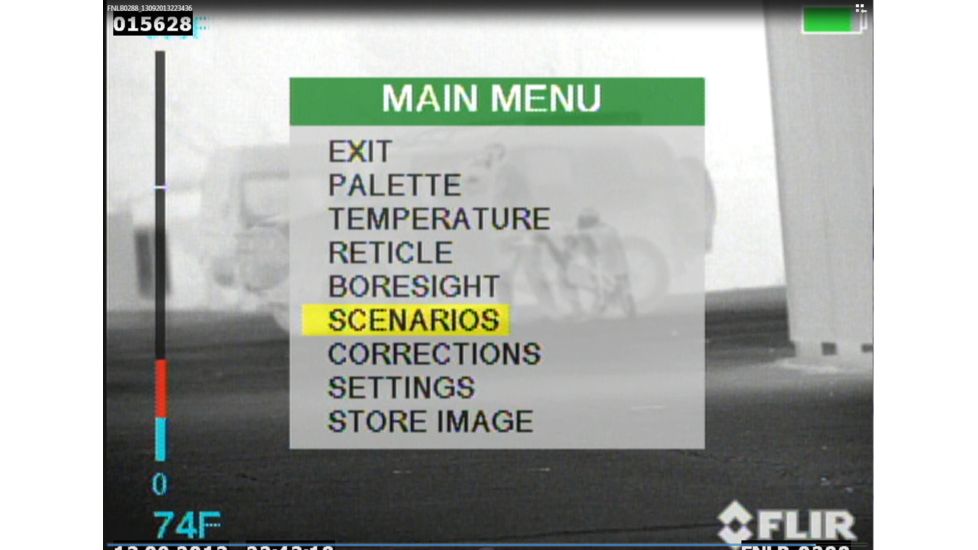

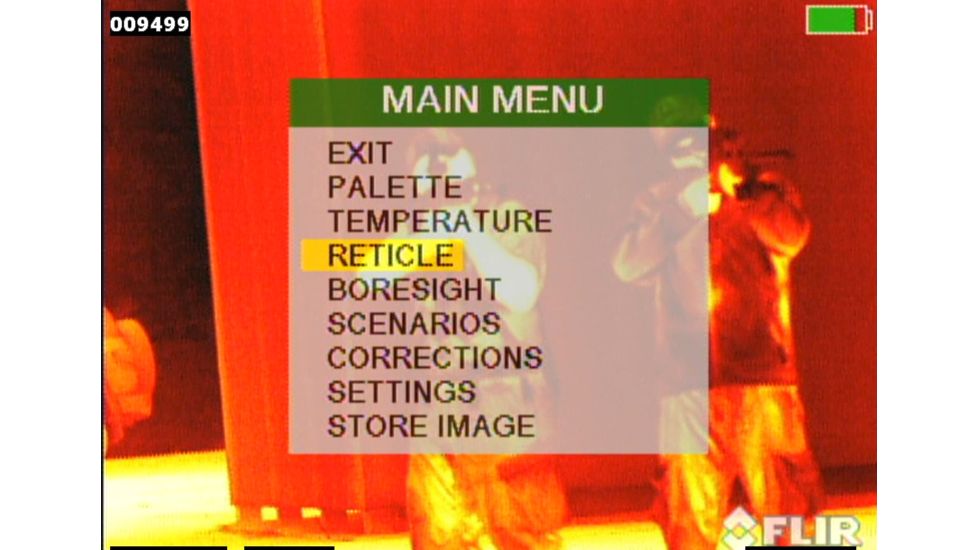

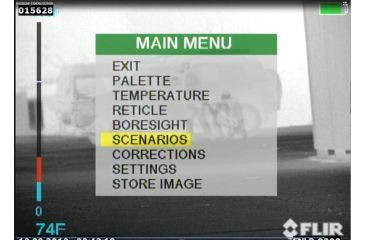

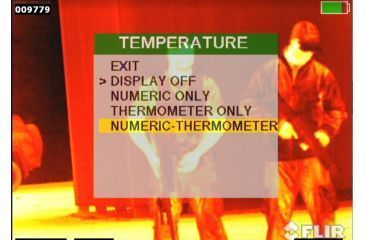

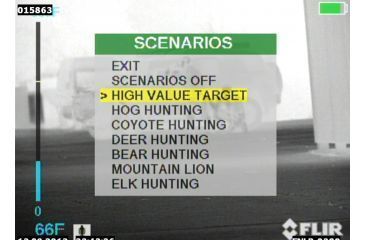

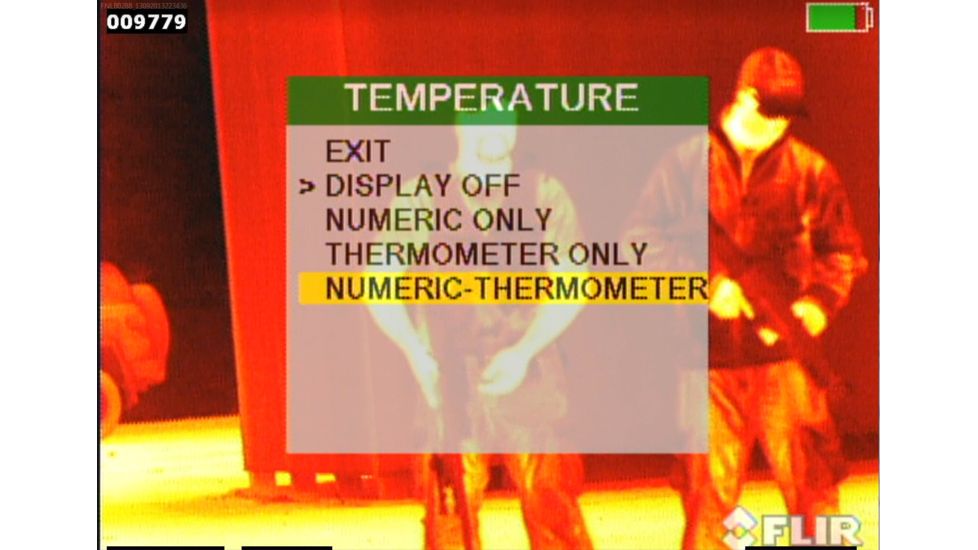

  • Displaying information on the current operating state (battery status, active function etc.)
  • Wireless remote control
  • Analog video input and output (NTSC/PAL)
  • Powered by two standard CR123A batteries.
  • Power input capability
  • Digital video recorder (optional)
  • Fits any Picatinny MIL STD 1913
  • Fits Weaver rail with an adjustable quick-release mount Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging
  • Waterproof
  • Limited two-year warranty

Package Contents:

  • Armasight Zeus 5 Thermal Imaging Riflescope
  • Battery Cassette
  • Objective Lens Cap
  • Eyecup
  • Mount
  • CR123A Lithium Battery
  • Advanced Wireless Remote Control (AWREC)
  • Picatinny Adapter for Advanced Wireless Remote Control
  • Operation and Maintenance Manual
  • Soft Carrying Case
  • Hard Shipping/Storage Case
  • Video Cable
