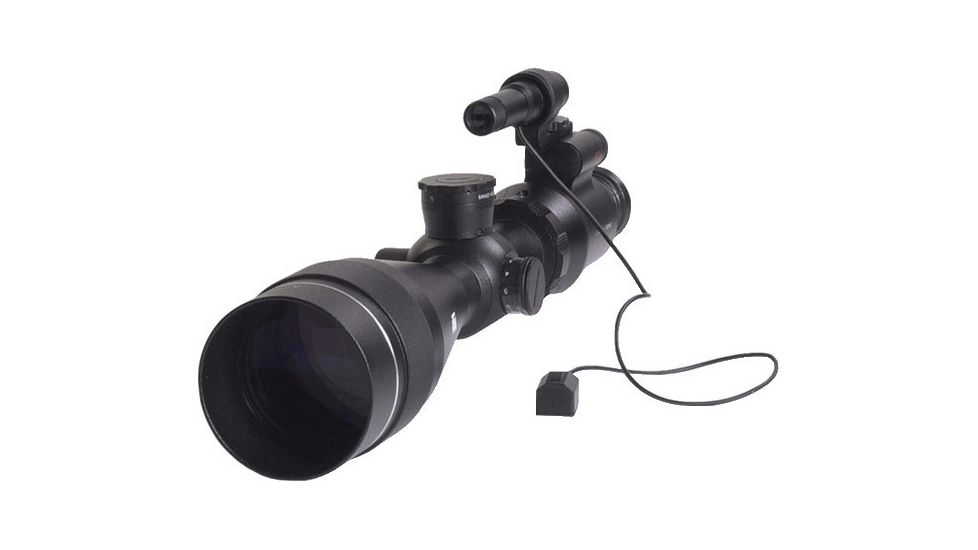

The ATN Day/Night Riflescope System 4-12x80 DNS Gen.3 NVDN04803A (14794) is a highly accurate daytime sniper scope. 80mm(!) objective and 40mm(!) tube combined with the best, German quality multicoated glass on the market makes this sight the best light-gathering device for shooting in the world. An array of features that will dazzle any marksmen include parallax-free construction; 4 to 12 variable Power Zoom, 1000-Yard Bullet drop Compensator with interchangeable cams for six calibers, 1000 Yard Range Finder and a super sharp, illuminated Reticle with 11 light settings. Additional features include 1/8 MOA adjustment at 100 yards, 100% weather resistance and Matte Black mil-spec finish with beryllium powder coating.

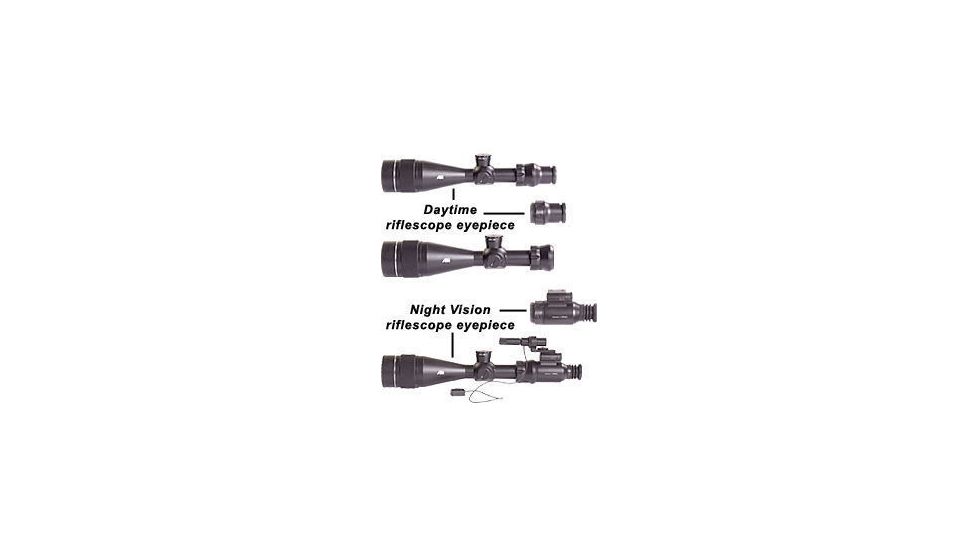

To convert the ATN 4-12x80 rifle scope to a Night Vision Weapon Sight all that needs to be done is a simple twist of the daytime riflescope eyepiece and replace it with a Night Vision eyepiece converting your scope into a high quality, very accurate night vision weapon sight. This ingenious setup allows the shooter in the field to go from day to night in less then 30 seconds without tools, without changes in eye relief and remain zeroed all around the clock. Furthermore the US government just granted ATN with a patent for the feature that prevents Tube burn by the illuminated reticle. Want to read more? ATN 2-6x65 DNS and ATN 4-12x80 DNS Day/night vision riflescope Manual/ User's Guide is available for download here in PDF Format.

The Night Vision eyepiece can utilize a wide array of Image Intensifier Tubes to meet a wide range of customer requirements.

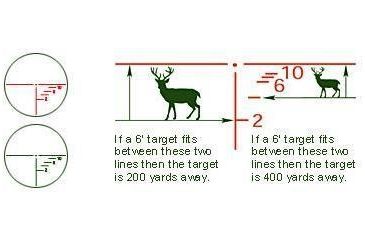

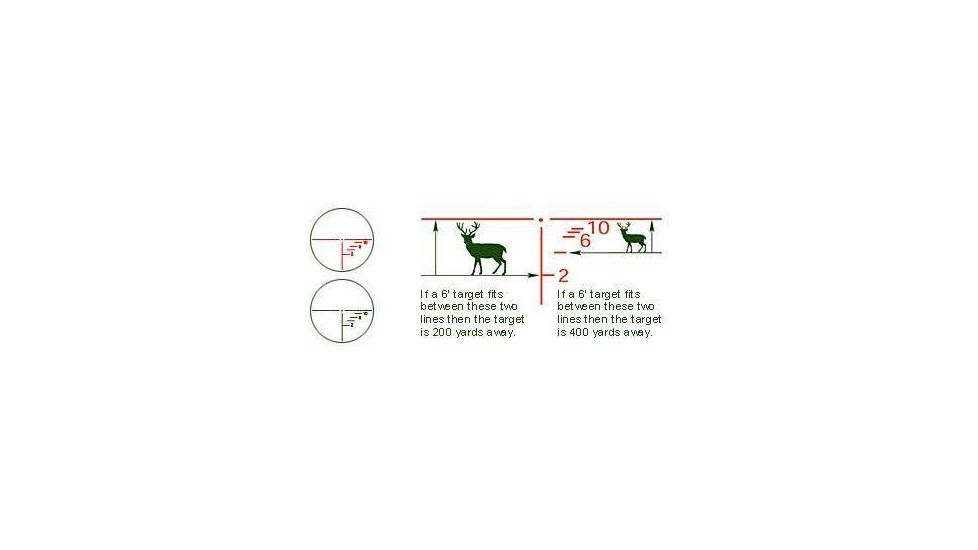

The ATN 4-12x80 NVDN04803A has an Electronic reticle. There are 10 degrees of illumination. The rheostat is the knob located at the back of the scope. It is labeled with numbers 0 through 10. When the rheostat is set at 0 you will see a black etched reticle. The reticle will light up red electronically as you rotate the rheostat through the numbers, 10 being the brightest.

You should have zeroed 4-12x80 in at 100 yards. When shooting at longer ranges the bullet drop compensator can be adjusted for 200, 300, 400, 500 and 1000. Pending on the distance click the bullet drop compensator to the appropriate setting. This will automatically adjust your reticle for that particular distance. Your scope also comes with other cams allowing you to change your bullet drop compensator to work with the different rifles.

Specifications:

Daytime of ATN 4-12x80 NVDN04803A:
Magnification:		4-12
Objective diameter:		80mm
Mounting:		40mm Rings
Bullet drop calibers:		.50 BMG, .308, 30-. 06, .270, 7 mm Mag, .300 Win Mag. 22- 250, .243
Rangefindingincluded:		1000 yrd
Illuminated reticle:		Yes
Power source:		3- volt lithium
Battery life:		100 hours
Sun shade:		Yes
Recomended use:		Ver
Adjustment windage and elevation at 100 yds:		1/ 8 MOA at 100 Yards
Weight:		4.2lbs
Dimensions:		425x97x88mm
Night Vision of ATN 4-12x80 NVDN04803A:
Total darkness tech.:		Standard
Intensifier tube:		Gen 3+
Detection range:		350m
Recognition range:		200m
Light gain:		90,000
Lens system:		80mm
FOV:		6°-2°
Diopter adjustment:		+/- 5
Resolution:		64lp/mm
Power supply:		3v
Range of focus:		50y/m to infinity
Battery life:		30 hours
Dimensions:		442x125x88mm
Weight:		4.3lbs

Included Accessories:

• 40mm mounting rings
• Sunshade - Shooting into the sun has always been a problem...until now. ATN sun shade is made of soft, durable rubber and it will not damage your optics.
• All necessary batteries
• 450mW Long Range IR Infra-red illuminator
• 8 Interchangeable Cams - All of the ATN professional lit-reticle riflescopes have a built in adjustment that compensates for bullet drop. The elevation dial is calibrated for bullet drop in increments from 100 yards to 1000 yards. In case the user needs to take a shot at different distances, the alignment process is simplified to the quick turn of a knob. Six interchangeable cams each designed for the above calibers; (.223Rem-5.56mm, .270Win., .308Win., .300Win Mag., 7mm Rem., 30-06 Springfield, .22-250, .243Win., .50BMG ) are included with each Professional LU model.
• Pellican Waterproof HARD CASE - this Pellican case has pressure control, it is absolutely airtight and watertight. If you want to open the case after air travel or altitude change, just turn the pressure purge to relieve vacuum.

All Day/Night scopes come with a Lifetime US Warranty.

Package Contents of ATN Day/Night Riflescope System 4-12x80 DNS Gen.3 NVDN04803A

• ATN Riflescope System 4-12x80 DNS Generation Three NVDN04803A for Night and Day
