Product No Longer Available

Unfortunately ATN Flir Hs-324 Patrol 19mm is no longer carried by OpticsPlanet. You can also explore other items in the Thermal Imaging category yourself to try and find the perfect replacement for you!

ATN Flir Hs-324 Patrol 19mm Product Info

Buy the ATN Flir Hs-324 Patrol 19mm TIMNHSPT19 on sale for a great price at our online store! If you have questions about the ATN Flir Hs-324 Patrol 19mm or other Thermal Imaging we sell, contact us to speak with a product expert who can recommend the best Thermal Imaging for you.

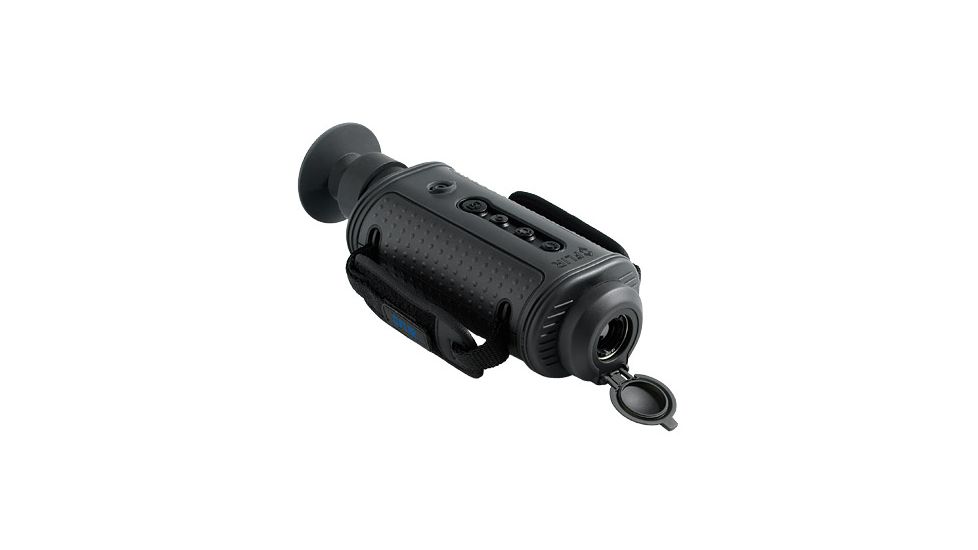

The FLIR System's Inc, HS-324 Patrol 30Hz, NTSC hand-held Thermal Imaging Camera lets law enforcement officers see clearly in total darkness, giving them the undeniable tactical advantages they need to stay safe and operate effectively at night. With true Night Vision finally available to every agency, officers will have the information they need to make quick decisions, enhancing mission effectiveness, maximizing operational capabilities, and improving officer safety. See suspects in total darkness. H-Series provides a 320 × 240 resolution VOx microbolometer for half the cost of comparable cameras, giving officers excellent, high-fidelity thermal imagery that provides the detail necessary for cutting edge performance and improved detection and recognition ranges in total darkness, as well as through smoke, dust, and light fog. See better through camouflage and foliage in any lighting conditions. Because H-Series cameras see heat, not light, they're not fooled by suspects wearing dark clothes and hiding in bushes. Crooks can't hide their heat, so they can't hide from the H-Series. See more - and see farther - than with other Night Vision Technologies. Because H-Series Thermal Cameras see clearly without any light whatsoever, they can see farther at night than technologies that need ambient light to work and they can see heat sources that these other cameras could never find. Deploy with the latest technology at their fingertips. With a variety of lens options, on-board image and video capture capability, and optional wireless transmission all built in to the camera, H-Series is the most potent imaging package available today. And now it's affordable enough for almost every agency.

Specifications for ATN FLIR HS-324 Patrol 19mm, 30Hz, NTSC:

Frame Rate: 30 Hz
Magnification: 1x
FOV: 24°x18°
Objective Focal Length: 12°x9° (w/Optional 2x Extender)
Detector Type: Microbolometer
Spectral Response: 7.5-13.5
Thermal Sensitivity: <50mK
Range to Detect a Human: 440m (880m w/Optional 2x Extender)
Output format: NTSC composite video RCA jack
Color: Monochrome
Digital ZOOM Adjustment: 2x (digital)
Windage and Elevation: no
Afocal 2x Lens: yes
Tripod Mountable: yes
Mounting Bracket: no
Reticle: no
Brightness Adjustment: yes
Power Supply: 4x1.5V AA type battery
Start-Up Time w/One Battery Pack: <1.5 seconds
Operating Time: up to 6 hours
External Power Supply: 14V DC
Operating Temperature: -20 to +60°C
Waterproof: yes
Dimensions: 256x84.5x67 mm (10.4"x3.3"x2.6")
Weight: 0.65 g / 1.45 lbs

Features of ATN Flir Patrol Thermal Imaging System:

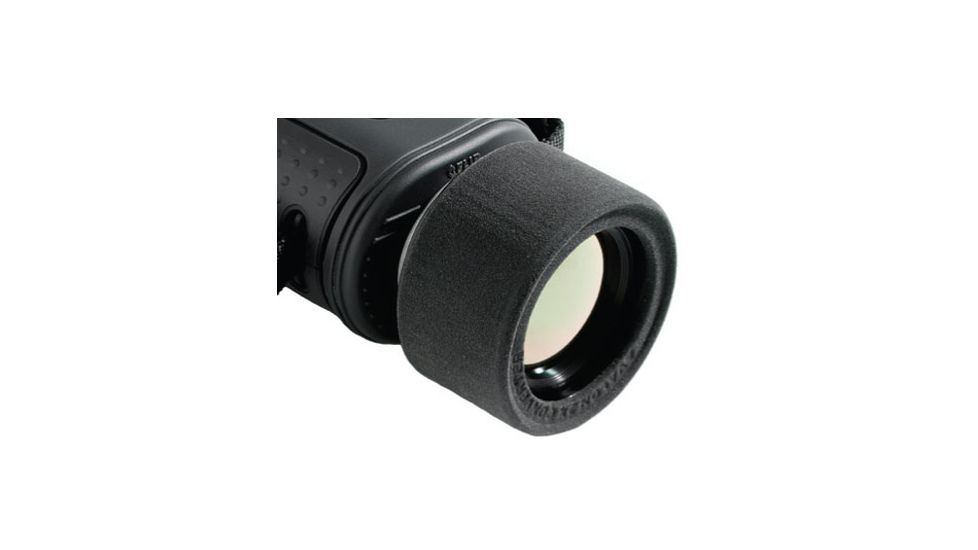

  • Shuttered Eyepiece: Keeps light from coming out of the viewfinder, helping the operator to stay covert.
  • Multiple lens options available: Choose the 19mm lens with 24° field of view (and its optional 2× optical extender.
  • Rugged design: All-weather design is built to withstand the demands of day-in, day-out law enforcement operations. It's even submersible.

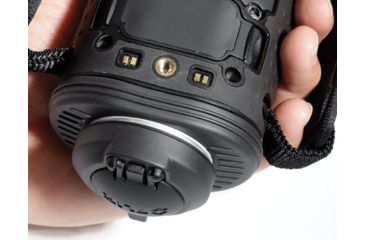

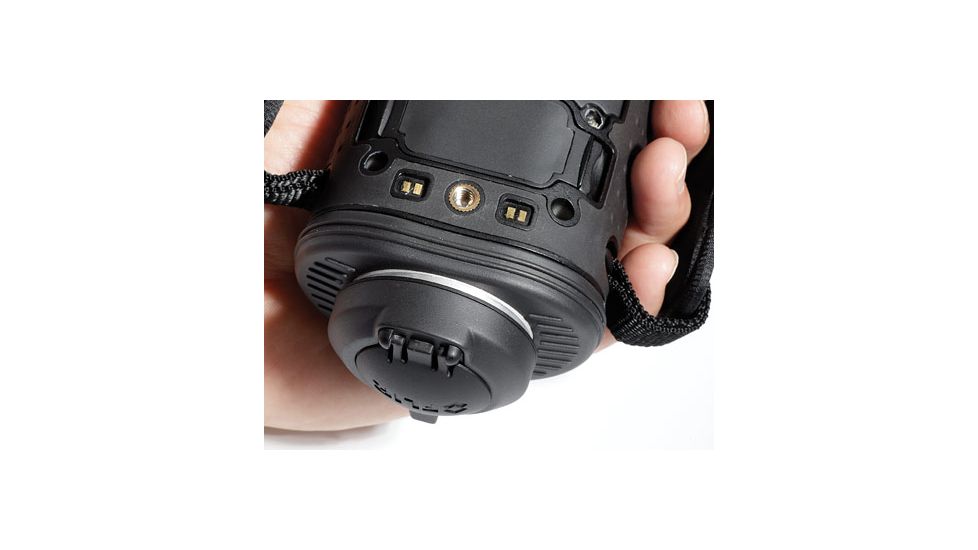

  • Hot Shoe Attachment: The included "hot shoe" attachment provides power-in and RCA composite video-out connections while maintaining the camera's tripod mounting capability.
  • Two-sided Hand Strap: Accommodates both left-handed and right-handed users.
  • Battery Compartment: Four rechargeable AA NiMH batteries are good for more than six hours of continuous operation. H-Series also runs on standard non-rechargeable alkaline and Lithium Ion AA batteries.
  • Power: 6+ Hours of Operation / 5+ Days in Standby / Instant-On from Standby
  • Zoom: 2x Electronic Zoom
  • Brightness: Adjusts 8 Levels of Screen Brightness
  • Polarity: Switches between white-hot and black-hot display modes
  • One-Year Warranty

Package Contents:

  • ATN Flir Hs-324 Patrol 19mm
