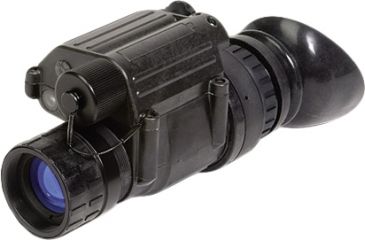

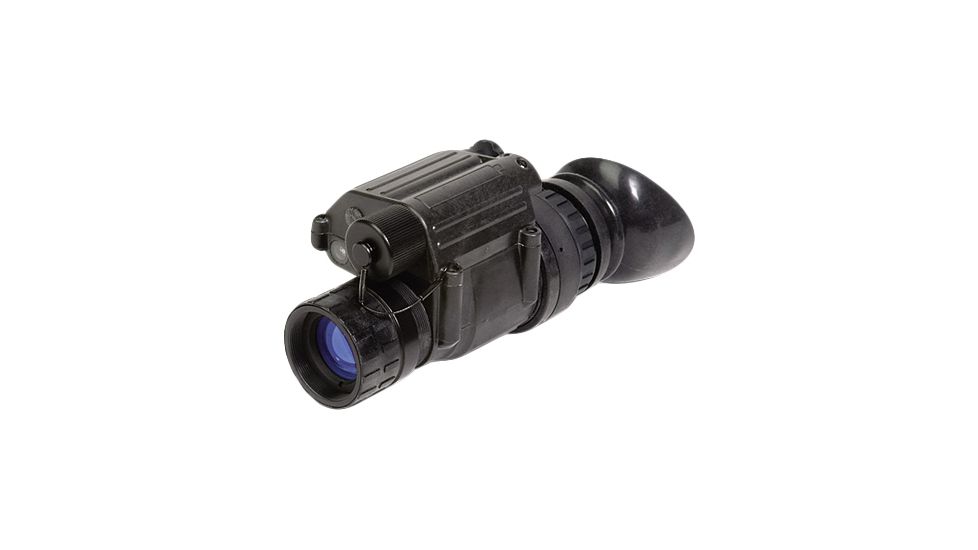

ATN Generation 2 Nightvision Multipurpose Monocular NVMP601520
Code: AT-NV-NVMP601520
MPN: NVMP601520
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

ATN Generation 2 Nightvision Multipurpose Monocular Product Info

The ATN Generation 2 Nightvision Multipurpose Monocular NVMP601520 is a rugged, lightweight and versatile Night Vision Monocular designed for the most demanding of nighttime applications. The ATN 6015-2 NV Monocular can be handheld, head/helmet-mounted for hands free usage or adapted to cameras/camcorders. Based on the PVS-14 used by the U.S. military the ATN 6015-2 NV Monocular is of the highest quality in optics, design and functionality. The ATN 6015 Generation 2 NV Monocularis a versatile high-quality, Multi-Purpose Monocular and is an outstanding choice for the professional Night Vision applications.

ATN NVMP601520: Generation 2 Nightvision Multipurpose Monocular

Specifications for ATN 6012-2 Night Vision Monocular:

Total Darkness IR System: Yes
"SMART" Technology: No
Multi-Purpose System: Yes
IIT Generation: 2
Photocathode Type: Multi - Alkali
Resolution: 40-45 lp/mm
Signal to Noise Ratio: 12-20
Figure of Merit: <1250
MTTF - Mean Time Before Failure: 5,000 hours
Magnification: 1x
Lens System: F1.2, 26 mm
Proshield Lens Coating: Yes
FOV: 40deg
Range of Focus: 0.25 m to infinity
Diopter Adjustment: -5 to +2
Controls: Digital
Automatic Brightness Control: Yes
Bright Light Cut-off: Yes
Automatic Shut-off System: Yes
Infrared Illuminator: Yes
IR Indicator: Yes
Low Battery Indicator: Yes
Power Supply: (1) 1.5 Volt AA size
Battery Life: 60 hrs
Environmental Rating: Waterproof
MIL-STD-810: Complies
Operating Temperature: -40 to +50 °C
Storage Temperature: -50 to +70 °C
Dimensions: 114x56x50 mm (4.5"x2.2"x2")
Weight: 0.3 kg / 0.68 lbs
Warranty: 2 years

Features of ATN 6012 Generation 2 NV Monocular:

  • US Military design
  • Multi-Purpose unit
  • Handheld monocular

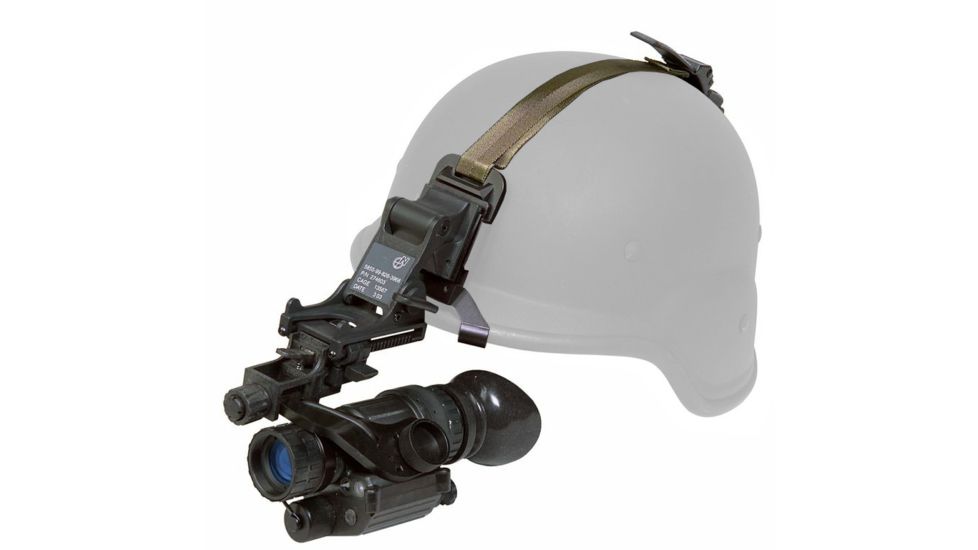

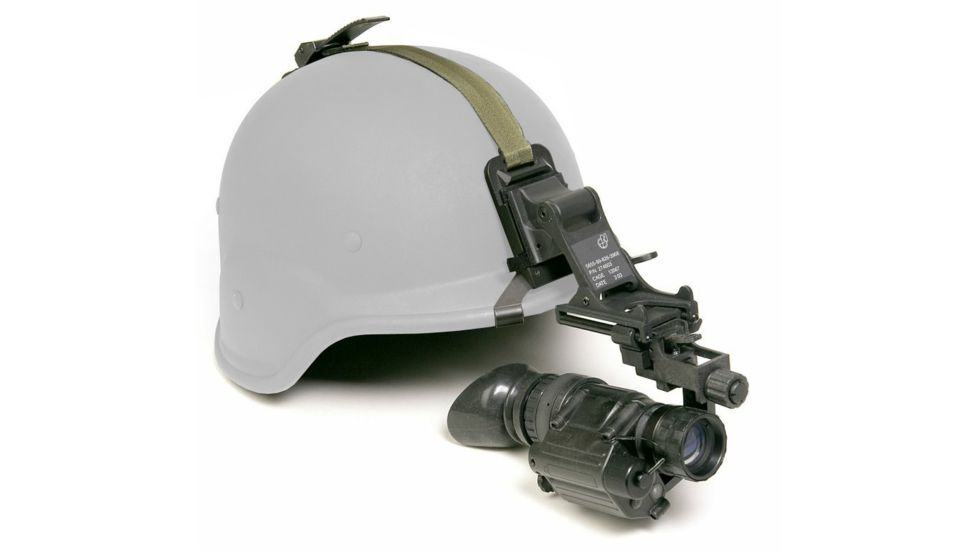

  • Hands-free goggle (optional helmet mount)
  • Mil-Spec headgear
  • Limited Two-Year Warranty

Package Contents:

  • ATN Generation 2 Nightvision Multipurpose Monocular
