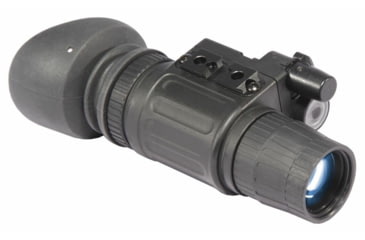

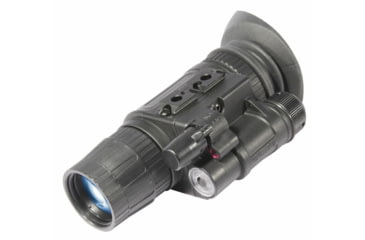

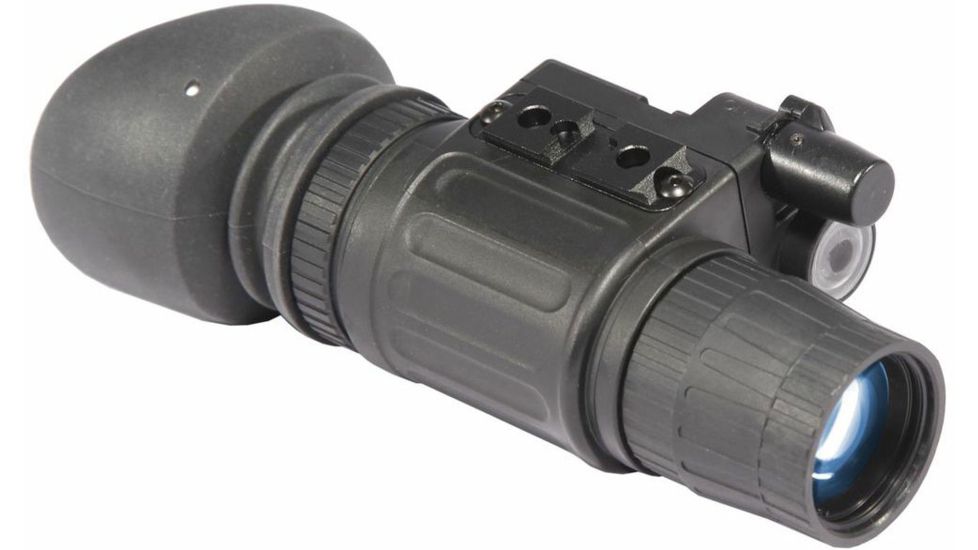

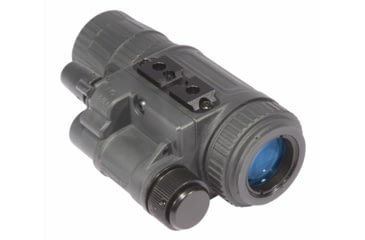

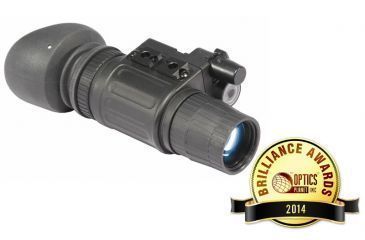

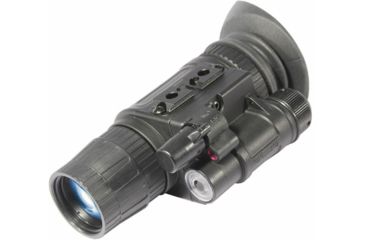

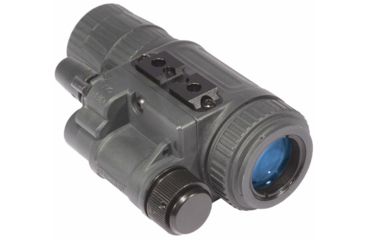

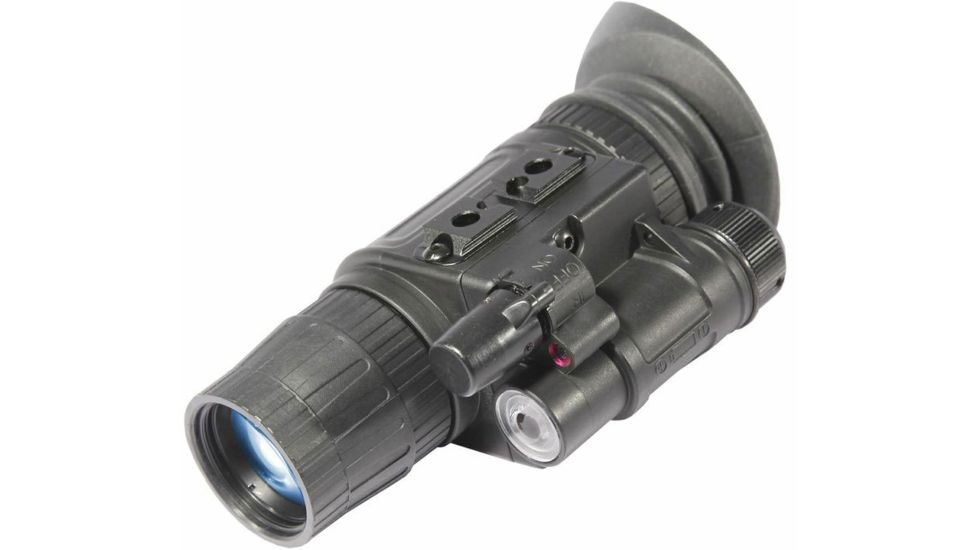

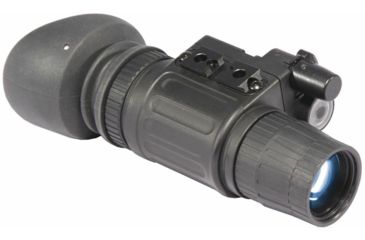

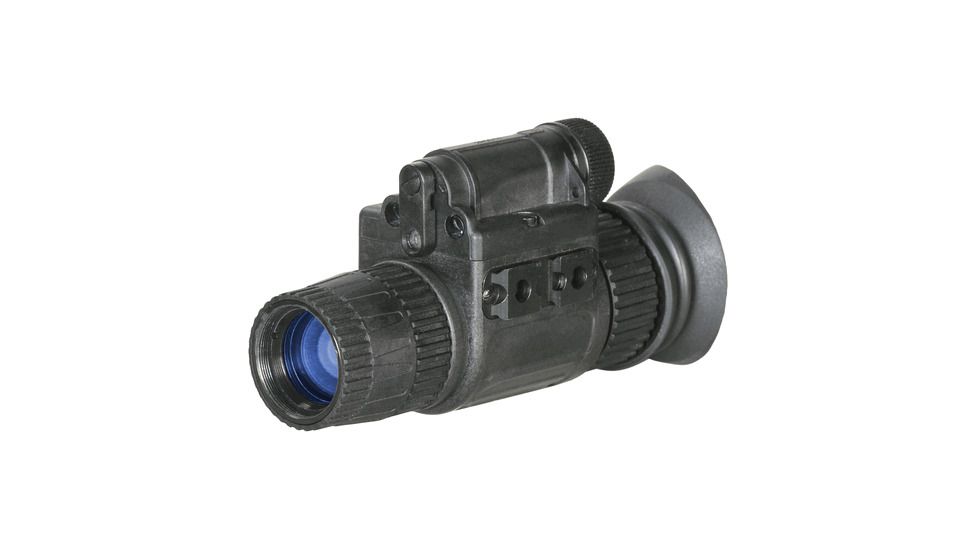

The ATN NVM-14 Gen.2+ Night Vision Monocular NVMPAN1420 NVMPAN14C0 NVMPAN14CI NVMPAN14H0 is a hand-held, head-mounted, helmet-mounted, or weapon-mounted night vision system that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus, and eyepiece focus. The NVM 14 Night Vision Monocular from ATN is also equipped with an infrared light-emitting source. NVM14 Night Vision monocular utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the monocular consists of: an objective lens, an image intensifier tube and an eyepiece.

Available models of ATN NVM14 Night Vision Monocular:

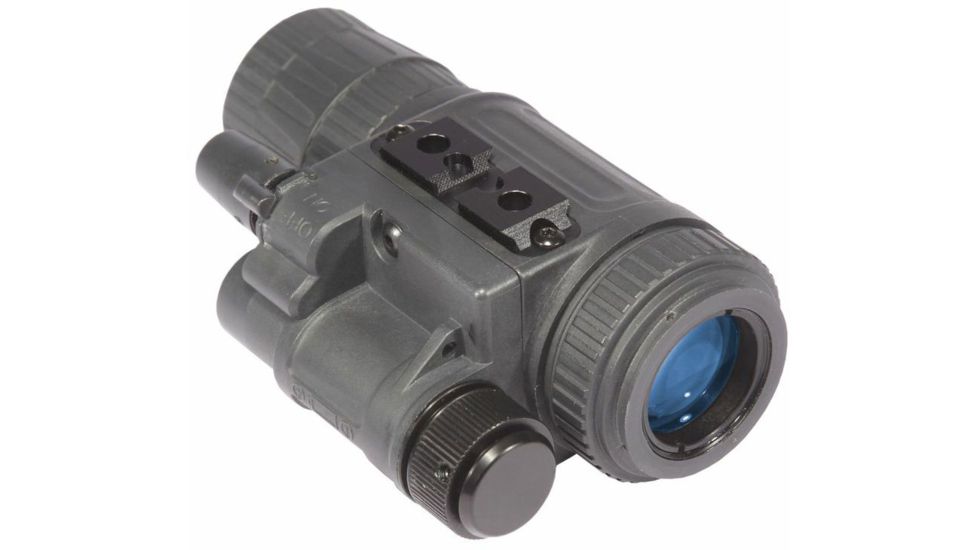

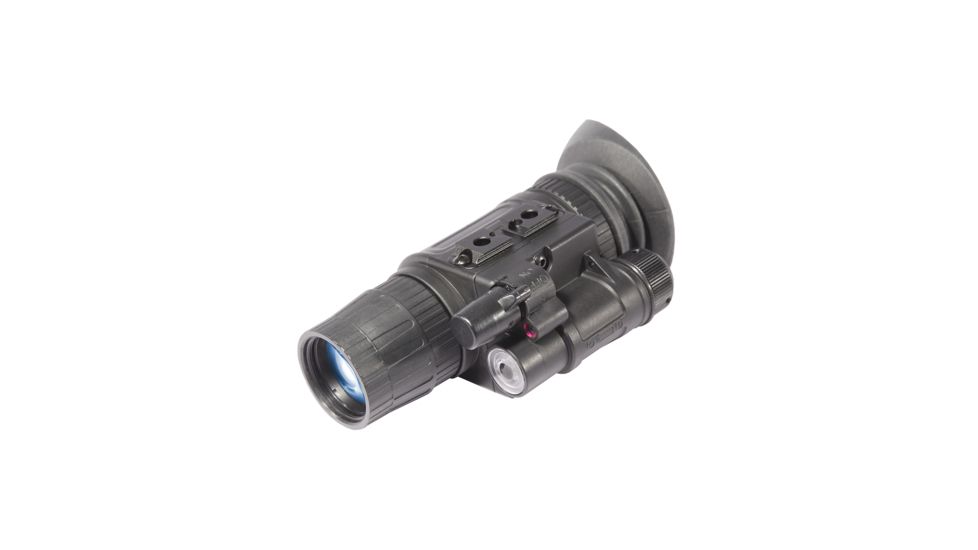

• NVMPAN1420: ATN NVM14-2 Night Vision Monocular

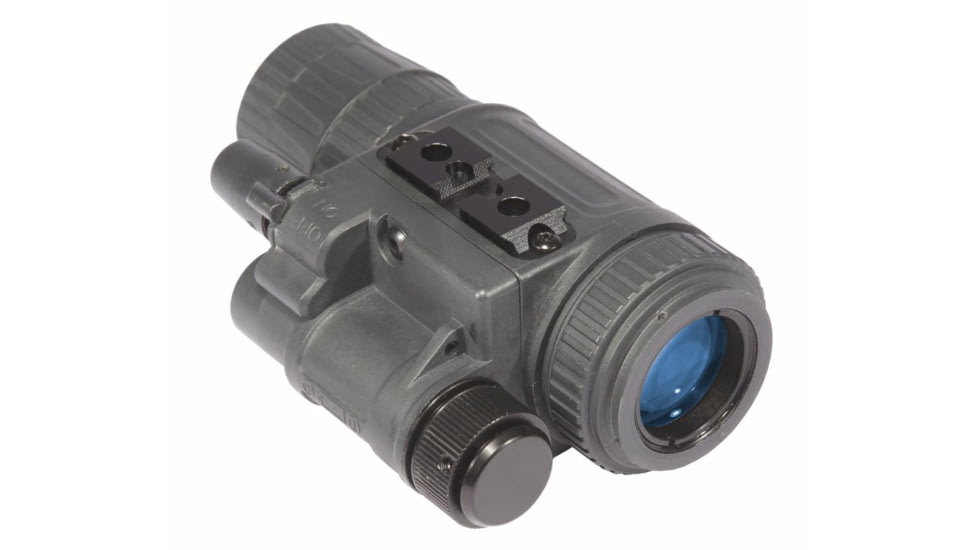

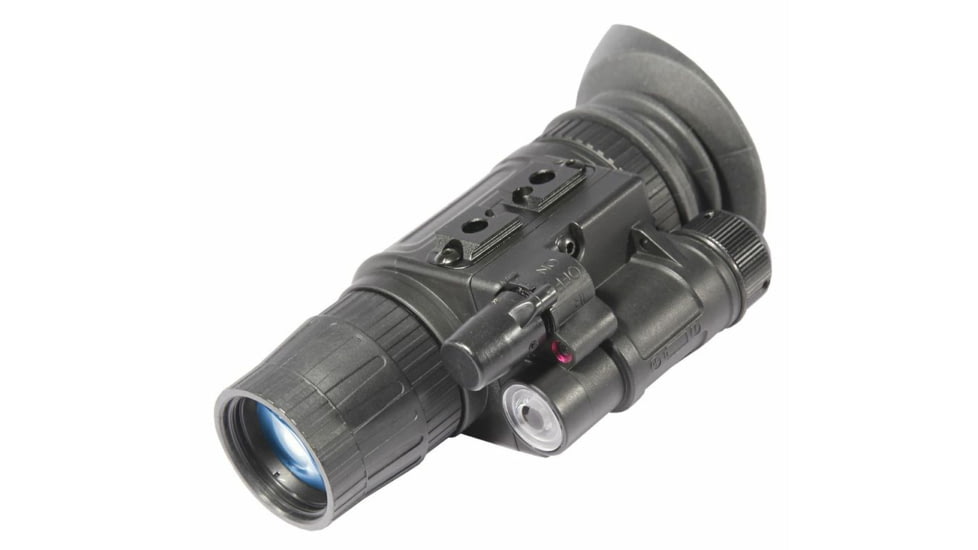

• NVMPAN14C0: ATN NVM14-CGT Night Vision Monocular

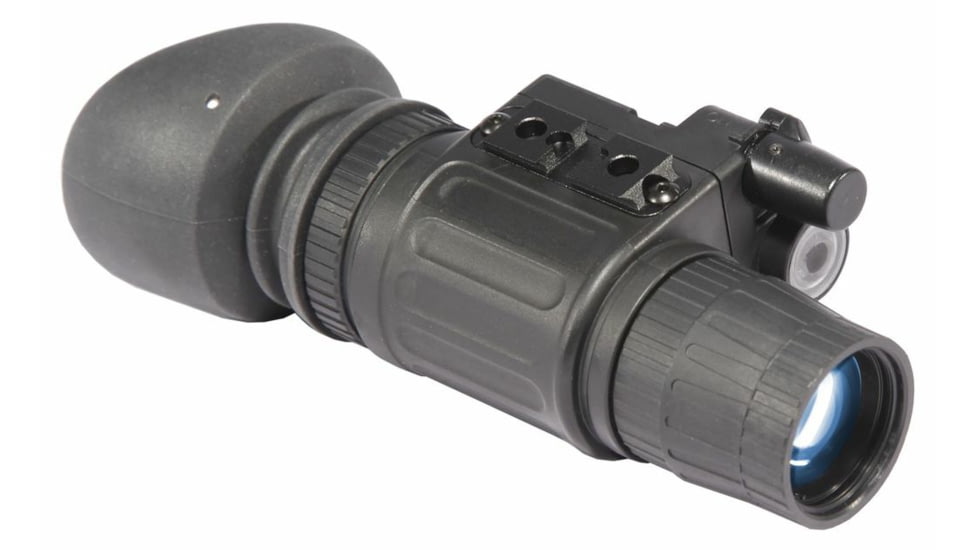

• NVMPAN14H0: ATN NVM14-HPT Night Vision Monocular

Specifications for ATN NVM-14 Night Vision Monocular:

ATN NVM-14 Gen.2+ Night Vision Monocular
Magnification		1X
f-Number		1.2
Field of View		40°
Eyepiece Diopter Adj.		-6 to +2
Resolution		NVMPAN1420: 36-45 NVMPAN14C0: 45-54 NVMPAN14H0: 55-64
Eye Relief		25 mm
Focusing range		0.25 m to infinity
Voltage		3.0 VDC or 1.5 VDC
Power Requirements		1 CR123A or 1 AA
IR Illumination Range		20 meters
Power life		1 CR123A battery 40 hours
Weight		335 grams (with battery)
Dimensions		140x50x69 mm

Features of ATN NVM-14 Night Vision Monocular:

• Multi Purpose unit
• Compact yet rugged design

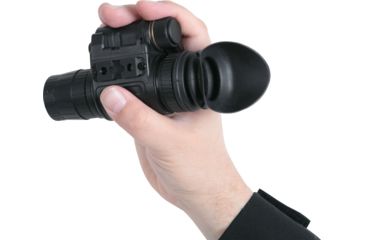

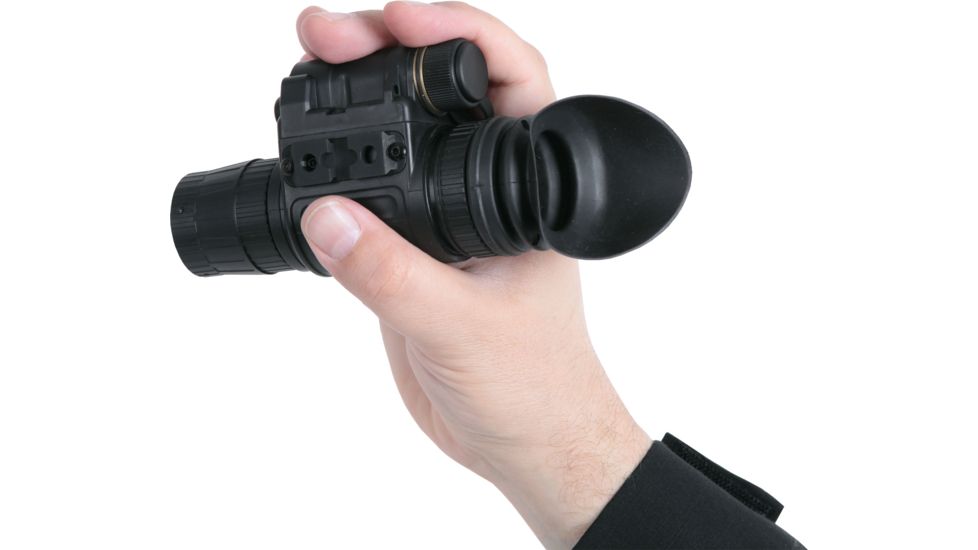

• Hand held monocular

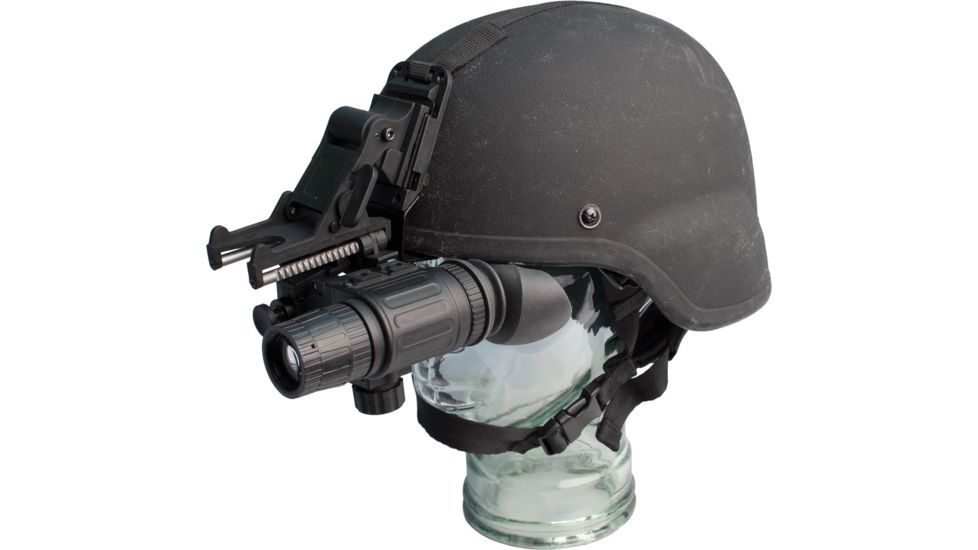

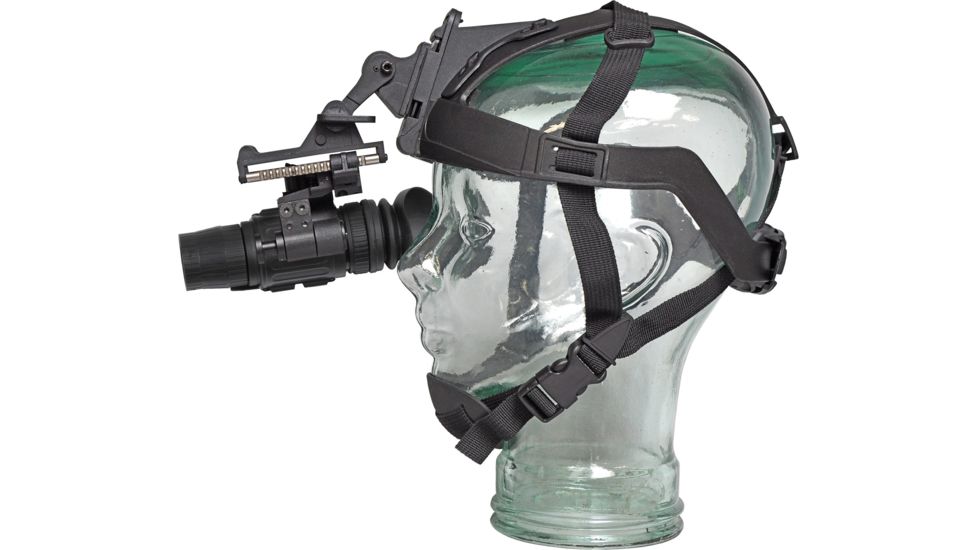

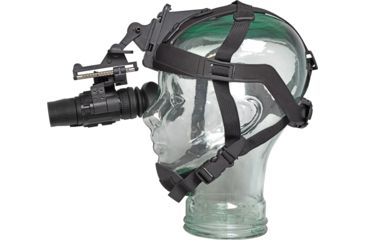

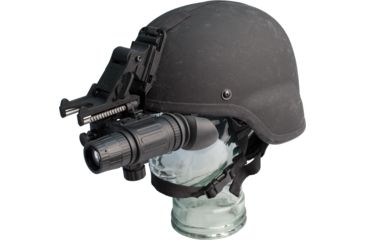

• Hands free goggle (with optional head gear or helmet mount)
• Night-time photography (with use of optional camera adapter)

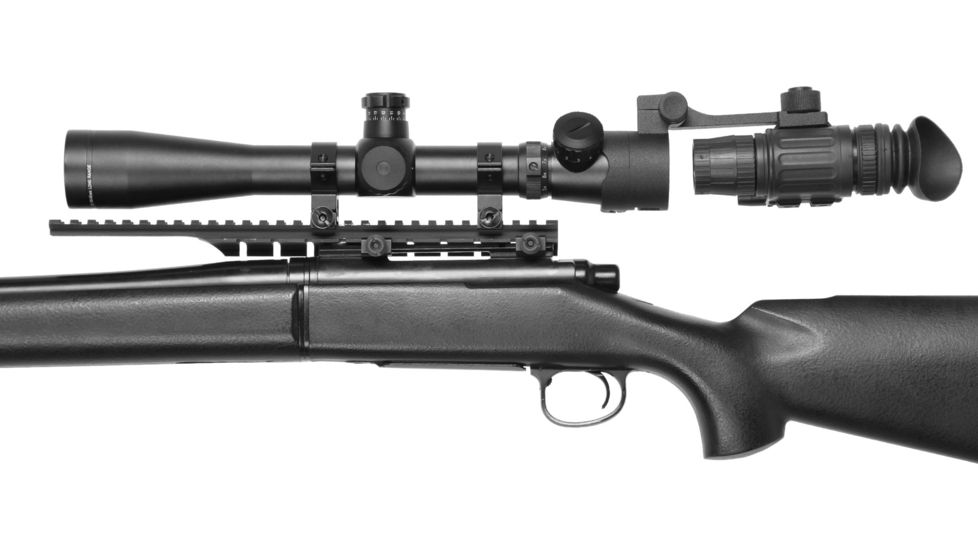

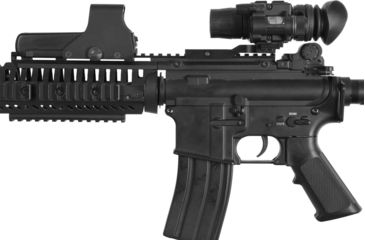

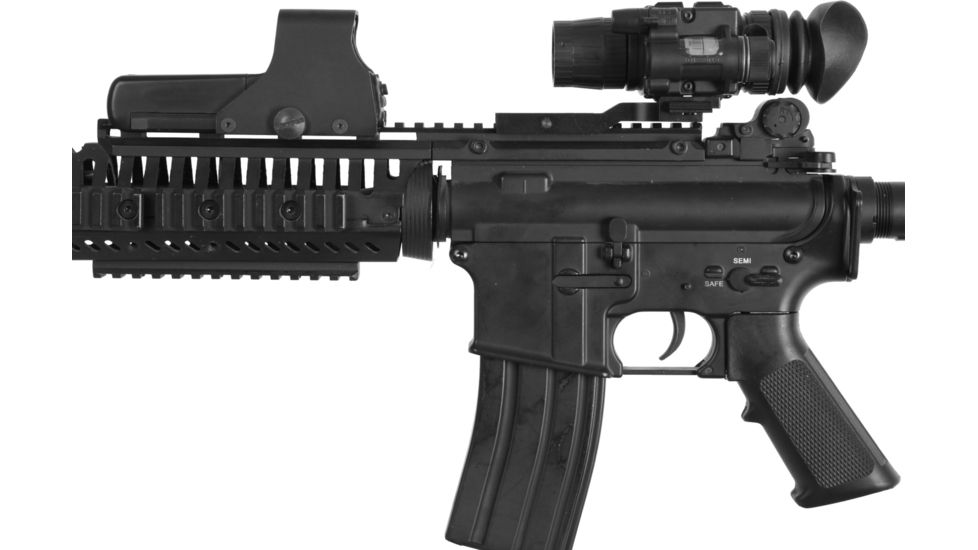

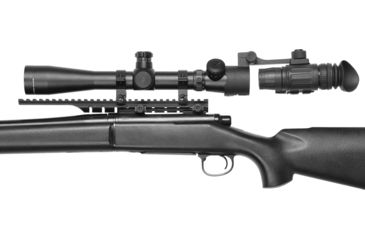

• Day/Night weapon sight (with the use of the optional weapon mount)
• Waterproof
• Limited Lifetime Warranty
• Also available in Gen.3 and Gen.4
