Unfortunately Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030) is no longer carried by OpticsPlanet. You can also explore other items in the Thermal Imaging category yourself to try and find the perfect replacement for you!

This model of Thermal Eye Thermal Imaging is discontinued and no longer available. Please, choose from our wide selection of ATN Thermal Imaging, Elcan Thermal Imaging, FLIR Thermal Imaging, Game Finder Inc Thermal Imaging, Osprey Thermal Imaging and other Thermal Imaging items on our site.

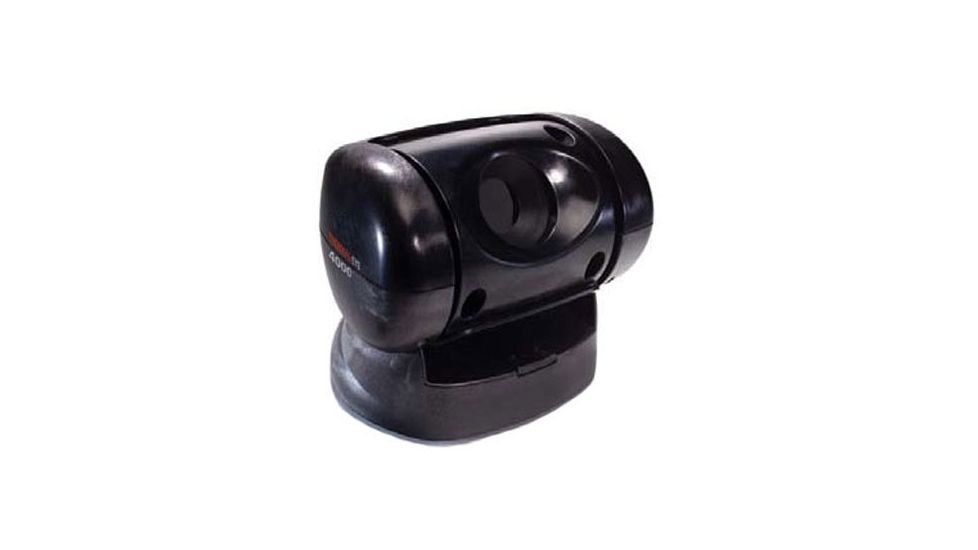

Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030) Product Info

The Thermal Eye 4000 Vehicle-Mounted Thermal Imaging Camera System is a vehicle-mounted thermal imaging camera system, developed specifically forimage public safety, security and military applications. There are two models of this Thermal Imaging Camera from Thermal Eye - 4000 B and 4000 M. The Thermal-Eye 4000M is a sealed and saltwater-proof marine version with PAL compatible video output.

Applications of Thermal Eye 4000 B/M:

  • Search and rescue
  • Area sweeps
  • Fugitive searches
  • Nighttime navigation
  • Routine nighttime patrols
  • Perimeter surveillance
  • Pollutant detection on the water

Specifications for Thermal-Eye 4000 Vehicle-Mounted Thermal Imaging Camera System:

L3 Thermal Eye 4000 B/M Vehicle-Mounted Thermal Imaging Camera System
Focal Plane Array Type & Material: Uncooled Ferroelectric

Pixel Count: 160 x 120

Spectral Response: 7-14 µm

Thermal Imaging Performance Start-up Time: ˜ 45 sec

Contrast / Brightness: Automatic

Detection Range for Human Activity: Up to 1500ft (450m)

Optics Minimum Focus Distance: ˜ 25ft (8m)

Focus Method: Automatic

Field of View: (12° x 9°)

Video Output Format: NTSC Compatible (4000B); NTSC or PAL Compatible (4000M)

IR Polarity: White=Hot, Black=Cold

Power, Input Voltage 9.5 to 16 VDC
Physical Characteristics Size: 11.1"L x 11"W x 11.4"H (282 x 280 x 290mm)

Weight: 10 lbs. (4.5 kg)

Mounting Provisions: Mobile Mount or Stationary Mount

Environmental Operating Temp: -40°C to 55°C

Water Resistance: Carwash spray, (Not submersible) - 4000B; IEC level IPX6 (Not submersible) - 4000M

Pan and Tilt Function: Pan / Joystick Controlled, 360° continuous; Tilt / Joystick Controlled -20° to +180°

EMC Compliance: FCC Part 15 & CE Mark

Features and Benefits of L-3 Thermal-Eye 4000 Vehicle Mounted Thermal Imager:

  • The only continuous 360° pan and tilt vehicle-mounted camera available for long-range detection
  • Best value in the market for pan and tilt imaging
  • Detects long range and without the blooming effect often seen with other night vision technologies
  • Unaffected by light rain, smoke and dust, and without the use of obtrusive lighting
  • Observe suspicious activity while remaining covert from the safety of a vehicle or boat
  • Detects human activity from up to 450 meters away
  • Complete immunity to damage from solar radiation
  • Joystick and monitor easily configure into any vehicle/marine interior system
  • NTSC/PAL compatible video output
  • Roof mounting bar available

Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030) Related Products

Thermal Eye 4000 Vehicle Mounted Thermal Imaging Camera System TICA4000M TICA4000B (34020 / 34030) Unorderable Models

Thermal Eye 4000B Imaging System TICA4000B, MPN: TICA4000B, UPC: 658175340300, Code: EY-HS-4000-TICA4000B
Thermal Eye 4000M Imaging System TICA4000M, MPN: TICA4000M, UPC: 658175340201, Code: EY-HS-4000-TICA4000M
