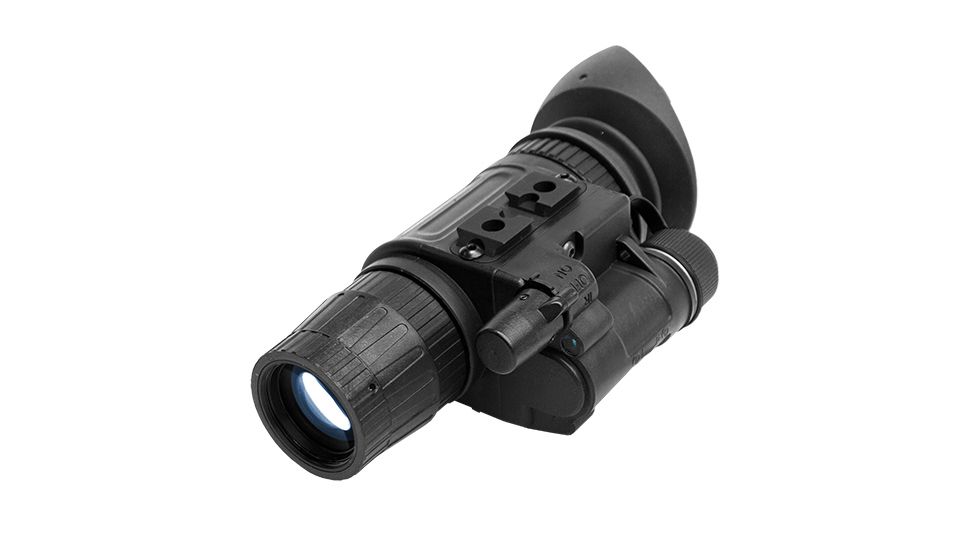

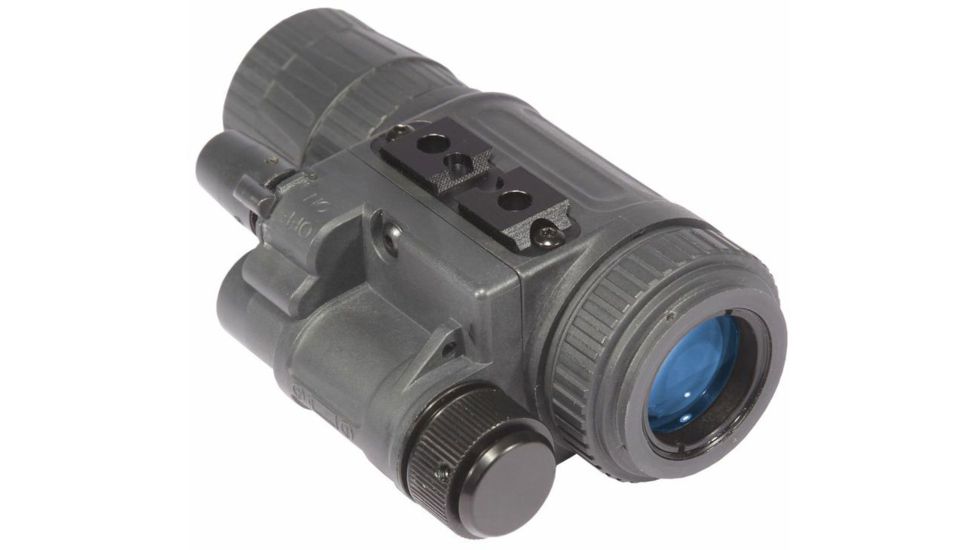

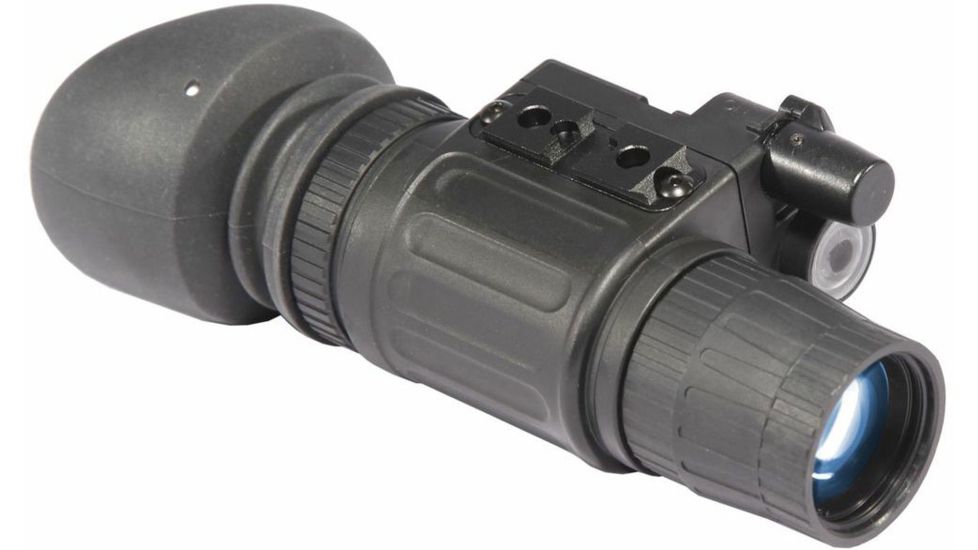

ATN NVM-14-3P Night Vision Monocular with ITT Pinnacle Image Intensifier Tube NVMPAN143P
UPC: 658175131731
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

These ATN Night Vision Scopes use the Pinnacle Image Intensifier Tube from ITT. Aside from being an industry leader in image tubes, the Pinnacle Image Intensifier runs on a gated power supply that makes Night Vision in light-polluted areas a possibility by minimizing the "halo" effect. With the Pinnacle Image Intensifier tube in your Night Vision Device, you can always count on a 64-72lp/mm resolution and a noise ration of 24.

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

ATN NVM-14-3P Night Vision Monocular with ITT Pinnacle Image Intensifier Tube NVMPAN143P Product Info

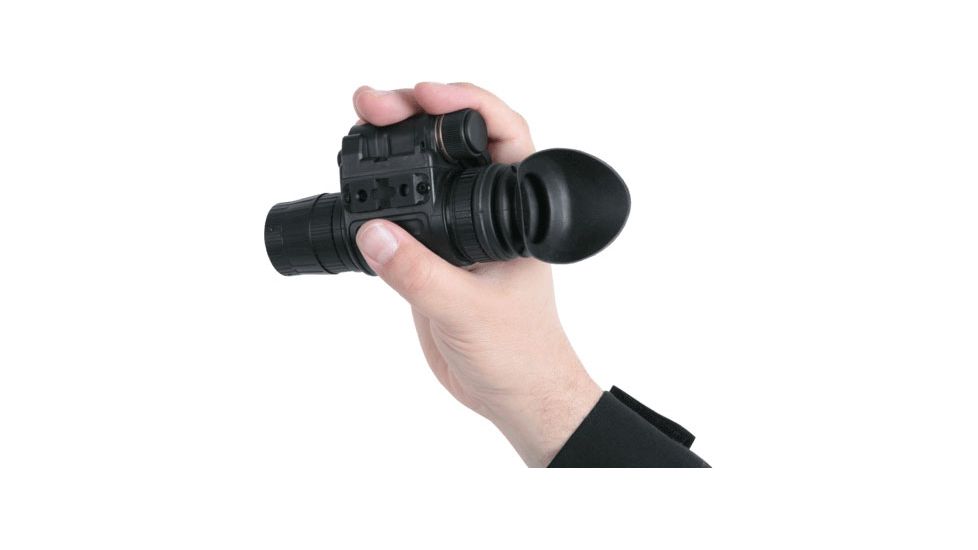

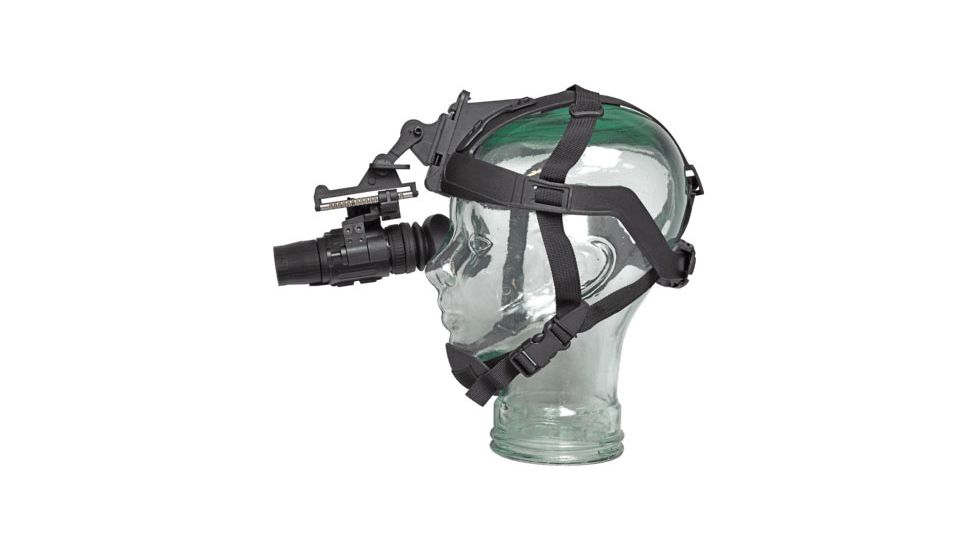

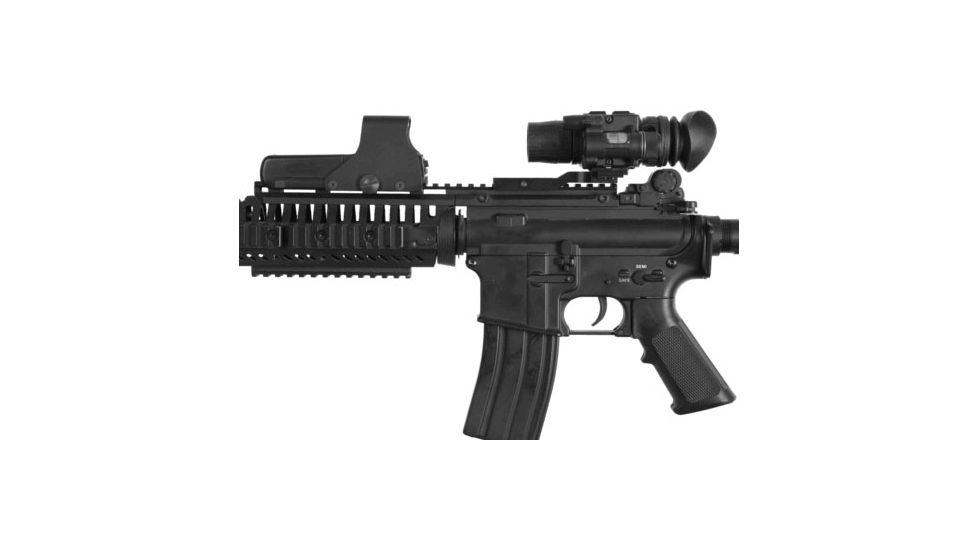

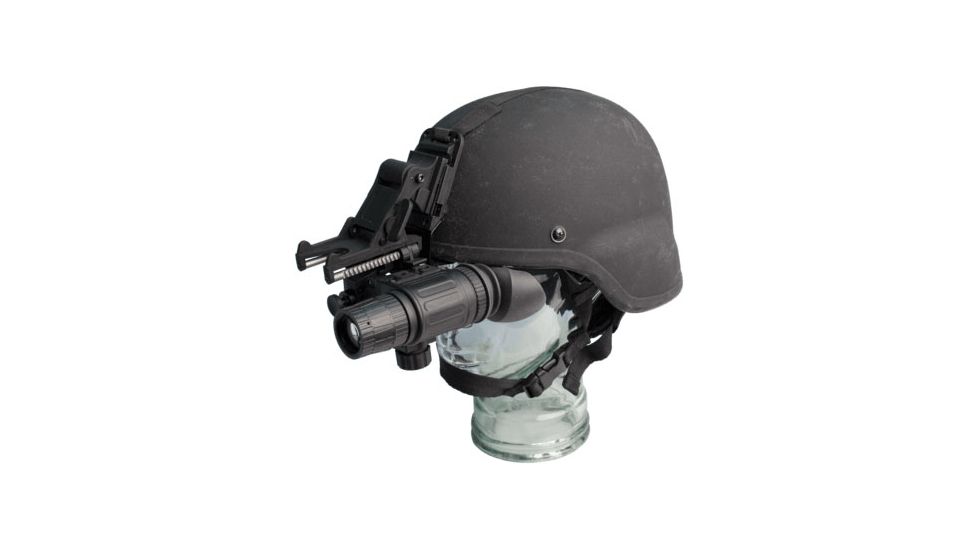

ATN NVM-14-3P Night Vision Monocular with ITT Pinnacle Image Intensifier Tube NVMPAN143P is an advanced multi-mission, multi-purpose 3rd Generation night vision hand-held, head-mounted, helmet-mounted, weapon-mounted night vision monocular that enables activities such as walking, driving, military weapon firing, night surveillance, map reading, vehicle maintenance, and administering first aid under the cover of darkness. Thw Night Vision NVM 14-3P utilizes a single, technologically advanced Pinnacle Image Intensifier tube from ITT to provide crisp, clear images in the darkest of conditions. This ATN Night Vision unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus, and eyepiece focus along with using the principle of intensification of the residual light which is reflected from the surrounding objects. This Night Vision Monocular is also equipped ATN 's Total Darkness Technology featuring a built-in infrared light-emitting source giving it maximum flexibility even when available ambient light is minimal. The optical system of the rugged NVM143P Multi-purpose nightvision scope consists of: an objective lens, an image intensifier tube and an eyepiece. The ATN Monocular NVMPAN 143P is smaller and lighter than the ATN Mil Spec PVS14 and is fully submersible to a depth of 66 feet (20 meters). The NVM143P Monocular is the total night vision package for the modern nighttime military ope rator, police surveillance, search/rescue, or civilian concerned with securing family and property.

ATN night vision units with the 3P designation use ITT Pinnacle Image Intensifier tubes.

ATN NVM-14-3P Night Vision Monocular with ITT Pinnacle Image Intensifier Tube NVMPAN143P

Specifications for ATN NVM-14-3P Night Vision Monocular with ITT Intensifier Tube NVMPAN143P:

Intensifier Tube: 3rd Gen. Pinnacle
Magnification: 1X
f-Number: 1.2
Field of View: 40 degrees
Eyepiece Diopter Adj.: -6 to +2
Resolution: 64-72 lp/mm
Signal to noise ratio: 24 typical
Photocathode Sensitivity: 2000-2800
Eye Relief: 25 mm
Focusing range: 0,25m to infinity
Voltage: 3.0 VDC or 1.5 VDC
Power Requirements: 1 CR123A or 1 AA
IR Illumination Range: 20 meters
1 CR123A battery: 50 hours
Weight (with battery): 335 grams
Length: 140 mm
Width: 50 mm
Height: 69 mm
Operation temperature: -40 +50°C
Storage temperature: -50 +70°C

Features of ATN NVM-14-3P Night Vision Monocular NVM PAN143P:

  • Top of the line ITT Pinnacle iamge intensifier tube

Package Contents:

  • ATN Night Vision Monocular NVMPAN143P
  • CR123A battery

ATN NVM-14-3P Night Vision Monocular with ITT Pinnacle Image Intensifier Tube NVMPAN143P Related Products

ATN NVM-14-3P Night Vision Monocular with ITT Pinnacle Image Intensifier Tube NVMPAN143P Comments

Customer Reviews
Helpful Positive Review Best alternative to PVS14 by Legacy Reviewer, September 10, 2012
I was hesitant about buying an NVM14 as i am used to using PVS14, but all i can say is i am glad i made this purchase. Not only it is well built you cant do better than ITT 3P tube. Morovision PVS14 with 3P tube can easily cost around $7K, this was h...
3/3 found this helpful
Helpful Negative Review jeremy by Legacy Reviewer, December 20, 2011
The power switch's operability was very intermittent. It only worked every now and then. The I.R. illuminator was unfortunately tied into the power switch which was a spring type togle switch. I also noticed that colder temperatures(within operable r...
6/7 found this helpful
Most Recent Review ATN NVM-14-3P by Buck, October 20, 2014
Excellent product with clarity. Works very well for 150 yards or so. Bought it to look for coyote around my house. Excellent product for night time use. The bag that comes with it is really to large. Seems to be a generic bag and not made just f...
2/2 found this helpful
Most Recent Review Eotech by Legacy Reviewer, March 7, 2013
It's eotech nothing else to say, good unit Pros: all good
0/1 found this helpful
Most Recent Review Super quality image from a small package.! by Legacy Reviewer, January 13, 2013
The older I get the more I appreciate smaller, lighter equipment that does not sacrafice quality or the availability of mutiple add on components that increase offer you increased mission usefulness. . Image quality is outstanding. Very few, small da...
3/3 found this helpful
