Product No Longer Available

Unfortunately ATN OTIS-10 (30Hz) Thermal System is no longer carried by OpticsPlanet. You can also explore other items in the Monoculars, Thermal Imaging categories yourself to try and find the perfect replacement for you!

This model of ATN Thermal Imaging is now discontinued and no longer available. Please check out our other selection of Insight Technology Thermal Monoculars & Heat Seeker Sights, FLIR Systems Thermal Imagers, Thermal Eye Thermal Imaging and other Thermal Imaging currently available at our store.

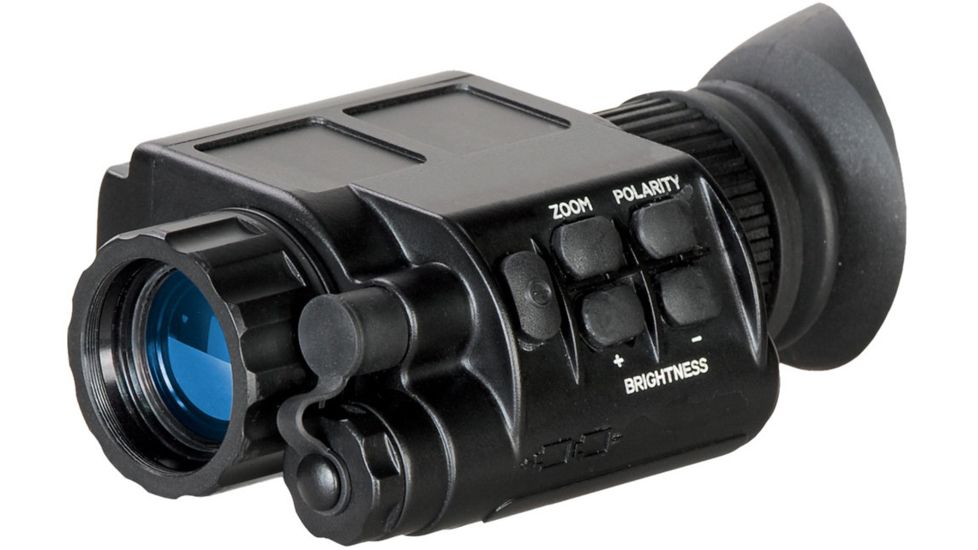

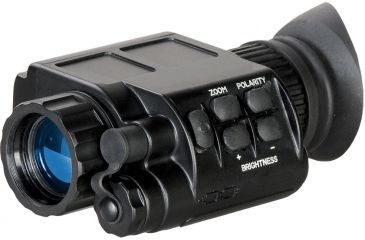

ATN OTIS-10 (30Hz) Thermal System Product Info

ATN OTIS-10 30Hz Thermal System sets the standard for affordable, small, lightweight Thermal Imaging Cameras. This Thermal imaging by ATN is pocket-sized, rugged and durable. ATN Thermal Camera offers imagesuperior performance, compact size, comfort of wear and cost efficiency that make it the perfect Thermal Imaging Device.

The OTIS-10 is a thermal system by ATN intended for law enforcement, personal and commercial uses. It is built around state of the art uncooled thermal imaging technology, highly integrated DSP-based electronics and a compact, light weight system. The ATN OTIS-10 thermal monocular provides the excellent image quality that is unaffected by lights or shadows that seriously hamper the image quality of image intensified night vision. Total darkness, camouflage or bright lights will not affect the sensitivity of these units. The ATN OTIS-10 's superior performance, compact size, comfort of wear and cost efficiency makes it the perfect thermal imaging device. The ATN OTIS-10 (30Hz) Thermal imaging is ideal for Home Security, Public Safety, First Responder and Security Operations.

Specifications for ATN OTIS10 Thermal Imaging:

Magnification: 1,8X
Objective Focal Length: 25 mm
FOV: 11 x 8
Focus Range: from 1m to infinity
Focus Adjustment: Manual
Exit Pupil: 14 mm
Eye Relief: 25 mm
Detector Type: Uncooled Microbolometer
Spectral Response: 7-14 µm
Pixels: 160 x 120
Pixel Size: 30 x 30 µm
Angular Resolution, mrad: 1,2
Thermal Sensitivity: < 0,1C
Range to Detect a Human: 475 m
Output Format: Analog PAL / NTSC
Display: OLED matrix
Display Format: SVGA, 852 x 600 pxl
Color: Monochrome
Digital ZOOM: Fixed 2x (optional 5x)
Brightness Adjustment: Manual
Contrast Adjustment: Automatic
Available User Interfaces: From outside PC through USB interface
Power Supply: 2 x 3V, 123A type
Start-Up Time: < 3 sec
Operating Time w/one battery pack: 4 hrs
External Power Supply: DC 6V, 500 mA
Operating Temperature Range: from -20C to +50C
Waterproof: Yes, up to 10m submersion
Dimensions: 118 x 81 x 47 mm
Weight (w/batteries): 0,34 kg

Features of ATN OTIS-10 (30Hz) Thermal Camera:

  • High resolution digital thermal imaging
  • Compact, lightweight and durable housing
  • High Quality optics
  • Video and computer output
  • Video/Image polarity selection
  • Waterproof

Package Contents:

  • ATN OTIS-10 Thermal System
  • Lens Cap
  • Video Cable
  • Two Lithium Batteries
  • Pellican Waterproof Hard Case
  • Warranty card
  • Soft carrying Case
  • Packing box
  • Lens Tissue
  • Instruction Manual & CD guide
