Product No Longer Available

Unfortunately ATN Otis-17 Thermal Imaging Weapon Sight and Monocular TIWSOTIS17 is no longer carried by OpticsPlanet. You can also explore other items in the Monoculars, Rifle Scopes, Thermal Imaging categories yourself to try and find the perfect replacement for you!

This model of ATN Riflescopes is discontinued and no longer available. Please, choose from our wide selection of Alpen Riflescopes, Barska Riflescopes, Konus Riflescopes, Leupold Riflescopes, NC Star Riflescopes and other Rifle Scopes on our site.

ATN Otis-17 Thermal Imaging Weapon Sight and Monocular TIWSOTIS17 Product Info

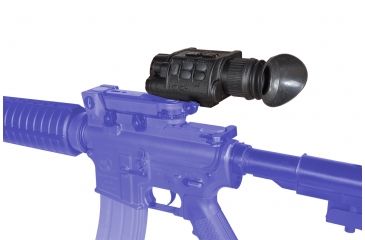

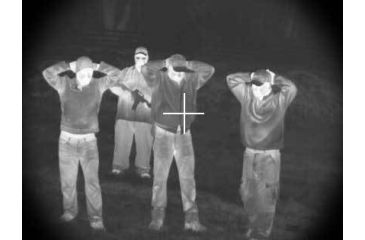

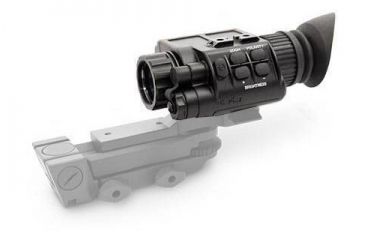

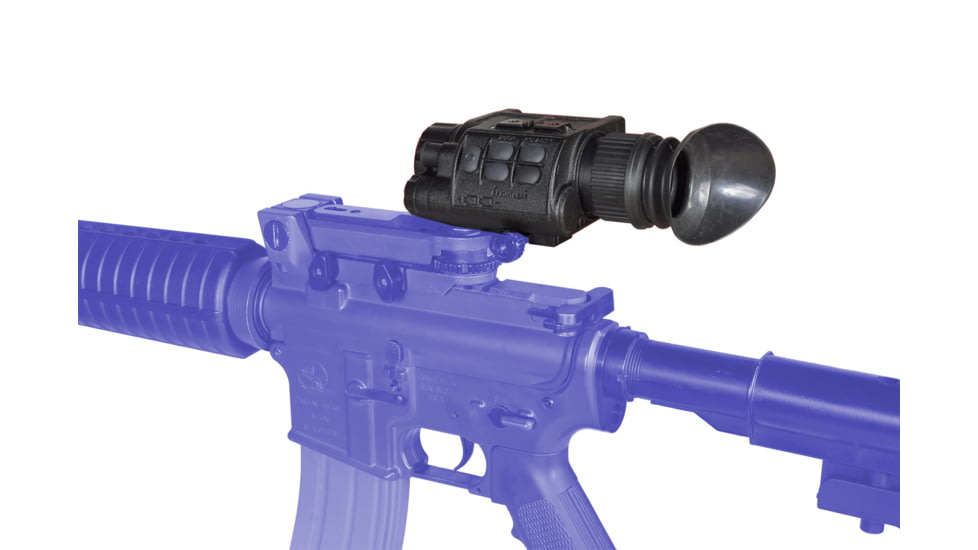

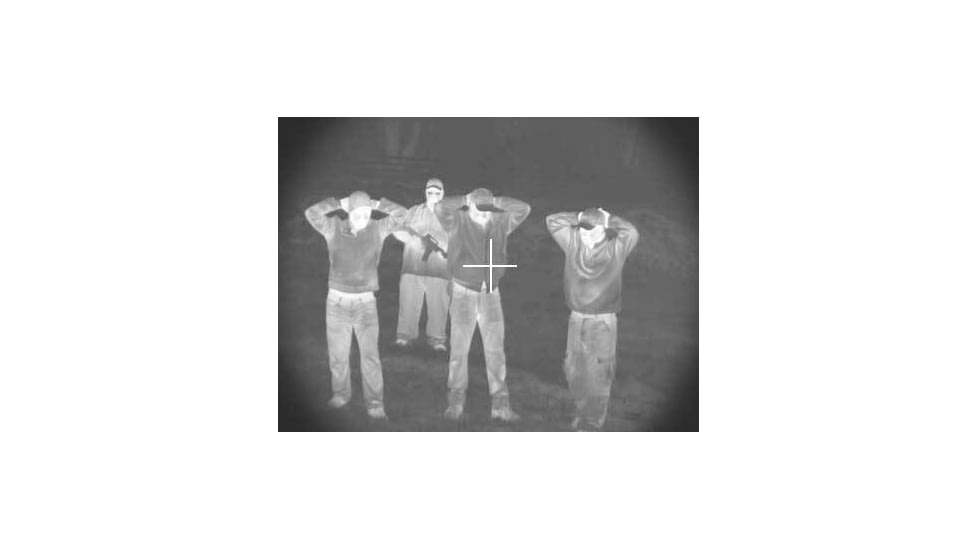

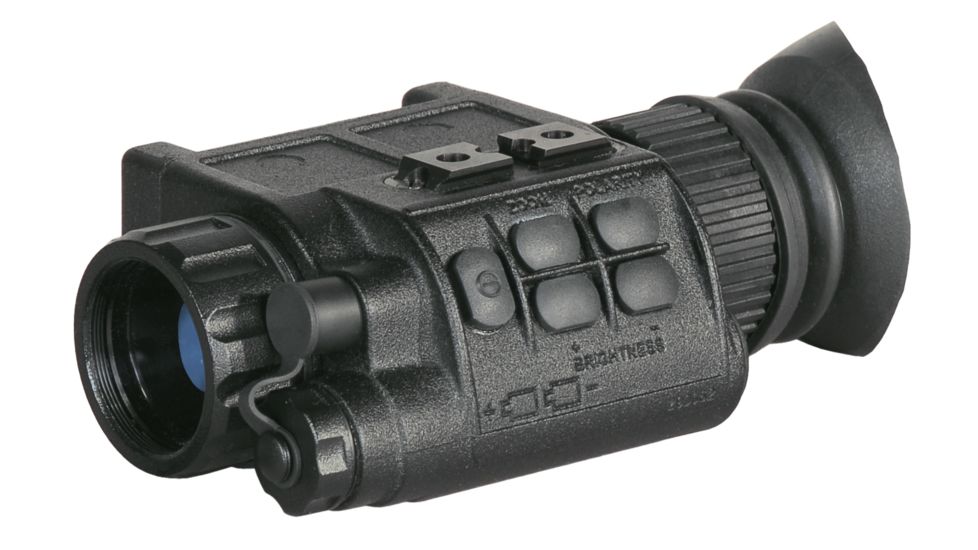

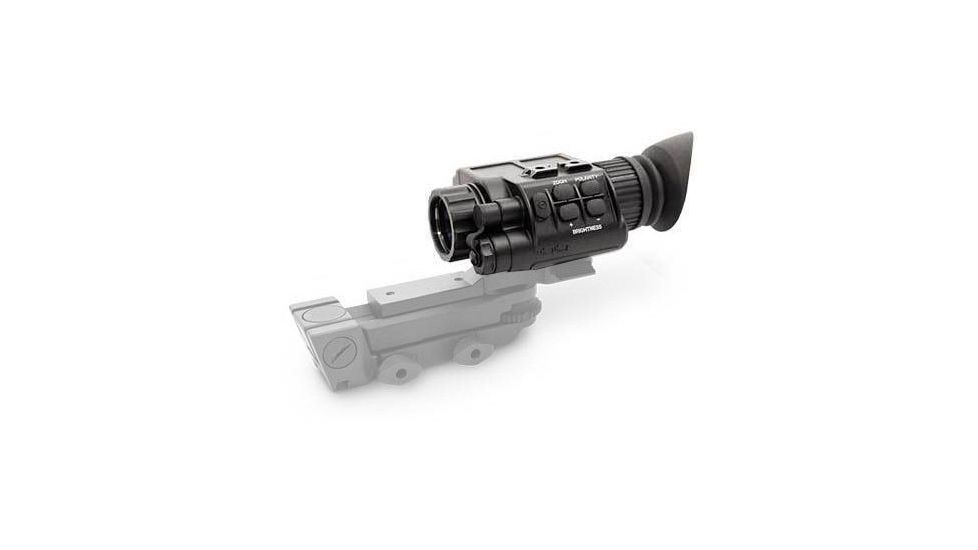

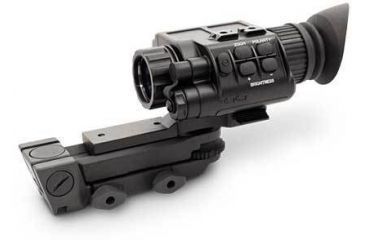

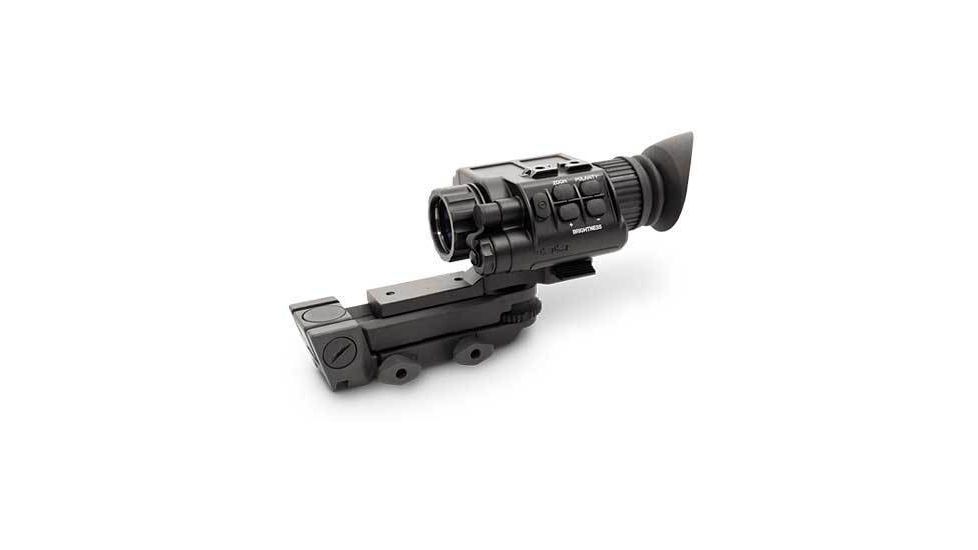

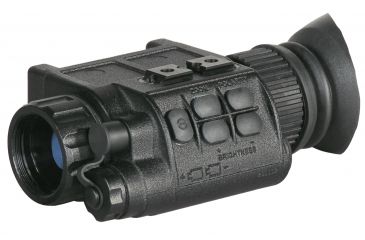

ATN Otis-17 Heat Seeker is a compact dual purpose thermal imaging weapon sight and monocular. It is built around state-of-the-art uncooled thermal imaging technology, highly integrated DSP-based electronics and a compact, lightweight system. Theimage OTIS17 thermal weapon sight by ATN provides excellent image quality through total darkness, fog, smoke and most visual obscurants. This ATN Heat Seeker is an ideal product for Border Patrol Officers, Sport Shooting Enthusiasts, Private Protection, Police SWAT and Special Operations. The included and optional accessories provide for the versatility of the ATN Thermal Monocular. You can put it on a headset or on a helmet, connected to another monocular to build a binocular system etc.The ATN OTIS-17 's superior performance, compact size, comfort of wear and cost efficiency make it the perfect thermal imaging device.

Specifications for ATN Otis 17 Thermal Imaging Weapon Sight:

Magnification:   1,8X
Objective Focal Length:   25 mm
FOV:   11 x 8 deg
Focus Range:   1m to infinity
Focus Adjustment:   Manual
Exit Pupil:   14mm
Eye Relief:   25mm
Detector Type:   Uncooled Microbolometer
Spectral Response:   7-14 µm
Pixels:   160 x 120
Pixel Size:   30 x 30 µm
Angular Resolution, mrad:   1,2
Thermal Sensitivity:   < 0,1 C
Range to Detect a Human:   475 m
Output Format:   Analog PAL / NTSC
Display:   OLED matrix
Display Format:   SVGA, 852 x 600 pxl
Color:   Monochrome

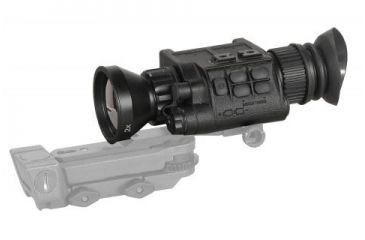

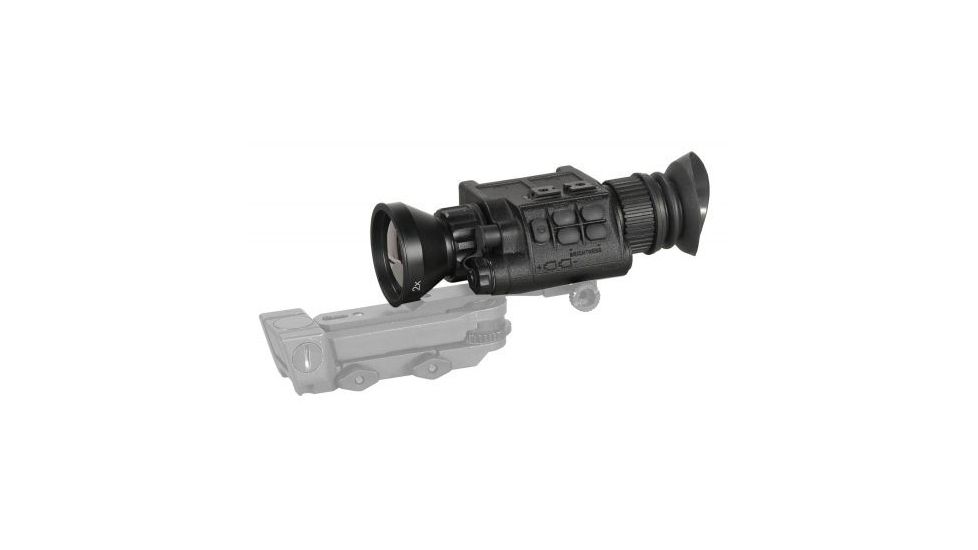

Digital ZOOM:   Fixed 2x (optional 5x)
Brightness Adjustment:   Manual
Contrast Adjustment:   Automatic
Available User Interfaces:   From outside PC through USB interface
USB interface Power Supply:   2 x 3V, 123Atype
Start-Up Time:   < 3 sec
Operating Time w/one battery pack:   4 hrs
External Power Supply:   DC 6V, 500 mA
Operating Temperature Range:   from -20C to +50C
Waterproof:   Yes, up to 10m submersion
Dimensions:   118 x 78 x 54 mm
Weight (w/batteries):   0,34 kg

Features of ATN Otis17 Thermal Imaging Monocular:

  • High resolution digital thermal imaging
  • Compact, lightweight and durable housing

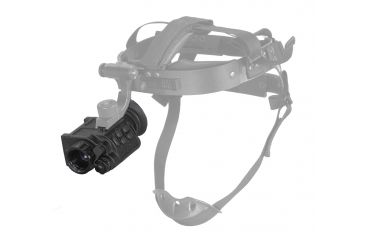

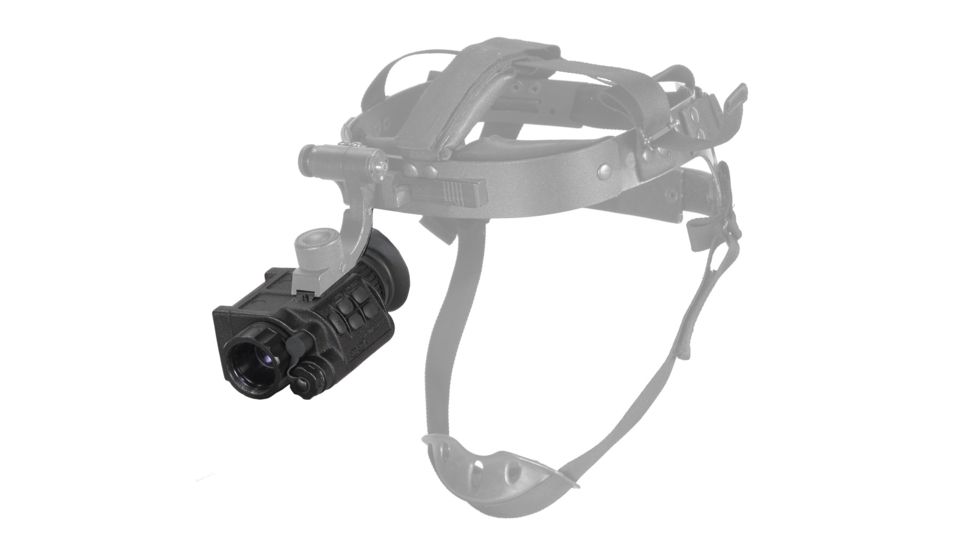

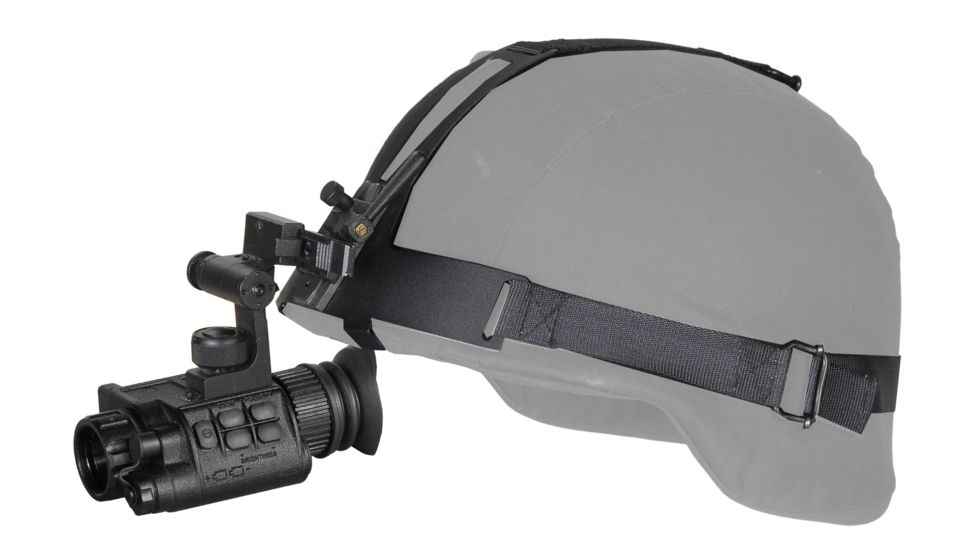

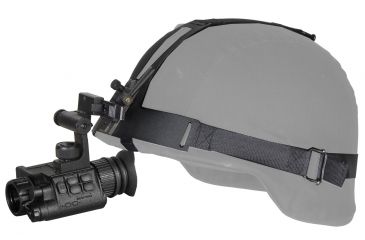

  • Head/helmet mountable for hands-free usage
  • High Quality optics

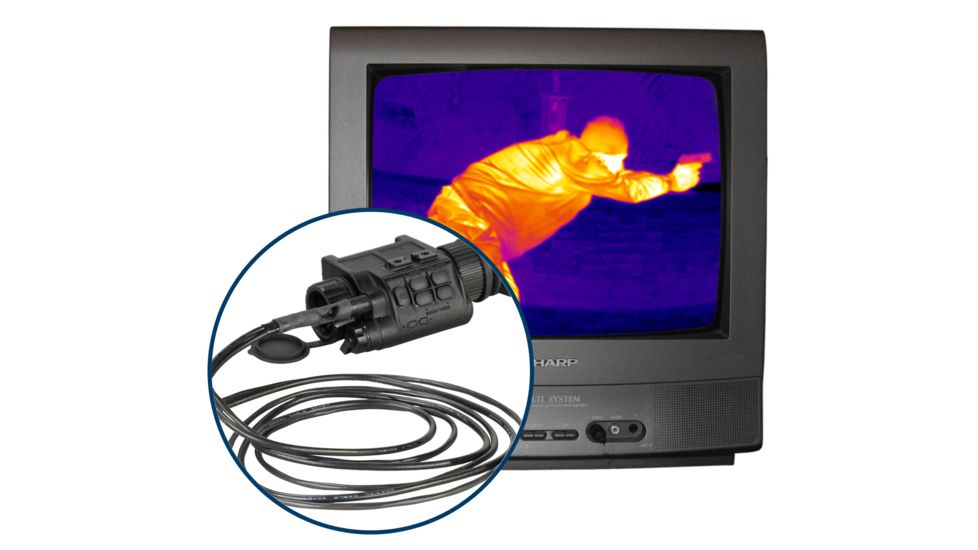

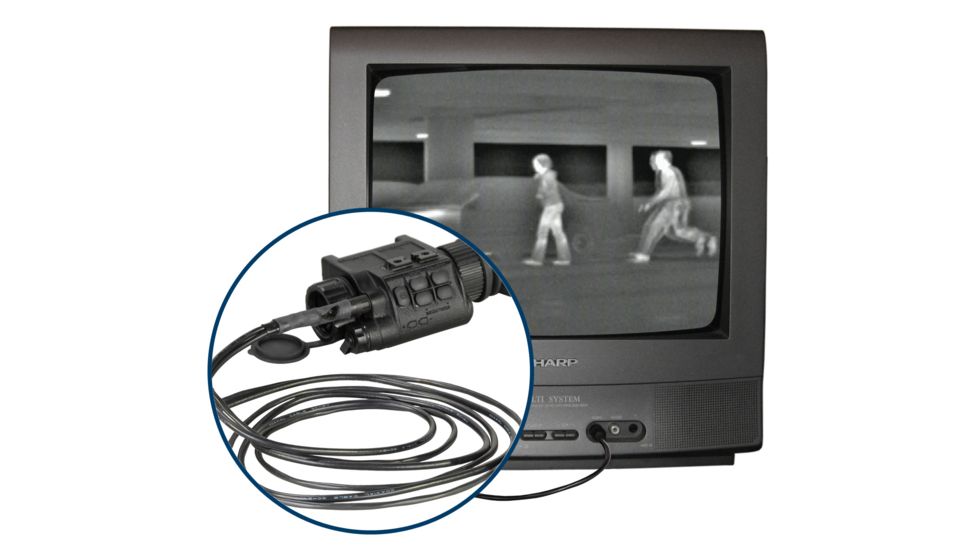

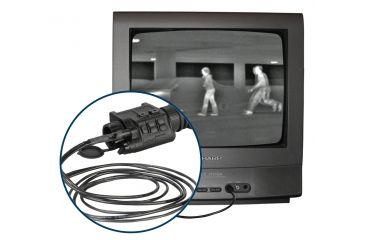

  • Video and computer output
  • Video/Image polarity selection
  • Waterproof
  • Limited 1 Year Warranty

Package Contents:

  • ATN Otis-17 Thermal Imaging Weapon Sight and Monocular TIWSOTIS17
  • Video Cable
  • PC Cable
  • Two Lithium Batteries
  • Pellican Waterproof Hard Case
  • Warranty card
  • Soft carrying Case
  • Packing box
  • Instruction Manual & CD guide

ATN Otis-17 Thermal Imaging Weapon Sight and Monocular TIWSOTIS17 Related Products

ATN Otis-17 Thermal Imaging Weapon Sight and Monocular TIWSOTIS17 Unorderable Models

ATN Otis-17 Thermal Imaging Weapon Sight and Monocular TIWSOTIS17, MPN: TIWSOTIS17, UPC: 658175342038, Code: AT-HS-OTITHR17-TIWSOTIS17

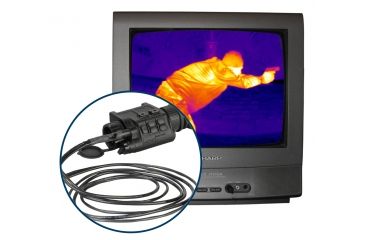

ATN Otis-17 Color Thermal Handheld Scope TIWSOTIS17C, MPN: TIWSOTIS17C, UPC: 658175342069, Code: AT-HS-OTITHR17-TIWSOTIS17C
