Product Discontinued by Manufacturer

ATN OTS-60 640x480 17 micron Thermal Monocular has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Thermal Imaging category yourself to try and find the perfect replacement for you!

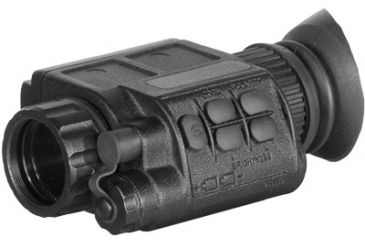

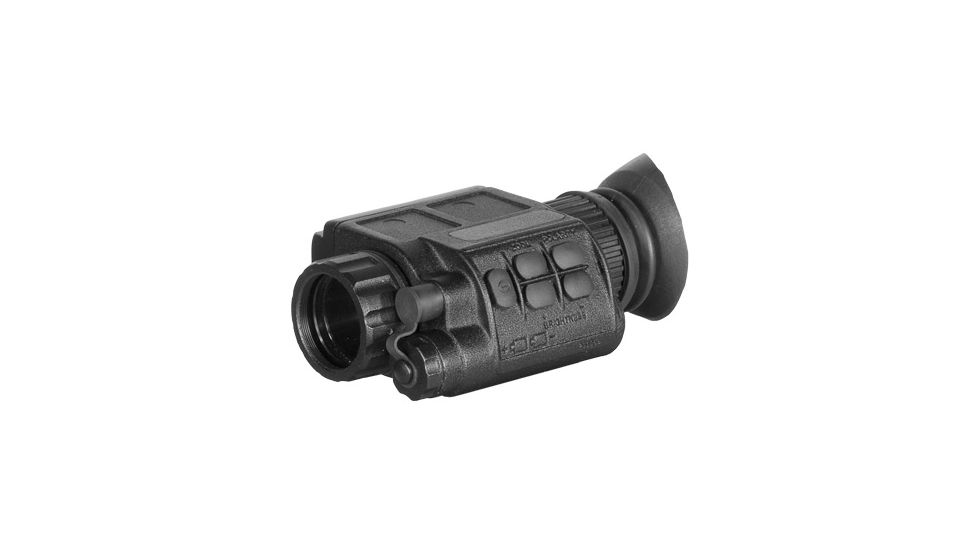

ATN OTS-60 640x480 17 micron Thermal Monocular Product Info

ATN Thermal Imaging Has Gone Digital; the ATN OTS-60B (30Hz) Thermal Monocular has raised the standard for affordable, small, lightweight Thermal Imaging viewers. They're pocket-sized, rugged and durable. Theimage ATN OTS-60B Thermal Imaging Monoculars are built around state-of-the-art uncooled thermal imaging technology. They offer superior performance, compact size, comfort of wear, and cost efficiency, making them the perfect choice for most any thermal imaging application. The ATN OTS-60B (30Hz) Thermal System Monocular is ideal for home security, public safety, first responder and security operations.

Specifications for ATN OTS-60B Thermal Multi-Purpose Monocular:

Type: 30hz
Optical Magnification: 1X
Objective Focal Length: 19 mm
FOV: 11deg x 8deg
Focus Range: 3m to infinity
Exit Pupil: 14mm
Eye Relief: 28mm
Detector Type: Uncooled Microbolometer
Spectral Response: 7-14 μm
Sensor (microbolometer): 640x480
Pixel Size: 17 x 17 μm
Thermal Sensitivity: < 0,1degC
Human detection, m (w/o zoom): 500
Human recognition, m: 225
Human Identification, m: 135
Vehicle Detection, m: 1100
Vehicle Recognition, m: 495
Vehicle Identification, m: 300
Output Format: Analog PAL / NTSC
Display Color: OLED matrix
Image Size (output resolution): SVGA, 800 x 600 pxl
E-ZOOM: 2x, 4x
Brightness Adjustment: Manual
Contrast Adjustment: Automatic
Power Supply: 2 x 3 V CR123A type battery
Start-Up Time: < 5 sec
Operating Time w/one battery pack: 4+ hrs
Operating Temperature Range: from -30°C to +60°C
Waterproof: Yes
Dimensions: 118x81x52 mm
Weight (w/batteries): 0.34 kg
Warranty: 1 year

Features of ATN OTS-60B (30 Hz) Thermal Monocular:

  • Compact & lightweight design
  • Digital imaging
  • Fast Imaging (30hz)
  • Vanadium oxide (VOx) Microbolometer Uncooled
  • 800 x 600 OLED color display
  • Rugged design with mil. spec optics
  • Menu functions include reticle type & color selection; windage & elevation adjustment
  • Polarity single button modes: black on white, white on black, 5 different color settings
  • Digital brightness control
  • E-zoom
  • Video output with RCA cable
  • Diopter range: +2deg to -6deg
  • Eye relief: 28mm
  • Extended battery life using two (2)
  • CR123 lithium batteries (4-plus hours)
  • One-year warranty
  • Made in USA

Package Contents:

  • ATN OTS-60 640x480 17 micron Thermal Monocular

ATN OTS-60 640x480 17 micron Thermal Monocular Related Products

ATN OTS-60 640x480 17 micron Thermal Monocular Unorderable Models

ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 9 Hz TIMPOTIS60HZ9, MPN: TIMPOTIS60HZ9, UPC: 658175343080, Code: AT-HS-OTS60-TIMPOTIS60HZ9
ATN OTS-60 640x480 Thermal Imaging Multi Purpose Monocular - 30 Hz TIMPOTIS60B, MPN: TIMPOTIS60B, UPC: 658175343097, Code: AT-HS-OTS60-TIMPOTIS60B
