ATN OTS-X-E330, 320x240, 30mm, 60Hz Thermal Imaging Monocular TIMNOTSXE330
UPC: 658175342663
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

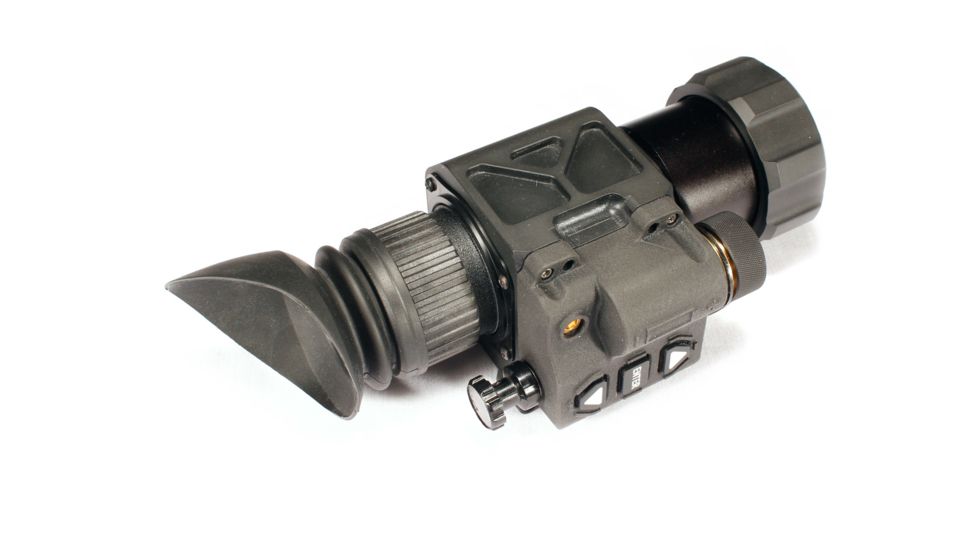

ATN 60Hz OTS-X-E330 Thermal Imaging Monocular - 320x240, 30mm Product Info

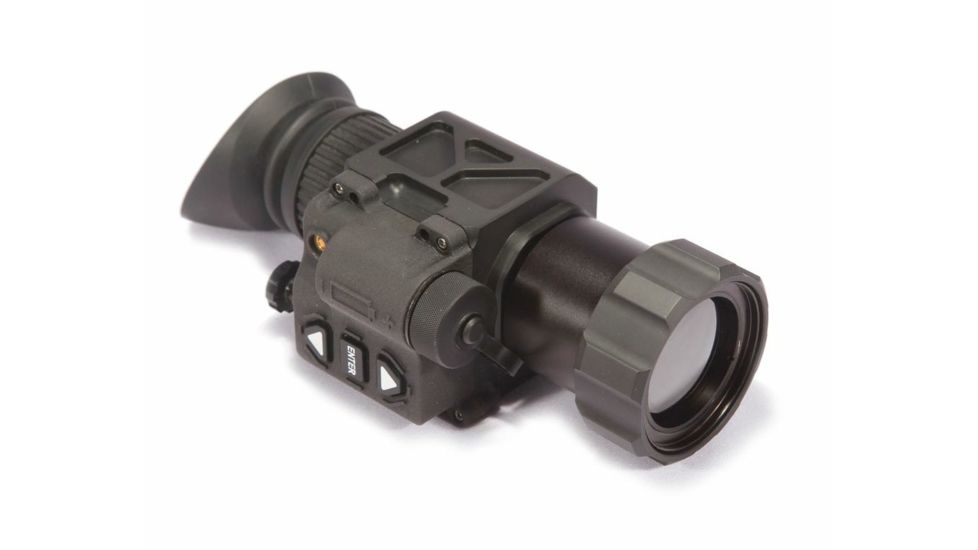

The ATN OTS-X E330 2X (60Hz) Thermal Viewer TIMNOTSXE330 is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. This Thermal Image Monocular from ATN is one of the most affordable thermal viewers on the market that includes a full 320x240. One of the most unique features of the ATN OTSX E330 60Hz Thermal Imaging Monocular is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission. The ATN Thermal OTS-X E330 Imaging Monocular 320x240 resolution with 4 different interchangeable lens types to choose from the OTS-X series is one of the most versatile viewers on the market.

ATN TIMNOTSXE330: OTS-X-E330, 320x240, 30mm, 60Hz Thermal Imaging Monocular

Specifications for ATN Thermal Imager OTS-X-E330 Monocular:

Sensor (microbolometer): 320 x 240
Type: Uncooled
Material: Vanadium oxide (VOx)
Image Size (output resolution): 800x600
Frame rate: 60 Hz
Video output: Analog RS-170
Lens: 30 mm
Display: Color OLED matrix, SVGA< 800x600
Thermal Sensitivity: <50mK
Spectral Response: 7-14 um
Field of View: 11°
Eye Relief: 27 mm
Diopter Adjustment: -1.5
Optical Magnification: 2X
E-Zoom: 4X, 8X
Human Detection: 750 m
Human Recognition: 300 m
Human Identification: 180 m
Vehicle Detection: 1650 m
Vehicle Recognition: 660 m
Vehicle Identification: 400 m

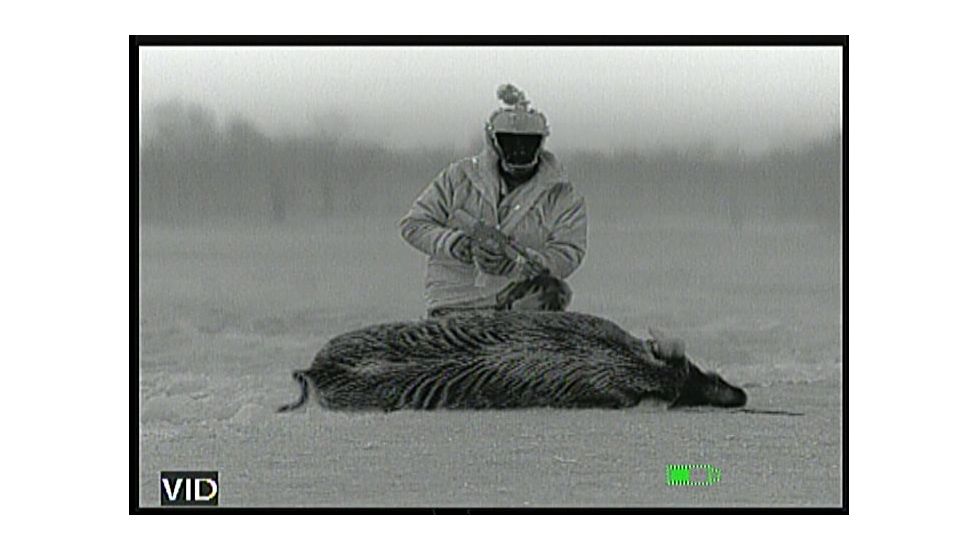

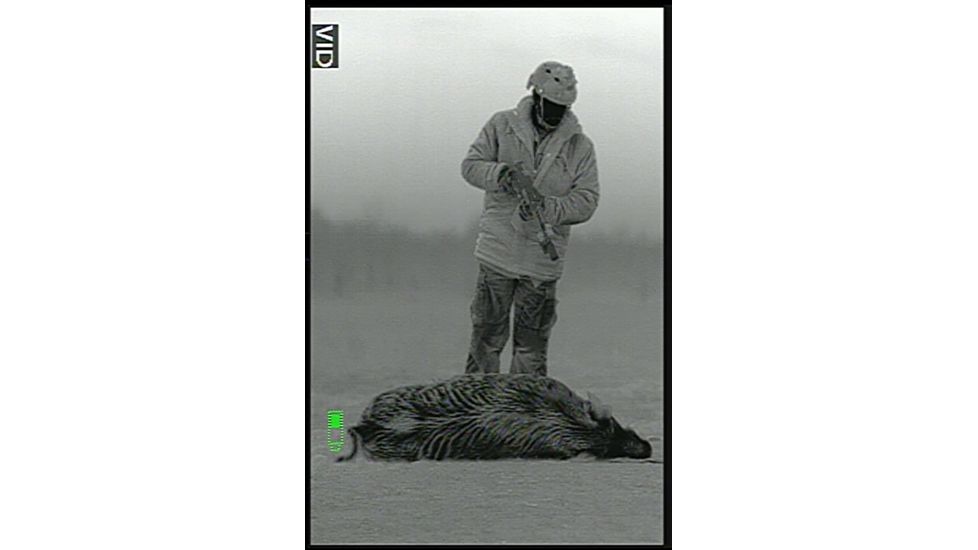

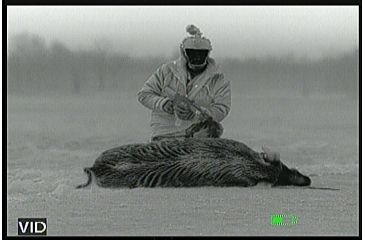

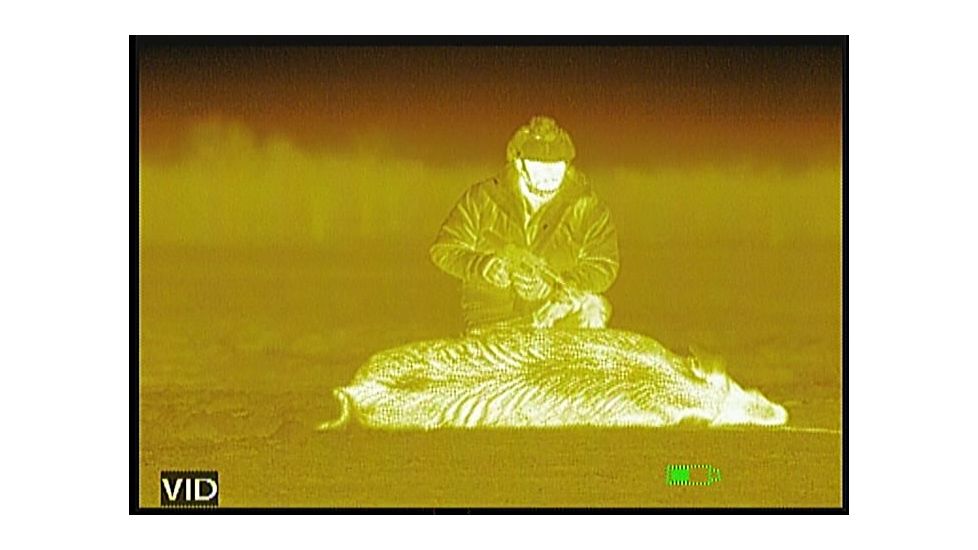

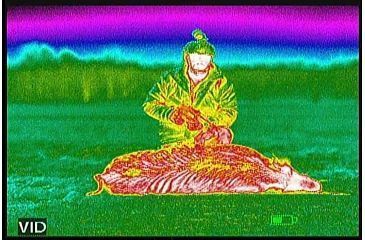

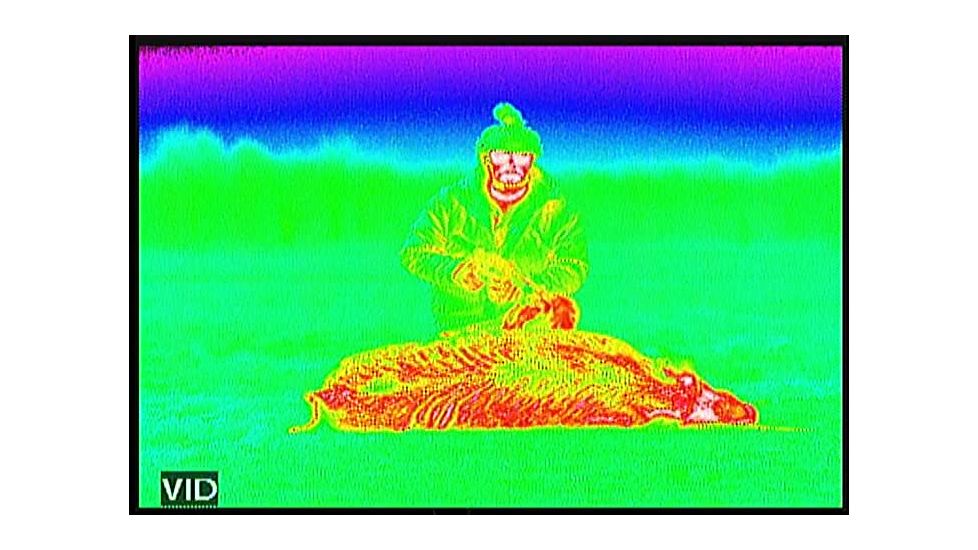

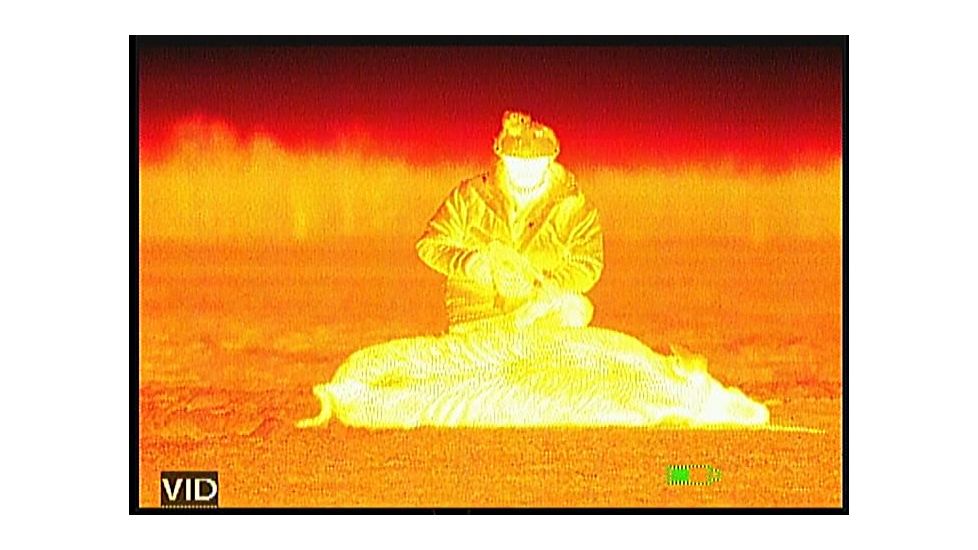

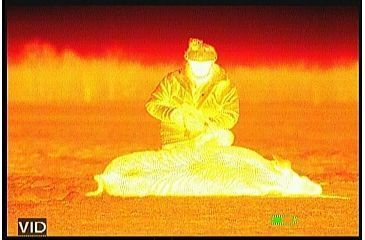

Polarity control: White hot / Black hot / Multiple Color Modes
Start up time: <4 sec
Waterproof: Yes

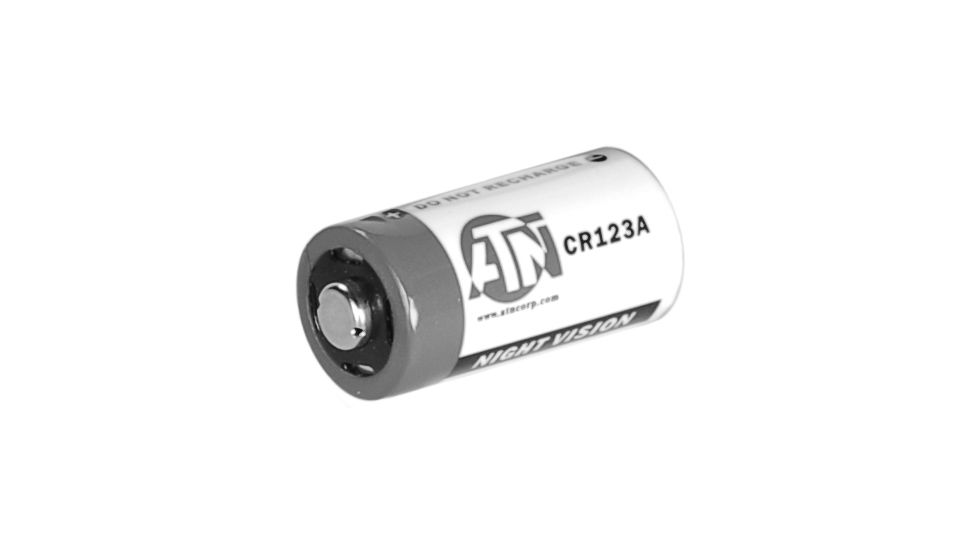

Battery type: 1 x CR123A battery type
Battery Life: 2+ hrs
Weight: 1.1lb /500 grams
Dimensions: 145 x 61 x 83 mm /5.75x2.4x3.3"
Warranty: 1 year

Features of ATN OTX-X 30mm 60hz Thermal Imaging Monocular:

  • Resolution 320 x 240
  • Ergonomic Design
  • Enhanced Imaging (60hz)
  • Compact Rugged Construction
  • Interchangable Optics
  • E-Zoom
  • Variable Geometry Display
  • Digital Brightness Control
  • Icon Based Menu System

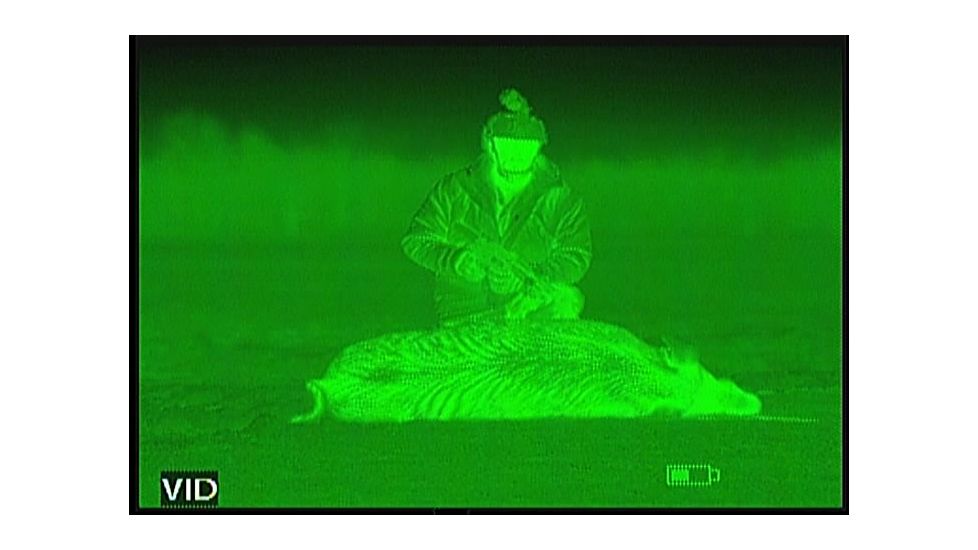

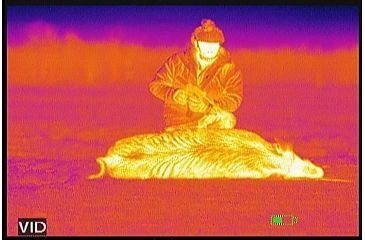

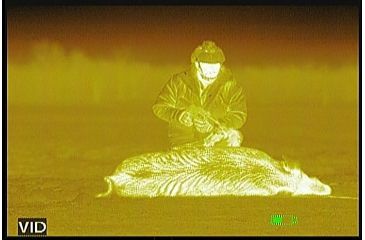

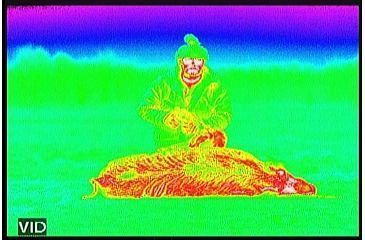

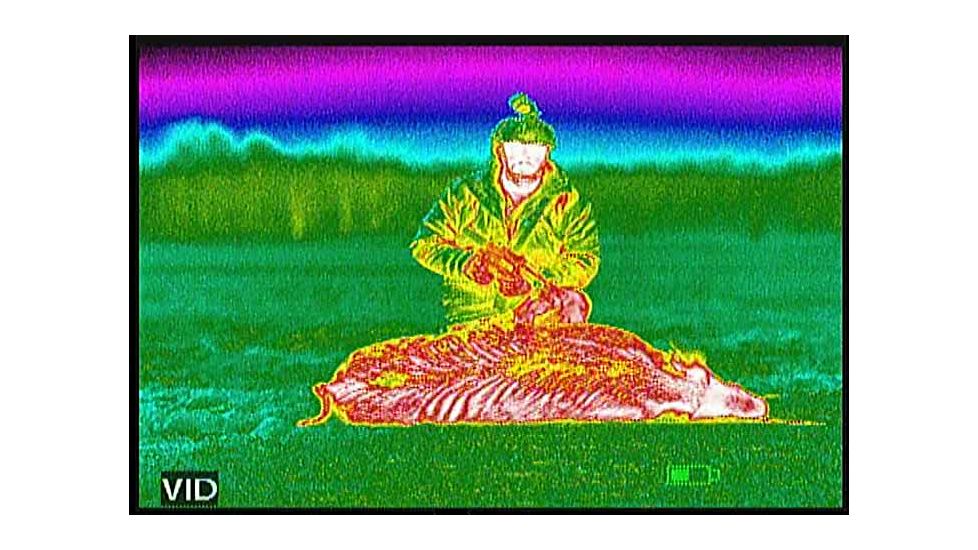

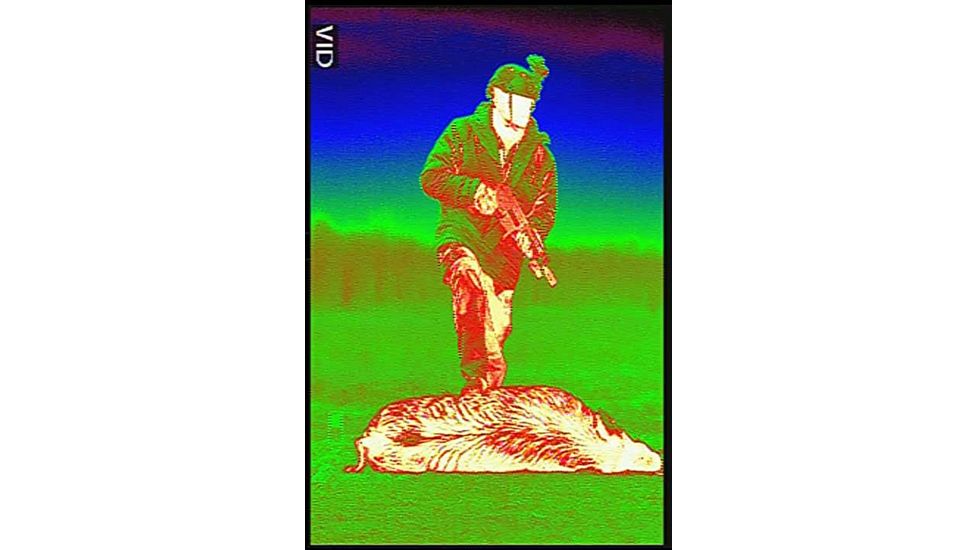

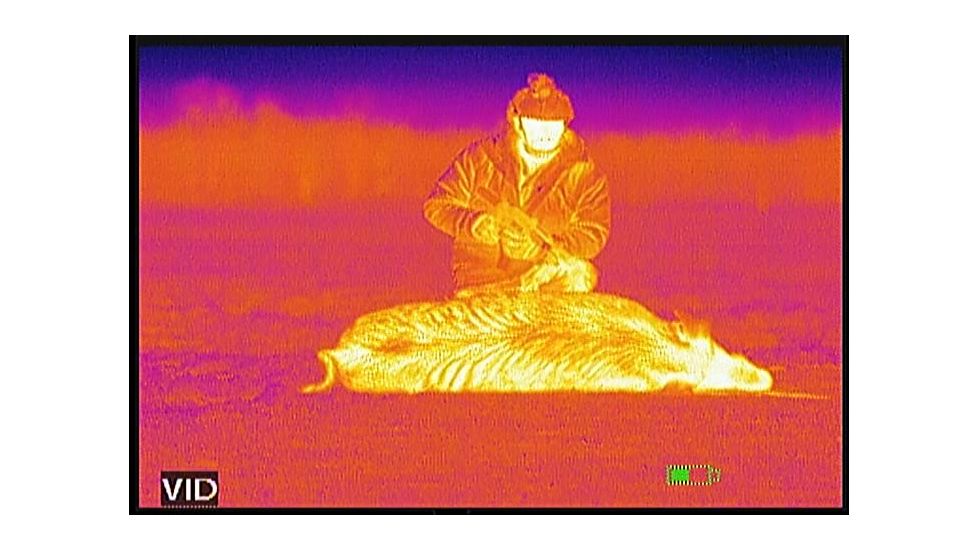

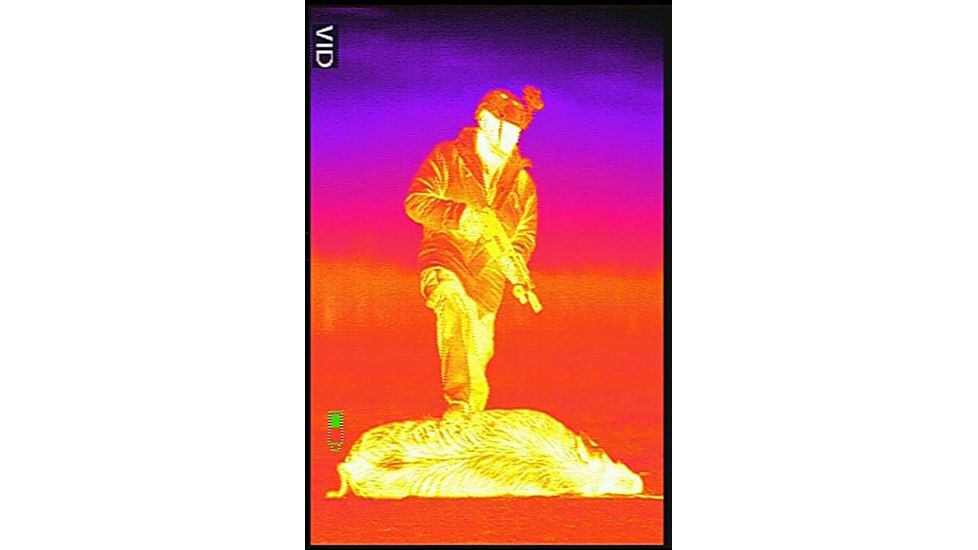

  • Color Modes

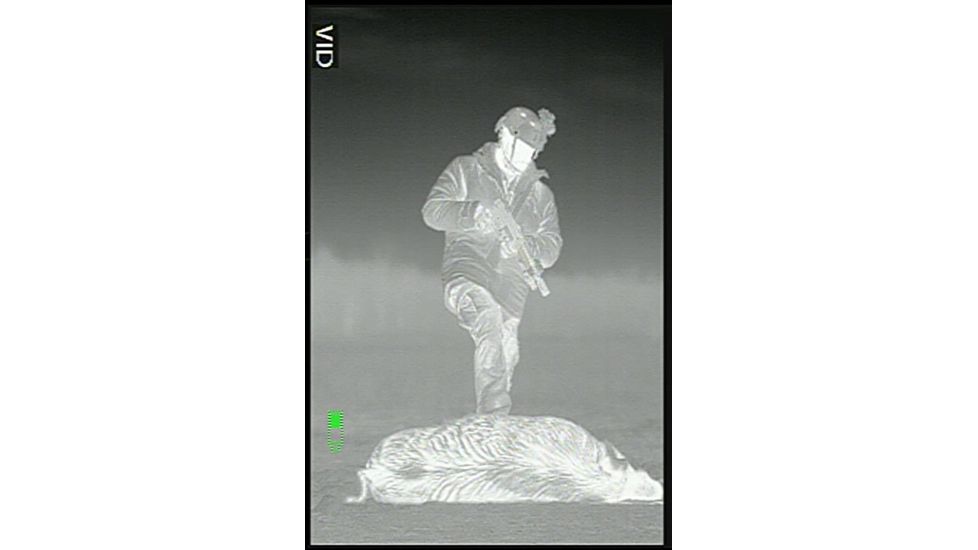

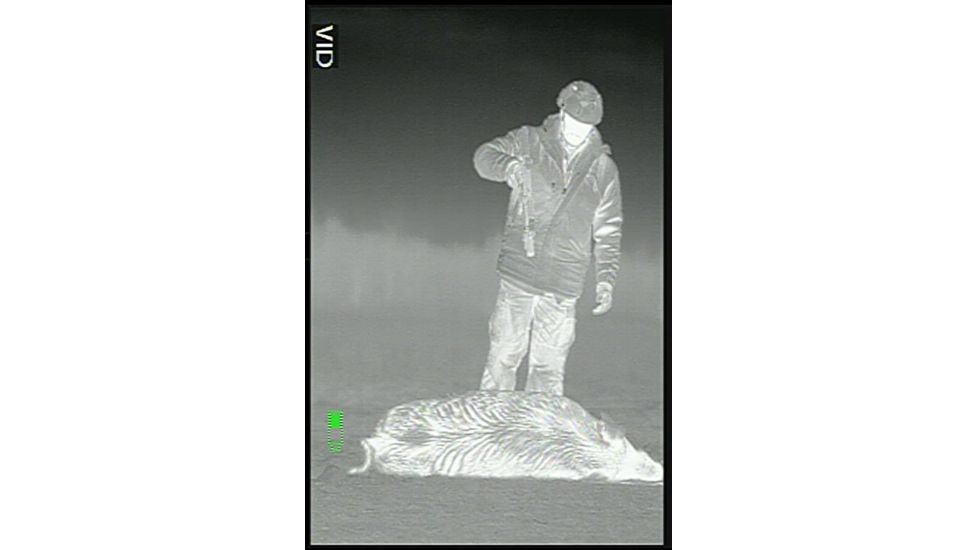

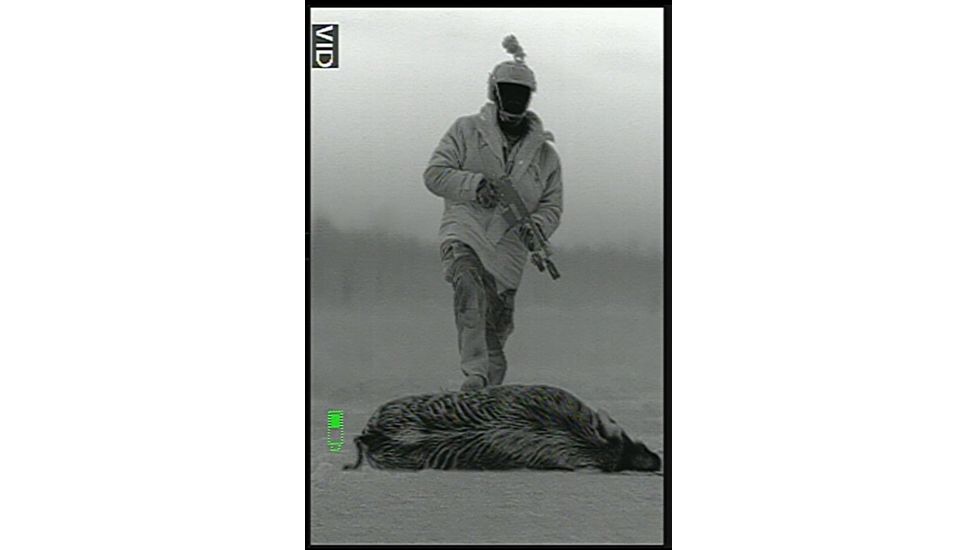

  • Black/White Polarity
  • VOx Vanadium Oxide Detector
  • 800x600 Display
  • Video Output
  • Made in USA
  • 1 Year Warranty

Package Contents:

  • ATN OTS-X E330 2X (60Hz) Thermal Viewer TIMNOTSXE330
