ATN Night Trek Nightvision Monocular, 5x NVMNNTR511 Free Gift with Purchase! FREE ATN Night Trek Nightvision Monocular, 5x NVMNNTR511 $269.00 value with the purchase of ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz. To claim your free gift, check out the Buy Together & Save section below!
ITAR Product ITAR Product
ATN OTS-X-F670, 640x480, 70mm, 30Hz Thermal Imaging Monocular TIMNOTSXF670
$9,495.00
Code: AT-HS-TIMNOTSXF670
MPN: TIMNOTSXF670
UPC: 658175342762
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $9,53799

ATN OTS-X-F670 Heat Seeking Monocular - 640x480, 70mm, 30Hz Product Info

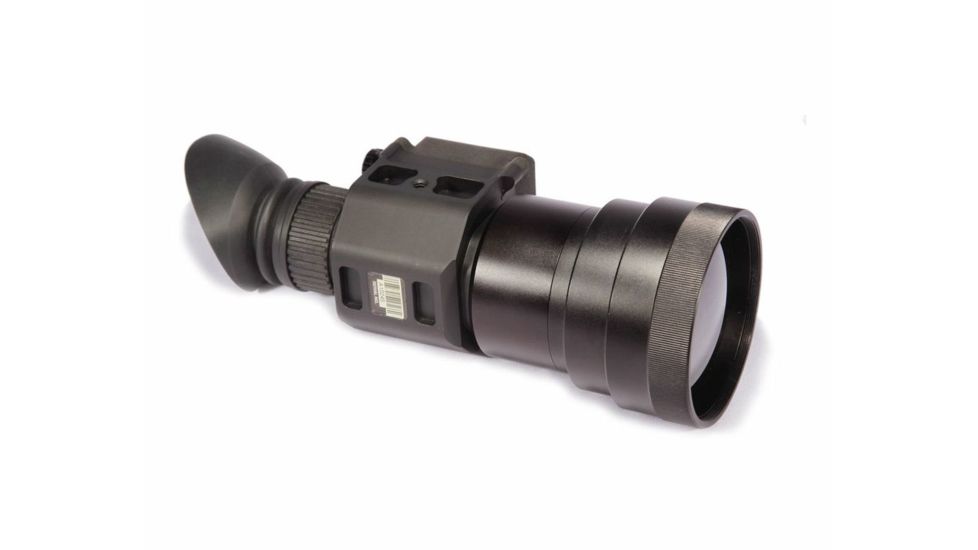

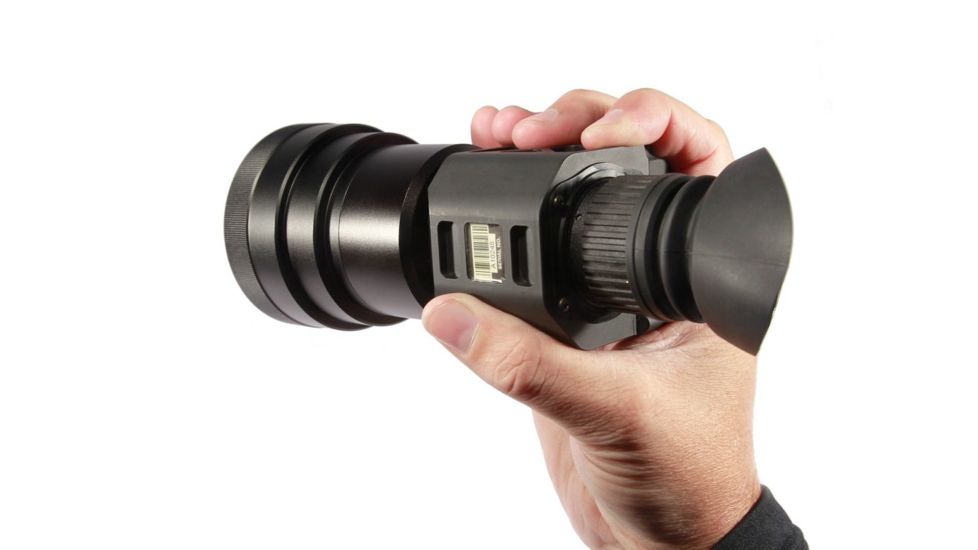

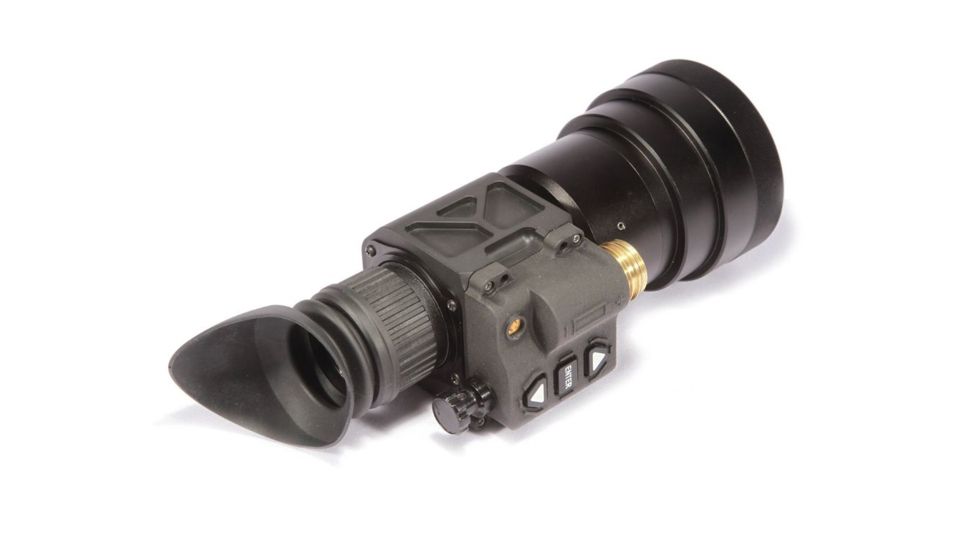

The ATN OTS-X F670 3.5x 30Hz Thermal Imager TIMNOTSXF670 is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Lawimage enforcement and Sportsmen alike. This Heat Seeking Scope from ATN is one of the most affordable thermal viewers on the market that includes a full 640x480. One of the most unique features of the ATN F670 OTSX Heat Seeking Thermal Scope is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.

ATN TIMNOTSXF670: OTS-X-F670, 640x480, 70mm, 30Hz Thermal Imaging Monocular

Specifications for ATN OTS-X-F670 3.5X (30Hz) Thermal Imaging Viewer:

Sensor (microbolometer): 640 x 480
Type: Uncooled
Material: Vanadium oxide (VOx)
Image Size (output resolution): 800x600
Frame rate: 30 Hz
Video output: Analog RS-170
Lens: 70 mm
Display: Color OLED matrix, SVGA< 800x600
Thermal Sensitivity: <50mK
Spectral Response: 7-14 um
Field of View:
Eye Relief: 27 mm
Diopter Adjustment: -1.5
Optical Magnification: 3.5X
E-Zoom: 7x, 14x, 28x
Human Detection: 1800
Human Recognition: 700
Human Identification: 460
Vehicle Detection: 3800
Vehicle Recognition: 1400
Vehicle Identification: 1000

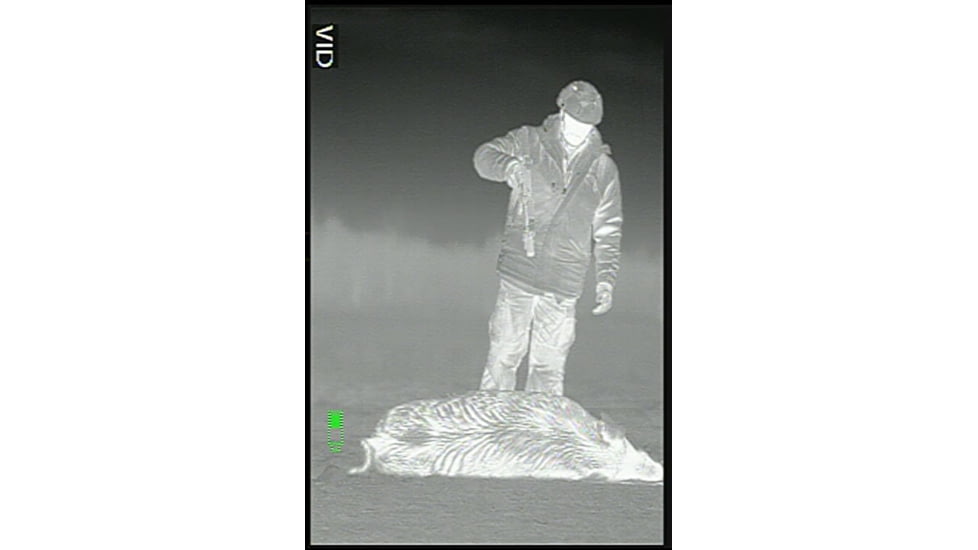

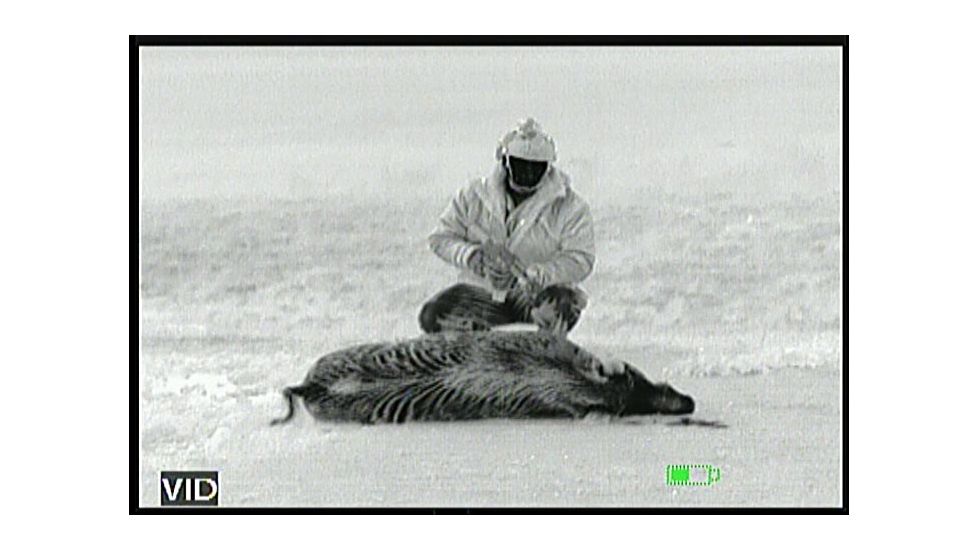

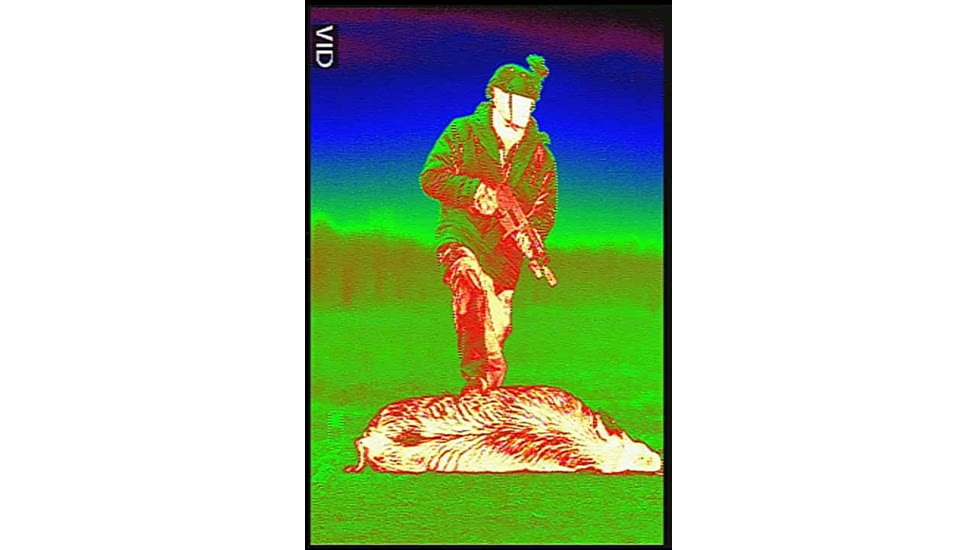

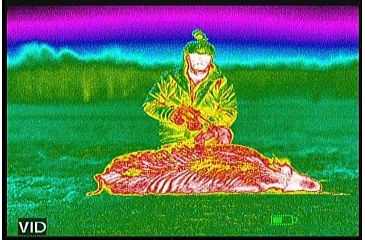

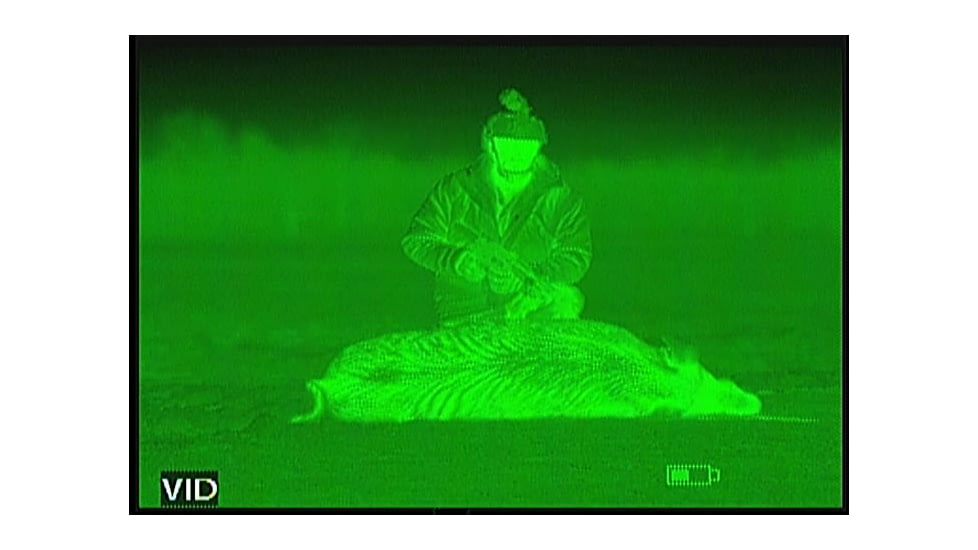

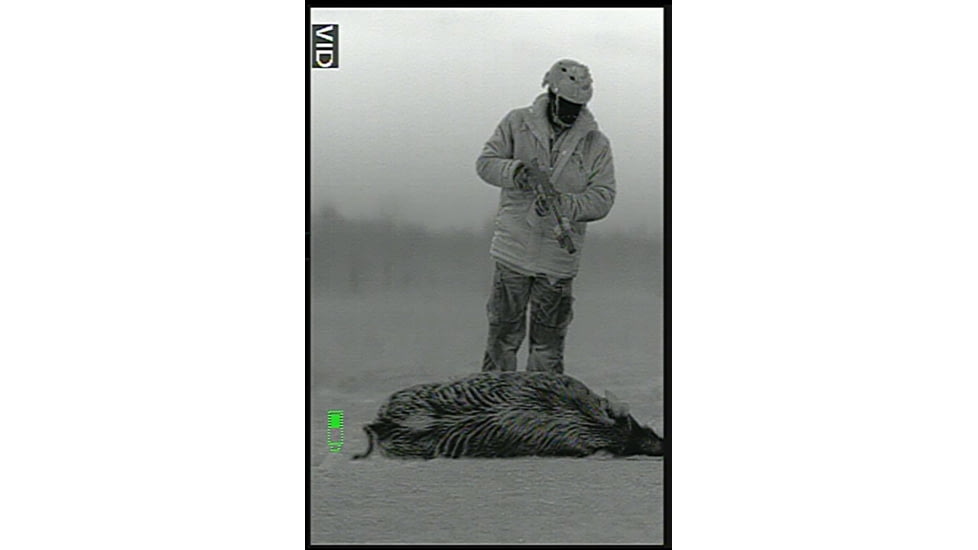

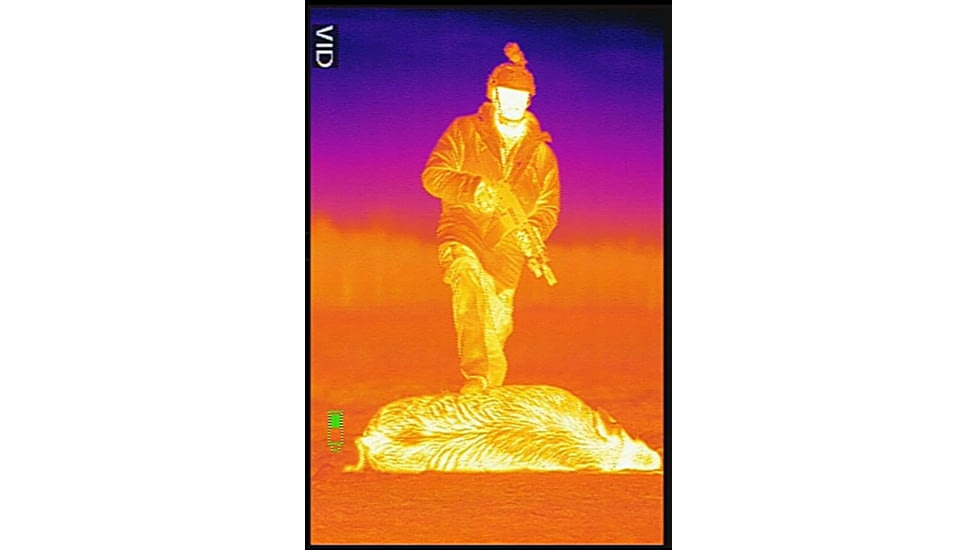

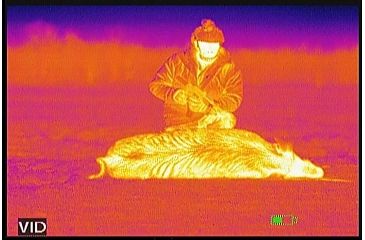

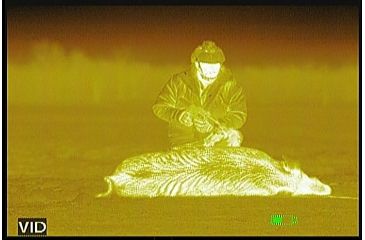

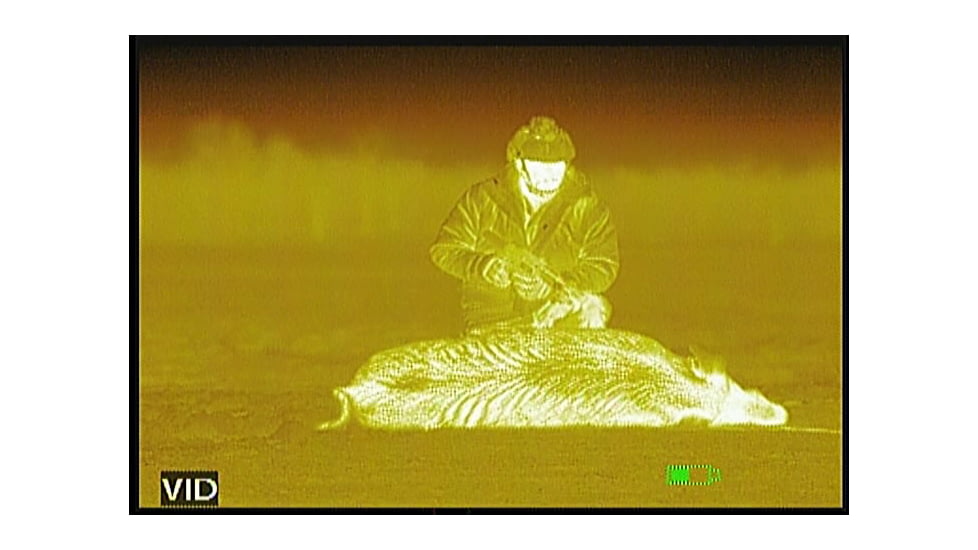

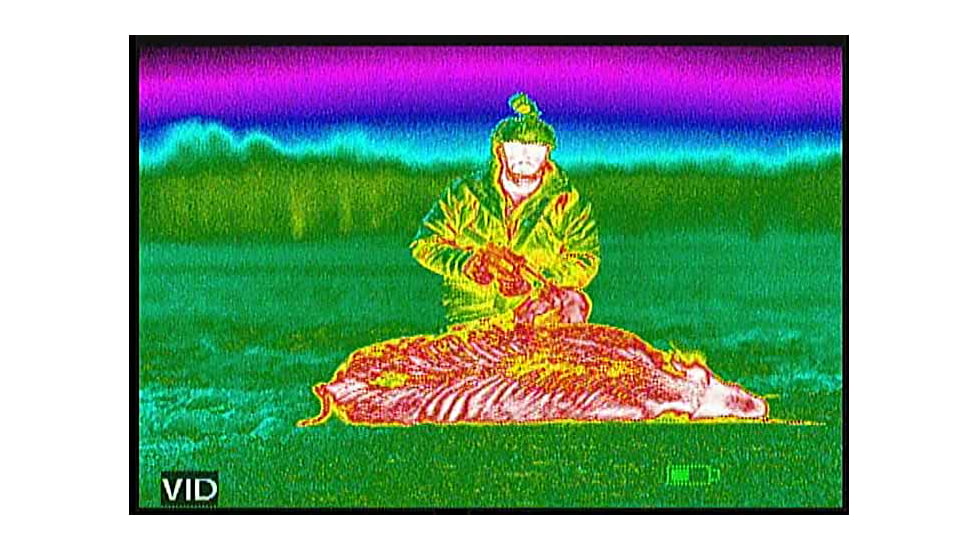

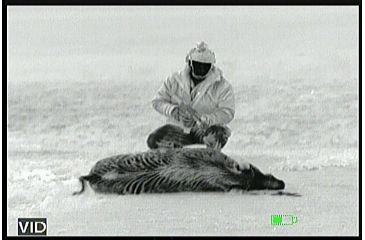

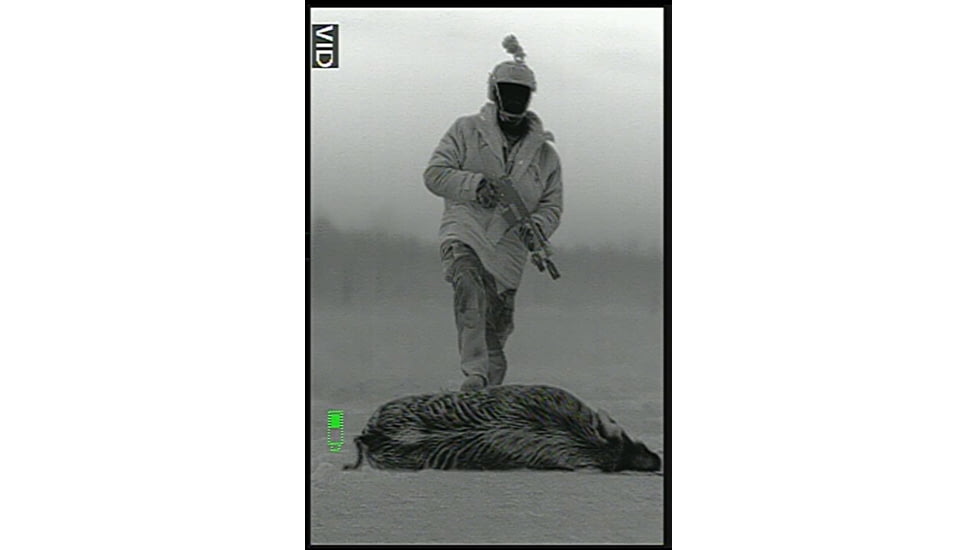

Polarity control: White hot / Black hot / Multiple Color Modes
Start up time: <4 sec
Waterproof: Yes

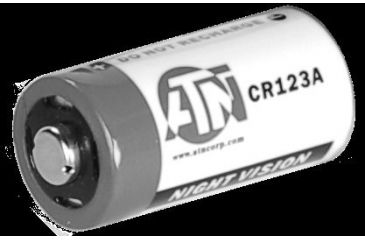

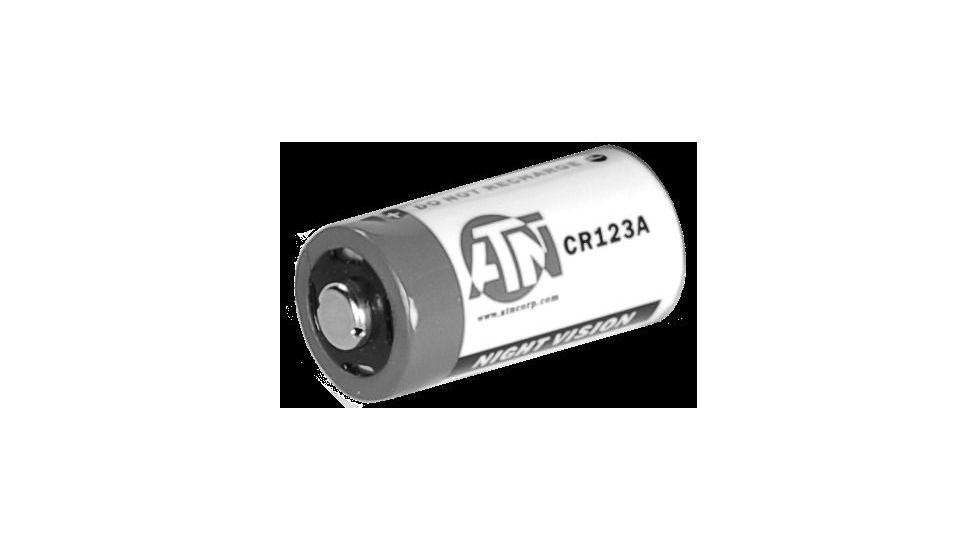

Battery type: 1 x CR123A battery type
Battery Life: 2+ hrs
Weight: 1.75 lb /800 gr
Dimensions: 177 x 76 x 83 mm /7x3x3.3"
Warranty: 1 year

Features of ATN Thermal Image OTS X F670 Scope:

  • Resolution 640x480
  • Ergonomic Design
  • Fast Imaging (30hz)
  • Compact Rugged Construction
  • Interchangable Optics
  • Variable Geometry Display
  • E-Zoom
  • Digital Brightness Control
  • Icon Based Menu System

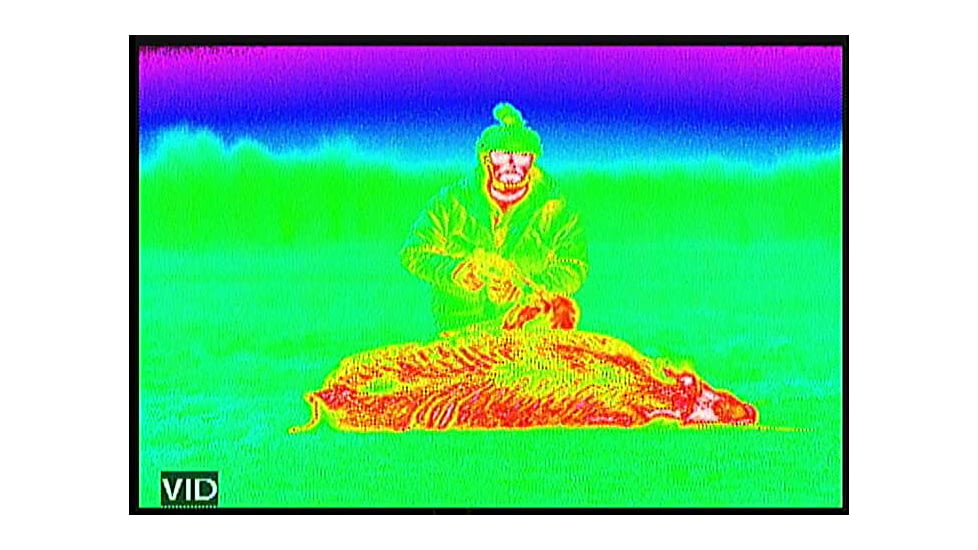

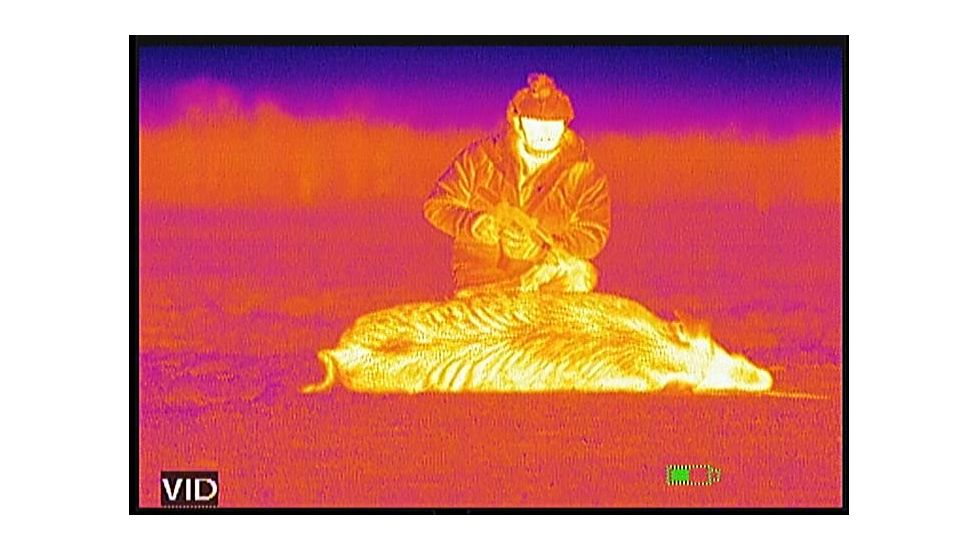

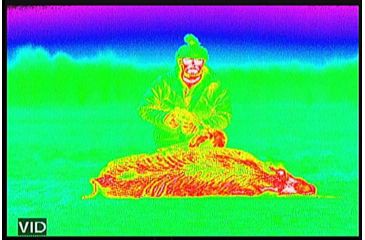

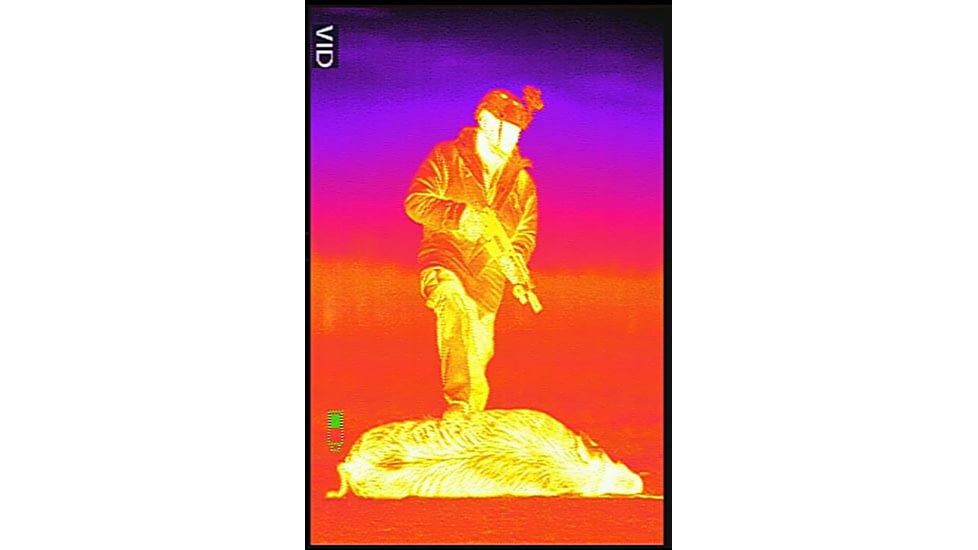

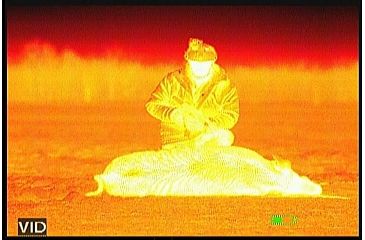

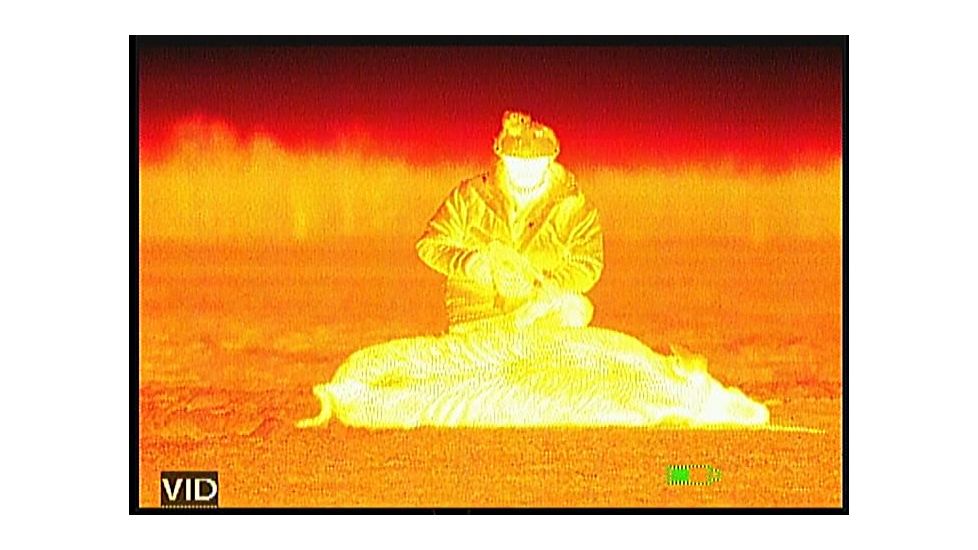

  • Color Modes

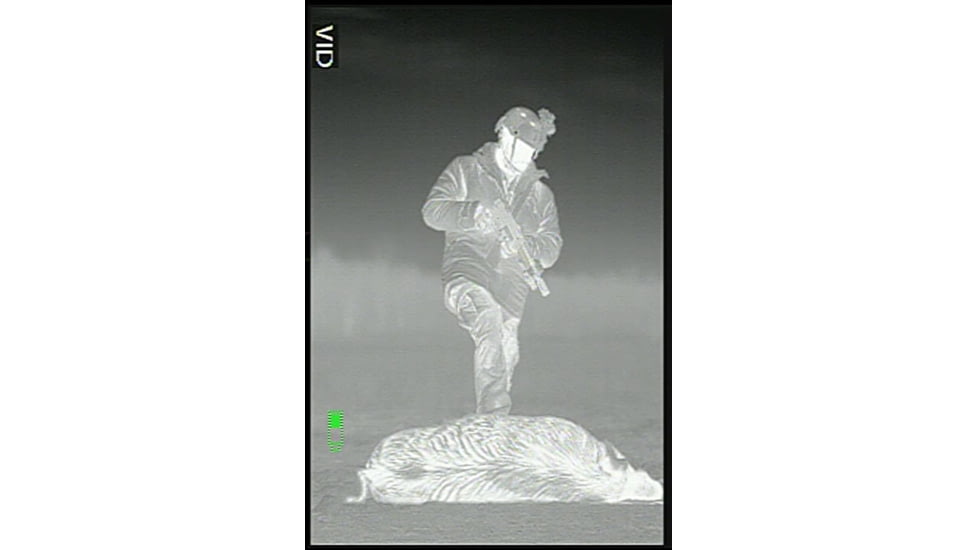

  • Black/White Polarity
  • VOx Vanadium Oxide Detector
  • 800x600 Display
  • Video Output
  • Made in USA
  • 1 Year Warranty

Package Contents:

  • ATN OTS-X F670 3.5x 30Hz Thermal Imager TIMNOTSXF670
