Product No Longer Available

Unfortunately ATN PS14 3rd Gen Night Vision Monocular NVMPPS143A NVMPPS1430 (13093 13154) is no longer carried by OpticsPlanet. You can also explore other items in the Monoculars, Night Vision categories yourself to try and find the perfect replacement for you!

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

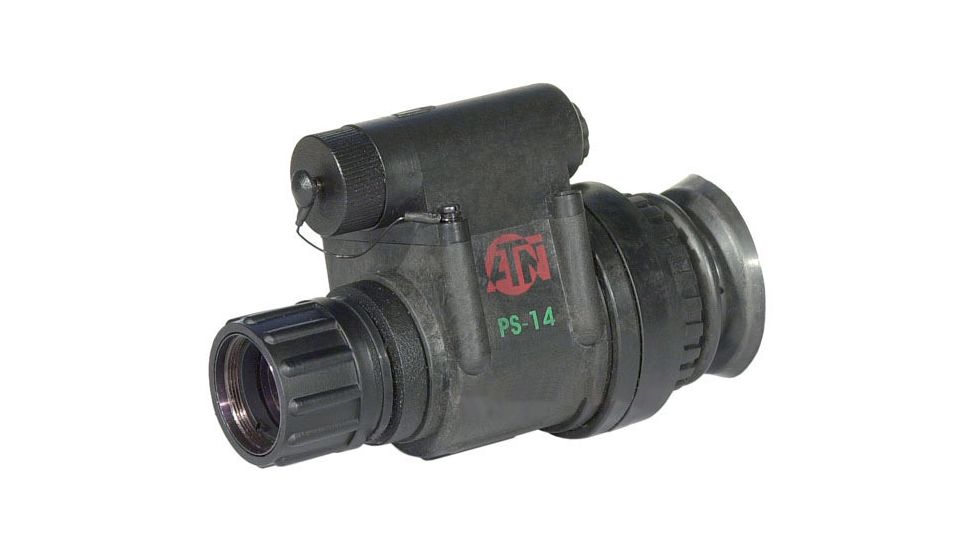

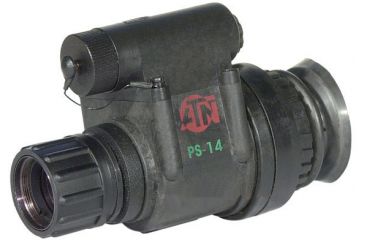

ATN PS14 3rd Gen Night Vision Monocular NVMPPS143A NVMPPS1430 (13093 13154) Product Info

ATN PS14 3rd Gen Night Vision Monocular NVMPPS143A NVMPPS1430 (13093 13154) is a high performance modular, hand-held night vision monocular. imageIt utilizes a single, Gen.3 intensifier tube to provide crisp, clear images under the darkest conditions. The ATN PS-14 Night Vision Monocular can be hand held or installed in a head-mount. The integrated IR illuminator enhances the ability of the user to read maps, and operate in confined spaces. Rugged and a top-notch performer the ATN PS14-3 Night Vision is an exceptional choice for hands free usage. The ATN PS14 Night Vision Monoculars is available with a wide range of image intensifier options to meet a wide array of specification requirements.

The ATN PS 14 Night Vision Monocular is a complex opticoelectronic system for individual use. The device consists of the objective lens assembly, eyepiece and the body. The body contains a image intensifier tube assembly with an integrated high voltage power source and the battery housing. Objective lens protective cover is intended to protect the objective lens from dust and scratches. It also will act as a daylight filter, allowing you to test the scope in daylight or other bright light situations. The pinhole in the center of the protective cover allows the user to check the operation ability of the device in daylight conditions.

Specifications for ATN PS14-3 3rd Gen Night Vision Monocular:

Intensifier tube:   US Gen. 3
Magnification:   1X (optional 3X, 5X)
Detection range:   350m/y
Recognition range:   300 m/y
Lens System:   24 mm; F1:1.2
Field of view:   40 deg.
Range of Focus:   1m to infinity
Diopter adjustment::   +5 to -6
Power Supply:   1.5 volt AA size battery
Battery Life:   45 hours
Operating Temp.:   -30 °F to +110 °F
Waterproof:   20 m for 1 hour
Dimensions:   151x80x55 mm (6.7" x 2.5" x 4")
Weight:   0.32kg (0.7 lb)

For more information on ATN PS14-3 Night Vision Monocular Spec Sheet in PDF format (~815Kb).

Here are the basic packages for the PS14:

Standard Accessories: Monocular, Neck Cord, Soft Carry case

ATN Goggle Kit for PS-14: Head set with chinstrap, Transfer piece

ATN 4x Bi-ocular Kit for PS-14: Bi-ocular eyepiece, Afocal telescopic F/1.2, IR-450

ATN 6x Bi-ocular Kit for PS-14: Bi-ocular eyepiece, F112 lens F/1.5, IR-450

ATN Advanced Package #1 for PS-14: Camera adapter, 3x lens, Hard Shipping/storage case, Head Mount assembly, Head/helmet mount adapter, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield

ATN Advanced package #2 for PS-14: Picatinny Weapon Mount Adapter, Camera adapter, 3x lens, Hard Shipping/storage case, Head Mount assembly, Head/helmet mount adapter, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield

ATN Select Package #1 for PS-14: Head Mount assembly, Head/helmet mount adapter, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield

ATN Select Package #2 for PS-14: Picatinny Weapon Mount Adapter, Head Mount assembly, Head/helmet mount adapter, Brow Pads (2), Lens Cleaning Kit, Shoulder Strap, Sacrificial window, Demist shield

Optional Accessories: Helmet mount Assembly, Camera/camcorder adapter, IR-450, Dual Bridge assembly, Magnetic Compass, Hard Shipping/storage case, IR Spot / flood lens

Package Contents:

  • ATN PS14-3 3rd Gen Night Vision Monocular
  • Neck Cord
  • Soft Carry Case

All ATN PS14 series come with 2 year US Warranty.

ATN PS14 3rd Gen Night Vision Monocular NVMPPS143A NVMPPS1430 (13093 13154) Related Products

ATN PS14 3rd Gen Night Vision Monocular NVMPPS143A NVMPPS1430 (13093 13154) Unorderable Models

ATN PS14-3 3rd Gen Night Vision Monocular NVMPPS1430, MPN: NVMPPS1430, UPC: 658175769996, Code: AT-NV-PS14-3-NVMPPS1430
ATN PS14-3 3rd Gen Night Vision Monocular NVMPPS143A, MPN: NVMPPS143A, UPC: 658175130932, Code: AT-NV-PS14-3-NVMPPS143A
