Product Discontinued by Manufacturer

ATN ThOR 640 2.5x Enhanced Thermal Imaging Weapon Sight has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Thermal Imaging category yourself to try and find the perfect replacement for you!

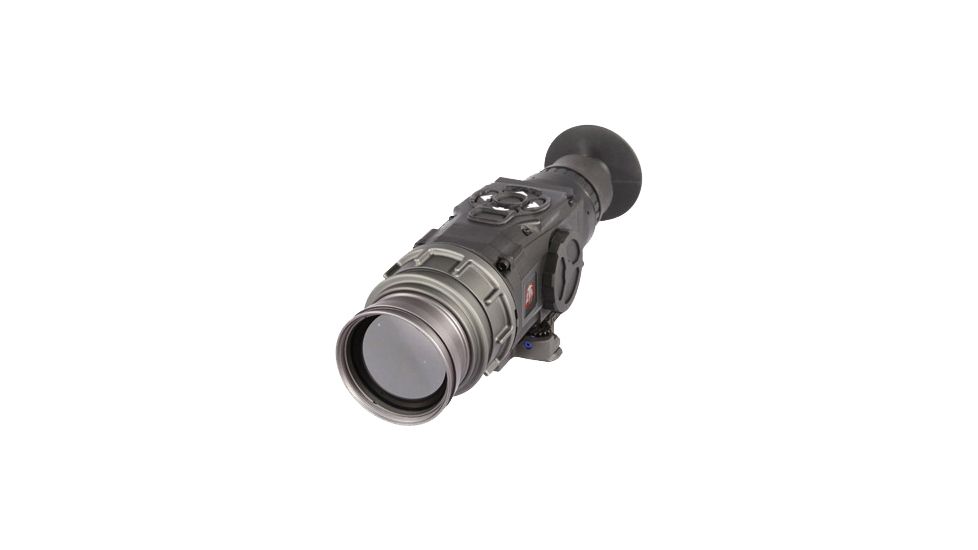

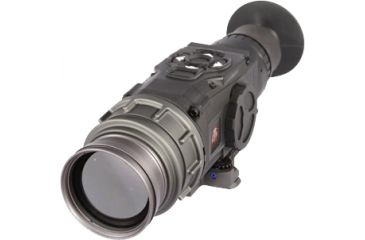

ATN ThOR 640 2.5x Enhanced Thermal Imaging Weapon Sight Product Info

ATN ThOR 640 2.5x Enhanced Thermal Imaging Weapon Sight TIWSMT643A is one of the most effective digital thermal imaging devices on the market for tacticalimage and law enforcement professionals, equipped with the durability and versatility to excel in demanding situations. Designed with an uncooled microbolometer detector with a high-clarity 640x480 thermal resolution, these ATN thermal imaging devices can reveal heat signatures hiding behind fog, darkness, or camouflage with ease. Even moving targets are picked up at ranges of up to 1500m, thanks to the ATN ThoR 640x480 High Resolution 2.5x Thermal Sight's 2.5x magnification and high-speed 60hz frame rate. You'll be able to observe even the tiniest details with clarity using the thermal weapon sight's OLED display, which is 800x600 pixels wide and in full color. And with a tough mil-spec lens and waterproof body, the ATN ThOR 640 2.5x OLED Digital Thermal Imaging Device is durable enough for extended operations in hazardous surroundings.

The Advanced Technology Network ThOR640 Enhanced 60hz Thermal Sight can be operated either as a handheld thermal monocular or as a weapon-mounted thermal sight. The included Picatinny quick release scope mount allows you to install the ThOR 640 on any Picatinny-equipped firearm. Advanced Technology Network has designed the sight with four selectable reticle shapes that can be displayed in green, red, white, or black, ensuring that the reticle is always visible against the background. The intuitive digital menu of the ANT ThOR thermal sight allows you to adjust brightness, color scheme (including one-touch polarization options), reticle type, and even windage and elevation. An eight hour battery life (with just three CR123A lithium batteries) makes the ANT ThOR a feasible thermal sight for extended tactical operations. For advanced thermal imaging with a high resolution OLED display and a slew of professional-grade features, use the ATN ThOR 640 Enhanced 2.5x Four Reticle Thermal Scope.

Specifications for ATN ThOR-640 Weapon Mounted 2.5x Digital Thermal Sight:

Video Frame Rate: 60hz
Magnification: 2.5x
Objective Focal Length: 50mm
Field of View: 12.5° x 9.7°
Exit Pupil: 14mm
Eye Relief: 28mm
Detector Type: Uncooled Microbolometer
Spectral Response: 7 to 14 um
Resolution:
Human Detection Range: 1500m
Output Format: Analog PAL/NTSC
Display Type: Color OLED
Display Format: 800x600 SVGA
Brightness Adjustment: Manual
Contrast Adjustment: Automatic
Batteries: 3x CR123A lithium
Battery Life: 8 hours continuous
Waterproof: Yes
Length: 203mm
Weight: 0.85 kg w/ batteries
Diopter Range: +2° to -6°

Features of ATN ThOR 640 Digital Color Thermal Weapon Sight:

  • Powerful thermal sight for handheld or weapon-mounted use by ATN
  • Compact, lightweight, and sturdy body is meant for rigorous operation
  • Digital operation retains zero and is always accurate
  • Enhanced 60hz frame rate detects even quickly moving targets
  • 2.5x magnification rate penetrates darkness and fog
  • Detailed 640x480 resolution
  • Brilliant 800x600 OLED SVGA color display
  • Mil-spec optics
  • Intuitive menu with adjustable polarization, brightness, windage and elevation, and reticle shape
  • Four selectable reticle designs with four colors: red, black, white, or green
  • Five different color settings, including white on black and black on white
  • Includes a military standard 1913 Picatinny mount
  • Runs for up to eight (8) hours on three (3) CR123A batteries
  • Comes packaged with a lens tissue, warranty card, three CR123A batteries, Picatinny quick release mount, and instruction manual
  • Backed by the ATN one-year warranty

Package Contents:

  • ATN ThOR 640 2.5x Enhanced Thermal Imaging Weapon Sight TIWSMT643A
  • Lens tissue
  • 3x CR123A batteries
  • Warranty card
  • Picatinny 1913 quick release mount
  • Instruction manual
