Product No Longer Available

Unfortunately ATN Thor320 Heat Seeking Gun Sight - 9x, 320x240, 100mm, 60Hz, 17 micron is no longer carried by OpticsPlanet. You can also explore other items in the Thermal Imaging Scopes category yourself to try and find the perfect replacement for you!

All new ATN ThOR Thermal Sights purchased on or after January 1st, 2014 now come with an extended 3-year warranty on the product and a 10-year warranty on the thermal sensor array. Visit for more information on how to protect your new ATN ThOR Thermal Sight.

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

ATN Thor320 Heat Seeking Gun Sight - 9x, 320x240, 100mm, 60Hz, 17 micron Product Info

The ATN ThOR320 Digital Heat Seeking Riflescope - 9x, 60Hz TIWSMT329A has been designed to offer you the amazing heat seeking abilities of larger devices, in a small package that fits right on top of your rifle. This Thermal Scope from ATN features a digital menu that gives you a variety of options and adjustments allowing you to customize your system. You can select a number of reticle options as well as choose a reticle color best suited for your specific application. No more black reticles on a black and white screen - ThOR features a color OLED display giving you a sharp color reticle every time. Or switch to full color mode and overlay it with either a black, red, blue, white or black reticle depending on the conditions and the environment. With all digital controls, the ATN Thor 320 Thermal Image Rifle Scope will NEVER allow your reticle to move off base. This ATN Thermal Scope provides amazing image quality through total darkness, fog, or smoke. Darkness, camouflage or bright lights will not affect the sensitivity of these units. The ATN Thor 320 Digital Heat Seeking Rifle Scope feature E-Zoom to expand your optical magnification. They're Ideal for nighttime hunting, force protection, border patrol, police SWAT and special operations. And they feature a video-out connection and cable which will let you capture your nighttime operation on video.

Specifications for ATN Thor320 9x Thermal Weapon Sight - 60Hz:

Sensor (microbolometer): 320x240
Type: Uncooled
Material: Vanadium oxide (VOx)
Image Size (output resolution): 800x600
Frame rate: 60 Hz
Video output: Digital NTSC / PAL
Display: Color OLED matrix, SVGA< 800x600; Color background + color reticles
Thermal Sensitivity, mK: <50mK
Spectral Response, um: 7-14
Focal length of the lens: 100
Field of View (H x V), deg: 3 x 2.4
Eye Relief, mm: 28
Optical Magnification: 9X
E-Zoom: 18x, 36x
Diameter of exit pupil, mm: 14
Distance of the human detection, m (w/o zoom): 2500 m
Distance of the human recognition, m: 1100 m
Reticle Color: Red, Green, Blue, White & Black
Brightness adjustment: Manual
Sharpness adjustment: Automatic
Polarity control: White hot / Black hot / Multiple Color Modes
Start up time, sec: <3
Waterproof: Waterproof / Dustproof

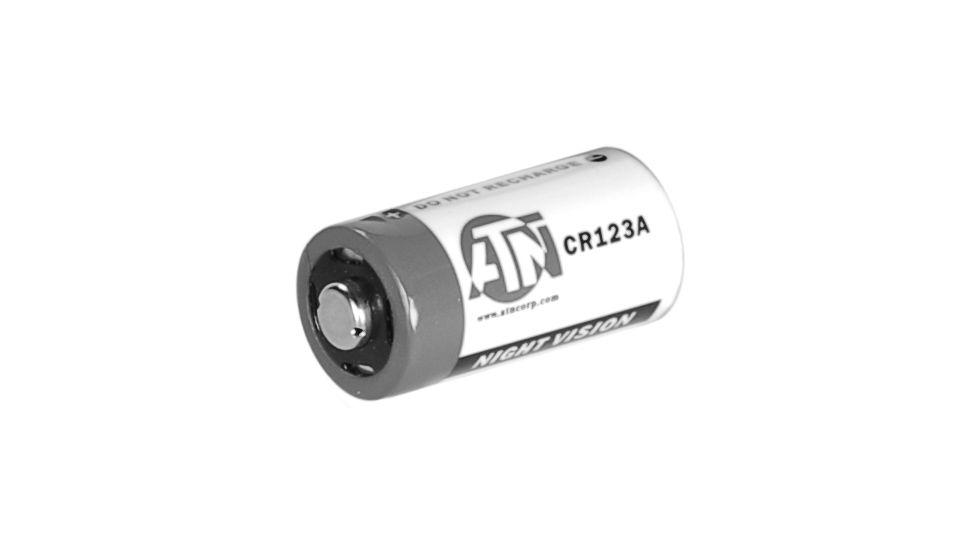

Battery type: 3 x CR123A battery type
Weight, grams: 1417
Battery Life, h: 8+
Dimensions (L x W x H),mm (without bracket): 262x94x73
Mounting bracket: MIL-STD 1913 Picatinny (Quick)
Output computer set up: Yes
Video output: Yes
Low Battery Indicator: Yes
Iconology: Quick access, Icon driven feature controls
Housing: Aircraft Aluminum 6061 T6 w/ class III hard anodized coating
Objective lens: Janus, full MIL SPEC, DLC (Diamond Like Carbon) coating

Features of ATN ThOR Thermal 9x Gun Sight:

  • Compact & lightweight design
  • Digital imaging
  • Enhanced Imaging (60hz)
  • 800 x 600 OLE D color display
  • Rugged design with mil. spec optics
  • Menu functions include reticle type & color selection; windage & elevation adjustment
  • Digital brightness control
  • Vanadium oxide (VOx) Microbolometer Uncooled
  • Polarity single button modes: black on white, white on black, 5 different color settings
  • E-zoom

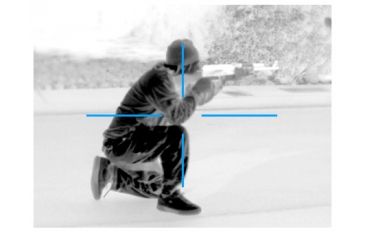

  • 5 different reticles with choice of reticle color: red, green, blue, black, or white
  • Reticle will Automatically Adjust its position when using E-Zoom (Note: Most thermal scopes allow the user to use the scope for observation only, in E-Zoom due to the lack of this feature.)
  • Video output with RCA cable
  • Diopter range: +2° to -6°
  • Eye relief: 28mm
  • MIL -STD-1913 (Picatinny Rail) Quick Release Mount
  • Up to 8 hours operation with three lithium batteries
  • One-year warranty
  • Made in USA

Package Contents:

  • ATN ThOR320 Digital Heat Seeking Riflescope - 9x, 60Hz TIWSMT329A
