ATN Night Trek Nightvision Monocular, 5x NVMNNTR511 Free Gift with Purchase! FREE ATN Night Trek Nightvision Monocular, 5x NVMNNTR511 $269.00 value with the purchase of ATN Thor336 Thermal Weapon Sight - 1.5x 336x256, 19mm, 17 Micron. To claim your free gift, check out the Buy Together & Save section below!
ITAR Product ITAR Product

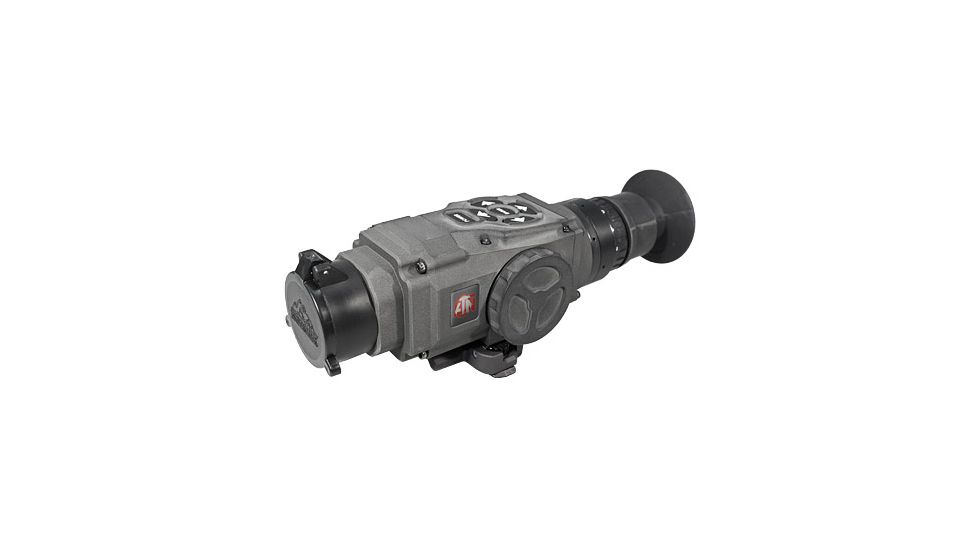

ATN Thor336 - 1.5x 336x256, 19mm, 60Hz, 17 Micron Thermal Weapon Sight TIWSMT331A
$5,299.00
Code: AT-HS-THR-TIWSMT331A
MPN: TIWSMT331A
UPC: 658175905622
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $5,31899

All new ATN ThOR Thermal Sights purchased on or after January 1st, 2014 now come with an extended 3-year warranty on the product and a 10-year warranty on the thermal sensor array. Visit www.atncorp.com for more information on how to protect your new ATN ThOR Thermal Sight.

ATN Thor336 Thermal Weapon Sight - 1.5x 336x256, 19mm, 17 Micron Product Info

Get digital and customize with the ATN Thor 336 - 1.5x336x256 Micron Thermal Weapon Sight. This thermal sight by ATN is lightweight and small enough to fit in the palm of your hand, imageyet rugged and durable. The ATN Thor 336 - 1.5x336x256 Digital NV Micron Thermal Weapon Sight features a digital menu that gives you a variety of options and adjustments allowing you to customize your system. You can select a number of reticle options as well as choose a reticle color best suited for your specific application. The ATN Thor 336 - 1.5x336x256 Digital NV Micron Thermal Weapon Scope provides amazing image quality through total darkness, fog, or smoke. Darkness, camouflage or bright lights will not affect the sensitivity and features E-Zoom to expand your optical magnification. Mount the ATN Thor 336 - 1.5x336x256 Night Vision Micron Thermal Imager to your weapon as they are ideal for nighttime hunting, force protection, border patrol, police SWAT and special operations.

ATN TIWSMT331A: Thor336 - 1.5x 336x256, 19mm, 60Hz, 17 Micron Thermal Weapon Sight

Specifications for ATN Thor 336 - 1.5x336x256 Digital NV Micron Thermal Weapon Scope:

Sensor (microbolometer): 336x256
Type: Uncooled
Material: Vanadium oxide (VOx)
Image Size (output resolution): 800x600
Frame rate: 60 Hz
Video output: Digital NTSC / PAL
Display: Color OLED matrix, SVGA < 800x600 Color background + color reticules
Thermal Sensitivity, mK: <50mK
Spectral Response, μm: 7-14
Lens: 30
Field of View (H x V), deg: 9x7
Eye Relief, mm: 28
Optical Magnification: 3X
E-Zoom: 6x, 9x
Diameter of exit pupil, mm: 14
Distance of the human detection, m (w/o zoom): 1100 m
Distance of the human recognition, m: 400
Reticle Color: Red, Green, Blue, White & Black
Brightness adjustment: Manual
Sharpness adjustment: Automatic
Polarity control: White hot / Black hot / Multiple Color Modes
Start up time, sec: <3
Waterproof: Waterproof / Dustproof
Battery type: 3 x CR123A battery type
Battery Life, h: 8+
Weight, grams: 850
Dimensions (L x W x H), mm (without bracket): 262x94x73 mm
Mounting bracket: MIL-STD 1913 Picatinny (Quick)
Output computer set up: Yes
Video output: Yes
Low Battery Indicator: Yes
Iconology: Quick access, Icon driven feature controls
Housing: Aircraft Aluminum 6061 T6 w/ class III hard anodized coating
Objective lens: Janus, full MIL SPEC, DLC (Diamond Like Carbon) coating

Features of ATN Thor 336 - 1.5x336x256 Night Vision Micron Thermal Imager:

  • Compact & lightweight design
  • Digital imaging
  • Fast Imaging (60hz)
  • 800 x 600 OLED color display
  • Rugged design with mil. spec optics
  • Menu functions include reticle type & color selection; windage & elevation adjustment
  • Digital brightness control
  • Vanadium oxide (VOx) Microbolometer Uncooled
  • Polarity single button modes: black on white, white on black, 5 different color settings
  • E-zoom

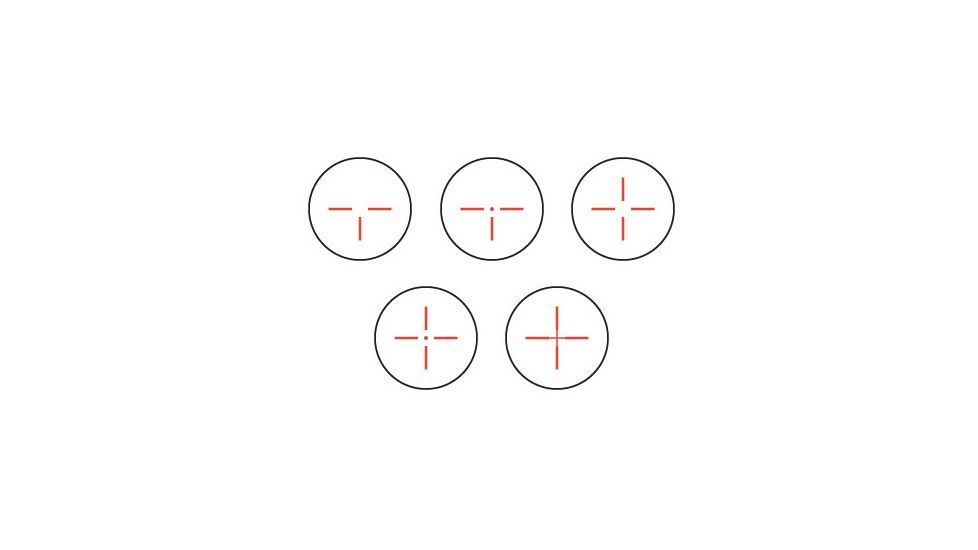

  • 5 different reticles with choice of reticle color: black, red, green, or white
  • Reticle will Automatically Adjust its position when using E-Zoom
  • (Note: Most thermal scopes allow the user to use the scope for observation only, in E-Zoom due to the lack of this feature.)
  • Video output with RCA cable
  • Diopter range: +2° to -6°
  • Eye relief: 28mm
  • MIL -STD-1913 (Picatinny Rail) Quick Release Mount
  • Up to 8 hours operation with three lithium batteries
  • One-year warranty
  • Made in USA

Package Contents:

  • ATN Thor336 - 1.5x 336x256, 19mm, 17 Micron Thermal Weapon Sight

ATN Thor336 Thermal Weapon Sight - 1.5x 336x256, 19mm, 17 Micron Related Products

ATN Thor336 Thermal Weapon Sight - 1.5x 336x256, 19mm, 17 Micron Unorderable Models

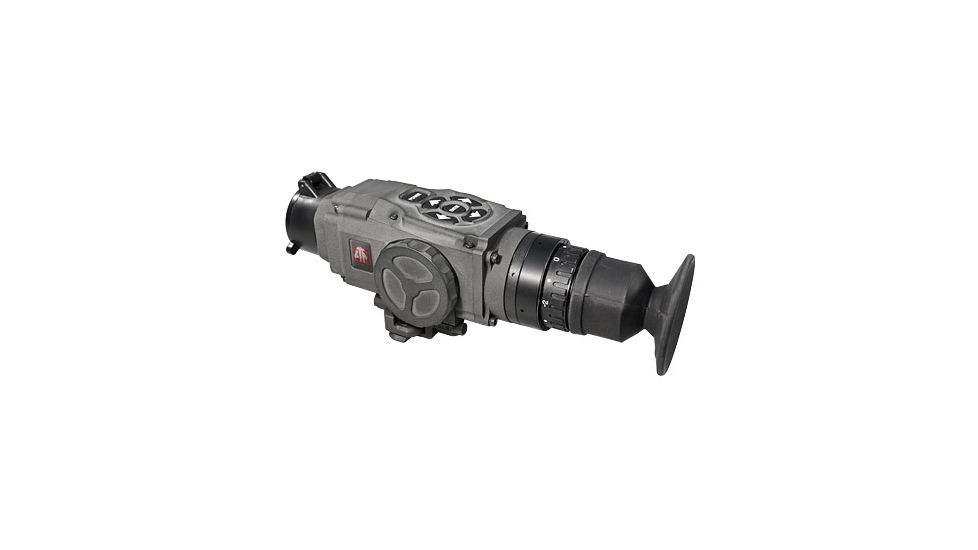

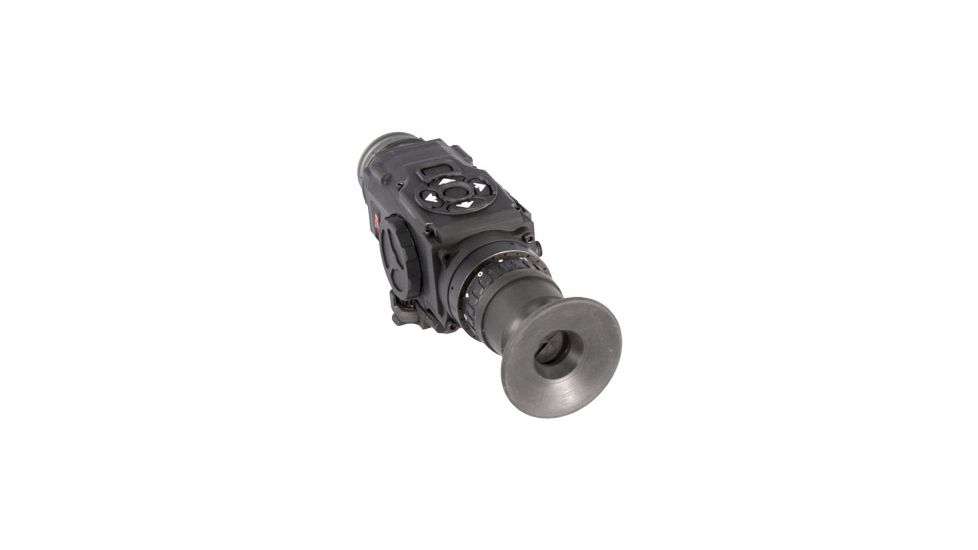

ATN Thor336 - 1.5x 336x256, 19mm, 60Hz, 17 Micron Thermal Weapon Sight TIWSMT331B, MPN: TIWSMT331B, UPC: 658175905615, Code: AT-HS-THR-TIWSMT331B

ATN Thor336 Thermal Weapon Sight - 1.5x 336x256, 19mm, 17 Micron Comments
