Product No Longer Available

Unfortunately Thermal Eye X100xp Thermal Imaging Camera TIMNX100 is no longer carried by OpticsPlanet. You can also explore other items in the Thermal Imaging category yourself to try and find the perfect replacement for you!

This model of Thermal Eye Thermal Imaging is discontinued and no longer available. Please, choose from our wide selection of ATN Thermal Imaging, Elcan Thermal Imaging, FLIR Thermal Imaging, Game Finder Inc Thermal Imaging, Osprey Thermal Imaging and other Thermal Imaging items on our site.

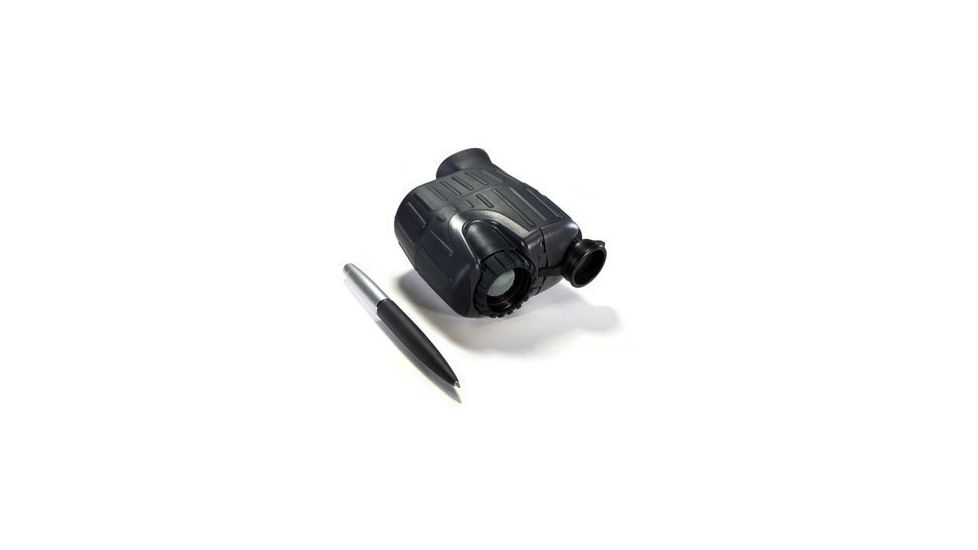

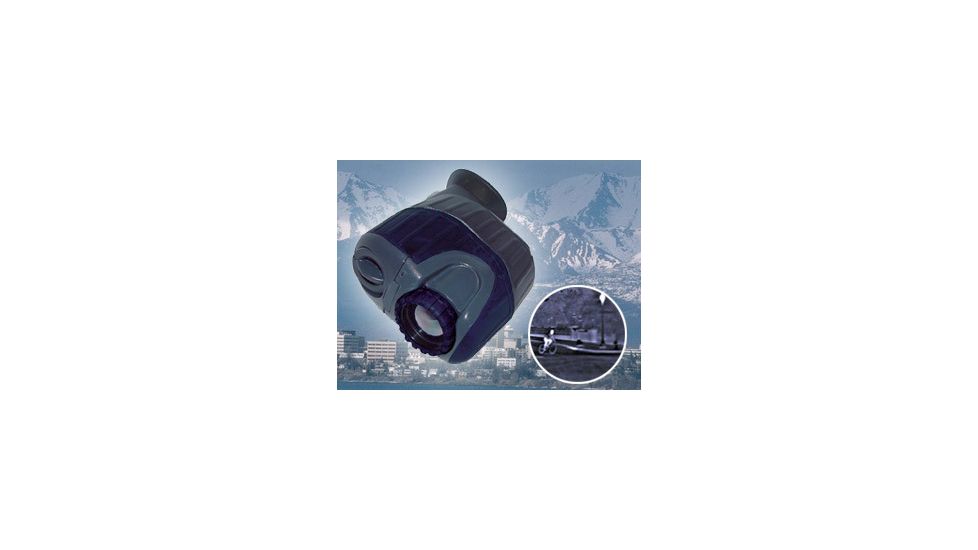

Thermal Eye X100xp Thermal Imaging Camera TIMNX100 Product Info

Thermal Eye X100xp Thermal Imaging Camera TIMNX100 is a revolutionary thermal imaging camera designedimage for public safety departments, law enforcement professionals and military use. Setting the standard for durability and compactness in thermal imaging cameras, Thermal Eye X100 xp Thermal Imaging Camera is an ideal addition to any department's arsenal and has been battle-tested in Operation Iraqi Freedom. The affordable Thermal-Eye X-100-XP gives users the ability to see in complete darkness whether on a routine patrol, locating a lost child or tracking a fugitive. Developed with Raytheon 's advanced amorphous silicon microbolometer detector, Thermal Imaging Camera Thermal-Eye X100 delivers the ultimate in true infrared technology, as no lighting is required.

L3 Thermal-Eye X100xp Thermal Imaging Camera sets the standard for durability and compactness in portable infrared cameras. Weighing in at only 13 ounces with its unique design, Raytheon Thermal-Eye X100xp Imaging Camera operates simply with one-button on/off operation. Designed for the rigors of outdoor use, L 3 Thermal Eye X100xp Infrared Camera features a rubberized slip-resistant casing and can withstand shock and vibration. This handheld, pocket-sized innovation also exceeds waterproof standards and conveniently operates on standard AA batteries. Other features include a protective lens cap, tripod mount for stationary use and camera strap for the officer on the go.

Specifications for Thermal Eye X100xp:

Material & Structure:   Amorphous Silicon Microbolometer
Pixel Count:   160 x 120
Spectral Response:   7-14 µm (filter bandwidth)
Thermal Sensitivity:   <=100 mK
Start-up Time:   ~ 5 sec
Brightness/Contrast:   Fully automatic
Range to Detect Human Activity:   Up to 1000 Feet (305 meters)
Susceptibility to blinding visible light:   None
Infrared Polarity:   White Hot-Black Cold
FOV (H x V):   17° x 12°
Focal Length, mm:   25 mm
Minimum Focus Distance:   ~ 3ft. (1 meter)
Output Format:   Analog - SMPTE-170 (cf. NTSC monochrome) on rear outlet jack
Viewfinder Display:   Monochrome LCD (320x240 pixels)
Viewfinder Dimming:   Integral to power on/off switch
Power Source:   2 AA batteries
Operating Time:   ~ 3 Hours with alkaline ~7 Hours with lithium

  77°F (25°C), night-time operation

Auxiliary Power:   9 to 12 VDC input on rear outlet jack
Operating Temperature:   -4°F to 140°F (-20°C to 60°C)
Storage Temperature:   -4°F to 176°F (-20°C to 80°C)
Water Resistance:   Waterproof to 9ft (3m) submersion, buoyant in fresh water
EMC Compliance:   FCC Part 15 & CE Mark
Size:   5 1/4" L x 4 1/2" W x 2" H (13.4 x 11.4 x 5.1 cm)
Weight:   13 oz (381g), batteries installed
Eye Cup:   Integral to camera body with 2" eye relief
Camera Part:   Number 6302-2

Features of Raytheon L-3 Thermal-Eye X-100xp:

  • Provide an officer the ultimate safety and security solution
  • Afford officers the ability to track fugitives without exposing themselves to unnecessary danger
  • Monitor suspects without their knowledge, day or night
  • Provide an incredibly clear picture of the surrounding scene, up to 1000 feet, through the use of superior imaging software
  • Easily spot a fugitive hiding in thick foliage or under a vehicle
  • Enhanced DSP image processing
  • On-screen battery level indicator
  • Left or right hand operation with rugged slip resistant grip
  • Tactile battery loading feature for stealth night-time operation
  • Sealed cover for enclosing external video and power jacks
  • Long eye-relief viewfinder for use with glasses, face shield, masks, etc.

Package Contents:

  • Thermal-Eye X100xp Thermal Imaging Camera
  • 1/4-20 tripod mount
  • Soft protective case
  • 2 AA alkaline batteries
  • Neck strap & Wrist strap
  • Lens Cover
  • Lens cleaning cloth

Thermal Eye X100xp Thermal Imaging Camera TIMNX100 Related Products

Thermal Eye X100xp Thermal Imaging Camera TIMNX100 Unorderable Models

Thermal Eye X100xp Thermal Imaging Camera TIMNX100, MPN: TIMNX100, UPC: 658175221166, Code: EY-HS-TIMNX100
