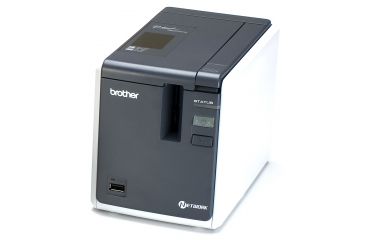

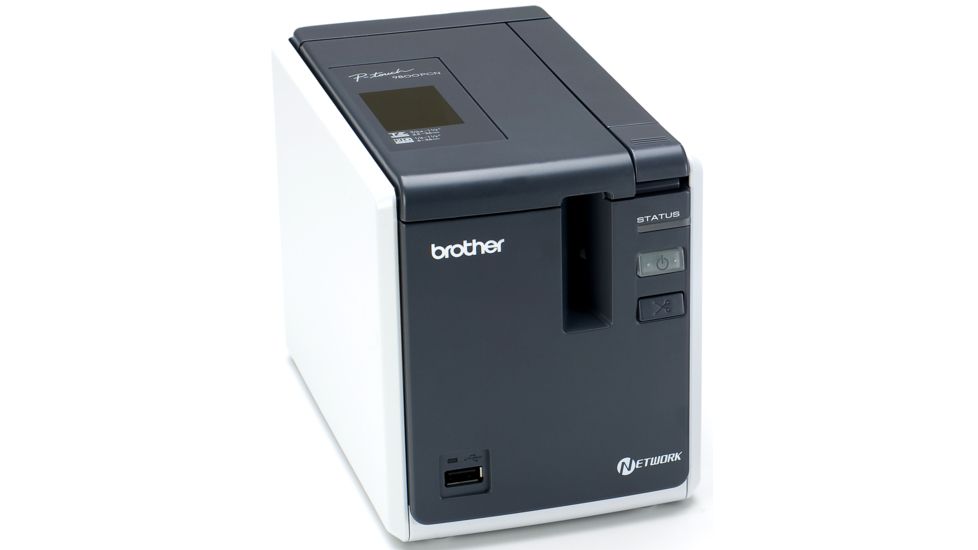

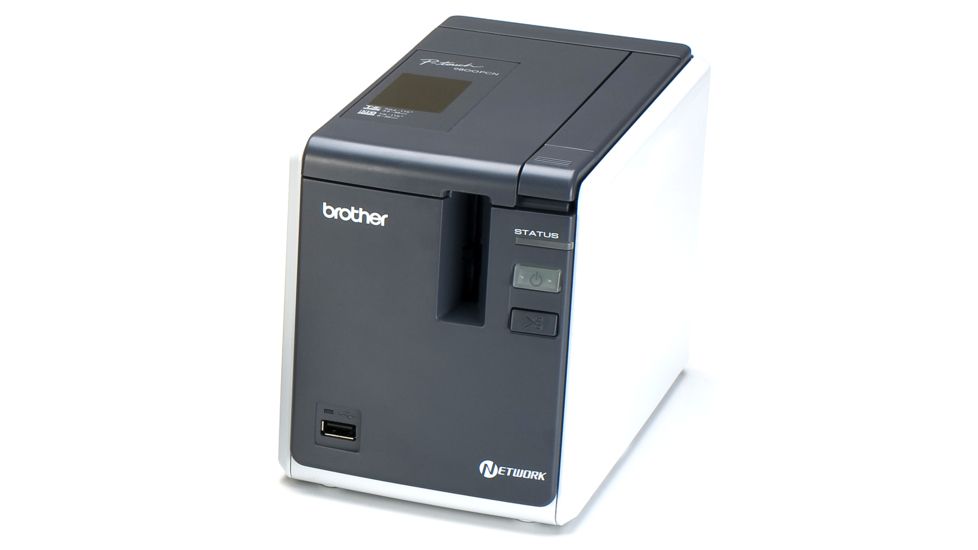

Brother Mobile Solutions Network Version - Brother PT-9800 Desktop Barcode and Identification Printer
$439.99 $499.95 Save 12%
Code: KV-PR-PT9800PCN
MPN: PT9800PCN
UPC: 012502623465

Brother Mobile Solutions Network Version - Brother PT-9800 Desktop Barcode and Identification Printer Product Info

Brother Mobile Solutions PT-9800 Desktop Barcode and Identification Network Printer PT9800PCN offers a clear overlaminate for additional abrasion and chemical protection to thermal transfer printedimage labels. The PT-9800-PCN Barcode and Identification Printer by Brother Mobile Solution has an attractive industrial design and small footprint. Its fast 3.1 ips print speed makes this Brother Mobile Solutions label printer suitable for use in line for manufacturing applications. Brother Mobile Solutions also provide truly laminated labels on demand for applications requiring permanent labeling with this network printer. This Brother label printer can print 360-dpi resolution guaranteeing a high quality laminated label with a glossy clear finish. Print serial number labels while manufacturing, parts and product identification labels from the warehouse and markings for harsh environment applications. True drop-in cartridges make using the PT-9800 Barcode and ID Network Printer simple and virtually trouble-free. If you're looking for the best value desktop barcode and label printer, experience this versatile and reliable label printer for yourself.

Specifications for Brother Mobile Solution, Inc PT-9800 Network Desktop Barcode and Identification Printer PT9800-PCN:

Model Type: Industrial Desktop Network Label Printer
Tape Family: HG, TZ
Tape Sizes: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm
Tape Length: 8m (26.25')
Tape Technology: Laminated Thermal Transfer
Tape Types: High Grade, Standard Adhesive, Extra-Strength Adhesive, Flexible ID, Tamper-Evident, Non-Laminated, Iron-On Fabric, Acid Free
LCD: None
Maximum Print Resolution: 360 x 720 dpi (14 x 28 dots/mm)
Print Speed: HG Tape-Up to 3.15 ips (80 mm/sec), TZ Tape-Up to 0.78 ips (20 mm/sec)
Keyboard: None
Cutter: Automatic (Built-In) Cutter Full-Cut mode and Crack and Peel mode
Batteries: None
Operation Mode: PC Connected (Dumb Printer, Template), Connected to Host Peripheral (Host USB & Serial Interface)
Printer Emulation: Raster, ESC P, Template
Control Panel: On/Off, Feed/Cut
Power Switch: Mechanical
Power Supply: 120VAC 60 Hz
AC Adapter: AD-9100ES (Included)
Handle: None
Interface: PC Connected (Dumb Printer, Template), Connected to Host Peripheral (Host USB & Serial Interface)
Microsoft Word/Outlook/Excel Add-ins: Office 2000/2003/2007
Max. Print Height: 1.07" (27.1 mm)
Multi-Block: Yes
Label Length Setting: 0.17" - 39.37" (4.32mm - 999.99mm)
Auto Incrementation: Alpha Numeric
Horizontal Alignment: Left, Center, Right Justification
Vertical Printing: Yes
Mirror Printing: Yes
Rotate Printing: Yes
Text Insert: Yes
Text Framing/Fill Pattern: Yes
Multi-copy Print: Up to 5,000 Copies
Memory: 7 MB
Memory for Transferred Data (Number): Up to 99 Template Files
Date/Time Stamp: Yes
Snapper function: Yes
Download data to unit: Yes
Auto Formats: Yes
Database File Compatibility: *.csv, *.txt, *.mdb, *.xls and Microsoft SQL Server
Internal Fonts: ESC P: Helsinki, Letter Gothic Template (Bitmap & Outline): Helsinki, Brussels, Letter Gothic
Internal Font Sizes: ESC P-21, 28, 44, 56, 88, 120 dots Template (Bitmap)-21, 28 dots Template (Outline)-35 - 380 dots (20 sizes)
Internal Font Styles: ESC P-Bold, Italic, Underline Template-Bold, Italic, Vertical, Outline, Shadow, Outline/Shadow
Barcodes (connected to computer): Linear-Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS) 2-Dimensional-PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode
(PC) Connectivity: USB (1.1 or 2.0), Serial (RS-232C), Ethernet (10/100 Base -TX)
(Mac) Connectivity: USB (1.1 or 2.0), Ethernet (10/100 Base -TX)
Operating System: Windows 2000 Professional/XP/7, Windows Vista ,Windows Server 2003/2008, Mac OS 10.3.9 - 10.6
(PC) Available hard disk space: 50 MB
(Mac) Available hard disk space: 50 MB
(PC) Minimum RAM memory: 512 MB
(Mac) Minimum RAM memory: 128 MB
Housing Dimensions: 4.6" (116mm) x 7.6" (193mm) x 5.5" (140mm)
Housing Weight: 3.5 lbs (1.57 kg)
Housing Color: Black/Gray
Warranty: 2-Year Depot Warranty

Features of Brother Mobile Solutions, Inc PT-9800 Desktop Barcode and Identification Printer:

  • Prints high quality, extremely durable laminated thermal transfer labels
  • Compatible with Windows 7 and other Windows OS computers
  • Print from bar code scanner, keyboard or other standalone device
  • Bundled with PT-Editor print application design software
  • Prints high quality 360 dpi text, graphics and bar codes
  • Fast, host based printing - up to 3.1 ips
  • Reliable built-in automatic cutter
  • 10/100 Base TX Ethernet, USB 2.0 (host and peripheral) and RS-232C serial interface connectivity
  • Attractive, small footprint printer design
  • Comes complete with software, cables and more

Package Contents:

  • Brother Mobile Solutions PT-9800 Desktop Barcode and Identification Printer PT9800PCN
  • Printer
  • AC Adapter
  • Power Cord
  • USB Cable
  • Software CD
  • HG-251 Tape
  • User Guide
