The Mil-Dot reticle was originally designed to give
marine snipers a better range of distances. A mil measures 3.6" at 100 yards or
36" at 1000 yards (at 10x). for long range distance shooting we can say that one
mil equals one yard at 1000 yards. In the reticle, one mil is the distance from
the center of one dot to the center of the next. The chart shows width
equivalents at different distances between the Mil and the MOA .

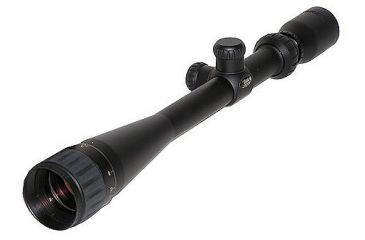

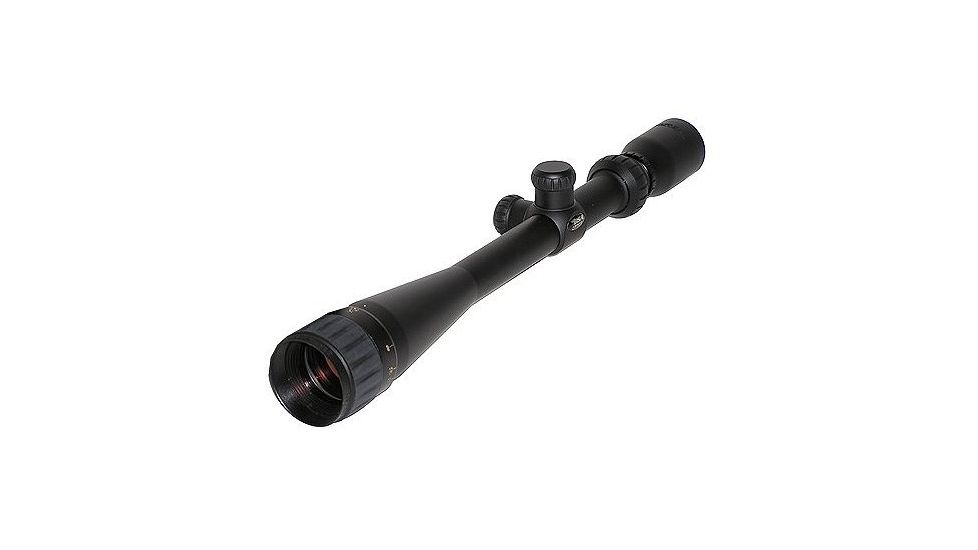

Clean new design and thoughtful innovations make
BSA Optics 8-32x40mm Mil-Dot Target Scope 1/8 MOA MD832X40 a
tremendous buy for the experienced shooter, as well as the novice who wants to
get into varmint or target shooting or even long range hunting. The combination
of many features alone, make BSA Optics 8-32 x 40mm Mil Dot Target
Riflescope 1/8 MOA MD832X40 a best seller, not counting their appearance and sharpness of
Application for 8-32 x 40
mm BSA Optics Mil - Dot Target Rifle Scope
MD832X40: Long Range Hunting and Target
Shooting with Centerfire and Rimfire Rifles.
Objective and Ocular of BSA Mil-Dot Scope MD832X40 are multicoated for glare reduction and
increased brightness. All BSA Optics Mil Dot Riflescopes are waterproof, fogproof, shockproof and carry a limited lifetime warranty.
Specifications for BSA Optics 8-32x40mm Mildot Riflescopes 1/8 MOA (MD 832X40):
Features of BSA Optics 8-32x 40mm Mil-Dot TargetScope 1/8 MOA (MD-832X40):
|Magnification: || 8-32x|
|Objective Diameter: || 40mm|
|Exit Pupil Range: || 5.2-1.6 mm|
|Field of View @ 100yds, feet: || 9.4-3.7|
|Optimum Eye Relief: || 3"|
|Weight: || 20.1 oz.|
- Focusing Mechanism for 10 yds & 300 yds.
- Multicoated Objective & Ocular Lens for glare
reduction & increased brightness.
- Contrasting non-slip, rubberized coating on the
focusing ring, power ring & turret caps.
- Eyepiece focusing from -4 to +4 diopter for duplex
- Finger adjustable windage & elevation knobs with
1/8 MOA click adjustments.
- Carry a limited lifetime warranty
- BSA Optics 8-32x40mm Mil-Dot Target
Scope 1/8 MOA (model MD832X40)
