Product No Longer Available

Unfortunately Canon EOS-1D Mark IV 16 Megapixel SLR Digital Camera is no longer carried by OpticsPlanet. You can also explore other items in the Digital Cameras category yourself to try and find the perfect replacement for you!

This model of Canon Digital Cameras is discontinued and no longer available. Please, take a look at our wide selection of Pentax Digital Cameras, Leica Digital Cameras, Minox Digital Cameras, and many more Digital Cameras on our site.

Canon EOS-1D Mark IV 16 Megapixel SLR Digital Camera Product Info

Canon EOS-1D Mark IV Digital Camera provides the ultimate SLR camera experience, combining speed, accuracy and image quality. If you are a professional photographer, or simply an enthusiast who needs the best performance in both imaging and speed, the Canon EOS 1D Mark IV SLR Camera is the sure choice. You will be impressed by the completely redesigned 45-point AF system including 39 cross-type points, a new Al Servo II AF focus tracking system with improved algorithm combined with 10 fps continuous shooting included in this digital camera that allow you to handle even high-speed situations with ease. This digital SLR camera also boasts an APS-H sized 16.1 Megapixel CMOS Sensor, Dual DIGIC 4 Image Processors, a spectacular ISO range of 100- 12800 (up to 102400 in H3 mode) with an advanced noise reductions system which helps ensure sharp, low-noise images even in low-light situations. The EOS1D SLR Mark IV by Canon delivers incredible resolution with precise focusing and stability for fast paced photography to macro photography. Canon cameras are well known for providing tremendous performance and consistently delivering customer satisfaction, so you won't be disappointed.

Canon EOS-1D Mark IV features a newly developed, high-precision Area AF sensor with 45 manually selectable points including 39 cross-type, high-precision AF points for exacting and fast focusing no matter the subject. The new Al Servo II AF focus tracking features improved algorithms that help improve stability, reliability and focus no matter the situation. Al Servo II AF helps ensure sharp focus every time. AF point selection has been improved as well; photographers can select their own point through either the camera's multi-controller or main dial/quick control dial. Automatic selection is as simple as the press of a button. Video can be captured at 1920 x 1080 resolution at frame rates of 24 (23.976), 25 or 30 (29.97) frames per second, for up to 4GB per clip. Movies are saved as MOV files and can be viewed in Full HD with HDMI output. Other recording sizes include HD at 1280 x 720 (50/60 (59.94) fps) or SD/VGA at 640 x 480 (50/60 (59.94) fps). The EOS-1D Mark IV has a built-in microphone for simple mono recording and stereo sound can be recorded through a self-powered external microphone.

Canon's EOS-1D SLR Mark IV also features an incredible LCD screen: a high-resolution, 3.0-inch ClearView II VGA LCD with 920,000 dot resolution and 160° angle of view. All the features you need to start expressing your photographic capability are ready to go with the EOS-1D Mark IV SLR camera by Canon.

Specifications for Canon Camera EOS 1D SLR Mark IV:

Type: Digital AF SLR (CCD sensor/Direct imaging)
Recording Media: Accepts Type I or II CF cards up to 32 GB
Image Sensor Size: 28.7 x 19.1 mm
Compatible Lenses: Canon EF lenses
Lens Mount: Canon EF lens mount
Image Sensor
Type: High-sensitivity, high-resolution, large-area single-plate CCD sensor
Pixels: Effective pixels: Approx. 4.15 megapixels (2496 x 1665)
Aspect Ratio: 2:3
Color Filter System: RGB primary colors
Low-pass Filter: Located in front of the CCD sensor, fixed
Recording System
Recording Format: Design rule for Camera File system
Image Type: JPEG and RAW, 36-bit true color (12 bits/RGB color), RAW + JPEG simultaneous recording
File Size: (1) Large/Fine: approx. 2.4 MB (2464 x 1648 pixels) (2) Large/Normal: approx. 1.3 MB (2464 x 1648 pixels) (3) Small/Fine: approx. 1.1 MB (2464 x 1648 pixels) (4) RAW: approx. 4.8 MB (2496 x 1662 pixels) * Exact file sizes depend on the subject and ISO speed.
Folder Setting: Folder creation and selection possible
File Numbering: Consecutive numbering, Auto reset, Manual reset
Interface: IEEE 1394 (with dedicated cable)
Image Processing
Type: 10 Settings: Auto, daylight, shade, overcast, tungsten light, fluorescent light, flash, custom, manual color temperature setting, personal white balance
Auto White Balance: Hybrid auto balance with the CCD sensor and a dedicated, external sensor
Color Temperature Compensation: White balance bracketing: +/- 3 steps in whole step increments (1 step = 5 mireds)
Type: Glass pentaprism, eye-level type with eyesight correction
Coverage: 100% vertically and horizontally with respect the effective pixels
Magnification: 0.72x (-1 diopter with 50mm at infinity)
Eyepoint: 20mm
Built-in Dioptric Adjustment: -3.0 - +1.0 diopter
Focusing Screen: Interchangeable (9 types)Standard focusing screen: Ec-CIII
Mirror: Quick-return half mirror (Transmission: reflection ratio of 63:37, no mirror cut off with EF 1200mm f/5.6 or shorter lens)
Viewfinder Information: AF information (AF points, focus confirmation light), exposure information (shutter, speed, aperture, manual exposure, metering range, ISO speed, exposure level, exposure warning), flash information (flash ready, FP flash, FE lock, flash exposure level), JPEG format, number of remaining shots,CF card information
Depth-of-Field Preview: Enabled with depth-of-field preview button
Eyepiece Shutter: Built-in
Type: TTL-AREA-SIR with CMOS sensor
AF Frame: 45-point Area AF (W x H: 15mm x 8mm)
Metering Range: EV 0-18 (at ISO 100)
Focusing Modes: One-Shot AF, AI Servo AF, Manual focusing (MF)
AF Point Selection: Automatic selection, manual selection, home position (switch to registered AF point)
Selected AF Point Display: Superimposed in viewfinder and indicated on top LCD panel
AF-assist Beam: Emitted by the dedicated Speedlite's built-in AF-assist beam
Exposure Control
Metering Modes: TTL full aperture metering with 21-zone SPC
(1) Evaluative metering (linkable to any AF point) (2) Partial metering (approx. 13.5% of viewfinder at center) (3) Spot metering a. Center spot metering (approx. 3.8% of viewfinder at center) b. AF point-linked spot metering (approx. 3.8% of viewfinder at center) c. Multi-spot metering (Max. 8 spot metering entries) (4) Centerweighted average metering
Metering Range: EV 0-20 (at 20 °C/68 °F with 50mm f/1.4 lens, ISO 100)
Exposure Control: Program AE (shiftable), shutter-priority AE, aperture-priority AE, depth-of-field AE, E-TTL flash AE, manual, flash metered manual
ISO Speed (Recommended Exposure Index): Equivalent to ISO 200-1600 (in 1/3 stop increments), ISO speed can be expanded to ISO 100 and 3200
Exposure Compensation: Auto exposure bracketing (AEB): +/- 3 stops in 1/3 stop increments
AE Lock: Auto: Operates in One-shot AF mode with evaluative metering when focus is achieved Manual: By AE lock button in all metering modes
Type: Electronic shutter with the CCD sensor and vertical-travel, local-plane shutter with all speeds electronically-controlled
Shutter Speeds: 1/16,000 to 30 sec. (1/3 stop increments), bulb, X-synch at 1/500th sec.
Shutter Release: Soft-touch electromagnetic release
Self-timer: 10-sec. or 20-sec. delay
Remote Control: Remote switch N3-type terminal provided
External Speedlite
EOS Dedicated Speedlite: Speedlite EX series E-TTL autoflash
PC Terminal: Provided; operates regardless of sync polarity
Drive System
Drive Modes: Single-frame, low-speed continuous, high-speed continuous
Continuous Shooting Speed: Low-speed continuous: 3 fps High-speed continuous: 8 fps
Maximum Burst: 21 shots in Large/Fine, Large/Normal, Small/Fine modes 16 shots in RAW, RAW+Large/Fine, RAW+Large/Normal,RAW+Small/Fine modes *Maximum shots per burst depends on the subject shooting mode, and ISO speed.
LCD Monitor
Type: TFT color LCD monitor
Monitor Size: 2.0 inches
Dots: Approx. 120,000
Coverage: Approx. 100% with respect to the effective pixels
Brightness Adjustment: Adjustable to one of five levels
Image Playback
Display Format: (1)Single image with information (2) Single image (3) 4-image index (4) 9-image index
Highlight Warning: In display formats (1) and (2) above, any overexposed highlight areas will blink in the image display
AF Point Display: Displayed in the single image with information display format
Image Protection and Erase
Protect: Erase protection of one image, all images in folder, or all images in the CF card can be applied or cancelled at one time.
Erase: One image, all images in folder, or all images in the CF card can be erased (except protected images) at one time
New Features
Dust Delete Feature: The voice narration recorded with the built-in microphone is attached to the image
Picture Style: WAV
Recording Time: Max. 30 sec. per recording
Menu Categories: (1) Shooting menu (2) Image reviewing menu (3) Setup menu (4) Custom/Personal functions
LCD Monitor Language: Japanese, English, French, German, Spanish
Firmware Update: Update possible by the user
Power Source
Battery: One Ni-MH Pack NP-E3 *AC power can be supplied via the AC adapter and DC coupler
Number of Shots: At 20°C/68°F: approx. 500. At 0°C/32°F: approx. 350 When a fully-charged Ni-MH Pack NP-E3 battery and EF 50mm f/1.4 USM lens are used; the photo image confirmation function is "on"; the confirmation display time is 2 sec.; and the file format is RAW + Large/Fine)
Battery Check: Automatic
Power Saving: Provided, Power turn off after 1, 2, 4, 8, 15, or 30 min.
Back-up Battery: One CR2025 lithium battery
Dimensions and Weight
Dimensions (WxHxD): 156 x 157.6 x 79.9 mm/6.1 x 6.2 x 3.1 in.
Weight: 1250 g/44.1 oz. (Body only. Battery: 335 g/11.8 oz.)
Operating Environment
Working Temperature Range: 0 - 45°C/32 - 113°F
Working Humidity Range: 85% or lower

Features of Canon SLR Camera EOS1D Mark 4:

  • New 45-point Area AF sensor including 39 cross-type AF points with f/2.8 support plus new AI Servo II AF with improved algorithm.
  • ISO 100 - 12800 (expandable to L: 50, H1: 25600, H2: 51200, H3: 102400) for shooting from bright to dim light with low noise levels.
  • EOS HD movie with manual exposure control and multiple frame rates (1080: 30p (29.97) / 24p (23.976) / 25p, 720: 60p (59.94) / 50p, 480: 60p (59.94) / 50p).
  • 16.1 Megapixel APS-H CMOS sensor and Dual DIGIC 4 Image Processors for high image quality and speed.
  • 10.0 fps continuous shooting up to 121 Large JPEGS or 28 RAW using a UDMA CF card.
  • 3.0-inch ClearView II LCD monitor, 160° viewing angle, 920,000-dot VGA, reflection resistance with multi coating and high-transparency materials for bright and clear viewing.
  • Magnesium alloy body with shutter durability up to 300,000 cycles and exclusive dust- and weather-resistance.
  • Fully compatible with over 50 EF lenses and a wide range of EOS System accessories.

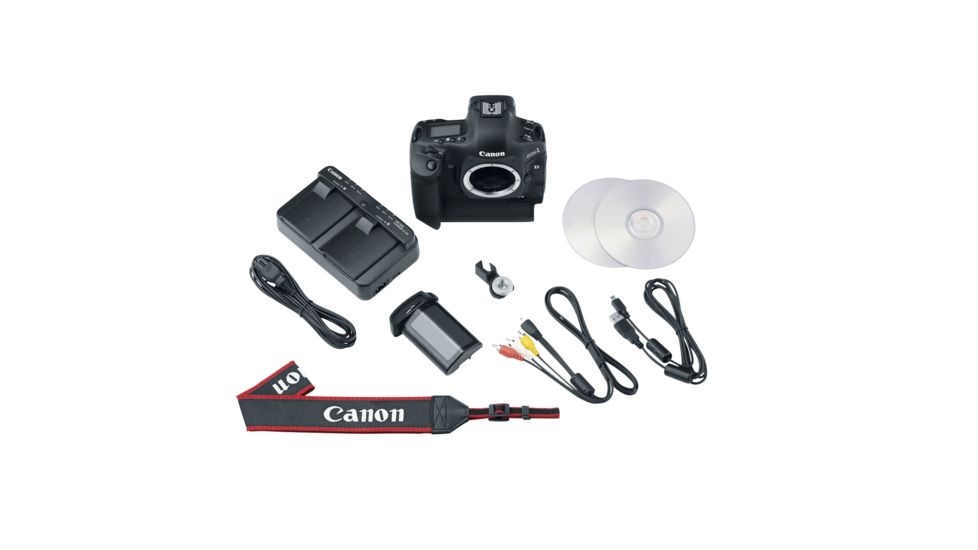

Package Contents:

  • Canon EOS-1D Mark IV Digital SLR Body
    • Eyecup Eg
    • Wide Neck Strap L6
    • Stereo AV Cable AVC-DC400ST
    • USB Interface Cable IFC-200U
    • Cable Protector
    • Battery Pack LP-E4
    • Battery Charger LC-E4
    • CR2025 Lithium Battery
    • EOS Digital Solution Disk
    • Software Instruction Manual
