Canon EOS-1v 35mm SLR Camera Body 2043A005 has been discontinued by Canon and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Film Cameras category yourself to try and find the perfect replacement for you!

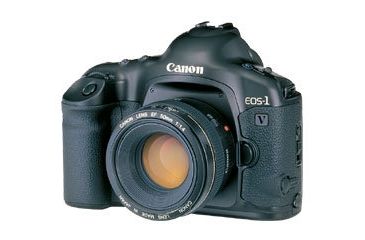

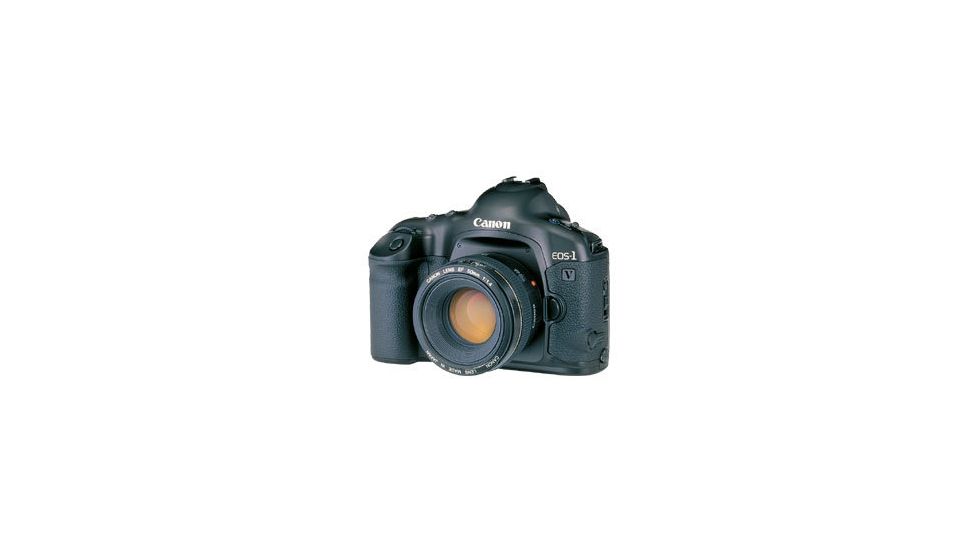

Canon EOS-1v 35mm SLR Camera Body 2043A005 Product Info

The ultimate in professional vision with the world's fastest AF, and a continuous shooting speed of up to 10 frames per second, the EOS-1v continues the Canon tradition of advanced features and exceptional speed in a rugged, reliable package. The EOS-1v has more customizable features than any other Canon 35mm SLR: a 45-point AF system, 100% viewfinder coverage, a top shutter speed of 1/8000 sec., a flash sync of 1/250 sec., 21-zone evaluative metering, E-TTL auto flash, full-time depth-of-field preview, and much, much more. Part of a comprehensive professional system, the EOS-1v supports EOS Link software and is compatible with Canon's full line of autofocus lenses and Speedlites. The EOS-1v's rubber-covered magnesium alloy body, combined with a hybrid chassis, 72 individual gaskets for proven moisture and dust resistance, a shutter tested to 150,000 cycles and familiar EOS-1 control layout make this flagship 35mm perfect for any pro.

Specifications for Canon EOS-1v 35mm SLR Camera Body 2043A005:

Type and Major Components:
  • Type: 35mm AF/AE single-lens reflex with focal-plane shutter and built-in motor drive.
  • Picture Size: 24 x 36mm
  • Compatible Lenses: Canon EF lenses
  • Lens Mount: Canon EF mount
  • External Flash: E-TTL autoflash, A-TTL autoflash, TTL autoflash
  • Type: Eye-level pentaprism
  • Picture Coverage: 100 percent vertically and horizontally (20 mm eye relief)
  • Magnification: 0.72x (-1 diopter with 50mm lens at infinity)
  • Dioptric Adjustment: -3 to +1 diopter. (Standard diopter: -1 dpt)
  • Focusing Screen: Interchangeable (9 types), Standard focusing screen: Ec-CIII
  • Mirror: Quick-return half mirror (Transmission:reflection ratio of 37:63, no vignetting with EF 1200mm f/5.6 or shorter lens)
  • Viewfinder Information: (1) On the screen: Area AF ellipse, focusing points, center spot metering circle (2)Below the screen: Manual exposure setting, AE lock, flash ready, unsuitable FE lock warning, high-speed sync (FP flash), shutter speed, FE lock (FEL), bulb (buLb), focusing point selection mode, depth-of-field AE (dep 1, 2), aperture, exposure compensation/flash exposure compensation, in-focus indicator. (3)Right of screen: Exposure level scale (±3 stops), exposure level indicator, flash exposure level, frame counter, frame count down indicator.
  • Depth-of-Field Preview: Enabled with depth-of-field preview button
  • Eyepiece Shutter: Built-in
  • Type: TTL-AREA-SIR with a CMOS sensor
  • Focusing Points: Area AF with 45 focusing points
  • Focusing Point Selection: Any one focusing point, 45-point automatic selection, can be registered by pressing the Assist Button and FE lock button. Pressing the Assist Button and focusing point selector switches to the registered focusing point.
  • Focus Modes: (1) One-Shot AF: Autofocus stops when focus is achieved, resulting in AF lock. (2) AI Servo AF: Tracks subject movement up to the start of exposure. No in-focus indicator (blinks at 8 Hz only if AF fails). (3) Manual focusing: Enabled with the focusing ring when the lens focus mode is set to MF (or M). Electronic manual focusing during continuous shooting and exposure is enabled with PB-E2 and NP-E2.
  • AF Focus Indictor: Superimposed focusing point in viewfinder and also indicated on LCD panel
  • AF Working Range: EV 0-18 (at ISO 100)
  • AF Assist Method: Emitted automatically by the attached EOS Speedlite when necessary.
Exposure Control:
  • Metering Modes:
    • TTL max. aperture metering with a 21 zone silicon photocell.
    • 1. Evaluative metering (linkable to any point)
    • 2. Partial metering (approx. 8.5% of viewfinder at center)
    • 3. Center spot metering (approx. 2.4% of viewfinder at center)
    • 4. Spot metering (linked to focusing point at approx. 2.4% of viewfinder)
    • 5. Multi-spot metering (Max. 8 multi-spot metering entries)
    • 6. Center-weighted averaging metering
    • * During continuous shooting with metering modes (3) and (4), the first shot is metered in real time and the meter reading is locked (AE lock) for subsequent shots in the same burst.
  • Metering Range: EV 0-20 (at 20° C/ 68° F with 50mm f/1.4lens, ISO 100
    • Exposure Modes:
    • 1. Program AE(shiftable)
    • 2. Shutter speed-priority AE( in 1/3,1/2 or full stops, safety shift enable with Custom Function)
    • 3. Aperture-priority AE(in 1/3,1/2 or full stops, safety shift enabled with Custom Function)
    • 4. Depth of field AE
    • 5. E-TTL program flash AE (high-speed sync, FE lock, and wireless control enabled with 550EX)
    • 6.A-TTL program flash AE
    • 7. TTL program flash AE
    • 8. Manual
    • 9. Bulb
  • ISO Film Speed Range: ISO 6-6400 (Set automaticaly with DX-coded film at ISO 25-5000)
    • Exposure Compensation
    • 1. Auto exposure bracketing (AEB) : +/- 3stops in 1/3 stop increments. Standard exposure, underexposure, and overexposure sequence. Repeated bracketing enabled according to current film advance mode. With self-timer, all three bracketed shots are taken in the continuous shooting mode regardless of the film advance mode.
    • 2. Manual exposure compensation: +/-3 stops in 1/3-stop increments set with the Quick Control Dial or exposure compensation button on the Main Dial.
    • 3. AEB and manual exposure compensation can be set together.
    • AE Lock
    • Auto AE Lock: Operates in One-Shot AF mode with evaluative metering when focus is achieved.
    • Manual AE lock: AE lock button activates Ae lock in all metering modes. Multiple exposures: Max 9 multiple exposures. Cancels automatically after all mutiple exposures are taken.(Cancelable and resettable at any time.)
  • Type: Vertical-travel, focal-plane shutter with all speeds electronically-controlled.
  • Shutter Speeds: 30 to 1/8000 sec. in 1/3-stops, X-sync at 1/250 sec.
  • Shutter Release: Soft-touch electromagnetic release
  • Self Timer: 10-sec. or 2-sec. delay.
  • Remote Control: Remote control/data transfer terminal with waterproof and dustproof cap provided.
  • Type: E-TTL autoflash, A-TTL autoflash, TTL autoflash
  • Flash Contacts: (1) Hot shoe: X-sync direct contacts (2) Right side bottom: PC terminal (threaded)
Film Transport:
  • Film Loading: Automatic. After film is loaded and the back closed, the film advances to frame 1 automatically, taking about 1 sec.
  • Film Speed Setting: Automatic film advance with built-in motor. (1) EOS-1V: Single-frame and continuous shooting. (2) EOS-1V + Power Drive Booster PB-E2: Single-frame, low-speed continuous, high-speed continuous, and ultra-high speed continuous (w/NP-E2).
  • Film Rewind: At the end of the roll, automatic film rewind with a built-in motor. Midroll rewind possible. High-speed rewind: Approx. 4.5 sec. for 24-ex. film and approx. 8 sec. for 36-ex. film at 59 dB Approx. 12 sec. for 24-ex. film and approx. 18 sec. for 36-ex. film at 49 dB
  • Continuous Shooting: Configuration Power source Film Advanced Mode One-Shot AF + Manual Focus AI Servo AF EOS-1V 2CR5 lithium Battery 3.5 3 EOS-1V + BP-E1 Size-AA alkaline batteryX4 EOS-1V + PB-E2 Ni-MH Pack NP-E2 10 9 7 7 3 3 Size-AA alkaline batteryX8 6 5 3 3 EOS-1V + Power Drive Booster E1 Size-AA alkaline battery X8 6 5 3 3
  • Customer Functions: 20 (No. 0 - 19)
Power Source:
  • Battery: (1) EOS-1V: One 2CR5 lithium battery (2) EOS-1V + Power Drive Booster PB-E2: 8 size-AA batteries or Ni-MH Pack NP-E2 (sold separately) (3) Battery Pack BP-E1: 1 2CR5 lithium battery and 4 size-AA batteries (size-AA lithium batteries cannot be used)
  • Battery Check: Automatic when the Main Switch is turned on. Battery level displayed in four levels (not including blank display) on LCD panel.
  • Shooting Capacity: EOS-1V: See above EOS-1V + PB-E2: See above
  • Size (W x H x D): EOS-1V: 161 (W) x 120.8 (H) x 70.8 (D) mm 6.3 (W) x 4.7 (H) x 2.8 (D) in. EOS-1V + PB-E2: 161 (W) x 164.3 (H) x 82.5 (D) mm 6.3 (W) x 6.4 (H) x 3.2 (D) in.
  • Weight: EOS-1V:945 g / 33 oz (body only, excluding battery) EOS-1V + PB-E2: 1380 g / 48.7 oz (body only, excluding battery)
  • Features of Canon EOS-1v 35mm SLR Camera Body 2043A005:
  • Magnesium alloy body covers, outstanding water & dust resistance and enhanced shutter durability
  • World's fastest continuous shooting speed up to 10 fps
  • 20 Custom Functions, optional EOS Link software
  • 45-point Area AF, 100% viewfinder, proven EOS-1 control layout & much more
  • Comprehensive System
  • Package contains:
  • EOS-1 V Body
  • Neck Strap L3
  • Eye Cup Ec II
  • Grip GR-E2
  • Instruction Book
  • Warranty

Canon EOS-1v 35mm SLR Camera Body 2043A005 Unorderable Models

Canon EOS-1v 35mm SLR Camera Body 2043A005, MPN: 2043A005, UPC: 082966124013, Code: CA-CP-2043A005
