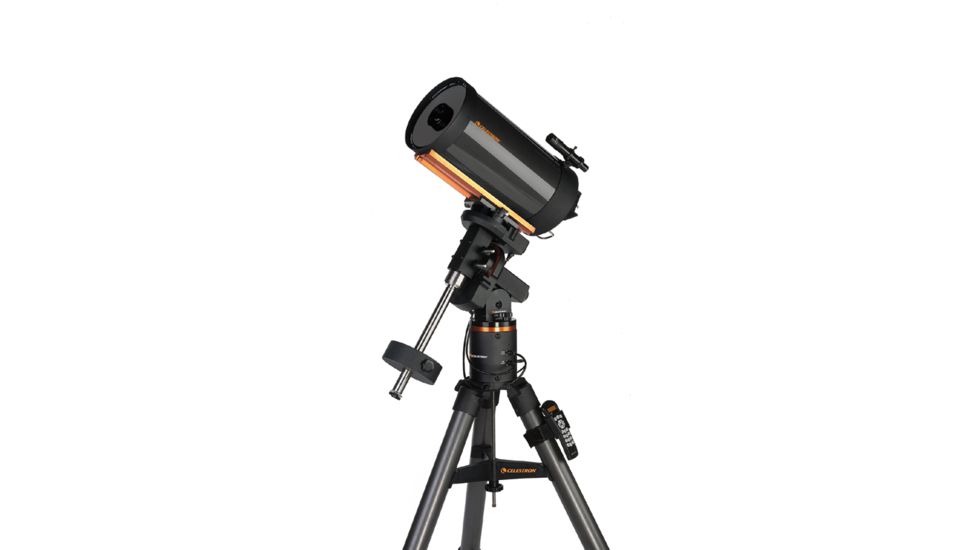

CGE 925 Schmidt-Cassegrain Telescope w/ StarBright XLT coatings 11059-XLT is part of Celestron's "Top-of-the-Line" German Equatorial mounted astronomical telescopes. The larger CGE-925 is still
portable enough to take with you, yet it offers a 33% increase in light gathering power over 8" telescopes.
Celestron CGE925 Telescope is especially at home as a solid platform for long exposure photography with optional CCD cameras or photographic equipment. Using an f/6.3 Focal Reducer makes it usable with a wide variety of CCD cameras. German Equatorial mounts are recognized as being the superior choice for astrophotography because of their rock solid stability, simple balancing and easy accessibility for attaching equipment. This, coupled with the CGE line's GoTo capability, makes it unbeatable.
As a visual instrument you can search for all of the Messier Catalog objects, and you can see hundreds of other, less famous, but equally interesting NGC, IC and Caldwell objects. Turn Celestron CGE - 925 to the planets and see amazing detail on the surface of Jupiter; see Cassini's Division in the rings of Saturn, and resolve details on the surface of Mars. Even the distant Uranus, Neptune and Pluto are within your reach.
With StarBright XLT Optical System Design you'll see the light! One of the most important factors in the evaluation of a Schmidt-Cassegrain telescope 's optical system performance is its transmission - the percentage of incoming light that reaches the focal plane. The design of the XLT System accomplishes two crucial objectives: Develop a coating system that is optimized for visual use and for CCD/Photographic imaging.
There are three major components that make up Celestron StarBrightXLT high transmission optical system design:
1) Unique enhanced multi-layer mirror coatings: Celestron mirror coatings are made from precise layers of Al (Aluminum), SiO2 (quartz) and TiO2 (Titanium Dioxide). Reflectivity is fairly flat across the spectrum, optimizing it for both CCD imaging and visual use.
2) Multi-layer anti-reflective coatings: Coatings are made from precise layers of MgF2 (Magnesium Fluoride), and HfO2 (Hafnium Dioxide). Hafnium gives a wider band pass than Titanium, used in comparable coatings.
3) High Transmission Water White glass : Celestron Schmidt-Cassegrain optical systems with optional StarBright XLT coatings use Water White glass instead of Soda Lime glass for the corrector lens. Water White glass transmits about 90.5% of light without anti-reflective coatings. That is 3.5% better transmission than uncoated Soda Lime glass. When Water White glass is used in conjunction with StarBright - XLT 's anti-reflective coatings, the average light transmission reaches 97.4% - an 8% improvement!
These three components of Celestron StarBright XLT coatings result in one of the finest coatings available. The peak light transmission for the systems is 89% at 520 nm. The overall system transmission is 83.5% averaged over the spectrum from 400 to 750 nm.
Click here to see details about StarBright XLT.
| Optical Design: | 9.25" Schmidt-Cassegrain | |
| Focal Length: | 2350mm F/10 | |
| Finderscope: | 6x30 | |
| Eyepiece: | 25mm Plossl - 1.25" (94x) | |
| Star Diagonal: | 1.25" | |
| Tripod: | Adjustable, Carbon Steel | |
| Car Battery Adapter: | Included | |
| Highest Useful Magnication: | 555x | |
| Lowest Useful Magnification: | 34x | |
| Limiting Stellar Magnitude: | 14.4 | |
| Resolution: Rayleigh: | .59 arc seconds | |
| Dawes Limit: | .49 arc seconds | |
| Photographic Resolution: | 200 line/mm | |
| Light Gathering Power: | 1127x unaided eye | |
| Field of View :standard eyepiece: | .53° | |
| Linear FOV (@1000 yds): | 28 ft. | |
| Optical Coatings: | Starbright Coating | |
| Secondary Mirror Obstruction: | 3.35" | |
| Motor Drive: | DC Servo motors with encoders, both axes | |
| Computer Hand Control: | Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons | |
| Slew Speeds: | Nine slew speeds: 4° /sec, 2° /sec, .5°/sec, 64x, 16x, 8x, 4x, 1x, .5x | |
| Tracking Rates: | Sidereal, Solar and Lunar | |
| Tracking Modes: | EQ North & EQ South | |
| Alignment Procedures: | AutoAlign, 2-Star Align, Quick Align, 1-Star Align, Recall Last Alignment, 3-Star Align | |
| Software Precision: | 24bit, 0.08 arcsec calculation | |
| Database: | 40,000+ objects, 400 user defined programmable objects.Enhanced information on over 200 objects | |
| Power Requirements: | 12 VDC 1.5A | |
| Idle Current: | 215mA | |
| Slew one axis: | 600mA | |
| Slew both axes: | 850mA (with 1A spikes) | |
| Internal clock: | Yes | |
| GPS Compatible: | CN-16 GPS Accessory | |
| Optical Tube Weight: | 20 lb. | |
| Tripod/Mount Weight: | 114 lb | |
Electronic and Software Features:
Celestron CGE 925 Telescope w/ StarBright XLT & FREE Shipping
