Optical Specifications: | ||
|
| ||
| Design: | Refractor | |
| Aperture: | 80mm | |
| Focal Length: | 900mm | |
| F/ratio of the Optical System: | F/11 | |
| Objective Coatings: | Fully Coated | |
| Highest Useful Magnification: | 189x | |
| Lowest Useful Magnification: | 11x | |
| Resolution: Rayleigh Criterion: Dawes Limit: | 1.73 arc seconds 1.45 arc seconds | |
| Light Gathering Power: | 131x unaided eye | |
| Field of View (Standard Eyepiece): | 1.4° | |
| Linear Field of View (at 1000 yds): | 74 feet | |
| Eyepiece Magnification: | 36x (25mm) 90x (10mm) | |
| Optical Tube Length: | 35 inches | |
|
Software Specifications: | ||
| Software Precision: | 16 bit, 20 arc sec. calculations | |
| Ports: | RS-232 communication port on hand control | |
| Tracking Rates: | Sidereal, Solar and Lunar | |
| Tracking Modes: | Alt-Az, EQ North & EQ South | |
| Alignment Procedures: | AutoAlign, 2-Star Alignment, Quick-Align | |
| Database: | 25 user defined programmable object.Enhanced information on over 100 objects | |
| Total Object Database: | 4,033 Objects | |
|
Mechanical Specifications: | ||
| Motor:
Type: Resolution: | DC Servo motors with encoders, both axes .26 arc sec | |
| Slew speeds: | Nine slew speeds: 4° /sec, 2° /sec, 1°/sec, .5 /sec, 32x, 16x, 8x, 4x, 2x | |
| Hand Control: | Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons | |
| Fork Arm: | Cast aluminum | |

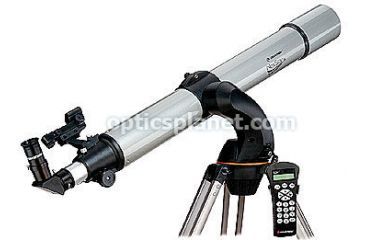

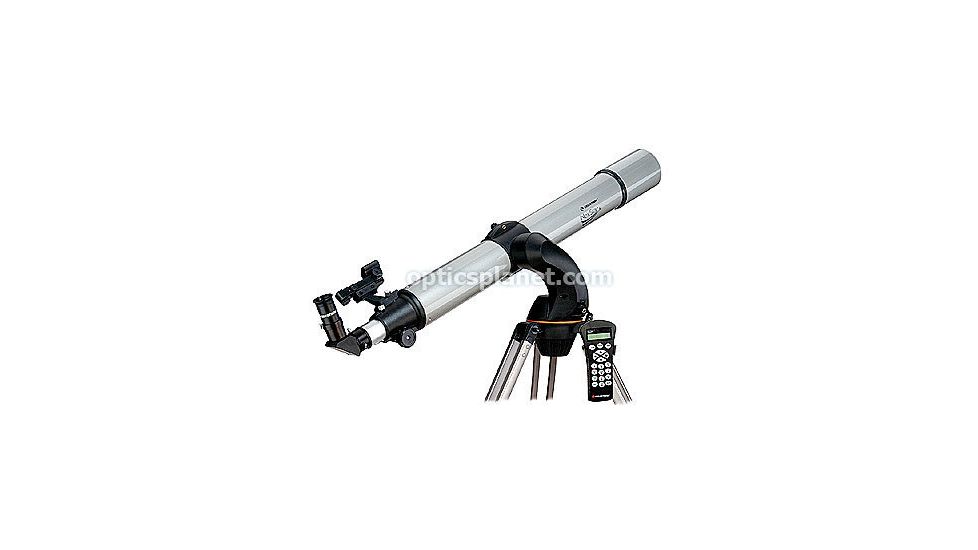

Celestron Nexstar 80GTL Computerized Telescope 22085

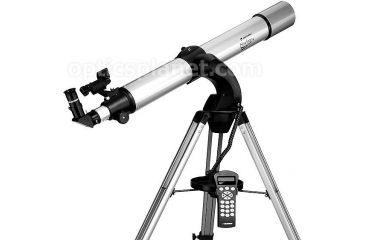

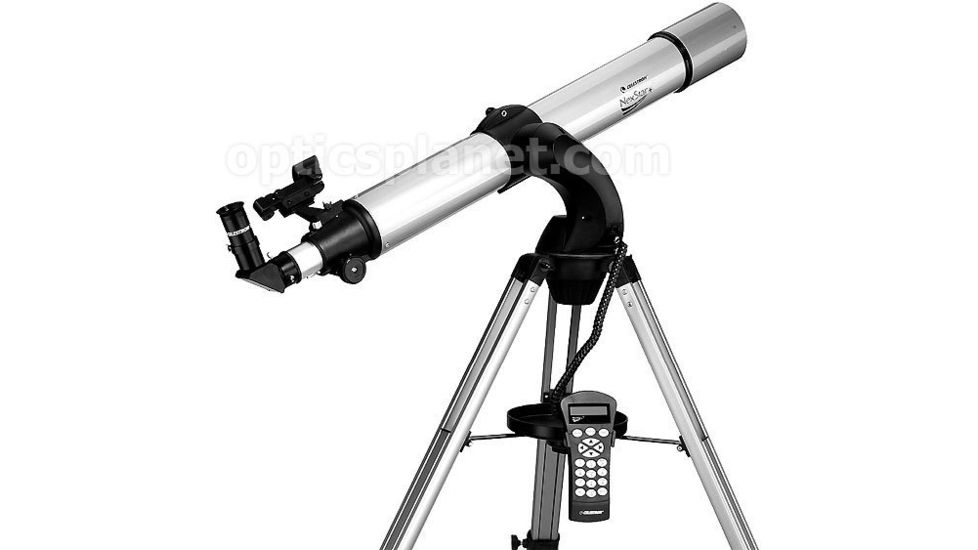

Celestron Nexstar 80GTL Computerized Telescope
