Product No Longer Available

Unfortunately Leupold Mark 4 10x40 LR/T M3 Matte Black TMR Riflescope 60090 Personalized by Leupold Custom Shop Rifle scope is no longer carried by OpticsPlanet.

This model of Leupold Riflescopes is discontinued and no longer available. Please choose from our wide collection of other Leupold Riflescopes and Riflescopes of other brands such as Zeiss, Nikon, Bushnell, Yukon, and more from our site.

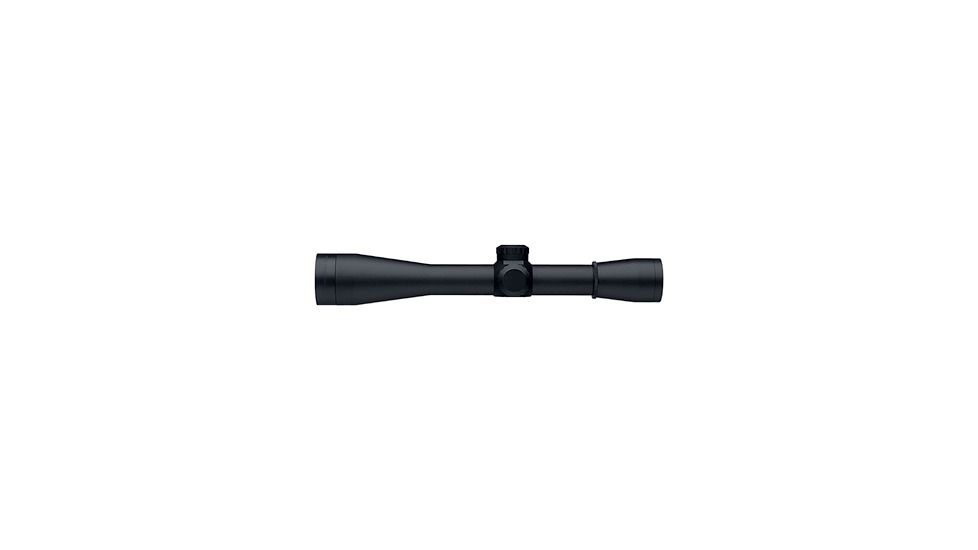

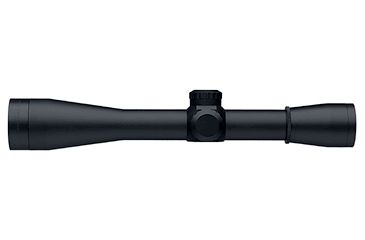

Leupold Mark 4 10x40 LR/T M3 Matte Black TMR Riflescope 60090 Personalized by Leupold Custom Shop Rifle scope Product Info

The following spec is for a standard model of Leupold Mark 4 10x40 LR/T M3 Matte Black Riflescope 60090. Please note that if you select one of the custom rifle scope options, the imagestandard specs for the riflescope might change according to your selection.

Leupold Mark 4 Long Range / Tactical 10x40mm LR/T M3 Matte Black Riflescope w/ TMR 60090 features bullet drop compensation adjustments. The M3 adjustment dials are specially calibrated and interchangeable to allow bullet drop compensation. Adjustment increments of 1 MOA elevation and 1/2 MOA windage allow for easy adjustment, while the side parallax adjustment dial makes it possible to eliminate parallax while remaining in shooting position.

In addition to Leupold Mark 4 10x40mm LR/T M3 Matte Black TMR Riflescope 60090 Personalized by Leupold Custom Shop, make sure to check other Leupold Riflescopes and other Leupold products offered in our store.

Leupold Mark 4 10x40mm LR/T M3 Matte Black Rifle Scope w/ Tactical Milling Reticle 60090 Riflescope can also be purchased without personalization and customization options. Please see Leupold Mark 4 10x40mm LR/T M3 Matte Black Rifle Scope w/ Tactical Milling Reticle 60090 Riflescope for specifications and pricing details.

Specifications for Leupold Long Range/Tactical Mark 4 10x40 LR/T M3 Matte Black TMR Riflescopes:

Actual Magnification:   10.0
Length (in):   13.10
Eyepiece Length (in):   2.70
Objective Length (in):   4.38
Objective Diameter (in):   1.96
Eyepiece Diameter (in):   1.68
Tube Diameter:   30mm
Weight:   21.0 oz. / 595 grams
Eye Relief (in):   3.4
Eye Relief (mm):   86
Obj. Lens Diameter:   1.6in / 40mm
Max. Adjustment @ 100 yds (in):   75(e) 52(w)
Max. Adjustment @ 100 m (cm):   200(e) 144(w)
FOV @ 100 yds (ft):   11.1
FOV @ 100 m (m):   3.7
  Ring Spacing
Max. Mount Ring Spacing (in):   6.10
Front Ring Space (in):   2.35
Rear Ring Space (in):   2.25

Features of Leupold Mark 4 10 x 40mm LR/T M3 Matte Black Rifle-Scope Duplex Reticle:

  • Side focus parallax adjustment dial
  • Index Matched Lens System - special lens coatings matched to each lens surface transmit the maximum amount of usable light possible to your eye, for the brightest, clearest sight picture possible
  • 1 MOA elevation and 1/2 MOA windage allow for easy adjustment
  • Finger-adjustable dials - the knurled windage and elevation adjustment dials
  • Butler Creek Flip-Open Lens Covers come standard with all Leupold Mark-IV LR/T rifle-scopes
  • Superior edge-to-edge sharpness - total clarity across visual field and outstanding brightness for optimal low-light apability.
  • Click adjustments - audible, tactile "click" windage and elevation adjustments for extreme accuracy
  • Precision parallax adjustment - adjust for specific ranges from 50 yards to infinity using turret mounted focus knob, without taking your eyes off the target
  • Zeroed adjustment knobs - once sighted-in, adjustment knobs can be zeroed
  • 30mm maintubes - the wider diameter body offers increased windage and elevation adjustment
  • Solid construction - milled from one solid piece of 6061-T6 aircraft-grade aluminum, these Leupold rifle scopes are rugged and absolutely waterproof in all conditions
  • Leupold Full Lifetime Guarantee

Package Contents:

  • Leupold Mark 4 10 x 40 LR/T M3 Matte Black Long Range Tactical Scope w/ Tactical Milling Reticle 60090
