Select a Model

$1,599.99 $1,999.99 Save 20%

Check Product Availability

Reticle: Mil-Dot

Code: LU-RS-M43510x40M3FF-Custom-58860

MPN: 58860

$1,599.99 $1,999.99 Save 20%

Check Product Availability

Reticle: Tactical Milling

Code: LU-RS-M43510x40M3FF-Custom-60035

MPN: 60035

Back

Additional Options

Reticle Change on selected scope

Custom Ballistically Matched Reticle Information

Ballistic Coefficient Bullet Weight

Muzzle Velocity Altitude

Caliber

Optional Bullet Drop Information

200 yd (in)

300 yd (in)

400 yd (in)

500 yd (in)

Custom BDC Dial

BDC Dial Information

Ballistic Coefficient Bullet Weight

Muzzle Velocity Altitude

Caliber Temperature

Optional Bullet Information

100 yd (in) 200 yd (in) 300 yd (in) 350 yd (in) 400 yd (in)

450 yd (in) 500 yd (in) 550 yd (in) 600 yd (in) 650 yd (in)

700 yd (in) 750 yd (in) 800 yd (in) 850 yd (in) 900 yd (in)

950 yd (in) 1000 yd (in)

Wildlife Image on Objective of Your Leupold Scope

Top Side

Left Side

Right Side

Extras

Custom Built for (Name)

16 characters max

Initials on Adjustment Cap

3 characters max

Comments

Leupold Custom Shop Riflescope Policy Yes, I understand that there are NO returns/exchanges on custom scopes. Custom orders are dependent on the Leupold Custom Shop and may take from 8 weeks to significantly longer.

Government Export Restriction This item may be regulated for export by the U.S. Department of State or the U.S. Department of Commerce. Please see our Export Policy prior to placing your order.

price with options:?

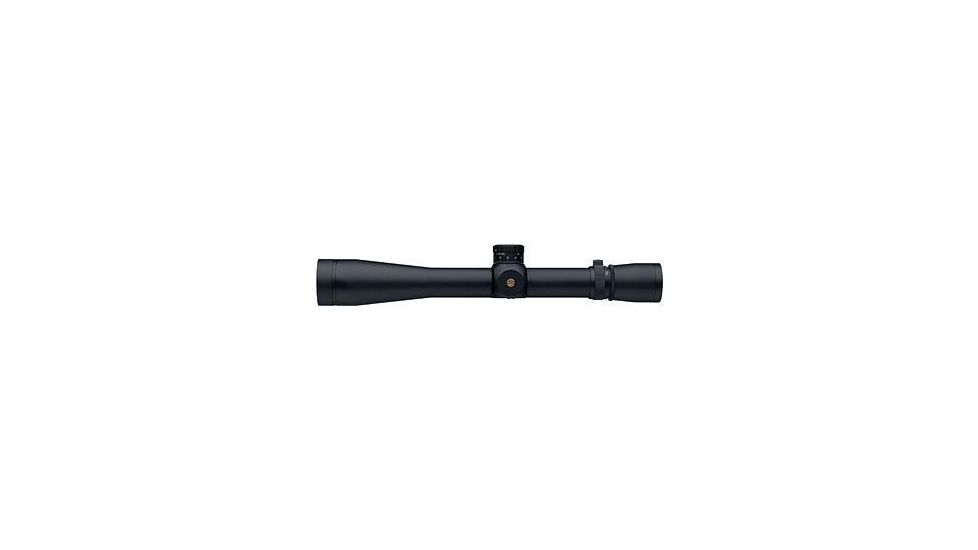

Leupold Mark 4 3.5-10x40 LR/T M3 Long Range Tactical Front Focal Riflescopes Personalized by Leupold Custom Shop Product Info

The following spec is for a standard model of Leupold Mark 4 3.5-10x40 LR/T M3 Long Range Tactical Front Focal Riflescopes. Please note that if you select one of the custom rifle scope options, the standard specs for the riflescope might change according to your selection.

With the Front Focal feature of the Mark 4 3.5-10x40 Long Range / Tactical LR/T M3 Front Focal Riflescope from Leupold, you can estimate range at any magnification setting... the reticle magnifies with the image.

Available models:

Leupold 58860 - Matte Black Finish, Mil Dot Reticle
Leupold 60035 - Matte Black Finish, Tactical Milling Reticle

Specifications for Mark-IV 3.5 - 10 x 40mm LR/T M-3 Front Focal Leupold Riflescopes:

Actual Magnification:	3.2(3.5x) 9.5(10x)
Length (in):	13.5
Eyepiece Length (in):	3.2
Objective Length (in):	4.3
Objective Diameter (in):	1.8
Eyepiece Diameter (in):	1.6
Tube Diameter:	30mm
Weight:	19.5 oz. / 553 grams
Eye Relief (in):	4.7(3.5x) 3.4(10x)
Eye Relief (mm):	119(3.5x) 93(10x)
Obj. Lens Diameter:	1.6in / 40mm
Max. Adjustment @ 100 yds (in):	65
Max. Adjustment @ 100 m (cm):	181
FOV @ 100 yds (ft):	29.9(3.5x) 11.0(10x)
FOV @ 100 m (m):	10.0(3.5x) 3.7(10x)
Ring Spacing
Max. Mount Ring Spacing (in):	6.2
Front Ring Space (in):	2.4
Rear Ring Space (in):	2.4

Features of Leupold Mark-IV 3.5-10 x 40 Long Range/Tactical LR/T M3 Front Focal Rifle-Scope:

Front Focal model - with the reticle in the front focal plane of the riflescope, the reticle increases in magnification along with the image, so you can determine range at any magnification setting.
30mm maintubes - the wider diameter body offers increased windage and elevation adjustment.
Butler Creek Flip-Open Lens Covers - standard issue with Mark 4 LR/T rifle-scopes.
Index Matched Lens System - special lens coatings matched to each lens surface transmit the maximum amount of usable light possible to your eye, for the brightest, clearest sight picture possible.
Fully Illuminated Mil Dot reticles - available in select models for precise shot placement in low light

Package Contents:

Leupold Mark 4 3.5-10x40mm LR/T M3 Front Focal Long Range/Tactical Rifle Scope

In addition to Leupold Mark 4 3.5-10x40mm LR/T M3 Long Range Tactical Front Focal Riflescopes Personalized by Leupold Custom Shop, make sure to check other Leupold Riflescopes and other Leupold products offered in our store.

Leupold Mark 4 3.5-10x40mm LR/T M3 Long Range Tactical Front Focal Rifle Scopes can also be purchased without personalization and customization options. Please see Leupold Mark 4 3.5-10x40mm LR/T M3 Long Range Tactical Front Focal Rifle Scopes for specifications and pricing details.
