Product Discontinued by Manufacturer

EOTech M-953 Omega PVS-15 Night Vision Binocular, US Spec has been discontinued by EOTech and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Night Vision Goggles / Binoculars category yourself to try and find the perfect replacement for you!

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

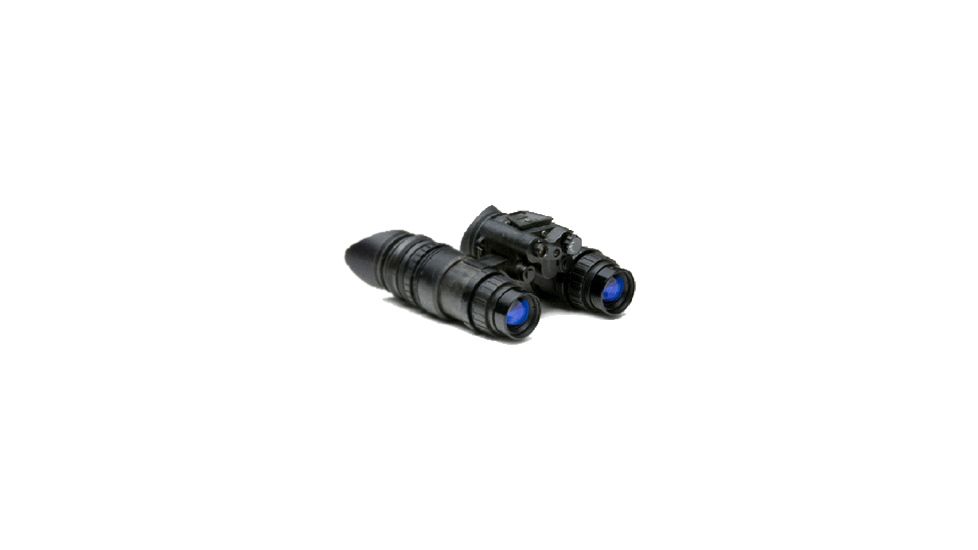

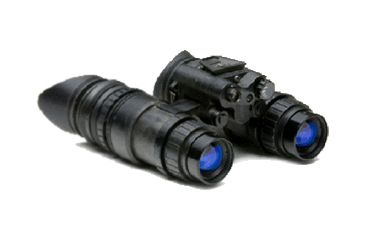

EOTech M-953 Omega PVS-15 Night Vision Binocular, US Spec Product Info

EOTech M 953 Omega PVS15 Type Night Vision Binoculars - US Spec features a twin-tubed design that is comparable to high tech aviation systems andimage provides better depth perception than single tube designs. The EOTech M953 PVS-15 Night Vision Binocular is designed for one-handed or hands-free operation as a highly effective military night vision scope. The EOTech M953 is battle proven to withstand any vehicle, assault, or amphibious operation. Be sure to check out the fine collection of EOTech night vision for incredible imaging and tactical performance.

Specifications for EOTech M953 Night-Vision Binoculars:

Optics
Magnification: 1x
Field of View (FOV): 40.0°
Objective Lens: 27 mm (1.1 in)
Minimum Focus Distance: 25 cm (9.8 in)
Eye Relief: 25 mm(1 in)
Diopter Adjustment: +2 to -6
Gen III Image Intensification Tube Options
Alpha:
  • Resolution:45 lp/mm (min)
  • Signal/Noise:17.1:1 (min)
  • FOM:1250 (max)
Delta:
  • Resolution:64 lp/mm (min)
  • Signal/Noise:21.0:1 (min)
  • FOM:1600 (max)
Omega:
  • Resolution:64 lp/mm (min)
  • Signal/Noise:21.0:1 (min)
  • FOM:Unrestricted
Infinity:
  • Resolution:64 lp/mm (min)
  • Signal/Noise:25.0:1 (min)
  • FOM:Unrestricted
Power
Power Source: 1 AA Battery
Battery Life: ~ 16 Hours at Room Temperature
Physical Characteristics
Size: 16.5 cm L (with eyecup) x 12.4 cm W x 8.5 cm H (6.5 in L (with eyecup) x 4.9 in W x 3.3 in H)
Weight: 726g with battery (1.6 lbs)
Color: Black
Water Resistance: Submersible to 20 m (66 ft)
Mounts: Helmet Mount Adapter
Warranty
Housing: 1 year
Tube: 1 year
Model Numbers
Alpha: Model 245050-001
Delta: Model 245050-003
Omega: Model 245050-004

Features of EOTech M-953 Night Vision M 953 Bino:

  • Hands-Free or One-Hand Operation
  • High Light Cut-Off Tube Protection
  • Integrated IR Illuminator
  • Automatic Brightness Control and high light tube cut-off protection
  • Submersible to 20 m (66 ft)
  • Single AA Battery Operation
  • One-Year Warranty Standard
  • Low battery indicator visible in optic

Package Contents:

  • EOTech M953 Omega PVS-15 Type Night Vision Binocular, US Spec
  • Operation Manual
  • Soft Carrying Case
  • Battery
  • Demist Shield
  • Sacrificial Filter
  • Lens Brush & Paper
  • Lens Covers with Retainers
  • Neck Cord
  • 25mm Eyecup and Facemask (Full Cushion, Flip-Up Foam)
