Product Discontinued by Manufacturer

EOTech MPO II EXPS3-4 Holosight with G23 3X Magnifier - 4-Dot Reticle, NV Compatible has been discontinued by EOTech and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Red Dot Sights category yourself to try and find the perfect replacement for you!

EOTech MPO II EXPS3-4 Holosight with G23 3X Magnifier - 4-Dot Reticle, NV Compatible Product Info

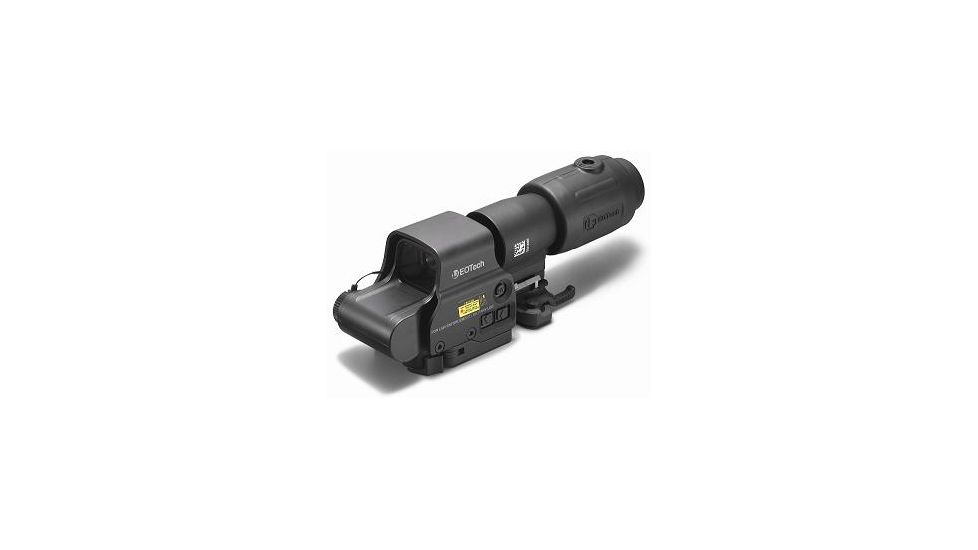

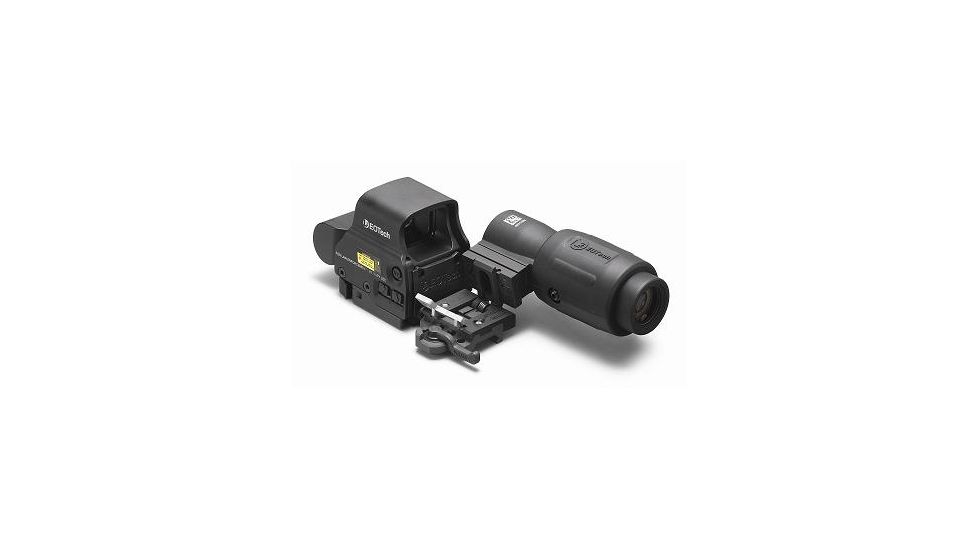

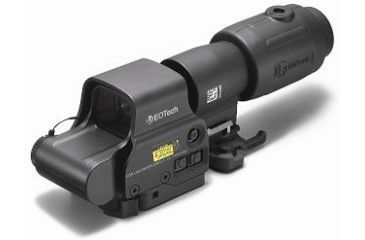

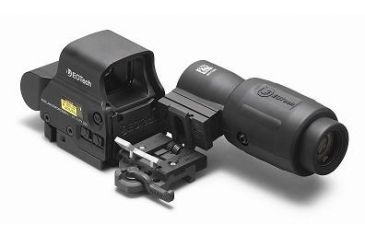

EO Tech EXPS3 HWS MPO II Holo Sight and Magnifier is a complete night-vision compatible system designed to aid the modern combat operative. The MPO II Holographic Sight system from EOTech is designed to be the ultimate in either close range tactical operation to medium range precision target acquisition, with incredibly simple activation of the 3x magnifier. L3 EOTech MPO is a multi purpose optic which includes the ballistic reticle, the G23.FTS, and side operating buttons, and quick release throw levers on both the HWS and G23 for fast and easy detachment and reattachment to your rifle.

The EOTech MPO EXPS HWS is a combination red dot sight and magnifier, addressing ever-changing battlefield situations. If you are looking for a complete system that includes a magnifier for EOTech plus the advanced EXPS3, the Eotech MPO is exactly what you need for a highly versatile EOTech Red Dot.

Specifications for EOTech MPO II with EXPS-3 and G 23 3x Magnifier:

Operation
Optics: Transmission holography - parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 3.5"x2.4"x2.8" (91.4X 60.9x71mm)
Weight: 11.2 oz (317grams)
Temperature: -40 to 150 F
Waterproof: Submersible to 33 ft depth
Sealing: Fogproof internal optics
Color/Finish: Non reflective black with hard coat finish
Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
Adjustment Range: +/- 40 MOA travel
Mount: 1" Weaver or (MIL-STD-1913) rail. Adjustable for width variation
Return to Zero: Repeatable to within 2 MOA after re-mounting
Night Vision Compatibility: 10 brightness setting (generation I-III+)
Heads-Up-Display Window
Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20" x 0.85" (30 x 23mm)
Front Window Material: 1/8" solid glass
Rear Window Material: Shatter resistant laminate (3/16" thick)
Field of View (100 yds): 30 yds (28m) at a 4" eye relief

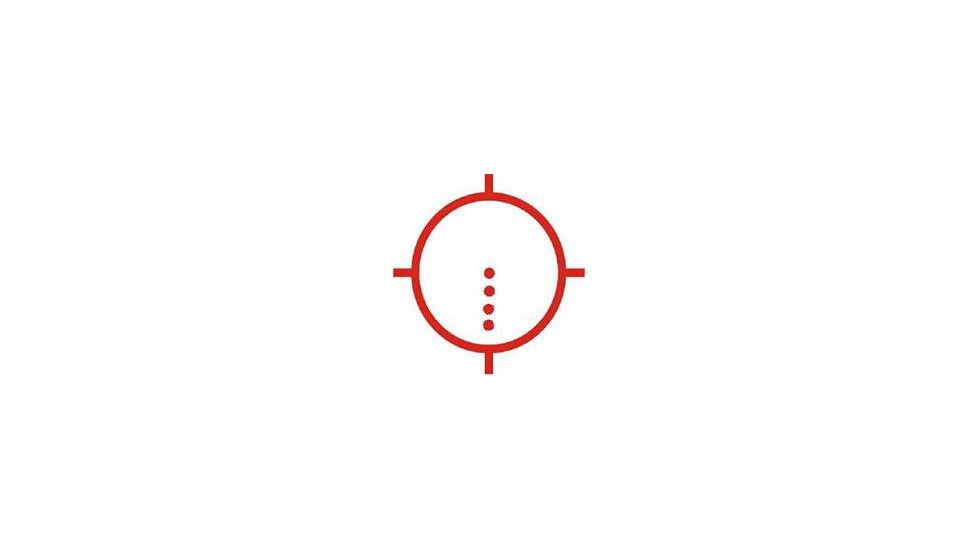

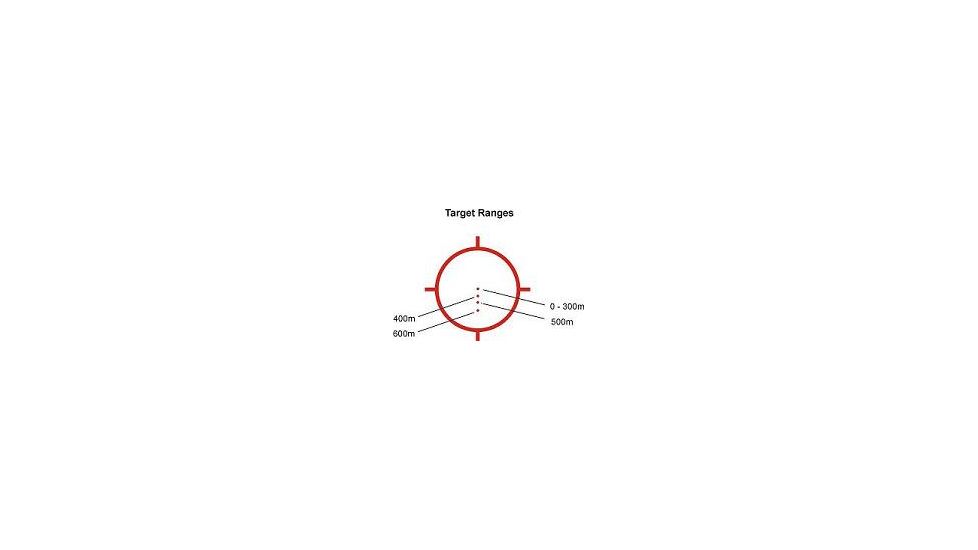

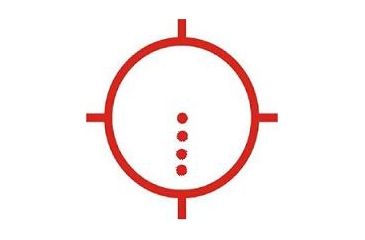

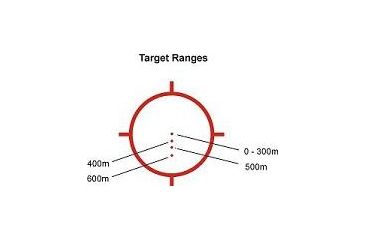

Reticle Options: 65MOA ring with four 1MOA dots
Electrical
Brightness Adjustment Range: 146,000
Night Vision Brightness Range: 1280
Power Source: (1) 123 lithium battery
Battery Life: 600 continuous hours at nominal setting 12
Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut-down: At 8 hrs- programmable to 4 hrs
Magnifier
Magnification Fixed: 3.25X
Eye Relief: 1.97" (50mm)
Length: 4.6" (117mm)
Weight: 11.9oz (372 grams)
Temperature: -40 to 160 F
Waterproof: 33 ft.
Sealing: Fogproof internal optics
Mount: MIL-STD-1913 rail
Field of View: 6 degrees

Features of EOTech MPO Red Dot Sight and Magnifier:

  • Single transverse 123 battery to reduce sight length
  • Shortened base only requires at most 2 3/4 inch of rail space compared to the 4 inch N battery sights
  • Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
  • Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle
  • Average battery life at brightness level 12 is roughly 500-600 hours, 3X battery life of N cell sights
  • Side buttons, NV compatible with quick detach throw lever
  • 3x magnifier with Flip-To-Side mount and quick detach
  • Magnifier Retrofits to all HWS models
  • Included 7mm riser for raised bases

Package Contents:

  • EO Tech MPO EXPS3 HWS Holo Sight
  • G23 3X magnifier
  • Quick Release Throw Lever mount
