FLIR Systems MD-324 Compact Fixed Mounted Thermal Night Vision Camera, 320x240, White 432-0010-01-00
$3,499.00
Model: FLIR Systems MD-324 Compact Fixed Mounted Thermal Night Vision Camera, 320x240, White 432-0010-01-00
Code: FR-HS-MD324-432-0010-01-00
MPN: 432-0010-01-00
UPC: 815121015426
FLIR Systems MD-324 Compact Fixed Mount Thermal Camera with Joystick Control Unit, White 432-0010-11-00
$3,999.00
Model: FLIR Systems MD-324 Compact Fixed Mount Thermal Camera with Joystick Control Unit, White 432-0010-11-00
Code: FR-HS-MD324-432-0010-11-00
MPN: 432-0010-11-00
UPC: 815121016508
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $3,59899

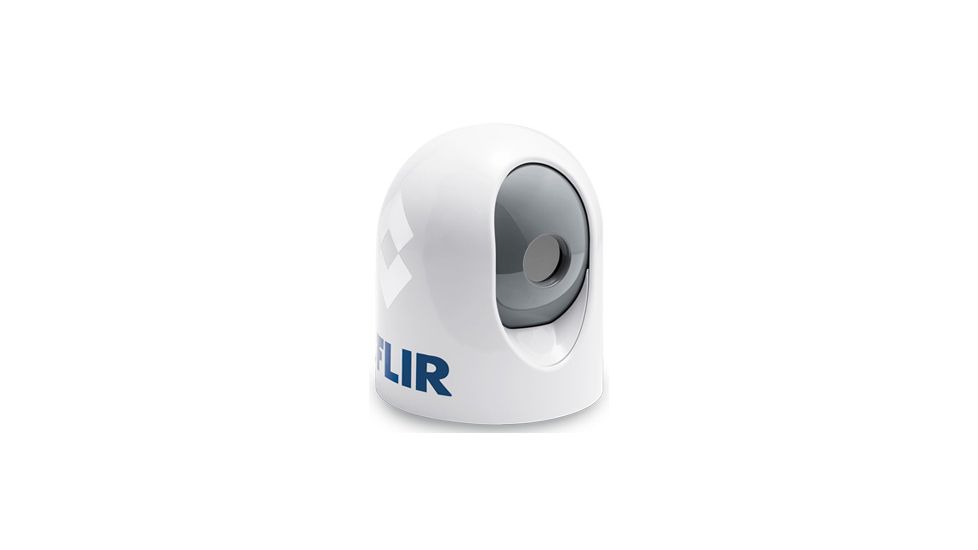

FLIR Systems MD-324 Compact Thermal Night Vision Camera - Fixed Mounted, 320x240, White Product Info

Designed to increase your situational awareness without destroying your pocket book, the FLIR Systems MD324 Thermal Night Vision Marine Camera 432-0010-01-00 has been created to make sure you have eyes on your property.image This Thermal Camera from Flir will detect and display tiny differences in heat, not light. So no matter how much light is available-from pitch black to moonlight to severe midday glare-thermal imagers display clear infrared imagery. The FLIR MD324 Thermal Industrial Marine Security Camera is an affordable, compact fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, The Flir Systems MD-324 Series Ship Camera outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.

FLIR Systems 432-0010-01-00: MD-324 Compact Fixed Mounted Thermal Night Vision Camera, 320x240, White
FLIR Systems 432-0010-11-00: MD-324 Compact Fixed Mount Thermal Camera with Joystick Control Unit, White

Specifications for FLIR MD324 Heat Seeking Thermal Marine Camera:

Sensor Type: 320 x 240 VOx Microbolometer
FOV: 24° x 18° (NTSC)
Focal Length: 13 mm
E-zoom: 2x
Image Processing: FLIR Proprietary Digital Detail Enhancement
Size: 6" dia. x 7" ht.
Weight: ~3 lbs
Pan/Tilt Adjustment Range: Pan; ±30° per key, Tilt; +34°, -27° (Locked in at Installation)
Video Output: NTSC or PAL,
Connector Types: F-type or BNC. BNC to RCA adapter included. Kit also includes F-type on 11" pigtails on camera, 25' video cable (F-type on one end BNC on the other)
Power Requirements: PoE injector required per IEEE 802.3af (included)
PoE Injector Power Requirement: 12-24 VDC
Power Consumption: 4.8 W nominal; 12.5 W max
Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range: -40°F to +185°F (-40°C to +85°C)
Automatic Window Defrost: Automatic at startup
Sand/Dust: Mil-Std-810E
Water Ingress: IPx6 (heavy seas, powerful jets of water)
Shock: 15 g vertical, 9 g horizontal
Vibration: IEC 60945; MIL-STD-810E
Lightning Protection: Standard
Salt Mist: IEC60945
Wind: 100 knot (115.2 mph)
EMI: IEC 60945
Detect Man: (1.8 m x 0.5 m) ~1,500 ft (0.24 nm)
Detect Small Vessel: (2.3 m x 2.3 m) ~4,200 ft (0.67 nm)

Features of FLIR Heat Seeking Thermal Imager Video Security Camera - MD324:

  • Ethernet-enabled for simple integration into your current electronics
  • Compact, all weather, water proof enclosure provides for easy mounting
  • Ball up or ball down mounting options
  • User interface control through an iOS device via onboard Wi-Fi network
  • Polarity: Toggle between white hot, black hot and marine red

Package Contents:

  • FLIR Systems MD324 Thermal Night Vision Marine Camera 432-0010-01-00
  • 11" pigtails
  • 25' Analog Video cable
  • 25' Ethernet cable
  • PoE injector
  • installation hardware
  • and Operator Manual CD
