Product No Longer Available

Unfortunately Garmin Chartplotters GPSMAP 4010 w/Ext GPS sensor, worldwide satellite imagery, g2 Vision compatible 010-00690-00 is no longer carried by OpticsPlanet. You can also explore other items in the Fishfinders, Fishing Gear categories yourself to try and find the perfect replacement for you!

The Garmin GPS Fishfinderhas been discontinued and no longer available. Please visit our Fishfinders page to check out Garmin and other brands GPS devices.

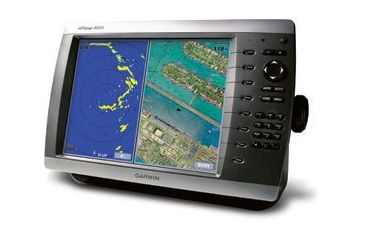

Garmin Chartplotters GPSMAP 4010 w/Ext GPS sensor, worldwide satellite imagery, g2 Vision compatible 010-00690-00 Product Info

The Garmin GPSMAP 4010 010-00690-00 sold by us is an 100% Genuine Garmin Fishfinders product that comes with a Garmin manufacturer's warranty. Garmin GPSMAP 4010 010-00690-00 will fulfill all of your specific needs asimage Garmin products are trusted and considered to be the best GPS navigation systems all around the world. Buying a Garmin GPSMAP 4010 010-00690-00 from us means getting the best price and purchasing from a trusted source - we're an Authorized Garmin Dealer for all Garmin handheld, marine, and auto GPS receivers as well as running and cycling GPS watches, fishfinders, radios, and hundreds of Garmin GPS Accessories, software and maps.

This mid-sized 4000 series chartplotter fills the gap between the smaller GPSMAP 4008 and the wider GPSMAP 4012. Like its counterparts, the 4010 serves as your all-in-one “nerve center” for the Garmin Marine Network. This chartplotter has crisp, video-quality resolution on a 10.4” diagonal SVGA display as well as a worldwide, satellite-enhanced basemap. By connecting to the Garmin Marine Network, you can add sonar, radar and weather. For even more enhanced features, you can add the optional BlueChart g2 Vision card.

View Detailed Graphics and Video

The 4010 features a worldwide basemap with high-quality satellite images in place of more traditional maps. And for more detail, you can add maps easily with the SD card slot without having to connect to a computer. The 4010’s high-speed processor draws maps quickly, and its simple, intuitive interface makes navigating easy. To keep tabs on your engine room or other areas of your boat, you can also connect a live video feed with the 4010’s video input option.

Add Extras with BlueChart g2 Vision

With optional BlueChart g2 Vision SD cards, you can add a whole new dimension of exceptional features to your chartplotter.

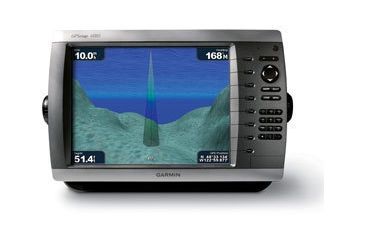

  • Choose to view 3D map information at "mariner's eye view" above the waterline or "fish-eye view" below the water.
  • High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
  • Auto Guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions.

Connect to the Garmin Marine Network

The 4010 connects easily to the high-speed Garmin Marine Network, so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the 4010 and other chartplotters on your boat. You can also add high-powered radar, sonar and XM satellite weather and radio to your system.

Specifications for Garmin Chartplotters GPSMAP 4010 w/Ext GPS sensor, worldwide satellite imagery, g2 Vision compatible 010-00690-00:

  Physical & Performance
Unit dimensions, WxHxD:  13.4" x 8.9" x 4.2" (34 x 22.6 x 10.7 cm)
Display size, WxH:  8.3" x 6.3", 10.4" diagonal (21 x 16 cm, 26.4 cm diagonal)
Display resolution, WxH:  800 x 600 pixels
Display type:  SVGA display
Weight:  7.8 lb (3.5 kg)
Battery:  none
Battery life:  none
Waterproof:  yes (IPX7)
Antenna:  external
NMEA input/output:  NMEA 0183, NMEA 2000
  Maps & Memory
Basemap:  yes
Preloaded maps:  no
Ability to add maps:  yes
Built-in memory:  none (cannot load maps to internal memory)
Accepts data cards:  SD card slot (BlueChart g2 Vision cards sold separately)
Waypoints/favorites/locations:  1,500
Routes:  20
Track log:  10,000 points; 20 saved tracks
  Features
Garmin radar compatible:  yes
Garmin sonar compatible:  yes
CANet compatible:  no
Garmin Marine Network compatible:  yes
Touchscreen:  no
Supports AIS (tracks target ships' position):  yes
Supports DSC (displays position data from DSC capable VHF radio):  yes
Audible alarms:  yes
Tide tables:  yes
Hunt/fish calendar:  no
Sun and moon information:  yes
3-D map view:  yes (with optional BlueChart g2 Vision card)
Auto Guidance:  yes (with optional BlueChart g2 Vision card)
Automatic routing (turn by turn routing on roads):  no
XM WX Weather & Radio for U.S. compatible:  yes
Voice prompts (e.g. "Turn right in 500 ft."):  no
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."):  no
Remote control:  yes (optional)
Headphone jack/audio line-out:  no
Audio/video input/output:  yes
Portable:  no
Automotive/motorcycle-friendly:  no
Additional:  Interface Inputs/Outputs 3 built-in network ports, 4 NMEA input (supports NMEA 2000), 2 NMEA output, 2 video inputs for onboard cameras, 1 SVGA PC monitor

Garmin Chartplotters GPSMAP 4010 w/Ext GPS sensor, worldwide satellite imagery, g2 Vision compatible 010-00690-00 Package Contents:

  • GPSMAP 4010
  • GPS 17x NMEA 2000
  • Bail mount and knobs
  • Protective front cover
  • Top and bottom snap covers
  • Video cable assembly
  • Power cable assembly
  • NMEA 0183 cable
  • NMEA 2000 drop cable
  • NMEA 2000 10 m backbone cable
  • NMEA 2000 power cable
  • NMEA 2000 T-connector & terminator kit
  • Flush mount hardware
  • Flush mount gasket
  • Marine grommet kit
  • Owner’s manual on disk
  • Quick reference guide
  • Installation instructions
