Product Discontinued by Manufacturer

Garmin Chartplotters GPSMAP 620 010-00696-00 has been discontinued by Garmin and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Fishfinders, Fishing Gear categories yourself to try and find the perfect replacement for you!

Garmin Chartplotters GPSMAP 620 010-00696-00 Product Info

The Garmin GPSMAP 620 010-00696-00 sold by us is an 100% Genuine Garmin Fishfinders product that comes with a Garmin manufacturer's warranty. Garmin GPSMAP 620 010-00696-00 will fulfill all of your specific needs asimage Garmin products are trusted and considered to be the best GPS navigation systems all around the world. Buying a Garmin GPSMAP 620 010-00696-00 from us means getting the best price and purchasing from a trusted source - we're an Authorized Garmin Dealer for all Garmin handheld, marine, and auto GPS receivers as well as running and cycling GPS watches, fishfinders, radios, and hundreds of Garmin GPS Accessories, software and maps.

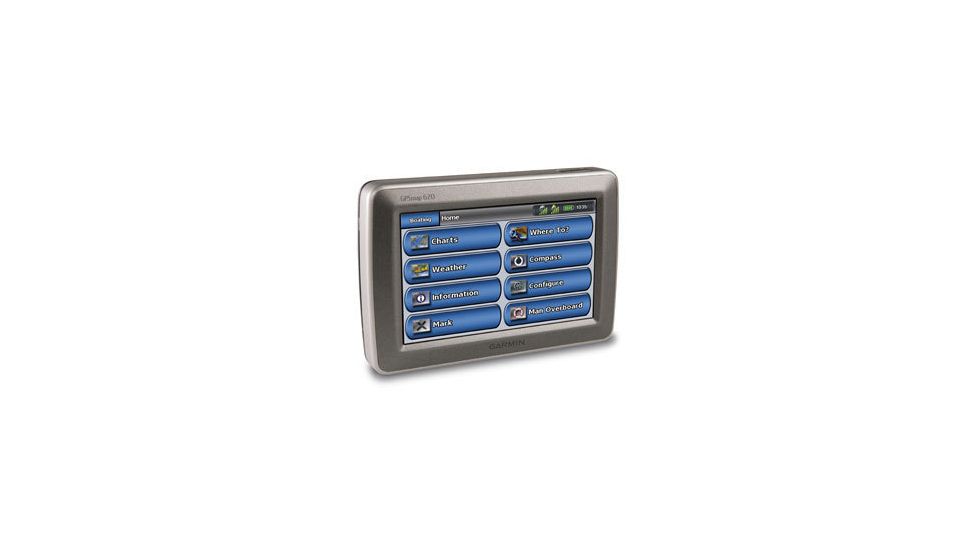

Navigate by land and by sea with the Garmin GPSMAP 620. This full-featured marine chartplotter pulls double duty with an automotive mode that’s ready to go as soon as you reach the shore when loaded with optional City Navigator NT road maps for North America. And to make sure you always know the way, the GPSMAP 620 comes standard with a high-sensitivity GPS receiver and brilliant, high-resolution touchscreen display.

Powerful and Portable

Featuring a marine and an automotive mode, a high-sensitivity GPS receiver, and a rugged case with waterproof (IPX7) design, the GPSMAP 620 is ready for your next outing. The GPSMAP 620 effortlessly shifts gears between marine and automotive modes. When supported by the marine mount, you’ll have at-a-glance access to your marine data. And when used with the optional automotive mount and City Navigator NT for North America map data, the automotive mode is automatically activated and the GPSMAP 620 becomes a robust on-the-road navigator.

Designed to Shine

With a brilliant 5.2-inch WVGA touchscreen display, and an intuitive interface, you’ll have everything you need to navigate with confidence. The GPSMAP 620 comes preloaded with a worldwide satellite basemap for ‘view-from-space’ imagery of shorelines and other surface features in the area.

By Sea

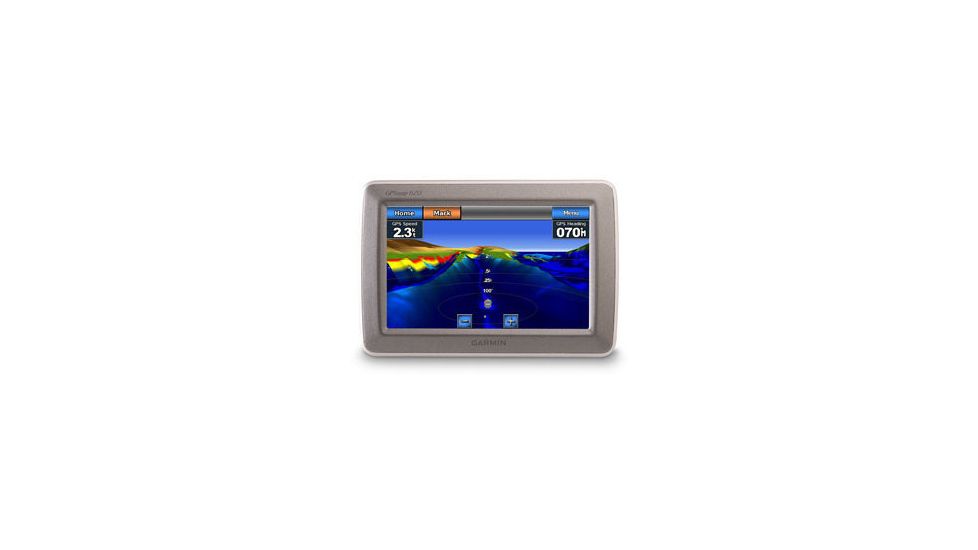

In marine mode, the GPSMAP 620 provides 3D ‘mariner’s eye view’ above the waterline, ‘fish eye view’ below the waterline, and Auto Guidance technology that searches chart data to suggest the best passage with optional BlueChart g2 Vision data. And you’ll always get the big picture with a worldwide basemap that comes standard on the GPSMAP 620. The GPSMAP 620 is also NMEA 0183 compliant, so it can be easily added to an existing marine network. And with access to fishing charts, tide and current data, marine services, coastal roads and more via optional BlueChart g2 Vision data, you’ll always be in the know while you’re on the water.

By Land

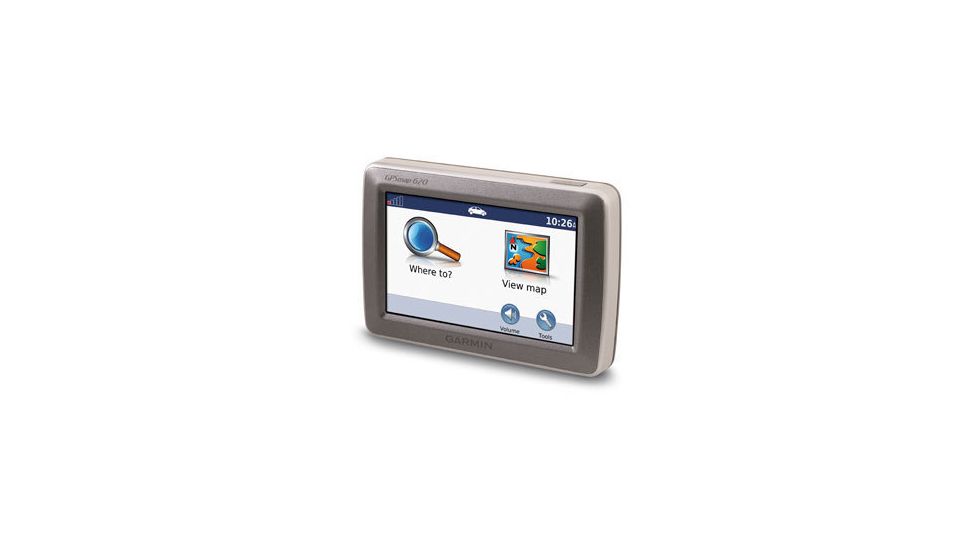

In automotive mode, the GPSMAP 620 provides turn-by-turn directions that speak street names (with required City Navigator NT for North America data). And route planning has never been easier. Whether you’re searching for boat shops or bait shops, you’ll be able to plan the quickest and most efficient route. You can also create custom points of interests (POIs) and set up proximity alerts to let you know what’s in your path as you travel down the road.

Specifications for Garmin Chartplotters GPSMAP 620 010-00696-00:

  Physical & Performance
Unit dimensions, WxHxD:  5.9"W x 4"H x 1.9"D (15.0 x 10.2 x 4.8 cm)
Display size, WxH:  4.5"W x 2.7"H (11.4 x 6.9 cm); 5.2" diag (13.2 cm)
Display resolution, WxH:  800 x 480 pixels
Display type:  WVGA
Weight:  17.3 ounces (490.4 g)
Battery:  rechargeable lithium-ion
Battery life:  up to 9 hours
Waterproof:  yes (IPX7)
Antenna:  internal
NMEA input/output:  NMEA 0183
RoHS version available:  yes
  Maps & Memory
Basemap:  yes
Preloaded maps:  no
Ability to add maps:  yes
Built-in memory:  internal solid state
Accepts data cards:  SD card slot
Waypoints/favorites/locations:  1500 (marine mode); 1000 (automotive mode)
Routes:  50 (marine mode); 10 (automotive mode)
Track log:  10,000 points, 20 saved tracks (marine mode); 10,000 points, no saved tracks (automotive mode)
  Features
Garmin radar compatible:  no
Garmin sonar compatible:  no
CANet compatible:  no
Garmin Marine Network compatible:  no
Touchscreen:  yes
Supports AIS (tracks target ships' position):  yes
Supports DSC (displays position data from DSC capable VHF radio):  yes
Audible alarms:  yes
Tide tables:  yes
Hunt/fish calendar:  no
Sun and moon information:  yes
3-D map view:  yes (with optional BlueChart g2 Vision card)
Auto Guidance:  yes (with optional BlueChart g2 Vision card)
Automatic routing (turn by turn routing on roads):  yes (with optional mapping for detailed roads)
XM WX Weather & Radio for U.S. compatible:  no
Voice prompts (e.g. "Turn right in 500 ft."):  yes (with optional mapping for detailed roads and auto mount)
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."):  yes (with optional mapping for detailed roads)
Remote control:  no
Headphone jack/audio line-out:  yes
Audio/video input/output:  no
Portable:  yes
Automotive/motorcycle-friendly:  yes

Garmin Chartplotters GPSMAP 620 010-00696-00 Package Contents:

  • GPSMAP 620
  • Preloaded worldwide satellite basemap
  • Marine mount with integrated vehicle power cable
  • Lithium-ion battery pack
  • AC charger
  • USB cable
  • Protective cover
  • Owner's manual
  • Quick reference guide
  • Installation guide

Garmin Chartplotters GPSMAP 620 010-00696-00 Related Products

Garmin Chartplotters GPSMAP 620 010-00696-00 Unorderable Models

Garmin Chartplotters GPSMAP 620 010-00696-00, MPN: 010-00696-00, UPC: 753759083540, Code: GA-FH-010-00696-00
