Product Discontinued by Manufacturer

Garmin Chartplotters GPSMAP 720/720s Fishfinder has been discontinued by Garmin and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Fishfinders, Fishing Gear categories yourself to try and find the perfect replacement for you!

Garmin Chartplotters GPSMAP 720/720s Fishfinder Product Info

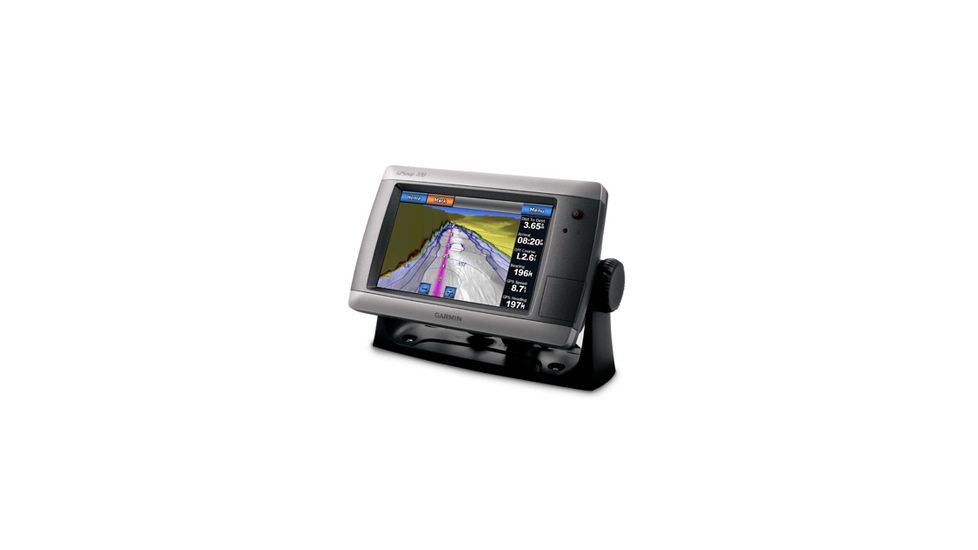

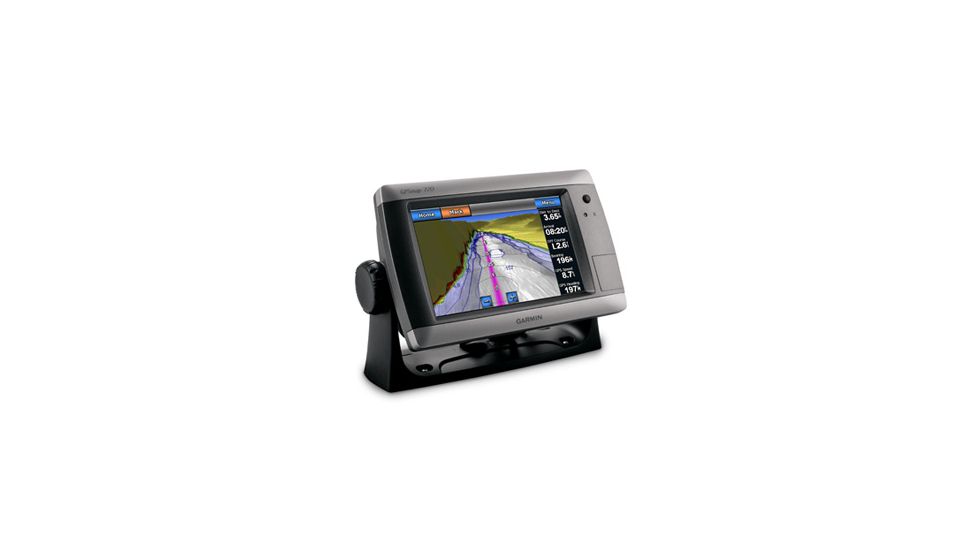

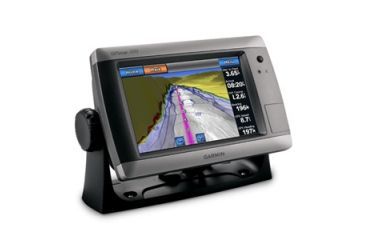

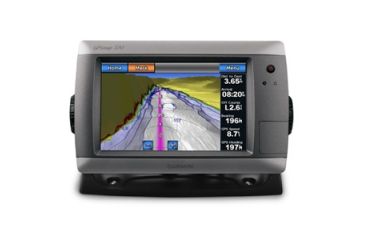

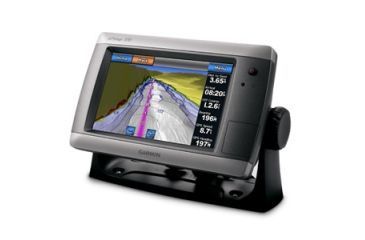

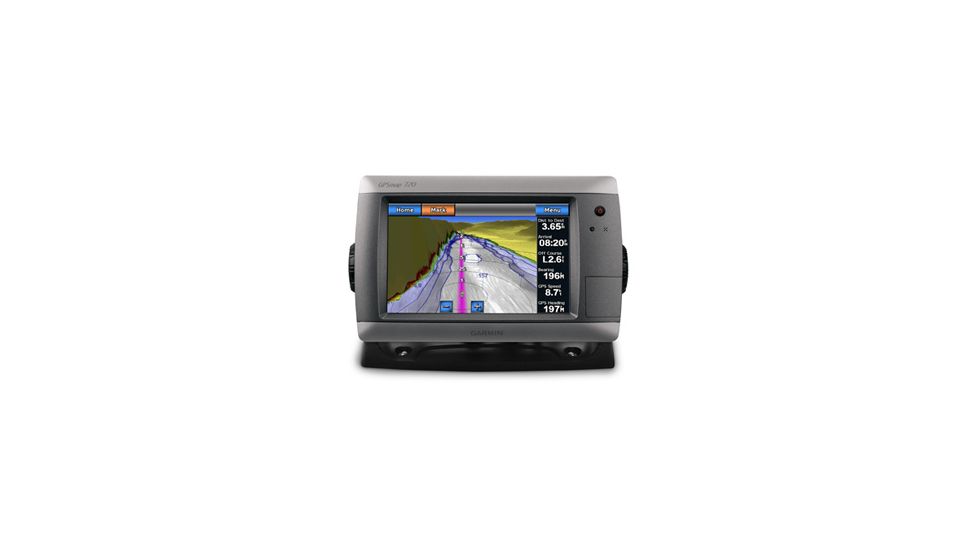

Garmin GPSMAP 720 Fishfinder is a stand-alone touchscreen chartplotter that brings a new level of functionality to your vessel. Featuring a brilliant 7" (17.78 cm) display, GPSMAP 720 Navigation by Garmin puts all the information you need right at your fingertips. This Garmin Fishfinder is preloaded with a worldwide basemap and accepts additional map data for greater flexibility. In addition, Fishfinders by Garmin accept radar input and offer full NMEA 4000 connectivity for greater convenience when adding extra sensors.

Garmin GPSMAP 720 comes with a worldwide basemap and features an internal, high-sensitivity GPS receiver for superior satellite tracking and quicker acquisition times. And as an added benefit, Garmin GPSMAP 720 can receive graphical weather data for North America through the optional GXM 51 satellite receiver/antenna.

Input is easy with GPSMAP 720 by Garmin. Whether you're changing course or simply reviewing information in front of you, the intuitive touchscreen interface makes for simple operation. The device also offers flexible brightness levels for daytime readability along with low-light dimming during night use. And with a widescreen display that's rugged and waterproof, it's made to perform in any situation.

Featuring a built-in radar port, Garmin GPSMAP 720 can be interfaced with Garmin's line of affordable GMR marine radar systems. Whether you're adding radar now or in the future, you'll enjoy the convenience of plug-and-play installation as well as the power, range and high-definition targeting of our proven radar offerings. Add Sonar with Garmin Chartplotter GPSMAP 720s. GPSMAP 720s Navigation by Garmin comes standard with a 1kW capable sonar transceiver. This powerful sonar can help you define fish targets and underwater structures as far down as 4,000 ft (609.6 m) when used with a 1kW transducer. With the optional BlueChart g4 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter.

Available models of Garmin Chartplotter GPSMAP 720/720s:

  • 010-00835-01: Garmin Chartplotter GPSMAP 720s with Sonar

Specifications for Garmin Chartplotters GPSMAP 720 (s) Fishfinders:

Physical & Performance
Unit dimensions, WxHxD: 8.8" x 5.6" x 3.1" (44.4 x 14.4 x 7.9 cm)
Display size, WxH: 6.0" x 3.6", 7.0" diagonal (15.4 x 9.1 cm, 17.8 cm diagonal)
Display resolution, WxH: 800 x 480 pixels
Display type: WVGA display
Weight: 4.48 lb (1.1 kg)
Battery: none
Battery life: none
Waterproof: yes (IPX7)
High-sensitivity receiver: yes
Antenna: internal
NMEA input/output: NMEA 0183 compatible and NMEA 4000® certified
Maps & Memory
Basemap: yes
Preloaded maps: no
Ability to add maps: yes
Built-in memory: none (cannot load maps to internal memory)
Accepts data cards: SD™ card slot
Waypoints/favorites/locations: 3,000
Routes: 100
Track log: 40,000 points; 50 saved tracks
Garmin radar compatible: yes
Garmin sonar compatible: yes (included with sounder version)
Garmin Marine Network™ compatible: no
Touchscreen: yes
Supports AIS (tracks target ships' position): yes
Supports DSC (displays position data from DSC capable VHF radio): yes
Audible alarms: yes
Tide tables: yes
Hunt/fish calendar: no
Sun and moon information: yes
3-D map view: yes (with optional BlueChart g4 Vision card)
Auto Guidance: yes (with optional BlueChart g4 Vision card)
XM WX Weather & Radio for U.S. & Canada compatible: yes
Automatic routing (turn by turn routing on roads): no
Voice prompts (e.g. "Turn right in 500 ft."): no
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."): no
Headphone jack/audio line-out: no
Audio/video input/output: no
Portable: no
Automotive/motorcycle-friendly: no

Features of Garmin Chartplotters GPSMAP 720:

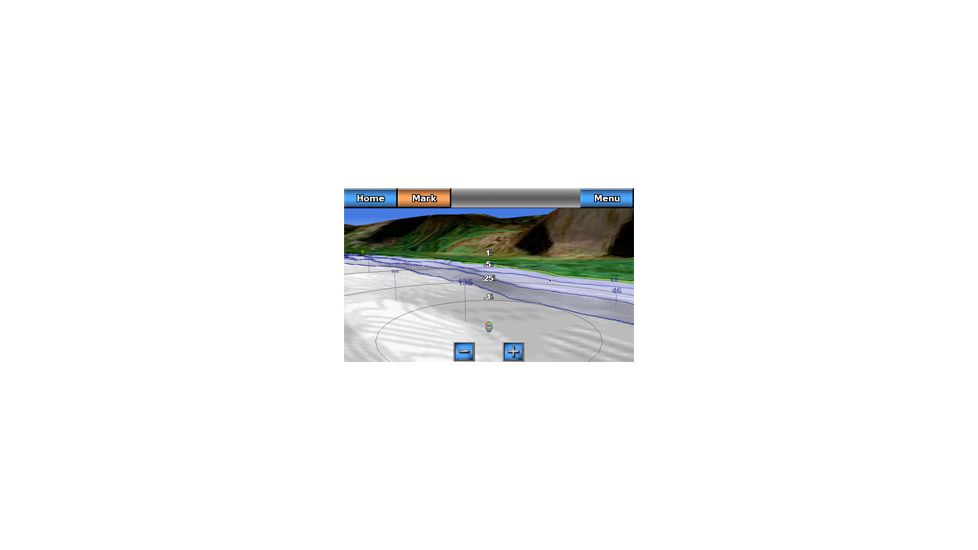

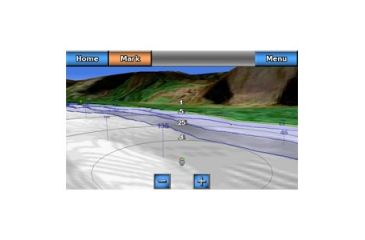

  • MarinerEye view and FishEye view provide a 3-D perspective of map information, both above and below the waterline.

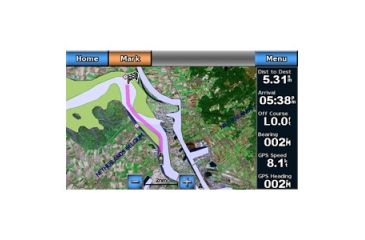

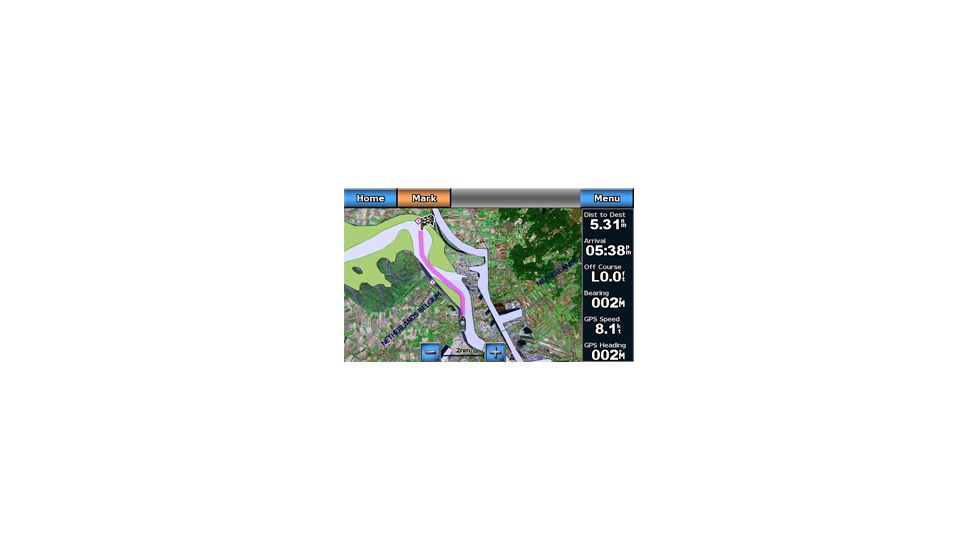

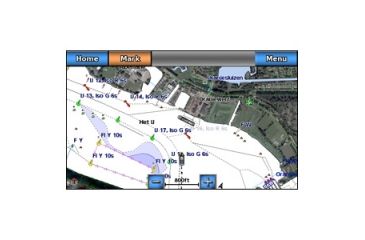

  • High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
  • Auto Guidance technology searches through all relevant charts to create a route you can actually follow - one that avoids obstacles, shallow water, buoys and other obstructions.

Package Contents:

  • Garmin GPSMAP 720/720s Fishfinder
  • Top and bottom snap covers
  • Bail mount with built-in cable management
  • Knobs
  • Flush mount gasket and hardware
  • Threaded power/data cable (720)
  • Threaded power/data/sonar cable (720s)
  • Protective cover
  • Documentation

Garmin Chartplotters GPSMAP 720/720s Fishfinder Related Products

Garmin Chartplotters GPSMAP 720/720s Fishfinder Unorderable Models

Garmin Chartplotters GPSMAP 720 Fishfinder 010-00835-00, MPN: 010-00835-00, Code: GA-FH-720-010-00835-00
Garmin Chartplotters GPSMAP 720s Fishfinder 010-00835-01, MPN: 010-00835-01, UPC: 753759099893, Code: GA-FH-720-010-00835-01
