Product Discontinued by Manufacturer

Garmin echo 150 Fishfinder has been discontinued by Garmin and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Fishfinders, Fishing Gear categories yourself to try and find the perfect replacement for you!

Garmin echo 150 Fishfinder Product Info

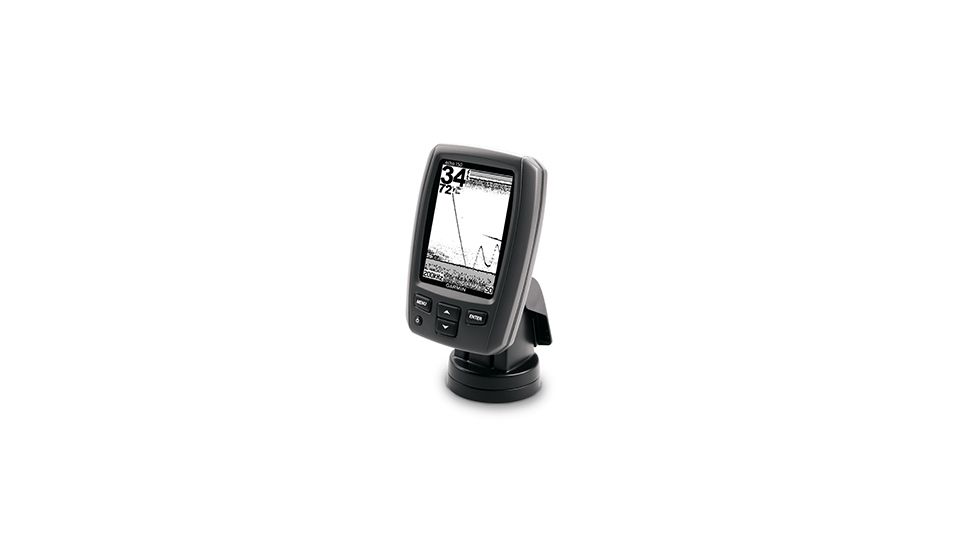

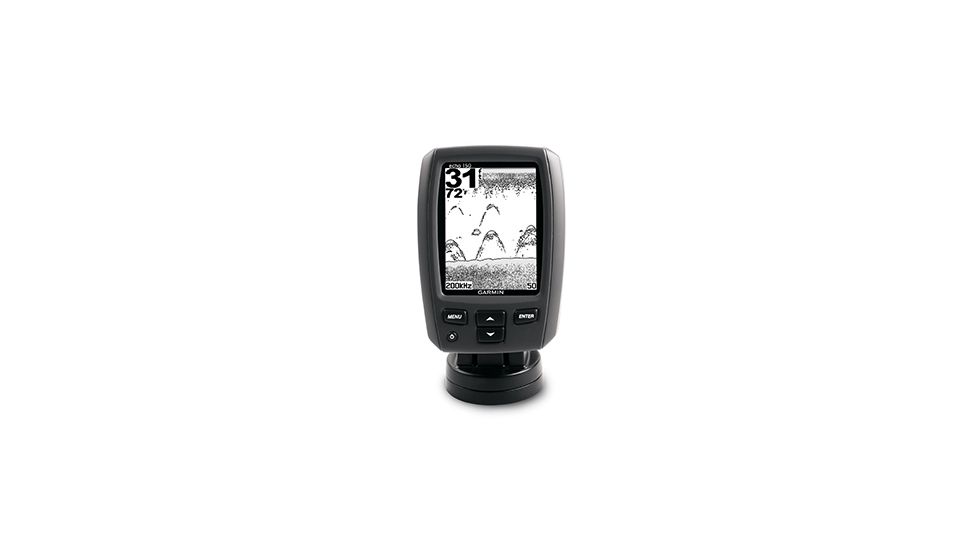

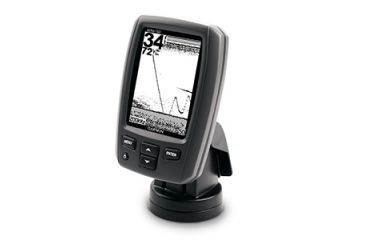

Garmin echo 150 Fishfinder 010-00951-00 is the sport fisherman's dream! Garmin has managed to package dual-beam technology at a single-beam price. This Garmin Fishfinder is poweredimage with 200 watts (RMS) of sonar power, giving you the capability of accurately scanning depths of 1,300 feet in freshwater lakes. In a more shallow area, a viewing angle of up to 120° will allow you to see fish well beyond the sides of your boat. This fish finder was designed with a Garmin exclusive HD-ID target tracking technology, which provides better separation and definition of images on a crisp 4-in grayscale display. The included quick release mount and versatile transom-mount transducer make installation simple and easy. The compact design of the Garmin echo150 Fishfinder will keep it out of your way all day long, even on smaller craft.

Specifications for Garmin echo 150 Fish Finder 010-00951-00:

Physical & Performance
Unit dimensions, WxHxD: 4.1" x 5.8" x 2.8" (10.4 x 14.7 x 7.1 cm)
Display size, WxH: 2.38" x 3.21" (6.04 x 8.15 cm); 4" diag, (10.16 cm)
Display resolution, WxH: 160 x 256 pixels
Display type: 8-level grayscale FSTN
Weight: 9.5 oz (270 g)
Waterproof: yes (IPX7)
Features
Audible alarms: yes
Dual-frequency sonar capable: no
Dual-beam sonar capable: yes
Split-screen zoom: no
Ultrascroll (displays fish targets at higher boat speeds): yes
Fish Symbol ID (helps identify fish targets): yes
AutoGain Technology (minimizes clutter, maximizes targets): yes
Whiteline (indicates hard or soft bottom): yes (always on)
Adjustable depth line (measures depth of underwater objects): no
A-scope (real time display of fish passing through transducer beam): no
Bottom lock (shows return from the bottom up): no
Water temperature log and graph: no
Water temperature sensor included: yes
Water speed capable (displays speed on water): no
Other
Frequency: 200/77 kHz
Transmit power: 200W (RMS)/1,600W (peak to peak)
Voltage range: 10V - 20V input
Maximum depth: 1,300 ft freshwater*
Cone angle: 60° or 120° (dual beam)

Features of Garmin echo 150 Fishfinder 0100095100:

  • Garmin HD-ID technology
  • 200 watts (RMS) transmit power
  • Depths to 1,300 ft*
  • Beam width to 120 degrees
  • 4 in, 8-level FSTN grayscale display
  • Includes tilt/swivel mount, transducer, trolling motor clamp and transom mount
  • *Depth capacity is dependent on water bottom type and other water conditions

Package Contents:

  • Garmin echo 150 Fishfinder 010-00951-00
  • Quick release mount with tilt and swivel
  • Power cable
  • Transducer w/ mounting bracket, hardware and trolling motor clamp
  • Documentation

Garmin echo 150 Fishfinder Unorderable Models

Garmin echo 150 Fishfinder 010-00951-00, MPN: ECHO 150, UPC: 753759969929, Code: GA-FH-010-00951-00
