Garmin EchoMAP Chartplotter/Fishfinder has been discontinued by Garmin and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Fishfinders, Fishing Gear categories yourself to try and find the perfect replacement for you!

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Garmin EchoMAP Chartplotter/Fishfinder Product Info

The Garmin EchoMAP 70s Chartplotter/Fishfinder w/ 7" Touchscreen Display is an amazing chartplotter and fishfinder combination, featuring a 7" WVGA touchscreen display with pinch-to-zoom, and it comes with a worldwide basemap or Garmin U.S. lakes or offshore cartography. The crystal-clear display provides clear target separation, allows visibility both day and night, and has a user interface that anyone can navigate. Plus, it has multi-touch functions and auto-dimming to enhance your screen views. With the integration of a 10Hz GPS/GLONASS receiver, the Garmin EchoMAP 70s Fishfinder refreshes position and heading up to 10 times per second. The Garmin EchoMAP Transducer & Wireless Connectivity Chartplotter displays constant and fluid on-screen location and proves to be incredibly accurate when marking waypoints and navigating.

In addition to the integrated receiver, the Garmin EchoMAP Chartplotter & Fishfinder Combo also allows for sonar recording. This feature coordinates the timing of the sonar return in relation to the boat's position - so every one of the available 5,000 waypoints will be accurate and precise. The Garmin EchoMAP 70s Chartplotter/Fishfinder is an absolute must when locating and pinpointing the next hot fishing spot. Included with echoMAP 70s is a dual-beam transducer that transmits a 77/200 kHz signal. It also has wireless connectivity capability, giving you the opportunity to connect and access marine-specific apps via smartphone or tablet.

Specifications for Garmin EchoMAP Fishfinder:

Unit dimensions, WxHxD: 9.0" x 5.6" x 2.4" (22.9 x 14.2 x 6.1 cm)
Display size, WxH: 6.0" x 3.6", 7.0" diagonal (15.2 x 9.1 cm, 17.8 cm diagonal)
Display resolution, WxH: 800 x 480 pixels
Display type: multi-touch touchscreen WVGA display
Weight: 2.0 lb (0.9 kg)
Waterproof: Yes (IPX7)
Basemap: Yes
Ability to add maps: Yes
Accepts data cards: dual microSD card slots
Waypoints/favorites/locations: 5,000
Routes: 100
Frequency: 200 / 77kHz
Transmit power: 500W (RMS) / 4,000W (peak to peak)
Voltage range: 10V-32V input
Maximum depth: 1,900 ft fresh water/ 700 ft salt water (depth capacity is dependent on water bottom type and other water conditions)
Wireless connectivity: yes
HD-ID tracking technology: yes
Sonar recording: yes

Features of Garmin EchoMAP Chartplotter/Fishfinder w/ 7" Touchscreen Display:

  • CANet compatible: No
  • Supports AIS (tracks target ships' position): Yes
  • Supports DSC (displays position data from DSC capable VHF radio): Yes
  • Audible alarms: Yes
  • Tide tables: Yes
  • Sun and moon information: Yes
  • 3-D map view: No
  • Dual-frequency sonar capable: Yes
  • Dual-beam sonar capable: Yes
  • Split-screen zoom: Yes
  • Split-screen sonar/gps: Yes
  • Ultrascroll (displays fish targets at higher boat speeds): Yes
  • See-thru technology (exposes fish hidden in cover): Yes
  • Fish Symbol ID (helps identify fish targets): Yes
  • AutoGain Technology (minimizes clutter, maximizes targets): Yes
  • Whiteline (indicates hard or soft bottom): No
  • Adjustable depth line (measures depth of underwater objects): Yes
  • A-scope (real time display of fish passing through transducer beam): Yes
  • Bottom lock (shows return from the bottom up): Yes
  • Water temperature log and graph: Yes
  • Water temperature sensor included: Yes

Package Contents:

  • Garmin EchoMAP Chartplotter & Fishfinder Combo
    • Power/data cable or power/data/sonar cable
    • Bail mount and knobs
    • Flush mount kit
    • Protective cover
    • Bezel
    • Documentation

Garmin EchoMAP Chartplotter/Fishfinder Related Products

Garmin EchoMAP Chartplotter/Fishfinder Unorderable Models

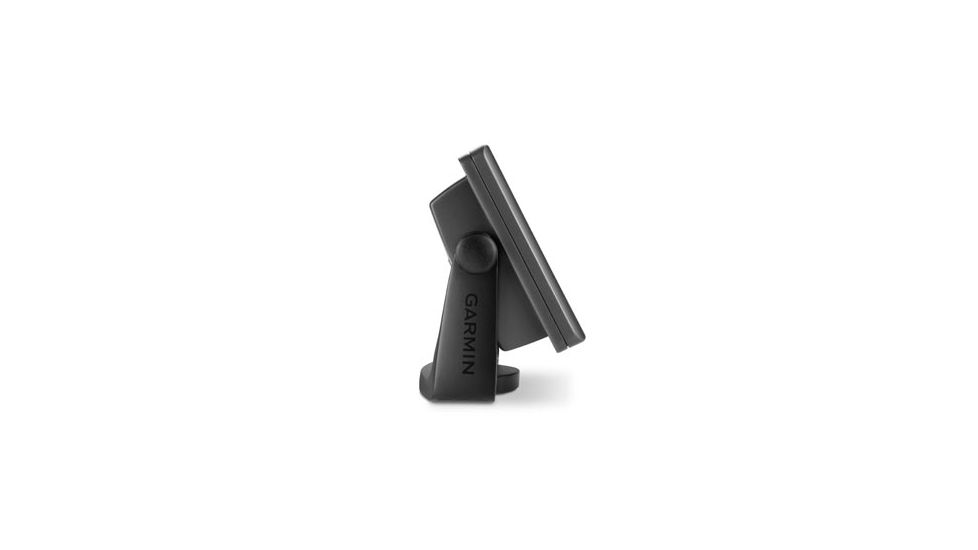

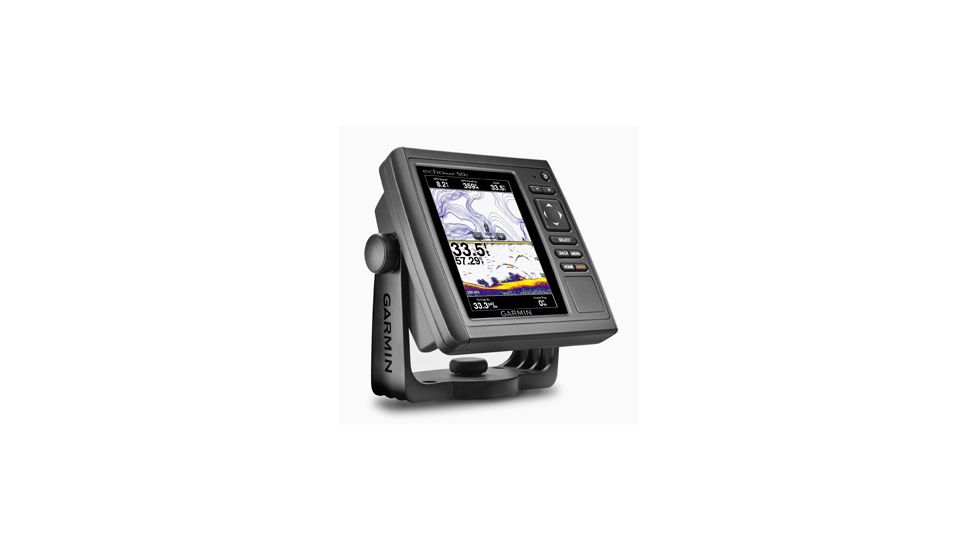

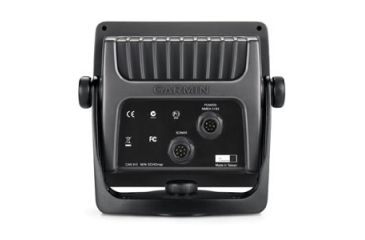

Garmin EchoMAP 50S Chartplotter/Fishfinder w/ 5in VGA Display 010-01095-00, MPN: 010-01095-00, UPC: 753759993757, Code: GA-FH-ECHOMAP-010-01095-00

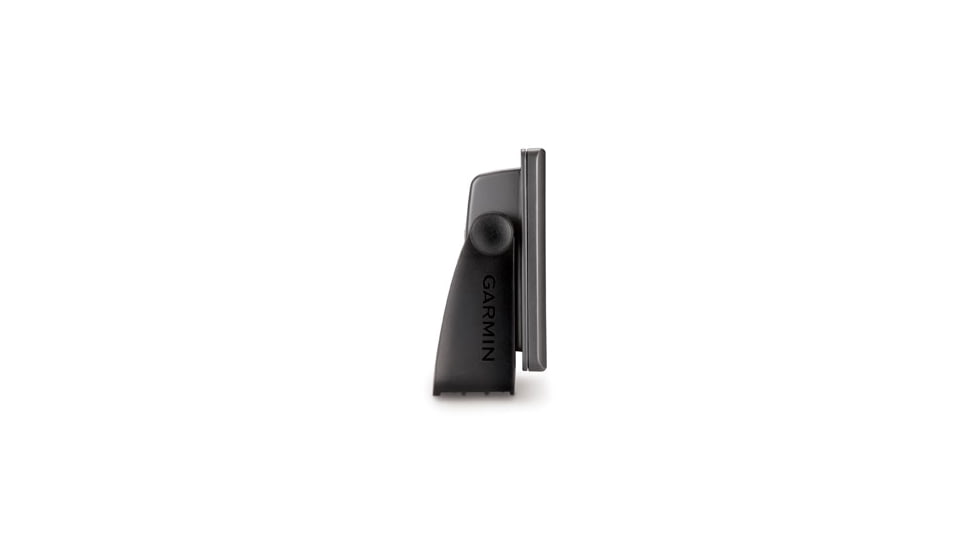

Garmin EchoMAP 70S Chartplotter/Fishfinder w/ 7in WVGA Touchscreen Display 010-01104-00, MPN: 010-01104-00, UPC: 753759993917, Code: GA-FH-ECHOMAP-010-01104-00
