Product No Longer Available

Unfortunately Garmin GMR 406 Marine Radar, 6ft Open Array (Network Device) GPS Digital Navigation GA-ND-010-00484-01 is no longer carried by OpticsPlanet. You can also explore other items in the GPS category yourself to try and find the perfect replacement for you!

This model of Garmin GPS is discontinued and no longer available. Please, choose from our wide selection of Brunton GPS , Bushnell GPS , Brunton GPS and other GPS on our site.

Garmin GMR 406 Marine Radar, 6ft Open Array (Network Device) GPS Digital Navigation GA-ND-010-00484-01 Product Info

The Garmin GMR 406 Marine Radar, 6ft Open Array (Network Device) 010-00484-01 sold by us is an 100% Genuine Garmin Digital Navigation product thatimage comes with a Garmin manufacturer's warranty. Garmin GMR 406 Marine Radar, 6ft Open Array (Network Device) 010-00484-01 will fulfill all of your specific needs as Garmin products are trusted and considered to be the best GPS navigation systems all around the world. Buying a Garmin GMR 406 Marine Radar, 6ft Open Array (Network Device) 010-00484-01 from us means getting the best price and purchasing from a trusted source - we're an Authorized Garmin Dealer for all Garmin handheld, marine, and auto GPS receivers as well as running and cycling GPS watches, fishfinders, radios, and hundreds of Garmin GPS Accessories, software and maps.

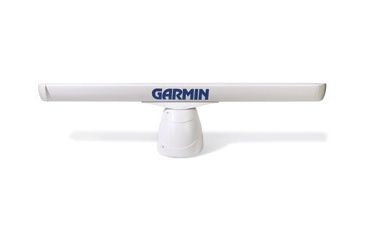

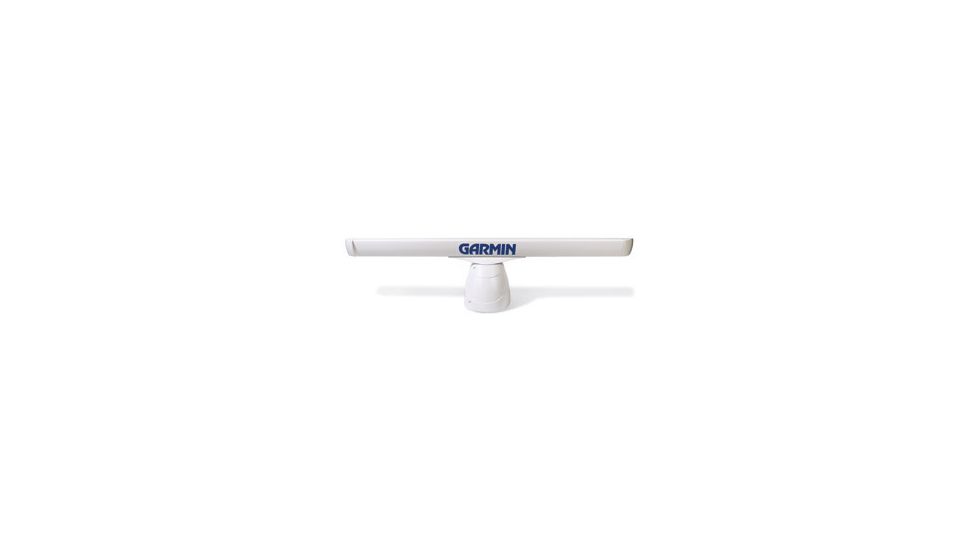

The GMR 406 open array radar allows you to scan more of what's out there while you're on the water. Whether ships, shores, birds or weather, you'll see it sooner with the powerful 6-foot GMR 406 and its smaller counterpart, the GMR 404.

See Everything in Sharper Detail

The GMR 406 is a 6-foot open array scanner with 1.1° beamwidth and a range of 72 nautical miles. With this intense beamwidth and 4 kilowatts of power, the 406 offers outstanding clarity, precision and target definition. You can also use the 406 to avoid traffic on the water with MARPA target tracking.

Easily Connect to the Garmin Marine Network

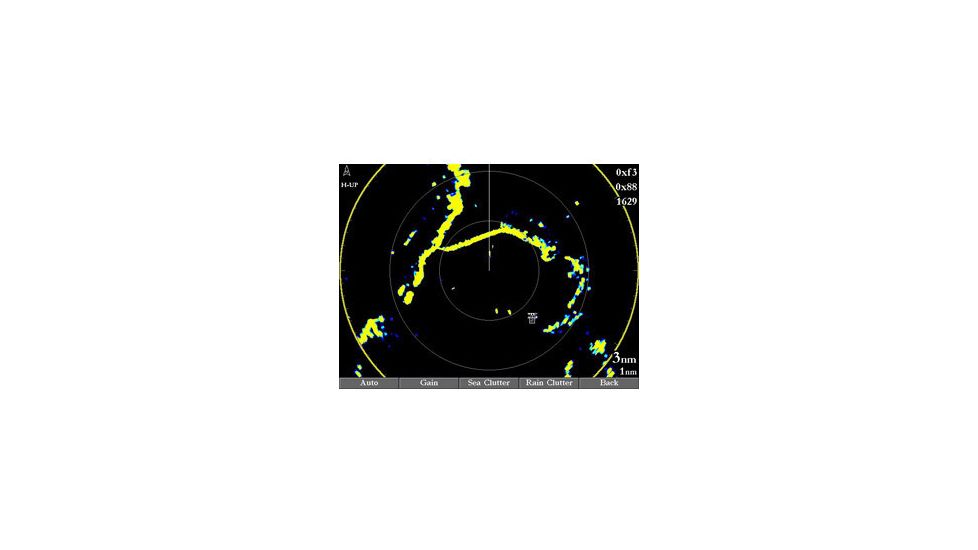

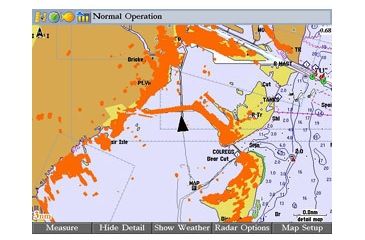

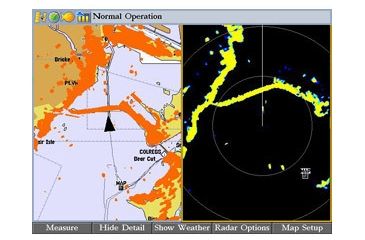

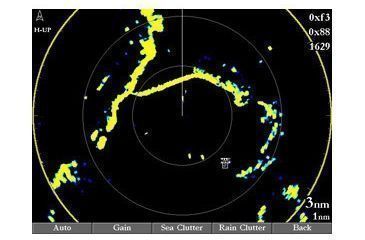

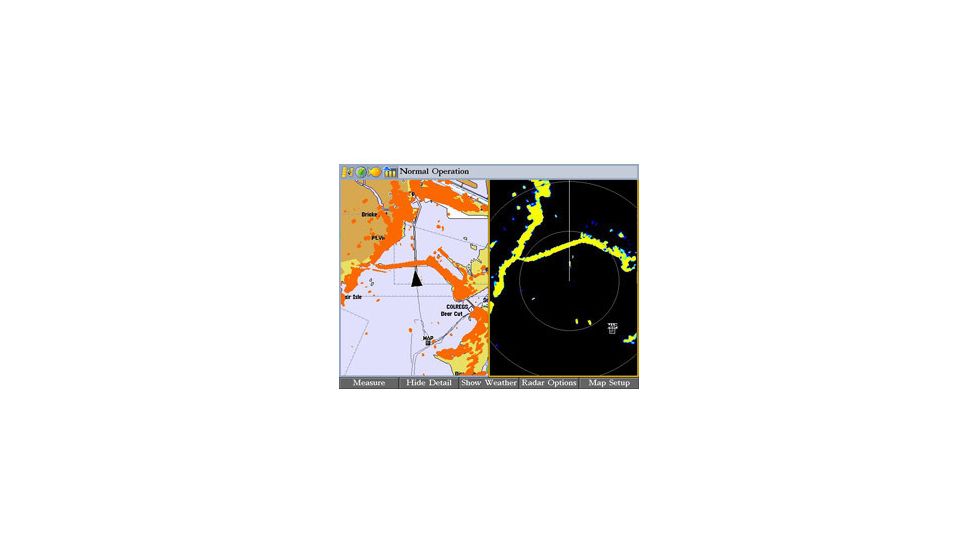

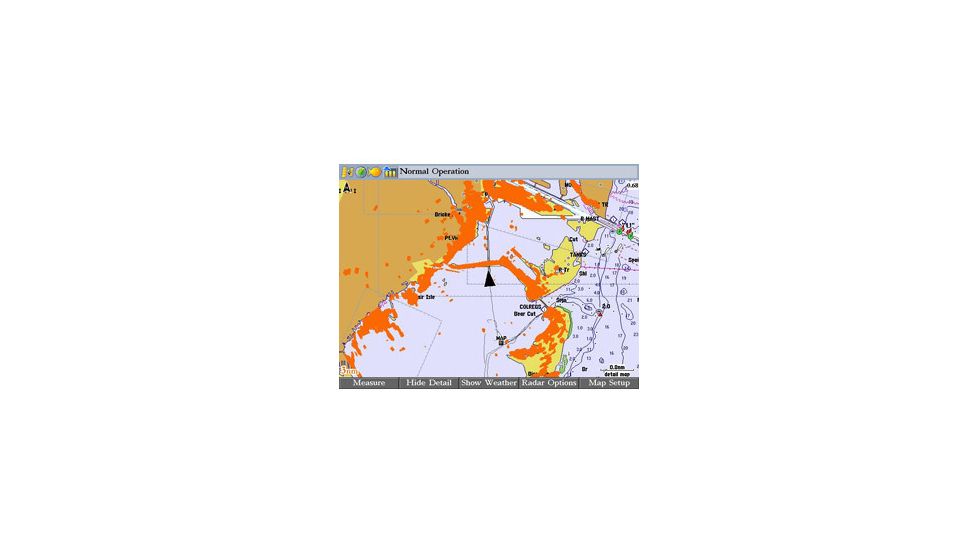

The GMR 406 transmits data over the Garmin Marine Network, a 100-megabit plug-and-play proprietary network that gives you the ability to expand your boat’s system as needed. Once connected to the network, any network-compatible Garmin chartplotter can double as your radar screen. And as an aid to locational awareness, you can overlay the GMR 406 radar image on the chartplotter's map page. You can also split the on-screen display so that you can view the map and the standard radar page simultaneously.

Note: Open array must be used in combination with pedestal which is sold separately.

Garmin GMR 406 Marine Radar, 6ft Open Array (Network Device) 010-00484-01 Digital Navigation Specifications:

Unit dimensions, WxHxD:  6' diameter (1.83 meter diameter); pedestal 24" x 11" x 16" (61 x 28 x 40.6 cm)
Weight:  antenna only 16 lb (7.3 kg)
Waterproof:  yes (IPX6)
Antenna sweep:  24 and 48 rpm
Transmit power:  4 kW
Power input:  10.5 - 38 V DC, 45 W
Beam width:  1.1° horizontal, 25° vertical
Maximum range:  72 nm
Minimum range:  20 meters
RoHS version available:  no
Garmin Marine Network™ compatible:  yes
MARPA target tracking (collision avoidance):  yes (requires heading sensor; sold separately)
Guard zone alarm:  yes

Garmin GMR 406 Marine Radar, 6ft Open Array (Network Device) 010-00484-01 Digital Navigation Package Contents:

  • GMR 406 Marine Radar, 6 ft Open Array (must be used in combination with pedestal below) Pedestal, 010-00484-02, must be purchased separately. Package includes
  • :GMR 404/406 Marine Radar Pedestal
  • Carrying strap
  • Field material kit
  • Marine network data card
  • Cable
  • Field install cable end kit
  • Owner's manual
  • Installation instructions
