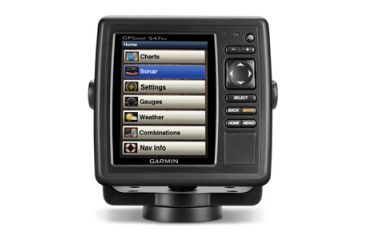

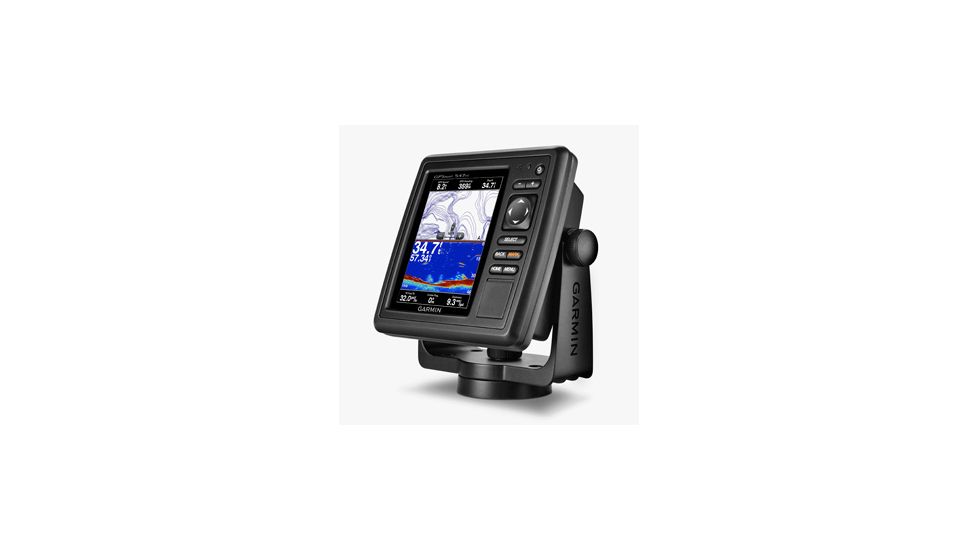

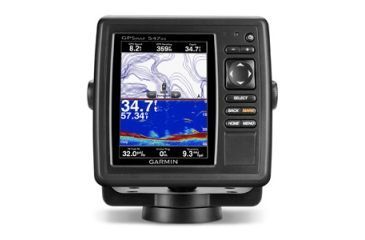

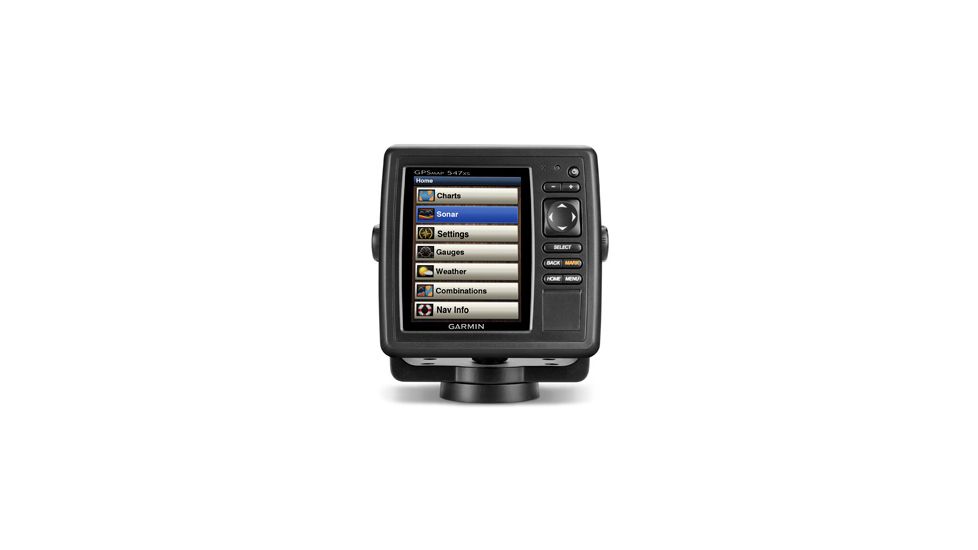

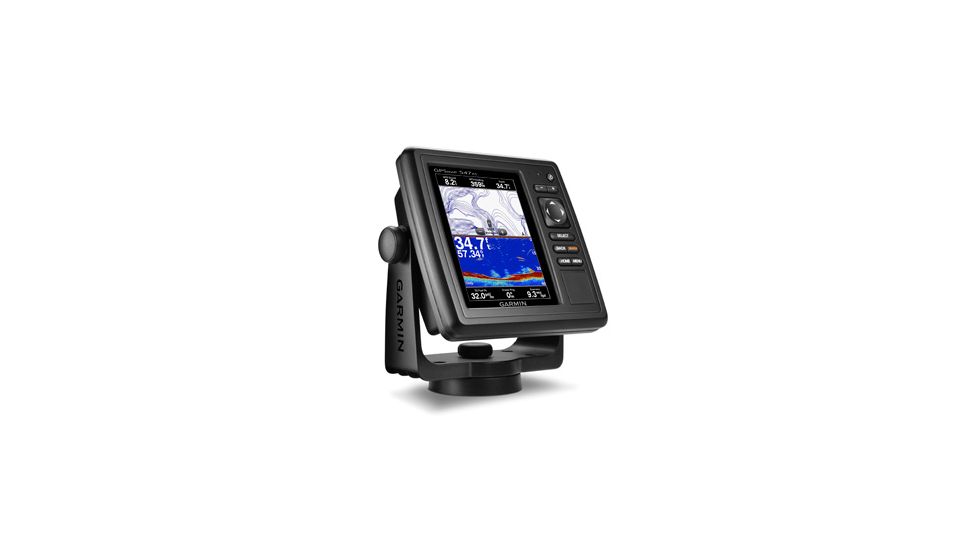

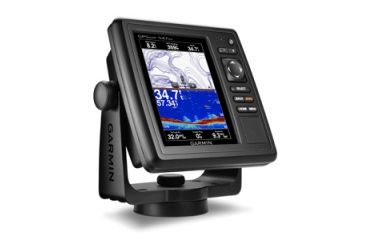

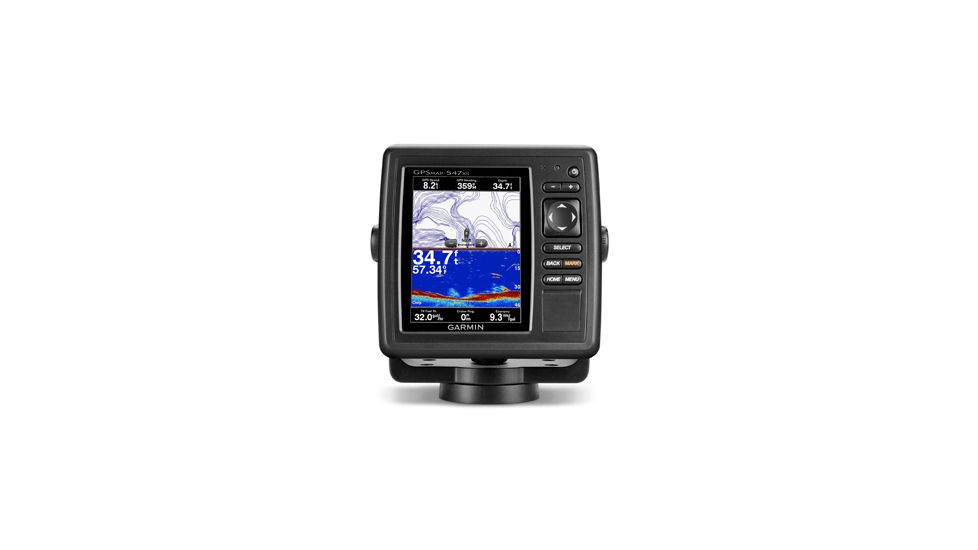

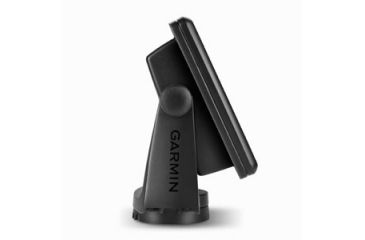

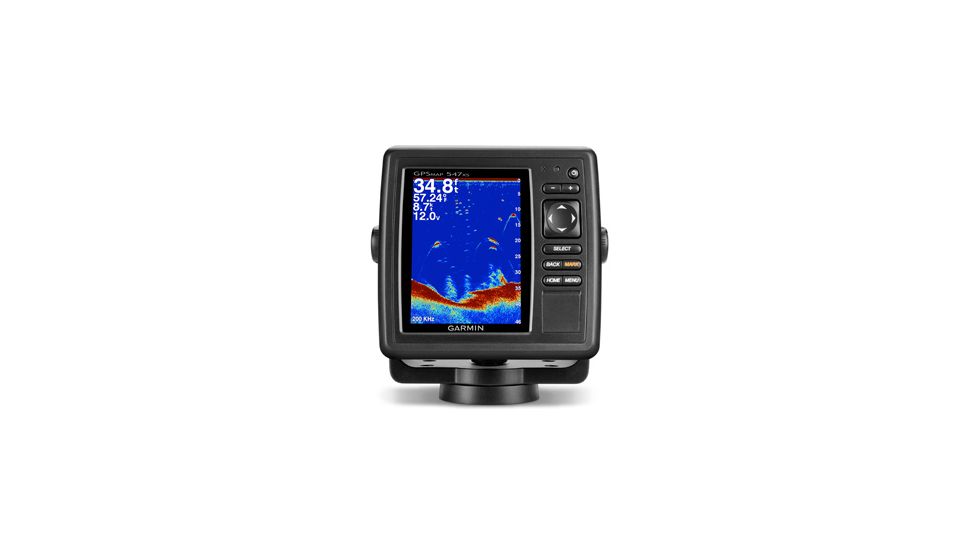

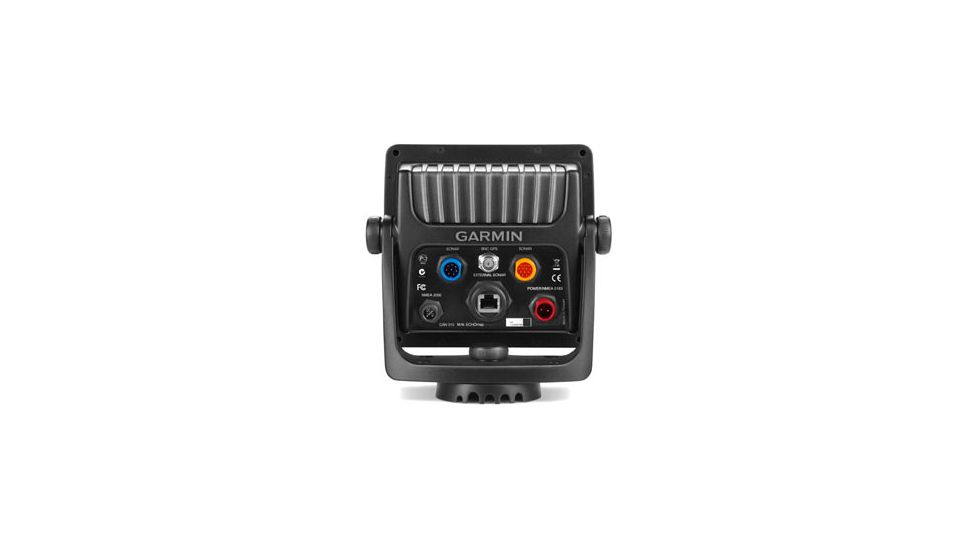

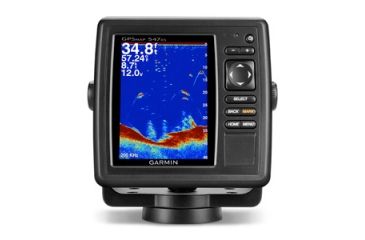

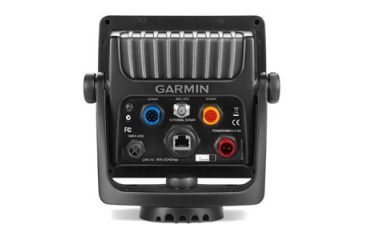

Garmin GPSMAP 547xs Chartplotter with Sounder 010-01093-01
$849.99 $937.00 Save $87.01
Code: GA-ND-010-01093-01
MPN: 010-01093-00
UPC: 753759993696

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Garmin GPSMAP 547xs Chartplotter with Sounder Product Info

The Garmin GPSMAP® 547xs will take your car travels to the next level with an easy-to-use interface and many features. This GPS by Garmin combines a chartplotter and sounder, which allows for easy visibility, day or night. Whether the Garmin GPS MAP 547xs is flat, flush, or swivel-mounted, it will be the focal point of your helm. This navigation includes Garmin's hallmark user-friendly interface, as well as U.S. coastal and inland mapping. With the integration of a 10Hz GPS/GLONASS receiver, the Garmin 547xs refreshes position and heading up to 10 times per second. It displays constant and fluid on-screen location and proves to be incredibly accurate when marking waypoints and navigating.

In addition to the integrated receiver, Garmin GPSMAP 547xs Navigation also allows for sonar recording. This feature coordinates the timing of the sonar return in relation to the boat's position - so every one of the available 5,000 waypoints will be accurate and precise. It's an absolute must when locating and pinpointing the next hot fishing spot.

When used with a compatible CHIRP transducer (sold separately), Garmin GPS-MAP 547-xs displays crystal-clear sonar images to help find the next hidden fishing spot, ship wreckage or diving location. With our Spread-Spectrum technology, you can see target separation and resolution at extraordinary depths, and dial into specific frequencies to target certain species of sport fish. Bottom contours are more visible, and signal noise can be suppressed at greater depths to provide a more timely interpretation of what's below for safer navigation and better fishing. On your next road trip, make sure you are prepared; make sure you have the Garmin G.P.S. Map 547xs.

Garmin 010-01093-01: GPSMAP 547xs Chartplotter with Sounder

Specifications for Garmin GPSMAP® 547xs:

Physical & Performance
Unit dimensions, WxHxD: 5.9" x 6.1" x 2.4" (15.0 x 15.5 x 6.1 cm)
Display size, WxH: 3.0" x 4.0", 5.0" diagonal (7.6 x 10.2 cm, 12.7 cm diagonal)
Display resolution, WxH: 480 x 640 pixels
Display type: VGA display
Weight: 1.7 lb (0.8 kg)
Maps & Memory
Waypoints/favorites/locations: 5,000
Routes: 100
Other Specifications
Frequency: 40 kHz-210 kHz
Transmit power: 1 kW (600W CHIRP)
Voltage range: 10V-32V input
Maximum depth: 2,000 ft salt water (depth capacity is dependent on water bottom type and other water conditions)

Features of Garmin GPS MAP 547xs Chartplotter:

  • 5" VGA display
  • 10Hz GPS/GLONASS receiver
  • HD-ID™ sonar
  • Wireless connectivity
  • U.S. coastal and inland mapping
  • Wireless connectivity: yes
  • HD-ID tracking technology: yes
  • Sonar recording: yes
  • Connects to a compatible Fusion media system: no
  • Bluetooth® wireless technology: yes
  • CANet® compatible: No
  • Supports AIS (tracks target ships' position): Yes
  • Supports DSC (displays position data from DSC capable VHF radio): Yes
  • Audible alarms: Yes
  • Tide tables: Yes
  • Sun and moon information: Yes
  • 3-D map view: Yes (with optional BlueChart g2 Vision card)
  • Dual-frequency sonar capable: Yes
  • Dual-beam sonar capable: Yes
  • Split-screen zoom: Yes
  • Split-screen sonar/gps: Yes
  • Ultrascroll® (displays fish targets at higher boat speeds): Yes
  • See-thru® technology (exposes fish hidden in cover): Yes
  • Fish Symbol ID (helps identify fish targets): Yes
  • AutoGain Technology (minimizes clutter, maximizes targets): Yes
  • Whiteline (indicates hard or soft bottom): Yes
  • Adjustable depth line (measures depth of underwater objects): Yes
  • A-scope (real time display of fish passing through transducer beam): Yes
  • Bottom lock (shows return from the bottom up): Yes
  • Water temperature log and graph: Yes
  • Water temperature sensor included: Yes
  • Basemap: Yes
  • Ability to add maps: Yes
  • Accepts data cards: dual microSD™ card slots
  • Waterproof: Yes (IPX7)

Package Contents:

  • Garmin GPSMAP 547xs
  • Power/data cable

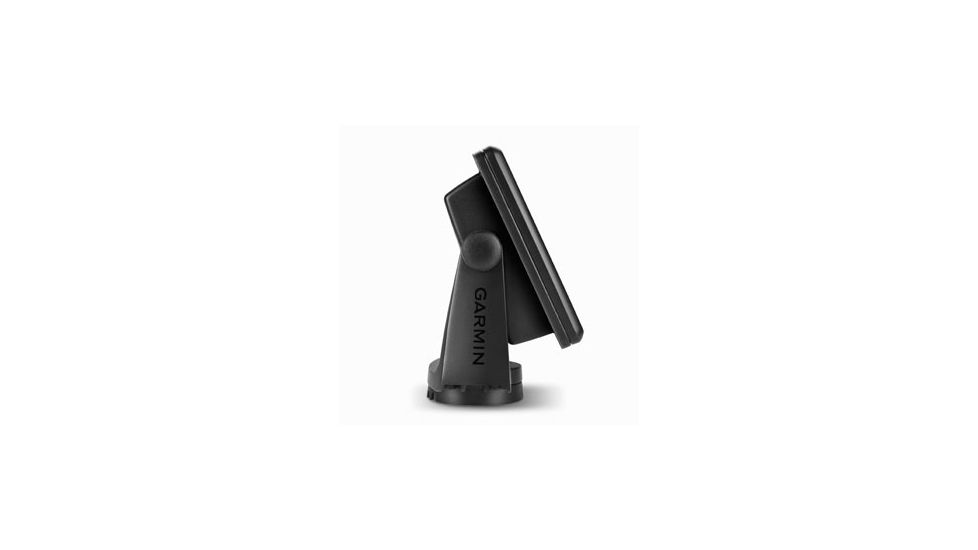

  • Tilt/swivel mount
  • Flush mount kit
  • Protective cover
  • Documentation
