Hensoldt ZF 3-12x56mm Mil-DOT Riflescopes FF/SSG-P by Zeiss Optics has been discontinued by Hensoldt and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Rifle Scopes category yourself to try and find the perfect replacement for you!

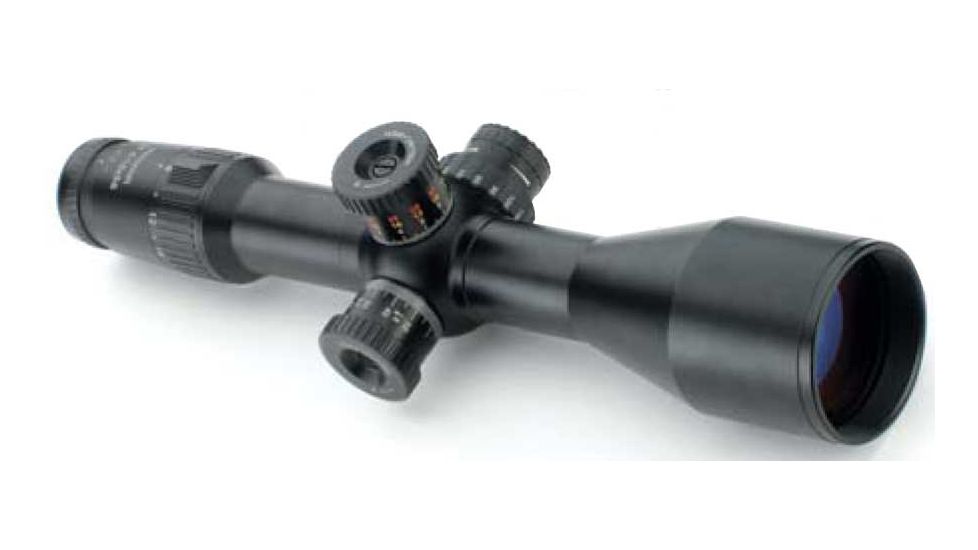

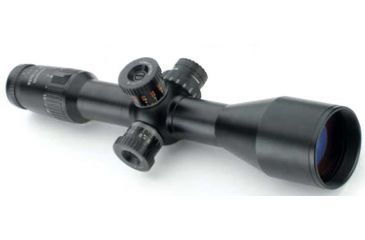

Hensoldt ZF 3-12x56mm Mil-DOT Riflescopes FF/SSG-P by Zeiss Optics Product Info

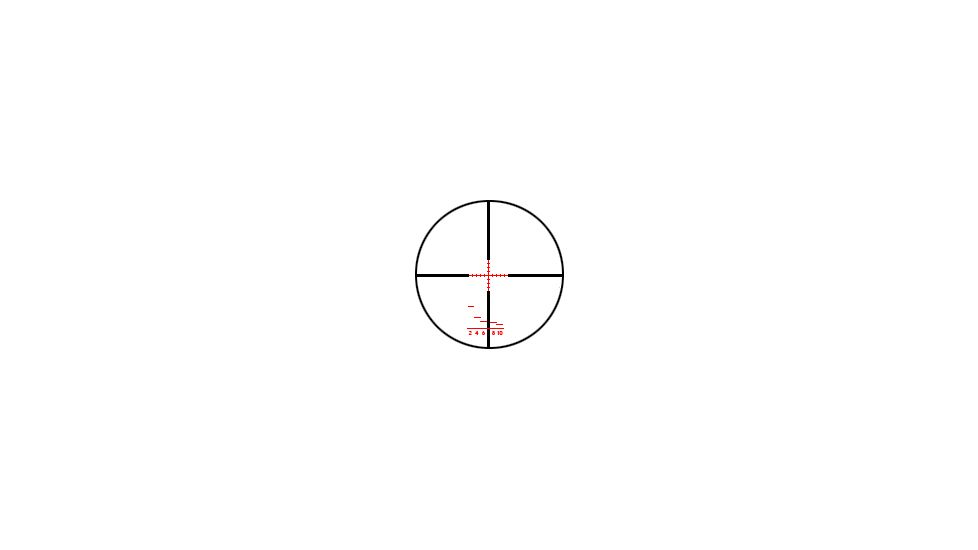

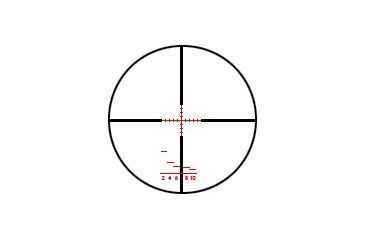

Snipers in special units rely Hensoldt ZF 3-12x56mm Mil-Dot Tactical Riflescopes on long-range weapons tailored to the mission. However, they also require targeting optics like riflescopes that enable fatigue-free observation, clarificationimage and precise acquisition of an object at great distances over longer periods of time. The Hensoldt Riflescopes 3-12 x 56 meet all the optical and ergonomic design demands placed on them by snipers. They are available with a targeting reticle in the first or second image plane. These telescopic riflescopes deliver an outstanding optical image. Furthermore, they are comparatively lightweight, quickly ready for use and easy to use. With these high-quality sighting instruments, Carl Zeiss Optronics has set the standard regarding handling and design. In the first image plane, the reticle pattern is also magnified when the magnification is changed, etremely useful feature in Hensoldt Rifle scopes. This makes it possible to determine the distance using the MIL-DOT reticle without having to calculate. In the second image plane, the reticle pattern is not magnified when the magnification is changed, thus meeting user demands for the option of selecting between the two image planes. The hunting optics in the telescopic sight from Hensoldt have been recalculated. With more than 90% transmission and ZEISS T multi-coating, these tactical riflescopes produce a bright, high-contrast image. The increased transparency in the blue spectral range leads to improved visual performance, particularly under low-light conditions. Colored index lines and numeric values on the elevation turret very easily indicate the current setting. This aid for fast bullet drop compensation is vital to the user as the zoom riflescopes have an adjustment range of 400 cm (300 cm) in the second image plane and 300 cm (224 cm) in the first image plane. The optics are protected by an extremely robust aluminum housing. A perfect seal and an internal nitrogen atmosphere in the interior prevent the penetration of dust and moisture.

Specifications for Hensoldt ZF 3-12x56mm Rifle Scope:

Scope magnification: 3 to 12x
Reticle image plane: 2nd image plane. 1st image plane for FF and SSG-P
Exit pupil in mm: 14.9 to 4.6
Field of view (at 1000 m): 120 to 34, 117 to 34 For FF, 92 to 32 for SSG-P
Resolution in arc seconds: min. 3.75
Transmission in %: approx. 92%,approx. 80% for SSG-P
Max. adjustment path in cm/100 m: elevation/azimuth 200/±50 / 150/±50 for FF
Distance between the dots in: cm/100 m 10
Length/width/height each in mm: 325/94/77
Ring diameter (assembly) in mm: 34
Weight in g: 800, 1100 for SSG-P
Reticle illumination electrical data: red

Features of Hensoldt ZF 3 to 12x 56mm MILDOT Reticle Rifle Scopes:

  • Precise target acquisition during low-light conditions
  • Colored index lines and numeric values on the elevation turret very easily indicate the current setting

Package Contents:

  • Hensoldt 56mm Tactical Rifle scopes

Hensoldt ZF 3-12x56mm Mil-DOT Riflescopes FF/SSG-P by Zeiss Optics Related Products

Hensoldt ZF 3-12x56mm Mil-DOT Riflescopes FF/SSG-P by Zeiss Optics Unorderable Models

Hensoldt ZF 3-12x56 Matte Black Riflescope w/ Mil Dot Reticle, by Zeiss Optics, MPN: 10139130, Code: 3P-RS-HRS312-10139130
Hensoldt ZF 3-12x56 FF Matte Black Riflescope w/ Mil Dot Reticle, by Zeiss Optics, MPN: 10139087, UPC: 1013908700000, Code: 3P-RS-HRS312-10139087
Hensoldt ZF 3-12x56 SSG-P Matte Black Riflescope w/ Mil Dot Reticle, by Zeiss Optics, MPN: 3P-RS-HRS312-330196-9904-000, Code: 3P-RS-HRS312-330196-9904-000
