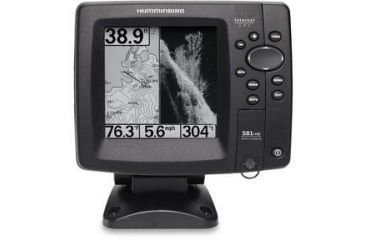

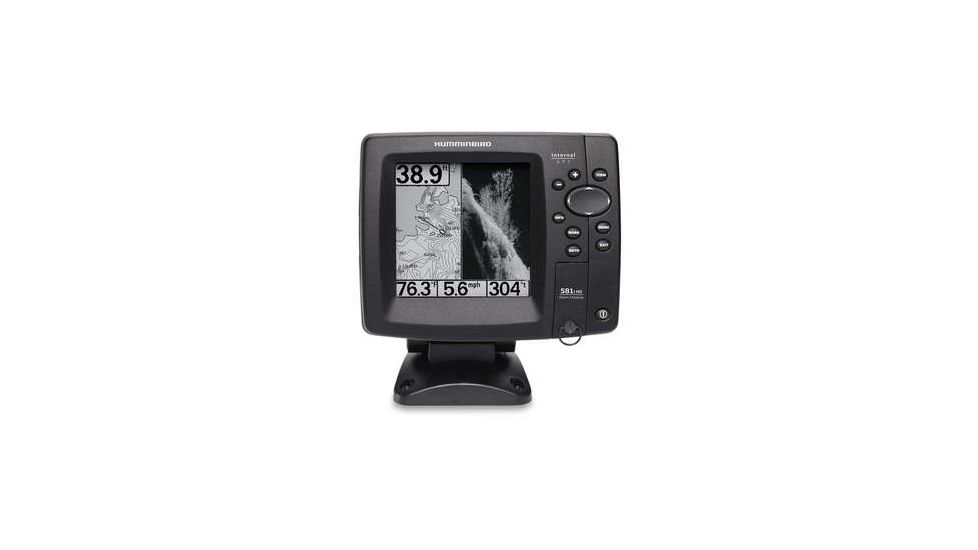

Humminbird 581i HD DI Combo Down Imaging and DualBeam Fishfinder and GPS, 5.0in. diagonal Screen 4090201
$279.99
Code: 4H-FH-4090201
MPN: 4090201
UPC: 082324038488

Humminbird 346c DI Combo Down Imaging Fishfinder Product Info

Humminbird 4090201: 581i HD DI Combo Down Imaging and DualBeam Fishfinder and GPS, 5.0" diagonal Screen

Specifications for Humminbird 346c DI Combo Fishfinder w/ Down Imaging:

Display Size: 3.5" diagonal
Display Pixel Matrix: 320V x 240H
Display Type: 256 Color
Display Colors/Grayscale: 256 Colors
Down Imaging:
Sonar Coverage:
455 kHz / 75° @ -10db:
800 kHz / 45° @ -10db:
Dual Beam PLUS™:
Sonar Coverage:
200 kHz / 28° @ -10db:
455 kHz / 16° @ -10db:
Target Separation: 2.5 inches
Power Output (RMS): 500 Watts (RMS)
Power Output (Peak to Peak): 4000 Watts (Peak-to-Peak)
Temperature: Included
Speed: Capable
Backlight: Yes
Waterproof: Yes
Mount: Quick Disconnect
Unit Size: 5.25" W x 7.4" H x 4" D
Transducer - Standard: XNT-9-DI-T
Transducer Mounting: Inside Hull or Transom
Power Input: 10-20 VDC
Power Draw: Lights off

Features of Humminbird 346c DI Combo Sonar Only Fishfinders:

  • ADVANCED SONAR FEATURES:
  • Switchfire Sonar
  • Split Screen Zoom
  • Split Screen Bottom Lock
  • Wide Narrow Cone Split Screen
  • Instant Image Update
  • Freeze Frame with the ability to Mark Structure on Sonar
  • Selective Fish ID+
  • Real Time Sonar RTS Window
  • Sonar Echo Enhancement
  • TrueArch Technology
  • USER-FRIENDLY TECHNOLOGY:
  • 3D Chart View
  • Large Digits View
  • Custom View Selections
  • Custom Digital Readout Selection
  • Selectable Display Colors
  • Selectable Background Colors
  • Temperature Alarm
  • Triplog
  • X-Press Menu System

Package Contents:

  • Humminbird 346c DI Combo Sonar Only Fishfinder 4090201
