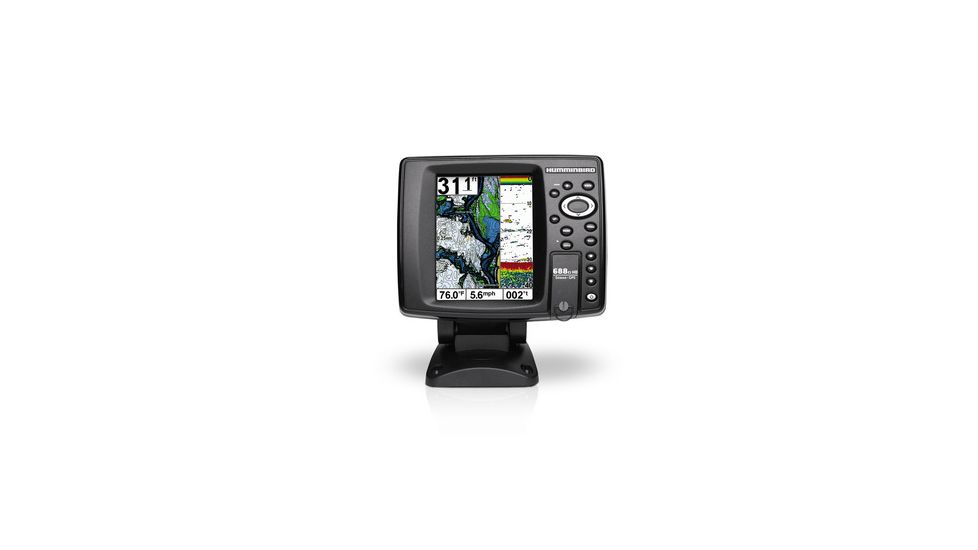

Humminbird 688ci HD DI Fish Finder-Sonar Detector Combo 4094601
$579.99
Code: 4H-FH-4094601
MPN: 409460-1
UPC: 082324043116

Humminbird 688ci HD DI Fish Finder-Sonar Detector Combo Product Info

The easiest way to find the fish or other underwater treasures is with the Humminbird 688ci Sonar Detector/Fish Finder Combo. The Humminbird 688ci HD DI Combo features a High Definition 480H x 640V image5", 256 color display with backlight, DualBeam PLUS™ sonar and Down Imaging® sonar with 4000 Watts PTP power output, GPS Chartplotting. In addition, it includes a card slot for maps and saving waypoints, as well as three programmable preset buttons to save your favorite views. Maximize your angling experience with the Humminbird 688-ci High Definition DI Combo fishfinder GPS system.

Humminbird 4094601: 688ci HD DI Fish Finder-Sonar Detector Combo

Specifications for Humminbird 688ci HD DI Combo:

Display Size: 5.0" diagonal
Display Pixel Matrix: 640V x 480H
Display Type: Color TFT
Display Colors/Grayscale: 256 Colors
Down Imaging®
Sonar Coverage: 455 kHz / 75° @ -10db; 800 kHz / 45° @ -10db
DualBeam Plus™
Sonar Coverage: 200 kHz / 25° @ -10db; 455 kHz / 16° @ -10db
Sonar Optional: none
Target Separation: 2.5 inches
Power Output (RMS): 500 Watts (RMS)
Power Output (Peak to Peak): 4000 Watts (Peak-to-Peak)
Temperature: Included
Speed: GPS Speed Included
Backlight: Yes
Waterproof: Yes
Mount: Quick Disconnect
Unit Size: 6.9"W x 7.5"H x 4.5"D
Mount: Optional In-dash
Unit Size: 6.9"W x 5.4"H x 1.25"D
Transducer - Standard: XNT-9-DI-T
Transducer Mounting: Transom
Power Input: 10-20 VDC
Power Draw: 615mA

Features of Humminbird 688ci Fish Finder/Sonar Detector:

  • ADVANCED SONAR FEATURES
  • Down Imaging Sonar
  • Switchfire Sonar
  • Screen Snap Shot to Memory Card
  • Sonar Recording
  • Split Screen Zoom
  • Split Screen Bottom Lock
  • Wide Narrow Cone Split Screen
  • Instant Image Update
  • Freeze Frame with the ability to Mark Structure on Sonar
  • Selective Fish ID+
  • Real Time Sonar RTS Window
  • Sonar Echo Enhancement
  • TrueArch Technology
  • USER-FRIENDLY TECHNOLOGY
  • 3D Chart View
  • Large Digits View
  • Custom View Selections
  • Custom Digital Readout Selection
  • Selectable Display Colors
  • Selectable Background Colors
  • View Preset Keys
  • Temperature Alarm
  • Triplog
  • X-Press™ Menu System

Package Contents:

  • Humminbird 688ci HD DI Fish Finder-Sonar Detector Combo
