Product No Longer Available

Unfortunately Humminbird Fishfinder, 596C HD is no longer carried by OpticsPlanet. You can also explore other items in the Fishfinders, Fishing Gear categories yourself to try and find the perfect replacement for you!

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

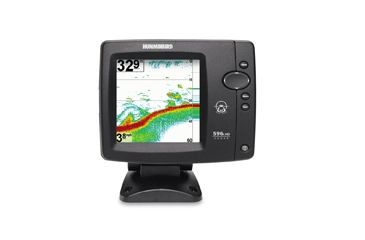

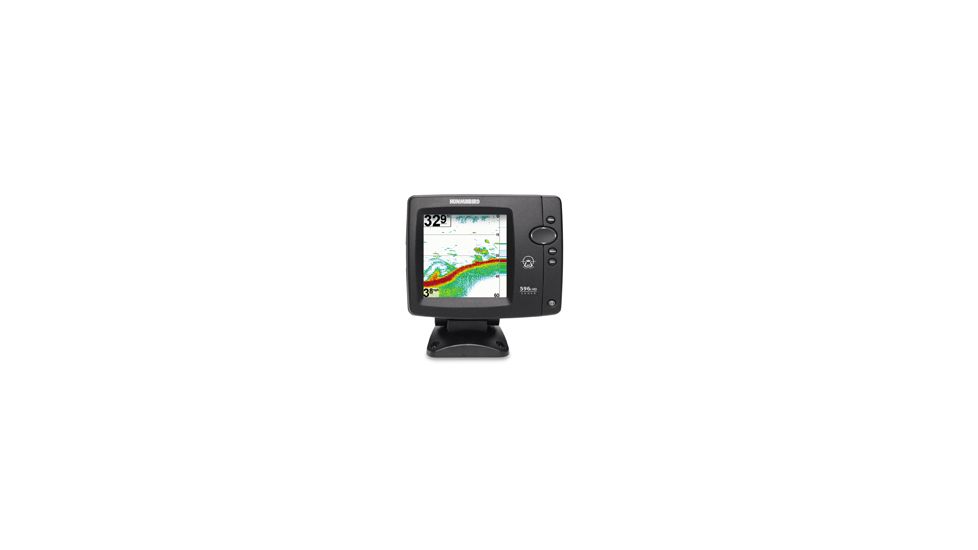

Humminbird Fishfinder, 596C HD Product Info

The 596c HD features an industry best, brilliant, color 640V x 640H 5" display. Dual Beam PLUS Sonar with 4000 Watts PtP power output, and a Tilt & Swivel Quick Disconnect Mounting System. The new design also allows drop-in replacement capability for competitive in-dash models. Maximize your angling experience with the Humminbird 596c HD fishfinder.

Specifications for Humminbird 596c HD Fish Finder:

Display Size: 5" diagonal
Display Pixel Matrix: 640V x 640H
Display Type: 256 Color TFT
Display Colors/Grayscale: 256 Colors
DualBeam PLUS Sonar Coverage:
  • 200 kHz / 20° @ -10db
  • 83 kHz / 60° @ -10db
Target Separation: 2.5 inches
Power Output (RMS): 500 Watts (RMS)
Power Output (Peak to Peak): 4000 Watts (Peak-to-Peak)
Temperature: Included
Speed: Included
Backlight: Yes
Waterproof: Yes
Mount: Quick Disconnect
Unit Size: 6.9" W x 7.5" H x 4.5" D
Mount: Optional In-dash
Unit Size: 6.9" W x 5.4" H x 1.25" D
Transducer - Standard: XNT-9-20-T
Transducer Mounting: Transom
Power Input: 10-20 VDC
Current Draw: 615 mA

Features of Hummingbird Fish Finder 596 C HD Sonar:

  • Real Time Sonar RTS Window
  • Selective Fish ID
  • Sonar Echo Enhancement
  • Split Screen Zoom
  • Custom Digital Readout Selection
  • Large Digits View
  • Quick Disconnect Mounting System
  • Selectable Background Color
  • Triplog- optional
  • X Press Menu System

Package Contents:

  • Humminbird Fishfinder 596c HD Fishfinder

Humminbird Fishfinder, 596C HD Unorderable Models

Humminbird Fishfinder, 596c HD, MPN: 407910-1, UPC: 082324034589, Code: 4H-FH-4079101
