$449.99
Code: IK-LP-2333000
MPN: 2333000

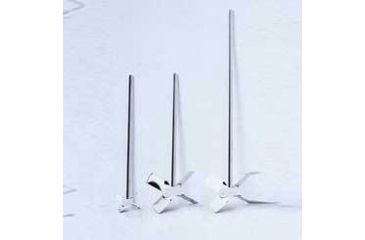

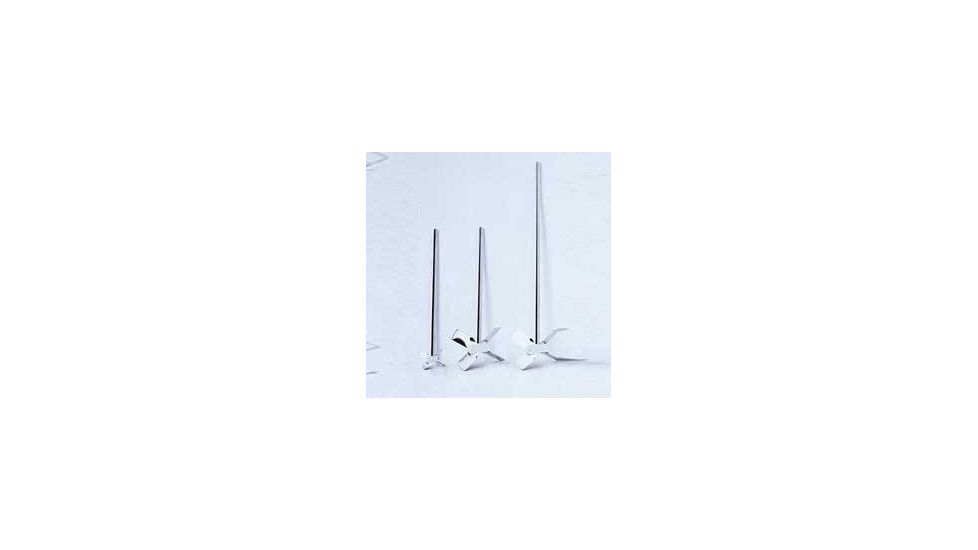

Ika Works Stirring Elements, IKA Works 2333000 R 1312 Turbine Stirrer Product Info

Ika Works Stirring Elements, IKA Works R 1312 Turbine Stirrer is a reliable and dependable addition to the Ika Works Laboratory Apparatus family of products. Combining top-notch and uncompromising quality with an affordable price, the Ika Works Stirring Elements, IKA Works R 1312 Turbine Stirrer 2333000/ 33994-074 can fulfill your laboratory needs while still offering a great value for the money.

Product Category Description:

Made of stainless steel. Accepted by overhead stirrer motors with corresponding output shaft/chuck diameter measurements.

Four-bladed propeller stirrers generate axial flow, drawing media from top to bottom, and local shearing forces. Three-bladed propellers produce efficient flow with minimal shearing.

Turbine stirrers generate axial flow, pulling material from above, with minimal shearing. Configuration reduces the risk of user injury if blade contacts the vessel wall.

Dissolver stirrers produce radial flow, drawing material from both top and bottom, with high turbulence and shearing forces for effective particle reduction.

Centrifuge stirrers have two blades that collapse for insertion into narrow-necked vessels and unfold with increasing speed. Operation is similar to four-bladed propellers.

Paddle stirrers effect tangential flow with minimal turbulence and gentle treatment of the media.

Anchor stirrers are ideal for moderately to highly viscous fluids, inducing tangential flow and high shearing rate at the perimeter and leaving minimal material deposit on the vessel wall.

Kneading stirrers provide tangential flow, with oscillating compacting between the kneading surfaces, and reduce material deposits on the vessel wall.

Ordering Information: When ordering stirring paddles, please specify the chuck size of your stirrer.

Specifications for Ika Works Stirring Elements, IKA Works 2333000 R 1312 Turbine Stirrer:

Description:  R 1312 Turbine Stirrer
ShaftDia., mm:  8
Stirrer HeadDia., cm (in.):  5 (2)
Shaft Length,cm (in.):  35 (133/4)
Max. Speed,rpm:  2000
IKA Works No.:  2333000
