Product No Longer Available

Unfortunately Morovision Thermal-Eye X-50 Thermal Camera RCP-1000380-0001 is no longer carried by OpticsPlanet.

Thermal Eye X-50 Thermal Imaging Camera page has been moved. Please click here to view the Thermal Eye X50 page.

Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

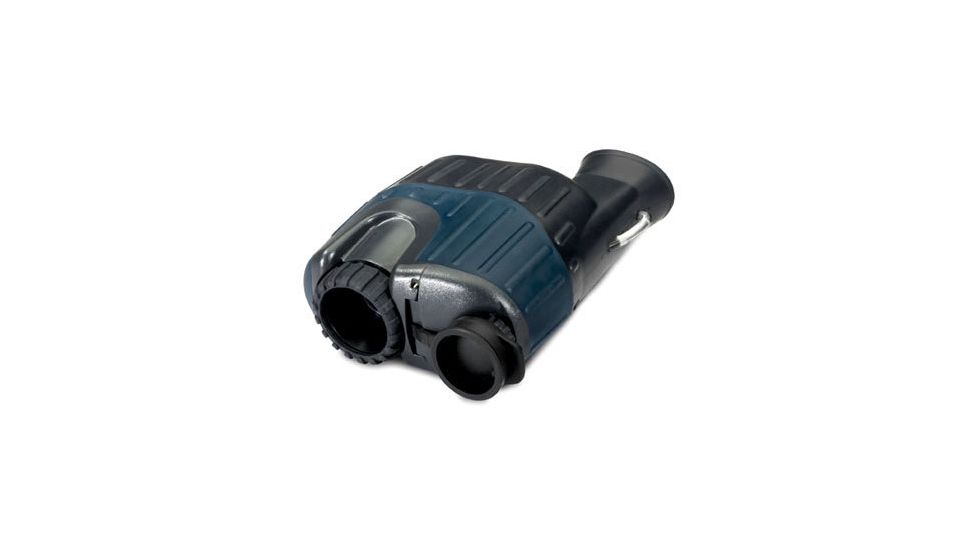

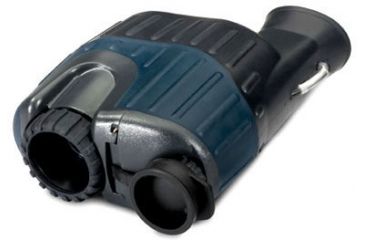

Morovision Thermal-Eye X-50 Thermal Camera RCP-1000380-0001 Product Info

Morovision Thermal-Eye X-50 Thermal Camera sets the standard for affordable, small, lightweight thermal imaging cameras. This powerful, compact camera is a pocket-sized, rugged and durable. Because criminals cant' hide their heat, imagethis camera is the perfect partner in fighting crime. It detects heat signature - up to 1,000 feet away - in total darkness or when vision is compromised by smoke, bright lights, glare and shadows. With the X-50 Thermal Camera, hiding criminals are quickly located, exposed and apprehended. Priced right for your budget, your operation cannot afford to protect and serve without the Morovision X50 Thermal Eye Camera.

The Thermal Eye X-50 is optimal for finding objects in no-light situations, search & rescue operations, fugitive pursuit and other law enforcement applications. Morovision is known for the highest quality in all of their Morovision Night Vision products. Be sure to check out the rest of Morovision products and other high performance night vision product selection.

Specifications for Morovision Thermal-Eye X-50 Thermal Camera:

Focal Plane Array Type & Material:Amorphous Silicon Microbolometer

Pixel Count (Resolution): 100 x 80

Spectral Response: 7-14 ?m (filter bandwidth)

Thermal Sensitivity: less than or equal to 150 mK

Thermal Imaging Performance Startup Time: ~ 5 sec

Detection Range for Human Activity: Up to 1000ft (305m)

Contrast/Brightness & Pixel Processing: Fully Automatic

Susceptibility to Blinding Visible Light: None

Infrared Polarity: White = Hot, Black = Cold

Optics Field of View: 11° x 8°

Lens Focal Length: 16mm

Minimum Focus Distance: ~ 3 ft. (1 meter)

Video Output format: Analog: NTSC or PAL on rear outlet jack

Viewfinder Display: Monochrome LCD (320 x 240 pixels)

Viewfinder Dimming: Integral to power on/off switch

Power Power Source: Two (2) AA batteries

Operating Time: ~ 2 Hours with alkaline ~5 Hours with lithium 77° F (25° C), night-time operation

Auxiliary Power: 9 to 12 VDC input on rear outlet jack

Environmental Characteristics Operating Temperature: -14°F to 122°F (-10°C to 50°C)

Storage Temperature: -4°F to 176°F (-20°C to 80°C)

Water & Shock Resistance: Waterproof to 9ft (3m) submersion, buoyant in fresh water Shockproof to 6 ft (2m) drop - IEC level IPX6

EMC Compliance:FCC Part 15 & CE Mark

Pan Speed / Control: 36° per second (max) / Single-speed control

Physical Characteristics Size:5.25" L x 4.50" W x 2.0" H (13.4 x 11.4 x 5.1 cm)

Weight: 13 oz (381g), batteries installed

Eye Cup: Integral to camera body with 2" eye relief

Mounting: 1/4-20 Tripod Mount

Features of Morovision Thermal-Eye X-50 Thermal Camera:

  • Developed with advanced amorphous silicon microbolometer technology.
  • Rugged design with integral rubber eye cup can survive accidental drops and underwater submersion to 9 feet.
  • Pocket-sized, weighing only 13 ounces.
  • Detects human activity from over 300 meters away.
  • Sealed cover for enclosing video and power jacks
  • Operates for 2 hours on 2 commercial AA alkaline batteries.

Package Contents:

  • Morovision Thermal-Eye X-50 Thermal Camera
  • 2 AA Alkaline Batteries
  • Neck Strap & Wrist Strap
  • Lens Cover
  • Lens Cleaning Cloth
  • Operator's Manual
