Labconco Accessories for Purifier Delta Series Class II Safety Cabinets, Labconco
Accessories For Type A2 Safety And Type B2 Total Exhaust Safety Cabinets Service Fixture Kit is a reliable and dependable addition to the Labconco Laboratory Furniture and Biosafety Cabinets
family of products. Combining top-notch and uncompromising quality with an affordable price, the Labconco Accessories for Purifier Delta Series Class II Safety Cabinets, Labconco Accessories For Type A2 Safety And Type B2 Total Exhaust Safety Cabinets Service Fixture Kit 3747500/ 46610-764
can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
Accessories for Purifier* Delta* Series Class II Safety Cabinets, Labconco*

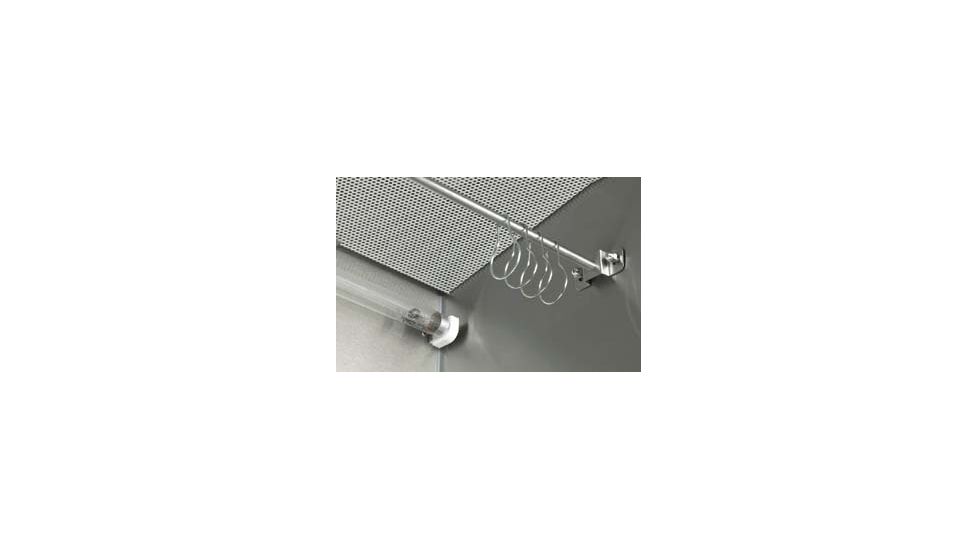

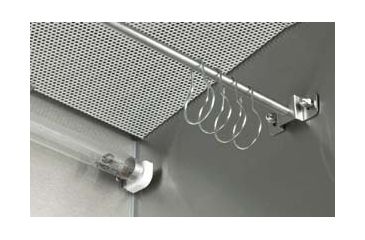

IV Bar Kits — Support intravenous solution bottles and bags. Kits include IV bar, mounting hardware, four hangers, and installation instructions.
Canopy Kits — For thimble ducting. Kits include an epoxy-coated steel exhaust transition adapter and installation instructions. Use with remote blower 13500-494 (sold separately). Duct diameter is 25.4cm (10").
Air-Tight Damper — Manually adjustable damper is fastened directly atop the canopy kit to provide a transition to exhaust ductwork and means to control the exhaust airflow. Made of type 304 stainless steel. Damper is 25.4cm (10") high with a 25.4cm (10") O.D. inlet and outlet.
Remote Blowers — Blower 13500-494, for the 1.5m (5') and 1.8m (6') A2 cabinets, features a 1/2hp motor that delivers between 760cfm at 0.25in.H2O static pressure loss and 700cfm at 0.5in.H2O static pressure loss. Includes a belt drive with adjustable sheave, phenolic-coated steel impeller, epoxy-coated steel base and weathercover, and integral backdraft damper. Inlet accepts 25.4cm (10") diameter duct. Outlet accepts 20.3cm (8") diameter duct. Maximum duct run of 30.5 equivalent meters (100') is recommended.
Blower 15202-463 is for use with the Class II, type B2 total exhaust cabinets, and features a 2hp motor that delivers up to 1179cfm at 3.98in.H2O static pressure loss. Inlet and outlet are sized to accept 30.5cm (12") nominal diameter PVC duct.
Ultraviolet Lamp Kits — Kits include a 254nm UV lamp and installation instructions. Kit 46610-772 also includes a ballast.
Service Fixture Kit — Kit includes serrated hose tip valve with quarter-turn control handle, hardware, and instructions for plumbing to services. Kit mounts on the left or right side of interior. Cabinets are factory-prepared to accommodate up to four service fixtures.
