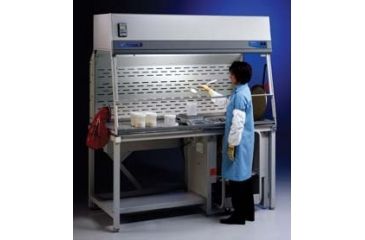

Labconco Bulk Powder System 6'-R 115 3961602
$25,444.85 $27,570.00 Save $2,125.15
Code: LC-LO-3961602
MPN: 3961602

Labconco Bulk Powder System 6'-R 115 3961602 Product Info

Labconco Bulk Powder System 6'-R 115 3961602 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Labconco Bulk Powder System 6'-R 115 3961602 / 93000-342 is part of a wide selection of Labconco Lab Furniture & Bio-Hoods. Combining excellent quality with an affordable price, the Labconco Bulk Powder System 6'-R 115 3961602 / 93000-342 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Lab Furniture & Bio-Hoods please do not hesitate to contact our customer service for further guidance.

Bulk powder systems keep airborne particulates and fumes contained during powder transfer procedures. An ergonomic airfoil with Clean-Sweep* openings enhances airflow while a zone-perforated rear baffle creates horizontal laminar airflow to maximize containment. The variable speed built-in blower features a dynamically balanced, vibration-isolated motorized impeller and is outfitted with a 99.99% efficient HEPA filter. Systems incorporate an intrinsically safe, negative pressure design. Systems feature large interior dimensions to accommodate large balances and equipment. Systems are equipped with upper dilution air supplies, upper containment sash foils, an upper diffuser screen, side-entry airfoils, a true bag-in/bag-out filter disposal system, a Minihelic* pressure gauge, two utility ports, and a left side-mounted waste chute. A front-mounted fluorescent lamp provides excellent visibility, and the systems operate quietly at 45-67dBA. Systems are constructed of epoxy-coated aluminum and steel. The front sash and sides are constructed of 0.6cm (1/4") thick tempered safety glass. Hinged front sash features an ergonomic 10° angle and pivots upward. The front sash has a 30.5cm (12") operating height, locks to a loading height of 71.1cm (28"), and features side wiping seals to contain contaminants. A push-button hydraulic lift mechanism raises the container to the optimal height. An electronic beam senses the location of the container and triggers the lift mechanism to automatically stop at the optimal access height.

Systems also feature a built-in Guardian* 1000 digital airflow monitor. If the face velocity falls below the setpoint for more than six seconds, an audible alarm sounds and a red light glows. The alarm can be muted. Airflow monitor features an LCD display of actual face velocity and an RS-232 port. Retaining rings are constructed of Type 304 stainless steel. One retaining ring is required; it should be slightly larger than diameter of source container and a minimum of 5.1cm (2") smaller than the inner bag diameter. Polyethylene safety sleeves are fastened with a retaining band to the outside of the source container and access opening to help contain powders for easy clean up. The access opening cover provides a solid work surface. An extra transfer caddy is available to provide for easier material handling. Optional utility shelf kit has three epoxy-coated steel shelves.

All stations conform to modified ASHRAE 110-1995 standards, SEFA 1-2002 standards, and ANSI Z9.5-1-993 standards. The 115V models are ETL listed; the 230V models are CE marked.

Exhaust Static Pressure Exhaust Static Pressure Exhaust Static Pressure
Volume Loss, in. H2O Volume Loss, in. H2O Volume Loss, in. H2O
at 100 fpm at 100 fpm at 80 fpm at 80 fpm at 60 fpm at 60 fpm
1.5 m Wide Enclosures: 480 cfm 0.15 385 cfm 0.20 290 cfm 0.22
1.8 m Wide Enclosures: 580 cfm 0.13 465 cfm 0.18 350 cfm 0.20

Specifications for Labconco Bulk Powder System 6'-R 115 3961602:

NominalWidth,m (ft.): 1.8 (6)
  Electrical: 115V, 60Hz
 LiftLocation: Right
 Interior Dimensions,W x D x H, cm (in.): 176.8 x 76.2 x 81.3 (695/8 x 30 x 32)
 Exterior Dimensions,W x D x H, cm (in.): 186.2 x 94 x 211.3 (735/16 x 37 x 833/16)
ShippingWeight,kg (lbs.): 261 (575)
  Labconco No.: 3961602
Unit: Each
