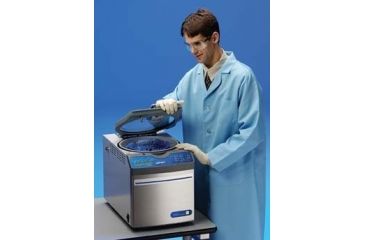

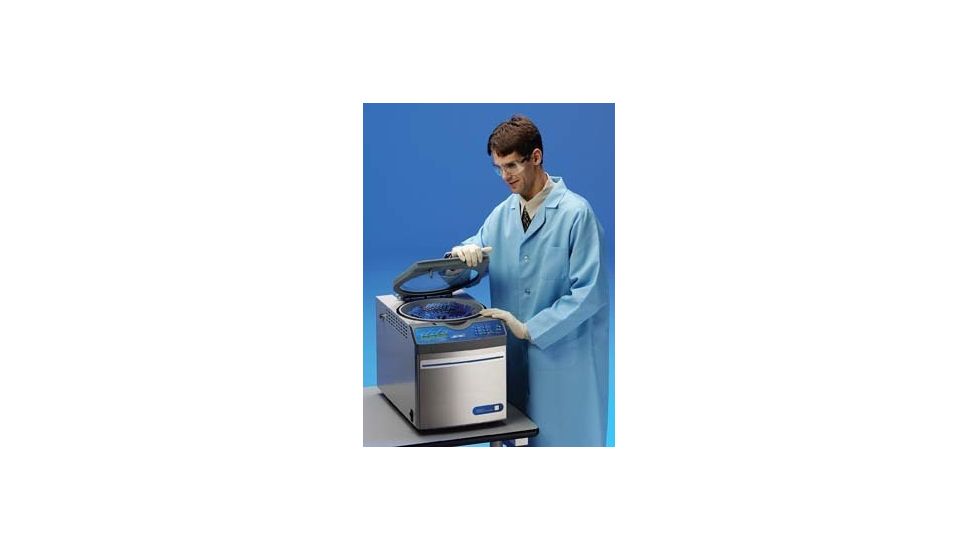

Labconco CentriVap Refrigerated Vacuum Concentrators, Labconco Acrylic Lid is a reliable and dependable addition to the Labconco Centrifuges family of products. Combining top-notch and uncompromising quality with an affordable price, the Labconco CentriVap Refrigerated Vacuum Concentrators, Labconco Acrylic Lid 7310040/ 89041-248 can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
Specifically designed to rapidly concentrate multiple small heat-sensitive samples using centrifugal force, vacuum, and controlled temperature. Unique to commercially available concentrators, this line combines a 1/4hp refrigeration system that cools to –4°C (25°F) with a 300W heater that warms to 100°C (212°F) to achieve selected set point temperatures.
An easy-to-read LCD screen prompts users through programming and parameter settings. Programming is provided for two temperature and time settings, with set points selected separately. The control panel features Run/Stop, Preheat/Cool, set point Select, increase/decrease, and three Quick-Start* funtions to allow operation at the touch of a button. Cooling, heating, and centrifugal procedures are microprocessor-controlled, with a memory that stores nine user-set programs. Temperatures and run times may be altered while the program is in progress. The brushless motor is capable of achieving up to 1725rpm. A Quick-Stop function will stop vacuum pump, open air valve, and stop the rotor within seconds of preset time elapsing, or when the Run/Stop button is activated. An automatic release valve prevents sample loss, and a built-in vacuum delay prevents bumping by allowing the rotor to achieve speed before applying vacuum. An audible alarm alerts users to the completion of set point programs.
All compact models feature a brushed stainless steel front panel, and are available with acrylic or acid-resistant glass lids. A lid latch with safety sensor prevents start up when the lid is open. The thick-walled aluminum chamber is epoxy coated, and its large, 30.5cm (12") diameter accommodates a variety of rotors. The phenol-free lid seal lessens the potential for phenol contamination. All models are equipped with 1.3cm (1/2") O.D. aluminum hose fitting for connection to vacuum tubing, and vacuum port with quick disconnect fitting for 0.6cm (1/4") I.D. tubing (vacuum pump and gauge not included). An electrical receptacle on the back allows the vacuum pump to be powered and controlled via the control panel.
The 115V models are ETL and ETLc listed. The 230V models are CE marked.
Ordering Information: The 115V models are supplied with a 3m (10') three wire cord with NEMA 5-20 plug. The 230V models are supplied with a 2.4m (8') cord with NEMA 6-20 plug.
