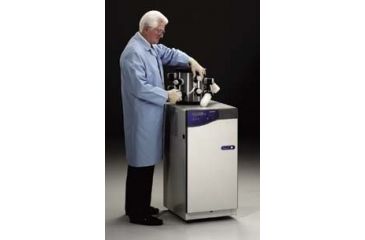

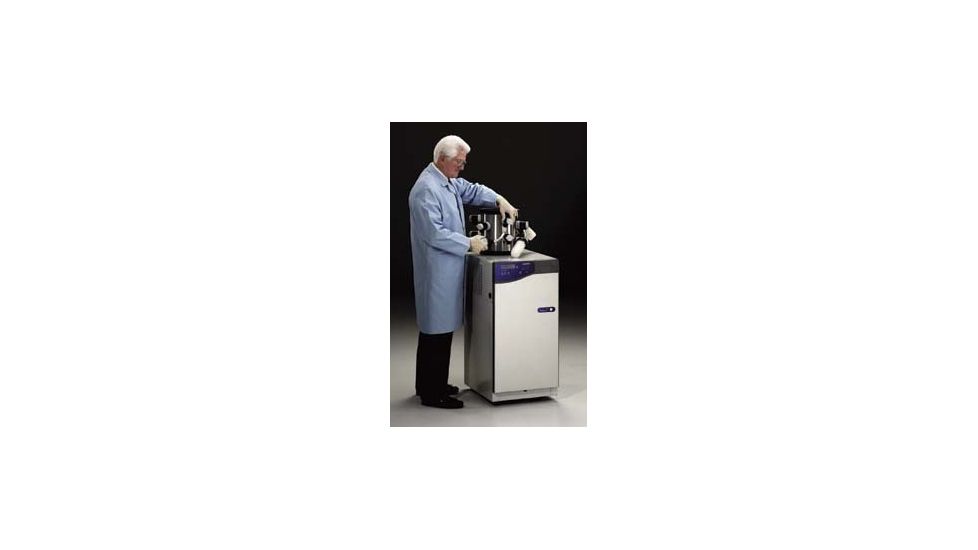

Labconco FreeZone Freeze Dry Systems, Console Models, Labconco 12 L Models Console With Purge Valve And Vacuum Drying Chamber is a reliable and dependable addition to the Labconco Centrifuges family of products. Combining top-notch and uncompromising quality with an affordable price, the Labconco FreeZone Freeze Dry Systems, Console Models, Labconco 12 L Models Console With Purge Valve And Vacuum Drying Chamber 7754046/ 82018-988 can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
CFC-free refrigeration systems ideal for rapid, environmentally-safe cooling. Models have brushed stainless steel and glacier white, epoxy-coated steel exterior with blue accents. Equipped with automatic one-button start-up to initiate collector and vacuum, dual LCD screens for vacuum and collector temperatures with LED “waves” to indicate proper conditions, and a 22.9cm (9") condenser drain hose. All models feature a red alarm light to indicate any abnormal system events such as power failure or improper line voltage supply, a moisture sensor that detects moisture in the collector chamber area, a vacuum break valve that bleeds air into the system when power to dryer or vacuum pump is shut off, and a rear-mounted RS-232 port. Collector cools to –50°C (–58°F).
The 4.5L models incorporate a permanently installed 10-port drying chamber. The 6L, 12L, and 18L models have a 7.6cm (3") diameter stainless steel port for connection to accessories and hot gas defrost and switch with automatic hot gas shut-off when collector coil reaches 65°C (149°F).
The optional purge valve, located between the pump and the condenser, helps extend pump life, prevent back streaming of vacuum pump, and minimize the chance of contamination of samples if power is interrupted. Models with the built-in vacuum drying chamber include a heater with microprocessor control from –40 to 60°C (–40 to 140°F). Vacuum drying chamber measures 13.6Wx33Dx6.4Hcm (513/32x13x21/2").
The 6L models with a built-in shell freezer with stainless steel bath includes a 1/4hp CFC-free refrigeration system with microprocessor control to –40°C (–40°F). Shell freezer measures 14Wx29.5Dx16.2Hcm (51/2x1119/32x613/32").
UL listed and CSA certified.
Ordering Information: Models include a three-wire cord with either a 20A plug (115V models) or a 15A plug (208/230V models) and a 1.9cm (3/4") I.D. vacuum hose with two clamps for connection to a vacuum pump. All models require a vacuum pump for operation. The 4.5L models require a minimum 86L/min. vacuum pump. The 6L, 12L, and 18L models require a minimum 144L/min. vacuum pump and a drying chamber or manifold for operation. All models are also available with an optional fluoropolymer resin-coated collector chamber ideal for processes involving corrosive compounds. For Fast-Freeze* flasks, see 26675-228 series. For vacuum pumps, drying chambers, manifolds, models with coated collector, and models with international electrical configurations, contact our sales representative.
