$35,243.64 $38,734.50 Save $3,490.86
Code: LC-CE-7758542
MPN: 7758542

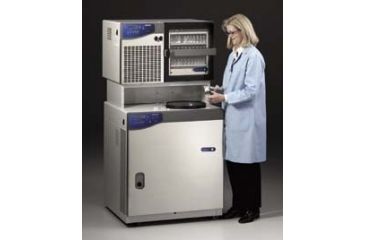

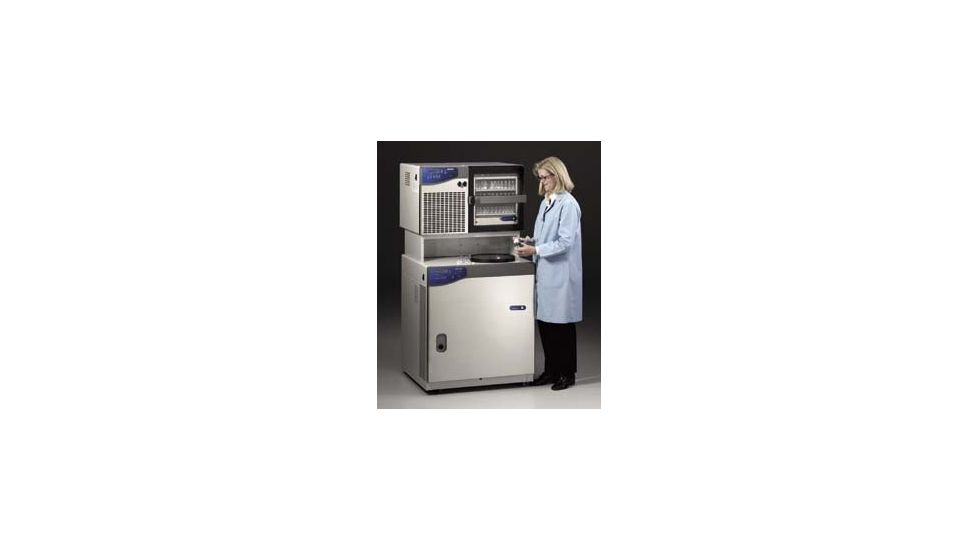

Labconco FreeZone Freeze Dry Systems, Console Models with Stoppering Tray Dryer, Labconco 7758542 6 L Models Console With Stoppering Tray Dryer And Purge Valve Product Info

Labconco FreeZone Freeze Dry Systems, Console Models with Stoppering Tray Dryer, Labconco 6 L Models Console With Stoppering Tray Dryer And Purge Valve is a reliable and dependable addition to the Labconco Centrifuges family of products. Combining top-notch and uncompromising quality with an affordable price, the Labconco FreeZone Freeze Dry Systems, Console Models with Stoppering Tray Dryer, Labconco 6 L Models Console With Stoppering Tray Dryer And Purge Valve 7758542/ 82019-030 can fulfill your laboratory needs while still offering a great value for the money.

Product Category Description:

FreeZone* Freeze Dry Systems, Console Models with Stoppering Tray Dryer, Labconco*

CFC-free refrigeration systems ideal for rapid, environmentally-safe cooling. Models have brushed stainless steel and glacier white, epoxy-coated steel exterior with blue accents. Equipped with automatic one-button start-up to initiate collector and vacuum, dual LCD screens for vacuum and collector temperatures with LED “waves” to indicate proper conditions, a 22.9cm (9") condenser drain hose, and a 7.6cm (3") diameter stainless steel port for connection of drying accessories. All models feature a red alarm light to indicate any abnormal system events such as power failure or improper line voltage supply, a moisture sensor that detects moisture in the collector chamber area, a vacuum break valve that bleeds air into the system when power to dryer or vacuum pump is shut off, and a rear-mounted RS-232 port. Collector cools to –50°C (–58°F). Models include hot gas defrost and switch with automatic hot gas shut-off when collector coil reaches 65°C (149°F).

The stoppering tray dryer has three 42Wx30.5Dcm (161/2x12") shelves for either batch samples or bulk product processing and three probes for monitoring sample or shelf temperature. The optional purge valve, located between the pump and the condenser, helps to extend pump life, prevent back streaming of vacuum pump, and minimize the chance of contamination of samples if power is interrupted.

The 115V models and 12L 208/230V models are ETL and ETL-C listed. All 208/230V models are CE marked.

Ordering Information: Models include a three-wire cord with either a 20A plug (115V models) or a 15A plug (230V models) and a 1.9cm (3/4") I.D. vacuum hose with two clamps for connection to a vacuum pump. All models require a minimum 144L/min. vacuum pump for operation. All models are also available with an optional fluoropolymer resin-coated collector chamber ideal for processes involving corrosive compounds. For vacuum pumps, models with coated collector, and models with international electrical configurations, contact our sales representative.

Specifications for Labconco FreeZone Freeze Dry Systems, Console Models with Stoppering Tray Dryer, Labconco 7758542 6 L Models Console With Stoppering Tray Dryer And Purge Valve:

Description:  Console with Stoppering Tray Dryer and Purge Valve
Electrical*:  230V, 60Hz, 6.9A
Shipping Weight, kg (lbs.):  340 (750)
Labconco No.:  7758542
Condenser, 12 L Model:  3/4 hp
Water Removal Capacity, 6 L Model:  4 L/24 hrs.
Water Removal Capacity, 12 L Model:  8 L/24 hrs.
Dimensions, Stoppering Tray Dryer:  81.3W x 62.4D x 68.8H cm (32 x 2419/32 x 273/32")
