$8,529.00
Code: LC-LO-6970401
MPN: 6970401

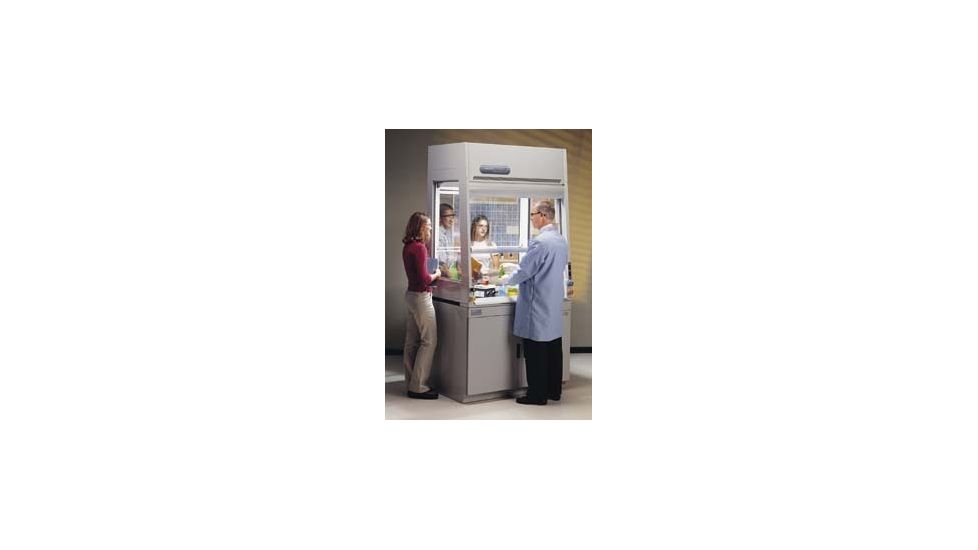

Labconco Protector ClassMate Laboratory Hoods, Labconco 6970401 CLSMATE48"W/4FIXT/2DUPLX Product Info

Labconco Protector ClassMate Laboratory Hoods, Labconco CLSMATE48"W/4FIXT/2DUPLX is a reliable and dependable addition to the Labconco Laboratory Furniture and Biosafety Cabinets family of products. Combining top-notch and uncompromising quality with an affordable price, the Labconco Protector ClassMate Laboratory Hoods, Labconco CLSMATE48"W/4FIXT/2DUPLX 6970401/ 46620-442 can fulfill your laboratory needs while still offering a great value for the money.

Product Category Description:

Protector* ClassMate* Laboratory Hoods, Labconco*

ClassMate laboratory hoods are designed to meet the needs of instructional laboratories. Clear tempered safety glass provides excellent visibility even when hoods are placed back to back. All hoods feature bypass airflow design. Baffles direct airflow to the rear of the interior. A pivoting air foil creates a constant contaminant barrier. Six hoods feature the HOPEC IV design, which adds energy-saving and ergonomic benefits.

The hood frame, spill trough, and standard hood air foil are constructed of white dry-powder epoxy-coated steel and aluminum. The low-profile spill trough is 3.2cm (11/4") deep and requires no cabinet overhang. The HOPEC IV air foil is a highly visible yellow. All hoods include pre-wired fluorescent lighting, ADA-compliant light and blower switches, removable interior cover plates for easy plumbing access, and a 20.3cm (8") diameter belled exhaust connection. A tissue screen below the exhaust outlet protects the remote blower from debris.

The 0.6cm (1/4") thick glass sides, back, and baffle are removable for cleaning. The glass front is 99cm (39") high, 0.6cm (1/4") thick, and at a 5° angle. The vertical-rising sash of the HOPEC IV 1.5m (5') and 1.8m (6') hoods also include horizontal-sliding panels.

ETL and ETL-C listed. All hoods conform to the following regulations and standards: SEFA #1, NFPA #45, ASTM-E-84, ASHRAE 110-95, ANSI Standard Z9.5, ADA, UL 3101-1.

Ordering Information: Hoods require a remote blower, ductwork, work surface (see 46620-464 series), and base cabinet. Hoods are factory-prepared for up to four service fixtures, two duplex electrical receptacles, and airflow monitor. All 1.2cm (4') hoods are supplied with two 30W fluorescent bulbs. All 1.5m (5') and 1.8m (6') are supplied with two 40W fluorescent bulbs. Hoods supplied with fixtures include two prewired 115V, 15A electrical duplex receptacles.

On standard hoods with fixtures, four fixtures are preplumbed, ADA-compliant with forged brass valves. Three of the fixtures are plumbed with 0.6cm (1/4") copper tubing for cold water, air, and vacuum; the remaining fixture is plumbed with 0.6cm (1/4") brass tubing for use with gas.

HOPEC IV hoods with fixtures also feature a factory-installed digital airflow monitor and four preplumbed, ADA-compliant, WaterSaver* service fixtures with forged brass valves. The upper right fixture is plumbed with 0.6cm (1/4") brass tubing for use with gas; the other three fixtures are plumbed with 0.6cm (1/4") copper tubing. The upper left fixture is a mounted rigid gooseneck faucet for cold water. The remaining two service fixtures are for air and vacuum.

Specifications for Labconco Protector ClassMate Laboratory Hoods, Labconco 6970401 CLSMATE48"W/4FIXT/2DUPLX:

Description:  CLSMATE48"W/4FIXT/2DUPLX
Exterior Dimensions:  81.9D x 149.9H cm (321/4 x 59")
Interior Dimensions, Standard:  65.4D x 121.9H cm (253/4 x 48")
Interior Dimensions, HOPEC IV:  66.7D x 121.9H cm (261/4 x 48")
Vertical Sash Opening, Standard:  45.7 cm (18")
Vertical Sash Opening, HOPEC IV:  38.1 cm (15")
Working Widths (Horizontal and Vertical Sash Opening), Standard 1.2 m (4'):  114.3 cm (45")
Working Widths (Horizontal and Vertical Sash Opening), Standard 1.5 m (5'):  144.8 cm (57")
Working Widths (Horizontal and Vertical Sash Opening), Standard 1.8 m (6'):  175.3cm (69")
Working Widths (Horizontal and Vertical Sash Opening), HOPEC IV 1.2 m (4'):  114.3cm (45")
Working Widths (Horizontal and Vertical Sash Opening), HOPEC IV 1.5 m (5'):  66 cm (26") and 144.8 cm (57")
Working Widths (Horizontal and Vertical Sash Opening), HOPEC IV 1.8 m (6'):  81.3 cm (32") and 175.3 cm (69")
Working Widths (Horizontal and Vertical Sash Opening), Electrical:  115V, 60Hz, 15A
