Product Category Description:

The aerodynamic design of the sash handle, airfoil, upper dilution air supply, and rear down-flow baffle work in concert to produce horizontal airflow patterns. These patterns significantly reduce concentrations of chemical contaminants throughout the work area, particularly near the face of the hood, operator-breathing zone, and at the work surface. Hoods perform equally well on either a constant volume or variable air volume system. Hoods are glacier white and have a dry powder, epoxy-coated steel exterior. Hoods feature chemical-resistant, molded composite panel liner with flame spread less than 25 per ASTM E-84. Removable front and side panels and exterior and interior service access panels for access to plumbing and electrical wiring. Aerodynamic curve of the airfoil allows air to sweep the work surface for maximum containment. Clean-Sweep* openings pull inflow air from under the airfoil so that clean air continually flows over the airfoil creating a constant protective barrier from contaminants.

Vertical-rising sash is constructed of 0.5cm (3/16") thick tempered safety glass and features three pre-set positions: fully open, fully closed, and partially open at a 45.7cm (18") working height. Sash handle includes a perforated air passage directly atop the handle to bleed air into the hood chamber and direct chemical fume concentrations away from the user-breathing zone.

Two service fixtures are pre-plumbed with forged brass valves; one for gas and one for cold water. Components for converting either or both fixtures to air and vacuum are provided. Hoods are factory prepared for up to eight service fixtures and four electrical duplex receptacles. The 115V models that include services fixtures also include an electrical duplex receptacle.

The 115V models are ETL and ETL-C listed. The 230V models are CE marked.

Ordering Information: Remote blower, appropriate ductwork, work surface, and base cabinet or base stand are required for operation (all sold separately). Contact our sales representative for more information.

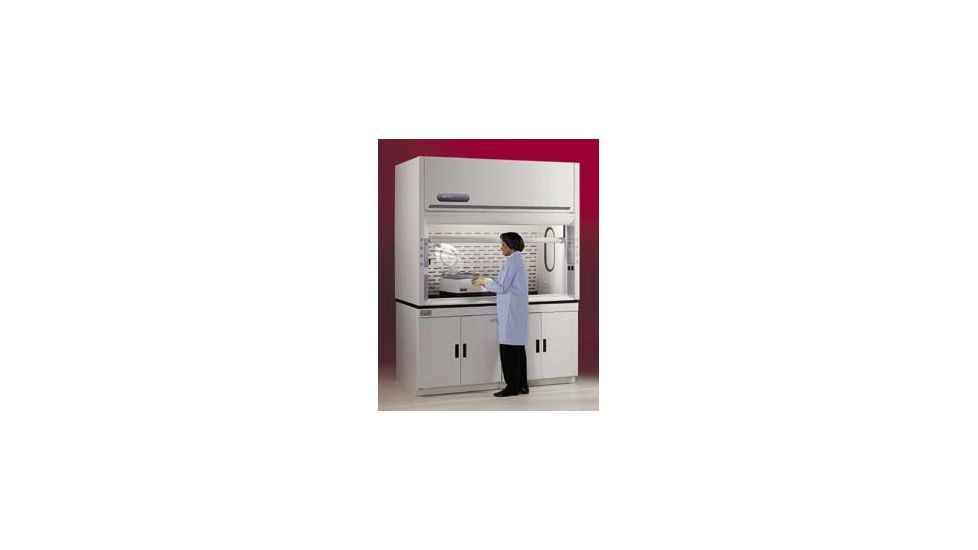

Specifications for Labconco Protector XStream Laboratory Hoods, Labconco 9840402 230V, 50Hz Models :

Exterior Dimensions,W x D x H, cm (in.):		121.9 x 99.6 x 149.9 (48 x 39.2 x 59)
Max. Static PressureLoss, in. H20*:		0.25 at 100 fpm (730 cfm)
ServiceFixtures:		0
ElectricalDuplexOutlet:		0
ShippingWeight, kg (lbs.):		181.4 (400)
Labconco No.:		9840402

(Please note that the description and stock photo may not correspond to the specific model listed above)

We offer only genuine Labconco products, authorized for sale in the U.S. and other markets, so you can be sure that you are buying authentic Laboratory Furniture and Biosafety Cabinets with a full manufacturer's warranty in addition to our own 100% Satisfaction Guarantee. We are your premier online distributor for Labconco Laboratory Furniture and Biosafety Cabinets. We are an authorized supplier to all federal and state government agencies, as well as to research and educational institutions, and can facilitate volume orders on many types of laboratory equipment, lab consumables, and other products to help fulfill your specific needs. We offer Free Shipping and FREE USPS shipping to APO and FPO addresses on all orders in our store over $29.95. Please refer to our APO/FPO Shipping and Export Restrictions for more information on export to APO/FPO addresses.

In addition to the Labconco Protector XStream Laboratory Hoods, Labconco 230V, 50Hz Models 9840402/ 82001-100, we carry a full complement of Laboratory Furniture and Biosafety Cabinets as well as other product offerings from Labconco. We also carry a full line of Labconco accessories to help meet your laboratory and scientific needs.

For a complete selection of Labconco Laboratory Furniture and Biosafety Cabinets, please visit our Labconco page. For more brand name Laboratory Furniture and Biosafety Cabinets please visit our Laboratory Furniture and Biosafety Cabinets store section. To see our complete line of lab, medical, industrial, and scientific products, please see our science and lab equipment online catalog.
